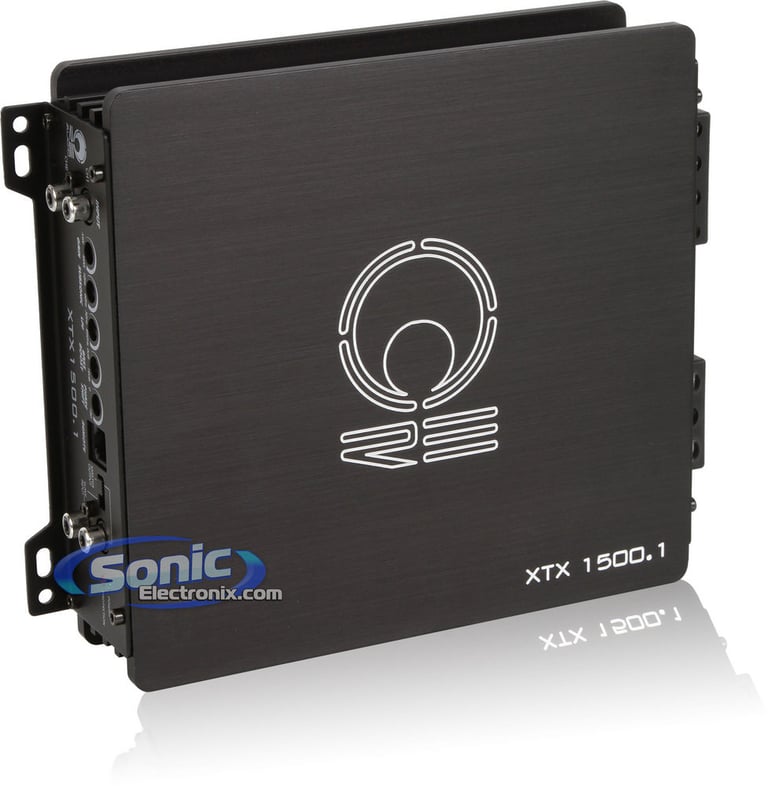

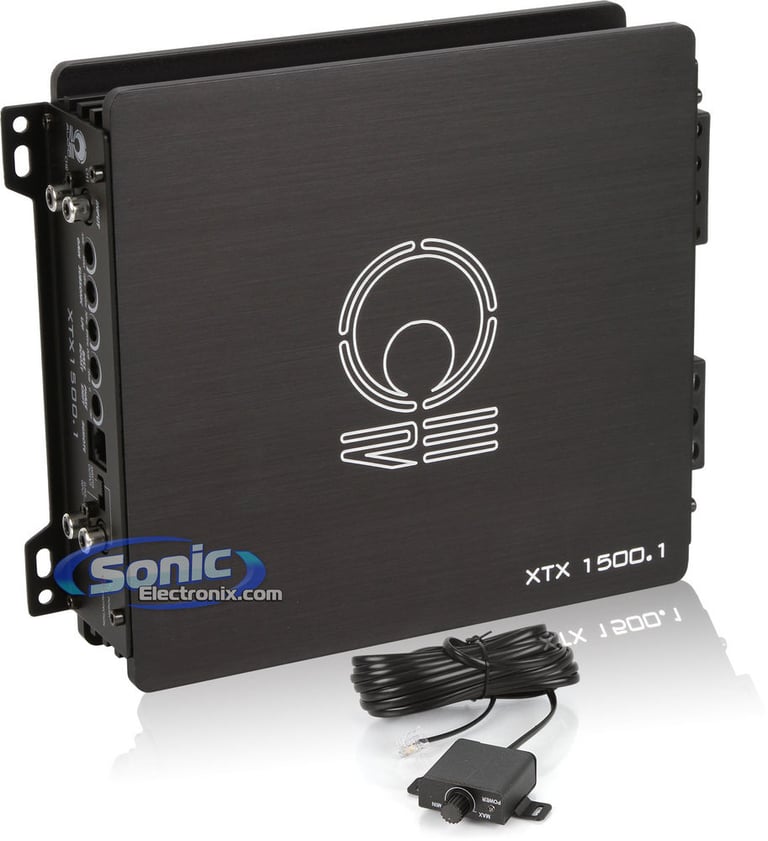

RE Audio XTX-1500.1 (XTX1500.1)

XTX Series Mini Monoblock Full Digital Class D Car Amplifier

RE Audio
Shop all RE Audio
Product videos
highlight-star-icon

• XTX Series Monoblock Full Digital Car Amplifier
• 2000W Dynamic
• 2-Way System Protection
• Brushed Aluminum Alloy Convection Cooled Heatsink
• Variable Low-Pass Filter
• Fixed Bass Boost

Learn more about the xtx15001

We apologize

This item has been discontinued


Loading...
82-8148 main

Metra 82-8148

6" to 6.75" Speaker Bracket for select 1998-2024 vehicles from Toyota, Subaru, Scion

35
-50.01%

$18.99

List price $37.99

VSP65KIT main

NVX VSP65KIT

750W Peak (250W RMS) 6.5" V-Series 2 Way Component Car Speakers

84
-15.39%

$109.99

List price $129.99

C1-650x main

JL Audio C1-650x

100W RMS 6.5" C1 Series 2 Way Coaxial 4-ohm Car Speakers

42
Limited time!
TS-G1620F main

Pioneer TS-G1620F

600W Peak (80W RMS) 6.5" G-Series 2-Way Coaxial 4-ohm Car Speakers

13
-26.15%

$48.00

List price $65.00

25D120NO-4 main

DS18 25D120NO-4

240W Peak (120W RMS) 2.5" OEM Dashboard Full-Range 4-ohm Loudspeakers

-16.71%

$89.95

List price $107.99

Stage1621 main

JBL Stage1 621 (STAGE1621)

350W Peak (70W RMS) 6.5" Stage1 Series 2 Way Coaxial 4-ohm Speakers

5
-50.05%

$49.95

List price $99.99

PRO-X8M main

DS18 PRO-X8M (Sold Individually)

550W Peak (275W RMS) 8” PRO-X Series 8-ohm Mid-Range Loudspeaker

Limited time!
R1T-S main

Rockford Fosgate PRIME R1T-S

160W Peak (80W RMS) 1" PRIME Series Mylar Balanced Dome Car Tweeters

34
-11.11%

$39.99

List price $44.99

Rockford Fosgate Punch P1 P1675-S

240W Peak (120W RMS) 6.75" Punch Series 2 Way Component 4-ohm Speakers

20

$159.99

JBL SHOCK WAVE 150W65 (JBLSPKSW150W65)

600W Peak (300W RMS) 6.5" Shock Wave Series 4-ohm Midrange Speakers

5
-7.70%

$119.95

List price $129.95

Product Highlights


• XTX Series Monoblock Full Digital Car Amplifier
• 2000W Dynamic
• 2-Way System Protection
• Brushed Aluminum Alloy Convection Cooled Heatsink
• Variable Low-Pass Filter
• Fixed Bass Boost

Description


RE Audio brand icon

Authorized dealer

RE Audio XTX Series Delivers Clean and Efficient Power

With the ability to power up a two REX12, a single SRX12D2, or even a single SEX12D2 make the XTX1500.1 a must for anyone that is just starting in the car audio industry. This amp will supply enough power to the moderate enthusiast as well as the guy who is looking for a little more.

The Digital age is here which means the Analog era is a thing of the past. We at Sonic Electronix are happy to be carrying RE Audio’s 2011 XTX Full Digital Series of amplifiers that are sure to meet any needs. The XTX series has multi-channel amplifiers available along with Monoblock amplifiers. All XTX series amplifiers feature a variable low-pass filter allowing you to better fine tune certain frequencies in your car audio system to get a sound that better suits you. The 2-way protection circuitry system well protect the amplifiers from any short circuit or thermal heat overload. This protection ensures the safety of your amplifier, devices, and vehicle at all times. All XTX series amplifiers feature a Pulse Width Modulated MOSFET power supply for increased efficiency and performance. RE Audio’s XTX series amplifiers all produce a clean stream of current while decreasing any distortion that is caused by cross frequencies or even from the engine of your car. If you are looking for a reliable, powerful and efficient amplifier, RE Audio’s XTX series amplifiers are the perfect choice for any installation and situation.

Product Features:
  • XTX Series Monoblock Full Digital Car Amplifier
  • RMS Power Rating (14.4V):
    • 4 ohm: 190 watts x 1 chan.
    • 2 ohm: 330 watts x 1 chan.
    • 1 ohm: 500 watts x 1 chan.
  • Dynamic power output: 2000 watts
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators

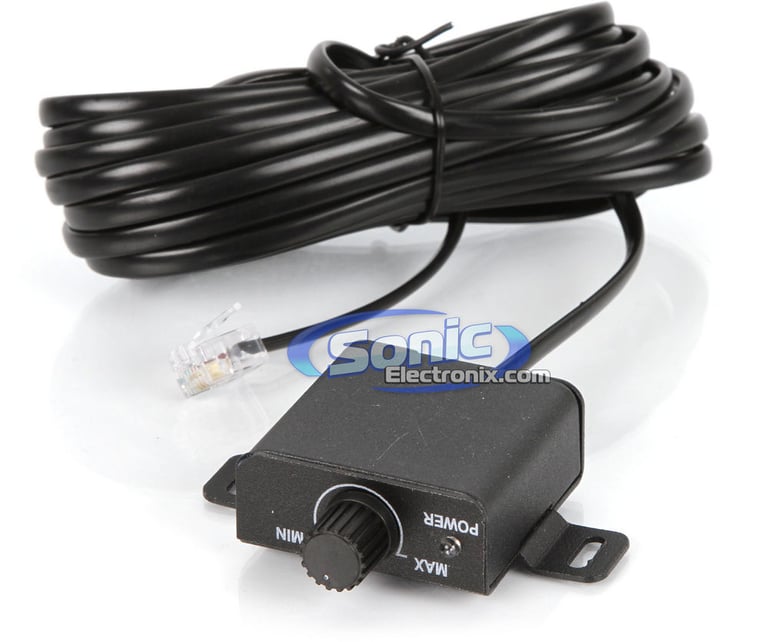

  • Wired remote included
  • Selectable bass boost (0-12 dB at 45 Hz)
  • Single channel operation
  • 2-Way System Protection circuitry (thermal and short circuit)
  • Heavy duty brushed aluminum alloy convection cooled heatsink for efficient heat dissipation
  • Nickel-plated RCA level inputs

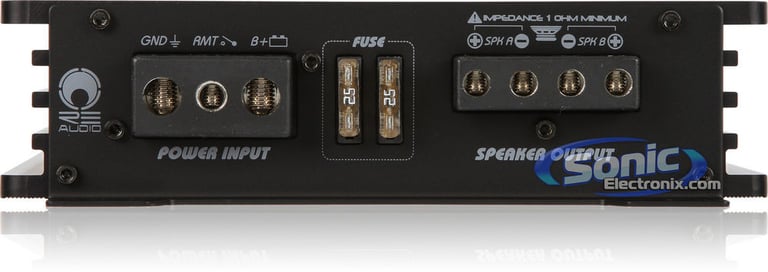

  • Nickel-plated 8-18AWG screw terminals

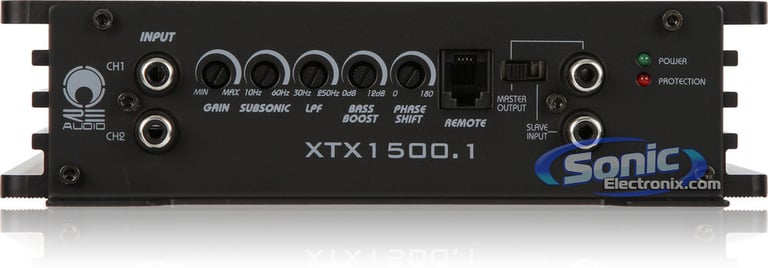

  • Input sensitivity:
    • Low level: 200mV-6V
  • Variable low-pass filter (30-250 Hz, 24 dB/octave, Butterworth)
  • Subsonic filter (10-60 Hz, 24 dB/octave)
  • Signal to noise ration: >90dB
  • Phase Shift Control: 0 - 180°
  • Frequency response: 10-350 Hz

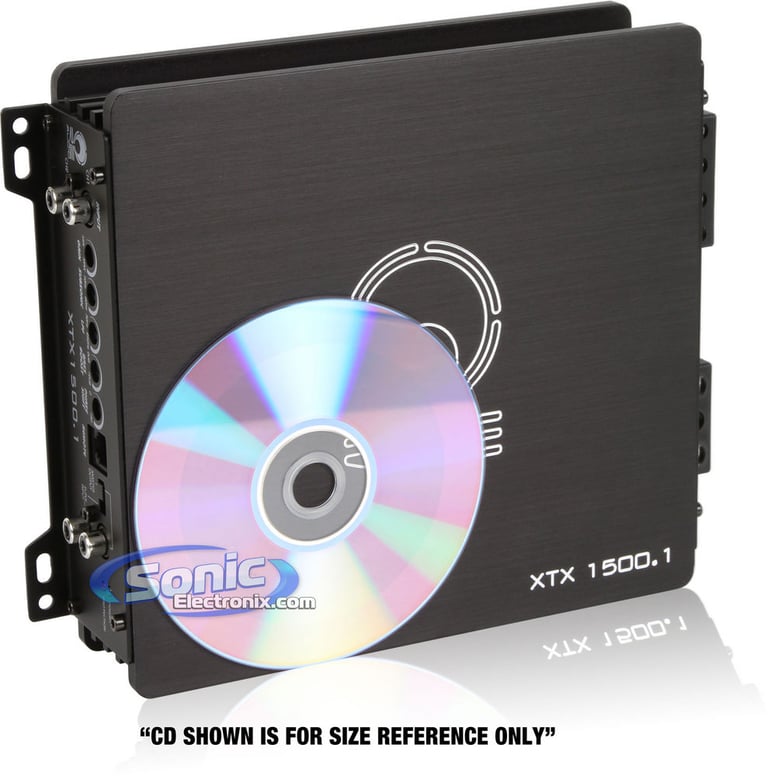

  • Dimensions: 5-15/16"L x 7-1/2"W x 1-15/16"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 620F main

JBL Club 620F (SPKCB620FAM)

330W Peak (110W RMS) 6.5" Club Series 2-way 3-ohm Shallow Mount Coaxial Car Speakers

2
-38.48%

$79.95

List price $129.95

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(22)

$429.99

List price $429.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(37)

$209.99

List price $227.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$399.99

List price $449.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
190 watts x 1 channel
RMS Power @ 2 ohms
330 watts x 1 channel
RMS Power @ 1 ohm
500 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
2000 watts
Total RMS Power Output
500 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
0.1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
30 - 250 Hz
Subsonic Filter
10 - 60 Hz
Signal-to-Noise Ratio
90 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Fuse Rating
25A x 2
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

XTX-1500.1

Weight:

6.11lbs

Internal SKU:

xtx15001

Internal Product ID:

35817
