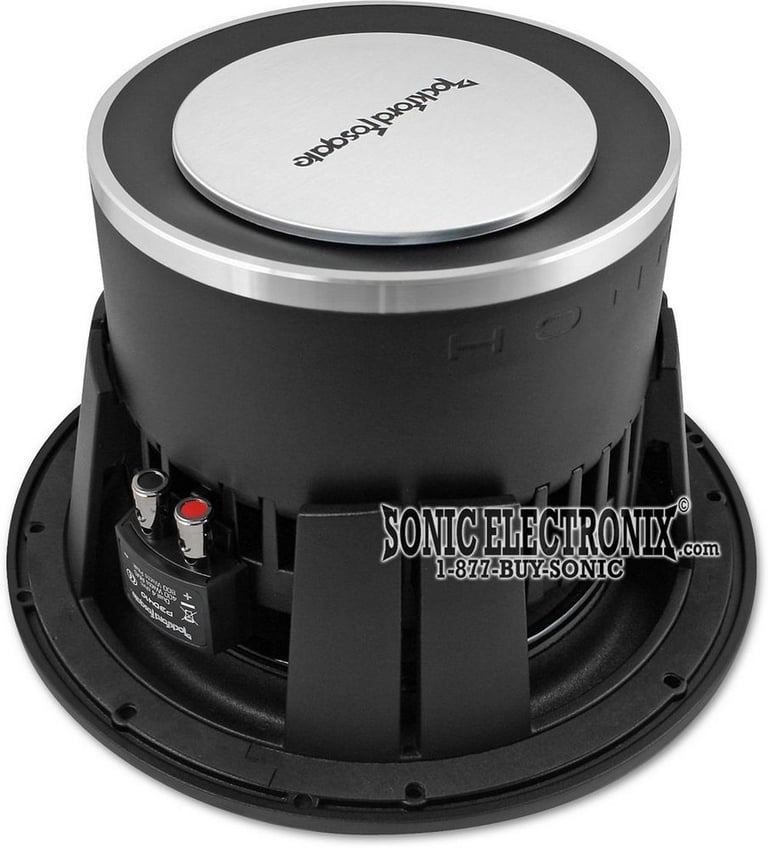

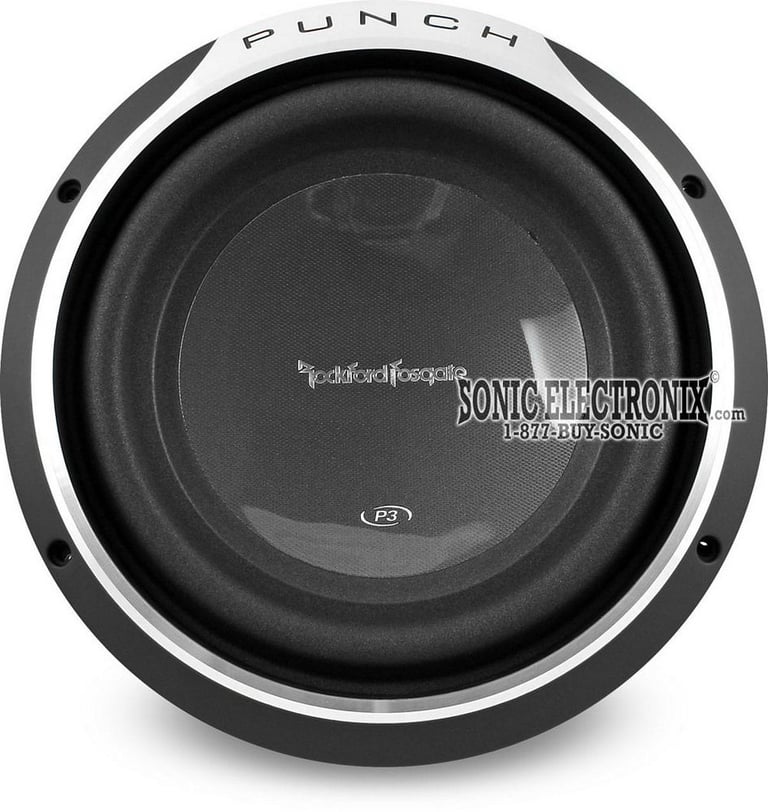

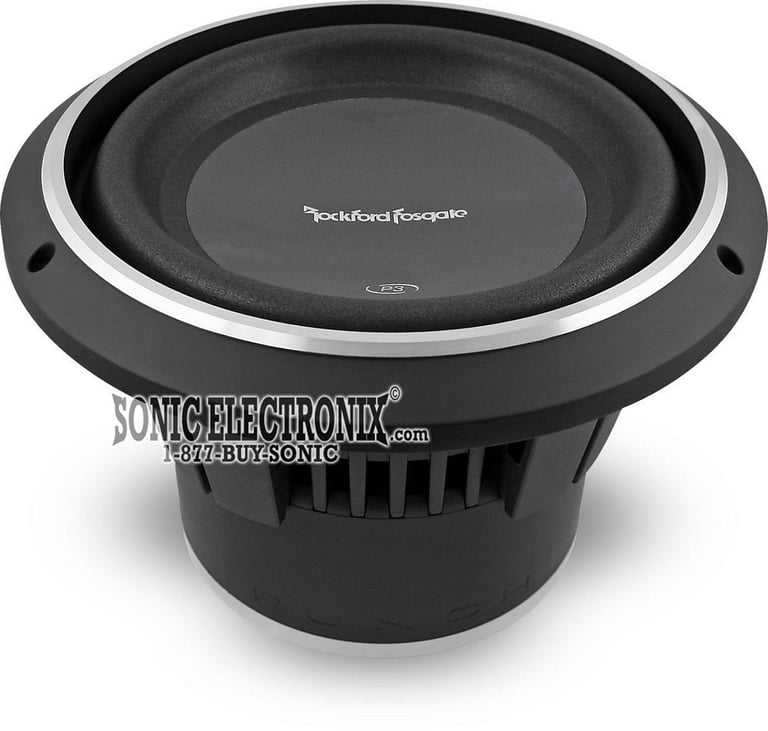

Rockford Fosgate Punch P3D210 (09P3D210)

10" Dual 2 ohm Punch Stage 3 Series Car Subwoofer

Product videos
highlight-star-icon

Power Handling: Peak: 800 watts / RMS: 400 watts • Venturi Effect cooling • 2" high-temp voice coil • Stitched-in tinsel leads • Frequency Response: 29-250 Hz

Learn more about the 09p3d210

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

p3d210 thumbnail

Rockford Fosgate Punch P3 P3D2-10

OUR PRICE: $219.99

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-5600 main

Metra 72-5600

Install New Speakers in select 1993-2017 vehicles from Ford, Mazda, Mercury

109
-33.36%

$9.99

List price $14.99

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28
MPR2110 main

Jensen MPR2110

Single DIN Digital Media Receiver with Bluetooth

13
H7653 main

Cerwin-Vega H7653

680W Peak (120W RMS) 6.5" HED Series 3-Way Coaxial 4-ohm Speakers

43
-16.67%

$79.99

List price $95.99

Limited time!
TS-G6820S main

Pioneer TS-G6820S

500W Peak (80W RMS) 6x8" G-Series 2-way 4-ohm Coaxial Car Speakers

4
-23.09%

$49.99

List price $65.00

JVC KD-X280BT

Single DIN Digital Media Receiver with Bluetooth

2
-15.50%

$109.00

List price $129.00

Pioneer TS-A6881F

700W Peak (160W RMS) 6x8" A-Series 4-way 4-ohm Coaxial Car Speakers

5
-40.01%

$65.99

List price $110.00

Product Highlights


Power Handling: Peak: 800 watts / RMS: 400 watts • Venturi Effect cooling • 2" high-temp voice coil • Stitched-in tinsel leads • Frequency Response: 29-250 Hz

Description


Rockford Fosgate brand icon

Authorized dealer

It's Called PUNCH For A Reason

The coldest blood runs through the veins of this Rockford Fosgate subwoofer. The 10" dual 4 ohm Punch Stage 3 subwoofer gives the cold shoulder to mercy when it comes to window rattling bass and clarity. The 2" dual voice coil receives its power from double stacked ferrite magnets throwing around 800 watts of peak power in your face. These energy thirsty Punch stage 3 subwoofers have a simple request; to receive lots of power. Their Kevlar fiber semi-pressed paper cones combine light weight with high strength to dramatically improve performance. Compressed sealed high excursion Poly-ether-ester makes up this woofers surround providing a strong yet elastic connection to the cone. To keep this beast cold blooded, Rockford Fosgate uses anodized aluminum voice coil formers to provide excellent heat dissipation. This punch woofer has stitched tinsel leads that withstand extreme duty cycles, fatigue and high current that is critical to its robust design. This 10" dual 4 ohm Punch Stage 3 subwoofer gives no mercy when it comes to performance, power handling, and construction quality. Just listen, and you will understand why its called a Punch!

General Features:
  • 10" Dual 2 ohm Punch Stage 3 Subwoofer
  • Power Handling:
    • Peak: 800 watts
    • RMS: 400 watts
  • Impedance: 2 ohm
  • Parabolic Triangular Geometry cone support system for reduced piston flex
  • Kevlar Fiber reinforced semi-pressed paper cone and ABS/Acrylic dustcap
  • Massive 57oz. magnet assembly increases excursion capability
  • Compliant linear spider eliminates need for break-in period
  • Precision cast from aluminum alloy basket to add rigidity
  • Venturi Effect cooling and vented spider cavity help cool the motor assembly
  • 2" high-temp voice coil with spun-laced Nomex® reinforcement collar
  • Reversible diamond cut cast aluminum trim ring
  • Protective PVC textured magnet cover
  • Tall Profile surround allows for 20% greater linear excursion than standard surrounds
  • Stitched-in tinsel leads lower resistance for improved reliability
  • Custom compression terminals accept up to 10 gauge wire
  • Extended pole piece and bumped backplate
  • Frequency Response: 29-250 Hz
  • 1-year SonicElectronix.com warranty

Product history:

Rockford Fosgate P3D2-10 thumbnail
(newest, current model)
Rockford Fosgate P3D210 thumbnail
(previous model, replaced by Rockford Fosgate Punch P3 P3D2-10)
Rockford Fosgate P310D2 thumbnail
(previous model, replaced by Rockford Fosgate Punch P3D210 (09P3D210))

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Rockford Fosgate Punch P3D210 (09P3D210) Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Rockford Fosgate Punch P3D210 (09P3D210) Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Rockford Fosgate Punch P3D210 (09P3D210) Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Rockford Fosgate Punch P3D210 (09P3D210) Subwoofers

2 Channel Amp

4 Channel Amp


Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

R2-W10D2 small

Alpine R2-W10D2

• Peak Power: 2250 watts
• RMS Power: 750 watts
• Impedance: Dual 2 ohm
• Kevlar Reinforced Pulp Paper Cone
• High-Amplitude Multi-Roll (HAMR) Surround
• Mount depth: 5.92"
• Sensitivity: 82.3 dB

(3)

$319.95

List price $480.00

Specifications & Details


Subwoofer Specifications
Series
Punch P3 Series
Subwoofer Size
10"
Peak Power Handling
800 watts
RMS Power Handling
400 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Frequency Response
29 - 250 Hz
Sensitivity
83 dB
Xmax (millimeters)
16.2 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Kevlar Fiber cone
Subwoofer Grille
Optional (Accessory required and sold separately)
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.50 cubic feet
Maximum Sealed Box Volume
0.75 cubic feet
Minimum Ported Box Volume
1.40 cubic feet
Maximum Ported Box Volume
1.40 cubic feet
Top-Mount Depth (Mounting Depth)
6-1/4"
Cutout Diameter
9"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

P3D210

Weight:

19.00lbs

Internal SKU:

09p3d210

Internal Product ID:

8954

Product and How-to Videos


  • 3Sixty3 Aftermarket Setup Wizard Tutorial
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews


Rockford Fosgate Punch P3D210 (09P3D210) thumbnail image

5 star
85%
4 star
15%
3 star
0%
2 star
0%
1 star
0%



Durability
4.6
Value
4.9
Features
4.9
Design
4.7
Usability
4.9

Customer Reviews

Sort by:

Loading...

Great subs

I had a pair of these with each running off a Fosgate Power 500bd in a sealed box built to specs and these dropped very low. They replaced a pair of Kicker L7 10 inch and I will say the L7 were louder, but these P3 12 inch had a much better and smoother sound quality and were definitely loud enough and hit lower frequencies than the L7 10 inch. I had to get rid of them due to trading for a vehicle that cannot accomodate them, so now I have the P3 shallow mounts and they don't even compare to the standard P3.

By Barry on January 11, 2012

26 found this helpful


the very best

Rockford Fosgate are strong subs. They handle a lot of power. Very durable and have incredible sound. If you build the right box and have the right amount of power you can achieve a very high decibel rating. I owned two P3 12 in subs with 2000 watts and hit 145db at a stereo competition. However, I only had them at half volume. I know I could have hit higher. In conclusion I would recommend these Subs to anyone beginner or expert.

By Twisted Audio on August 21, 2010

26 found this helpful


Nice sub

Got this sub six months ago cause my Alpine 10" sub rubber cone tore... I hook up the Rockford Fosgate to my 5 channel Hifionics 700.5 amp... The sub banged as much as the amp allowed. ]Not enough power so I work construction and been around different caulking.. Came across this caulking ( 795 Dow corning) I used it the seal up my Alpine sub, let it cure for a week and hooked it back up to my system and it work fine.. So I have the Rockford fosgate ready for my next system!! Great sub

By Www.RichNewTracks.coM on April 14, 2011

25 found this helpful


Awesome deal!!

Great product with a great price.

By Dave on March 8, 2011

25 found this helpful


Awesome P3 Sub

Been using the sub for about 6 months now. Have it hooked up to a Rockford 500w 1000w max amp. It pounds quite hard I must say. under 120.00 for a P3 is outstanding for the quality. The sub is lengthy so be sure your box will support it with at least a 1" of space

By Phil on October 8, 2010

25 found this helpful


Pretty Sweet Sub.

I got this thing hooked up 2 days ago and man does it hit hard. I have a ZX450.2 pushing it. It is not going to shake the car next to you but it will definitely shake whatever car it is in. Great sub. and can't beat this price.

By Lee on February 20, 2008

25 found this helpful


Awesome subwoofer

I owned one of these in a sloted ported box running off a JL slsh series amp and this thing was way better than i expected. was very crisp clean bass and had a real nice hit. would reccomend these to a friend any day of the week. Great price for a great subwoofer.

By Andrew on August 1, 2011

24 found this helpful


Rockford Fosgate Punch P3D210

Fantastic sub, bass is superb and very accurate.
This is one of the best subs in the market

By marcos on September 11, 2010

24 found this helpful


WOW

All i can say is WOW!!! Never imagined two 10's would hit such low bass notes. Broke the weld on my exhaust heat shield a week after install. Cant say anything bad about this sub, especially for the price. I am pushing almost there max rms to them and they sound great no distortion whatsoever.

By Tyler on March 4, 2010

24 found this helpful


Pure

A ten inch sub is the best reproduction of high and low bass you can get first of all, so if your looking for a clear quality pure sounding bass this is a perfect sub. I've had alpines, the p1 and the, p2, and i blew all of them out, and none of them had the same knock as the p3

By JJ on February 10, 2009

23 found this helpful




DNX6160 small

Kenwood DNX6160 (DNX-6160)

Double DIN 6.1" TFT-LCD Monitor with Built-in GPS Navigation and Bluetooth, DVD, CD, MP3, USB, iPod Car Receiver

(2)

$699.99

List price $1199.99

KNA-RCDV330 small

Kenwood KNA-RCDV330

Multimedia IR Remote with Navigation Functions for Select Kenwood Receivers

(2)

$32.99

List price $49.99

4104 small

Viper 4104 (P/N 4104V)

Remote Start System with Keyless Entry and Two 5-button Super Code Remotes

(3)

$79.99

List price $279.99

S91000.1D, 150egift small

Cerwin Vega S91000.1D + Free $150 Gift Card

Stroker Series 1000W RMS Class-D Monoblock Car Audio Amplifier

(3)

$549.99

List price $809.99

TSD68F_2 small

Pioneer TS-D68F (2-Pairs, 4-Total)

960W Peak (320W RMS) 6x8" D-Series 2-way Coaxial Car Speakers (2-Pairs)

(1)

$238.00

List price $440.00

C-MITS02 small

GROM Audio C-MITS02

OEM Harness to Connect GROM Aux, iPod or USB Interface to Factory Stereo for select 1997-2012 vehicles from Mitsubishi

$19.99

List price $19.99

KMR-440U small

Kenwood Marine KMR-440U

Marine CD, MP3, WMA Receiver with Front Panel USB Direct Connection for iPod and Front Aux-in

(2)

$169.99

List price $239.99

PROGM84PK_2 small

DS18 PRO-GM8.4PK (2-Pairs, 4-Total)

2320W Peak (760W RMS) 8” PRO-GM Series Midrange Component Speakers with Bullet Tweeters (2-Pairs)

$235.90

List price $235.90

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2003 Ford Taurus

2019 Mazda 3

1995 Mazda Protege

2018 Ford Flex

2022 Mazda 3

2016 BMW X5 M

1998 Mitsubishi Eclipse

2018 MINI Cooper

2010 Toyota Matrix

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
