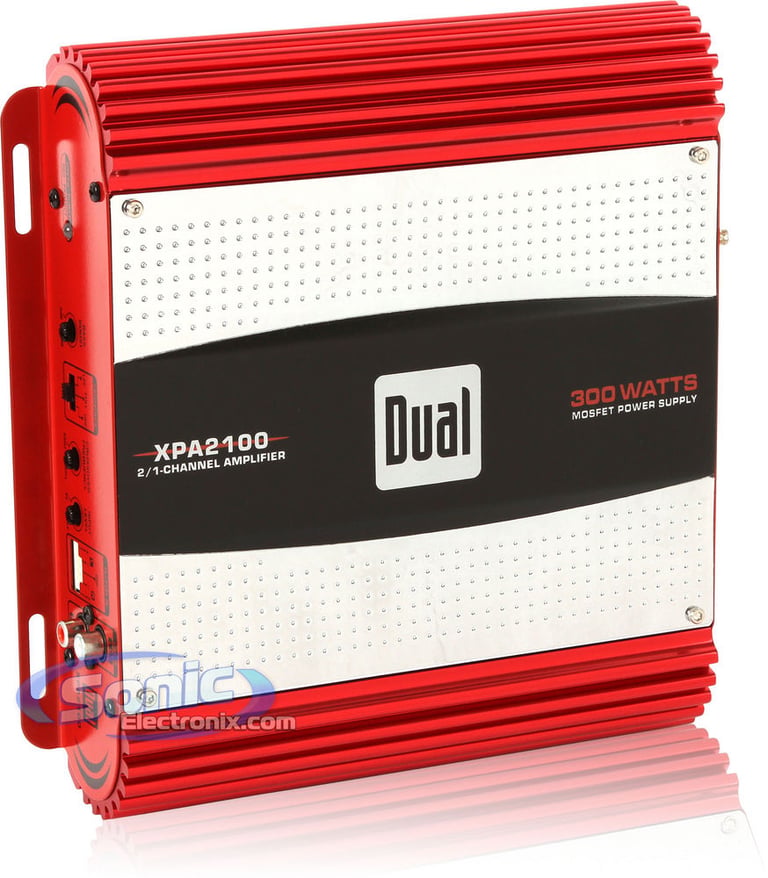

Dual XPA2100

300W Max 2-Channel / Monoblock Power Amplifier with MOSFET Power Supply

Dual
Shop all Dual
Product videos
highlight-star-icon

2-Channel/Monoblock Class AB Power Amplifier • Pulse Width Modulated MOSFET Power Supply • LED Indicators • 3-Way System Protection Circuitry • Extruded Aluminum Alloy Heatsink • CEA-2006 Compliant

Learn more about the xpa2100

We apologize

This item has been discontinued


Loading...
70-1771 main

Metra 70-1771

Install a New Car Stereo in select 1998-2011 vehicles from Ford, Mazda, Mercury

51
95-5817 main

Metra 95-5817 Dash Kit

Install a new Double-DIN car stereo in select 1995-2011 vehicles from Ford, Mercury, Mazda

44
-21.92%

$17.95

List price $22.99

FD1423B main

Scosche FD1423B / FD1423 Dash Kit

Install a new Single-DIN car stereo in select 1995-2011 vehicles from Ford, Mercury, Lincoln (Black)

25
-18.81%

$12.95

List price $15.95

ZS525CX main

Hifonics ZS525CX

400W Peak (60W RMS) 5.25” Zeus Series 2-way 4-ohm Coaxial Car Speakers

7
-31.05%

$19.99

List price $28.99

XED525C main

Cerwin-Vega XED525C

500W Peak (60W RMS) 5.25” XED Series 2-Way 4-ohm Component Speaker System

8
-16.67%

$59.99

List price $71.99

XED52 main

Cerwin-Vega XED52

550W Peak (60W RMS) 5.25" XED Series 2-Way Coaxial 4-ohm Speakers

7
-16.67%

$44.99

List price $53.99

CV62BM main

Cerwin-Vega CV62BM

6.2” Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth

4
-16.67%

$169.99

List price $203.99

Product Highlights


2-Channel/Monoblock Class AB Power Amplifier • Pulse Width Modulated MOSFET Power Supply • LED Indicators • 3-Way System Protection Circuitry • Extruded Aluminum Alloy Heatsink • CEA-2006 Compliant

Description


Dual brand icon

Authorized dealer

  • 2-Channel/Monoblock Class AB Power Amplifier
  • RMS Power Rating:
    • 4 ohm: 50 watts x 2 chan.
    • 2 ohm: 75 watts x 2 chan.
    • Bridged, 4 ohm: 150 watts x 1 chan.
  • Dynamic power output: 4 ohm: 300 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Bass Boost (0-12 dB @ 45 Hz)
  • 2 or Mono channel operation

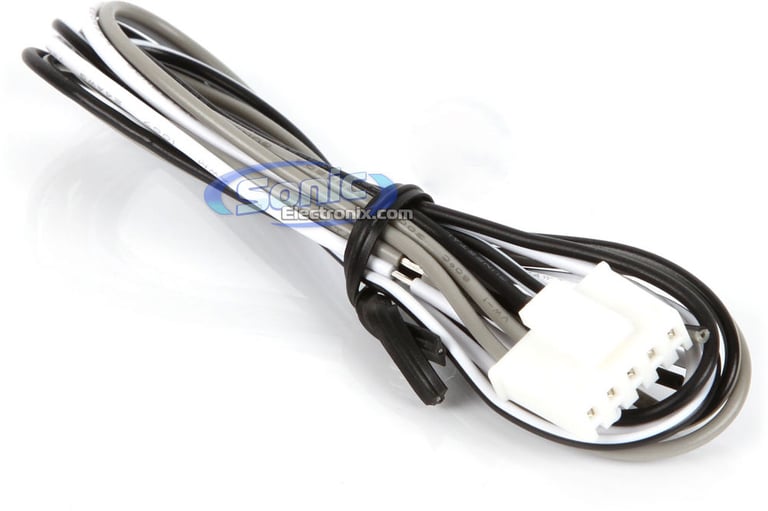

  • Speaker-level (high-level) inputs with signal sensing for automatic turn-on
  • 3-Way System Protection circuitry (thermal overload, reverse polarity and speaker short protection)

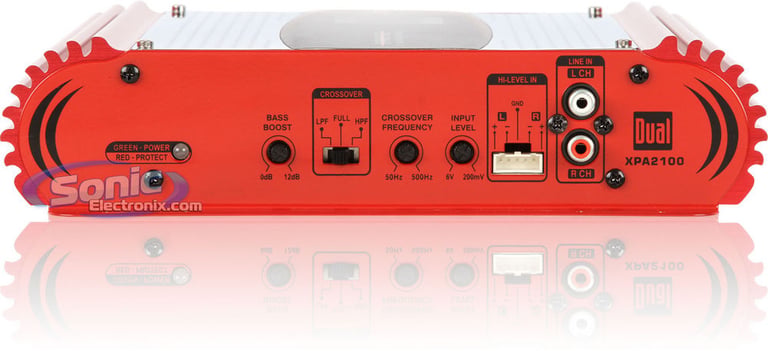

  • Side mounted controls for easy adjustments
  • Heavy duty extruded aluminum alloy heatsink for extreme heat dissipation
  • Chrome-plated barrier strip RCA level inputs

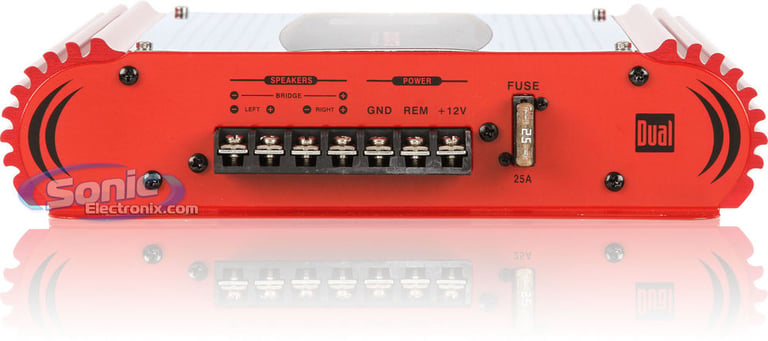

  • Chrome-plated screw terminals
  • Variable high-pass filter (50-500 Hz, 12 dB/octave)
  • Variable low-pass filter (50-500 Hz, 12 dB/octave)
  • Signal-to-Noise Ratio: 75 dB
  • Maximum Input Signal: 6V
  • Minimum Input Signal: 200mV
  • Frequency Response: 20-20,000 Hz
  • Fuse Rating: 25 amp ATO
  • Power Supply: 11-16 VDC negative
  • CEA-2006 compliant amplifier
  • Dimensions: 9-3/16"D x 8-15/16"W x 2-1/8"H
  • 8-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
50 watts x 2 channel
RMS Power @ 2 ohms
75 watts x 2 channel
Bridged RMS Power
150 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Total Peak Power Output
300 watts
Total RMS Power Output
150 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
<1%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 500 Hz
Low-Pass Crossover Frequency
50 - 500 Hz
Signal-to-Noise Ratio
75 dB
Channel Separation
Not specified by manufacturer
Bass Boost
0 - 12 dB
Remote bass/level controller
No
Fuse Rating
25A x 1
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

XPA2100

Weight:

5.00lbs

Internal SKU:

xpa2100

Internal Product ID:

35904
