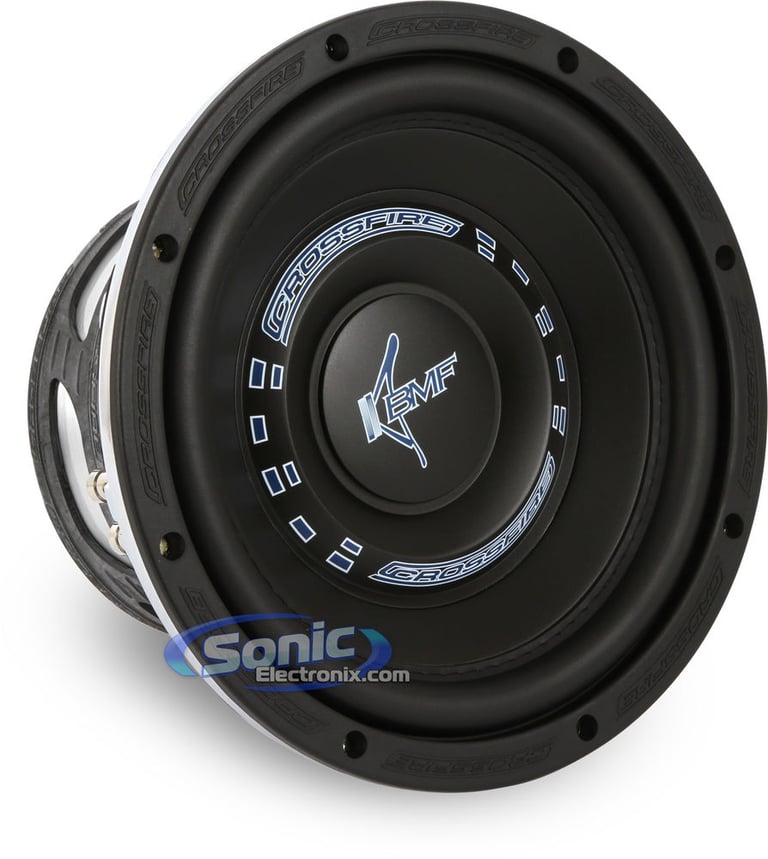

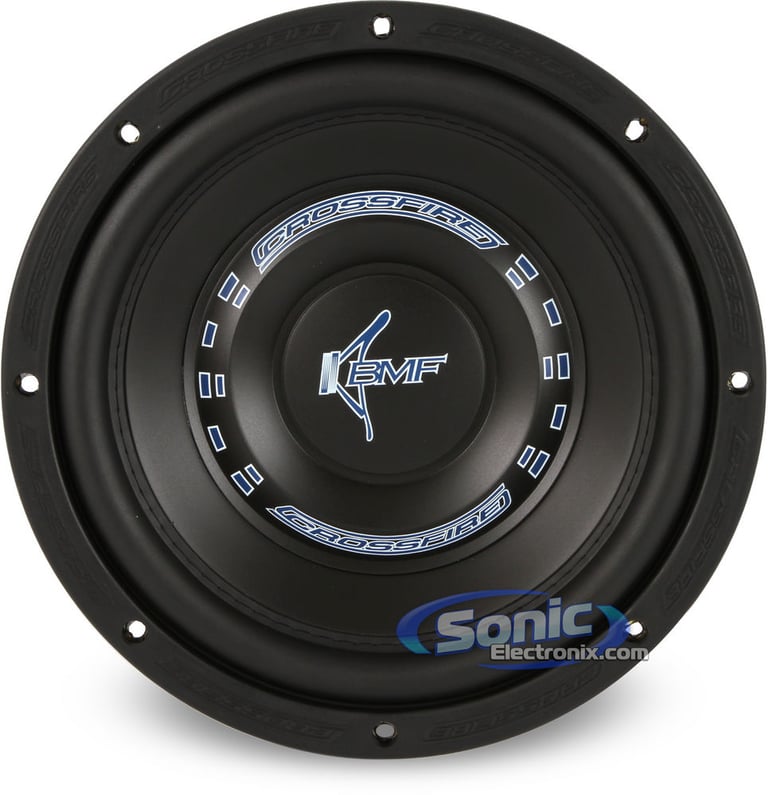

Crossfire BMF1028

10" Dual 4 ohm BMF Series Car Subwoofer

Crossfire
Shop all Crossfire
Product videos
highlight-star-icon

10" Dual 4 Ohm BMF Series Car Subwoofer • 800W Max • 400W RMS • Co-polymer Cone Material • Stitched Rubber Surround • Flexible Impedance Technology • Chrome Cast Aluminum Frame • Dual Stacked 85 oz Magnet Structure

Learn more about the bmf1028

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-5600 main

Metra 72-5600

Install New Speakers in select 1993-2017 vehicles from Ford, Mazda, Mercury

109
-33.36%

$9.99

List price $14.99

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28
MPR2110 main

Jensen MPR2110

Single DIN Digital Media Receiver with Bluetooth

13
H7653 main

Cerwin-Vega H7653

680W Peak (120W RMS) 6.5" HED Series 3-Way Coaxial 4-ohm Speakers

43
-16.67%

$79.99

List price $95.99

Limited time!
TS-G6820S main

Pioneer TS-G6820S

500W Peak (80W RMS) 6x8" G-Series 2-way 4-ohm Coaxial Car Speakers

4
-23.09%

$49.99

List price $65.00

JVC KD-X280BT

Single DIN Digital Media Receiver with Bluetooth

2
-15.50%

$109.00

List price $129.00

Pioneer TS-A6881F

700W Peak (160W RMS) 6x8" A-Series 4-way 4-ohm Coaxial Car Speakers

5
-40.01%

$65.99

List price $110.00

Product Highlights


10" Dual 4 Ohm BMF Series Car Subwoofer • 800W Max • 400W RMS • Co-polymer Cone Material • Stitched Rubber Surround • Flexible Impedance Technology • Chrome Cast Aluminum Frame • Dual Stacked 85 oz Magnet Structure

Description


Premium Bass with Crossfire

Sonic Electronix is excited to introduce the BMF Subwoofer Series from Crossfire. Available in 10" 12" and 15" models, these subwoofers feature a co-polymer cone and stitched rubber surround, increasing the rigidity and optimum performance of the subwoofers. Ranging from 400-600 watts RMS, the subwoofers will produce deep,clean hitting bass in any vehicle. The "FIT" dual voice coil impedance selector will allow for instant series or parallel voice-coil configuration when wiring dual voice coils. This will allow quick and easy wiring installation when dealing with either the dual 2 or dual 4 ohm versions. Spring loaded compression input terminals will create a secure and reliable connection each and every single time. Designed to work in either sealed or ported enclosures, perfect for those seeking sound quality or sound pressure level. These high-end, high-quality BMF series subwoofers function like a premium subwoofer at an affordable price. >

  • 10" Dual 4 Ohm BMF Series Car Subwoofer
  • Power Handling:
    • Peak: 800 watts
    • RMS: 400 watts
  • Impedance: 4 Ohm

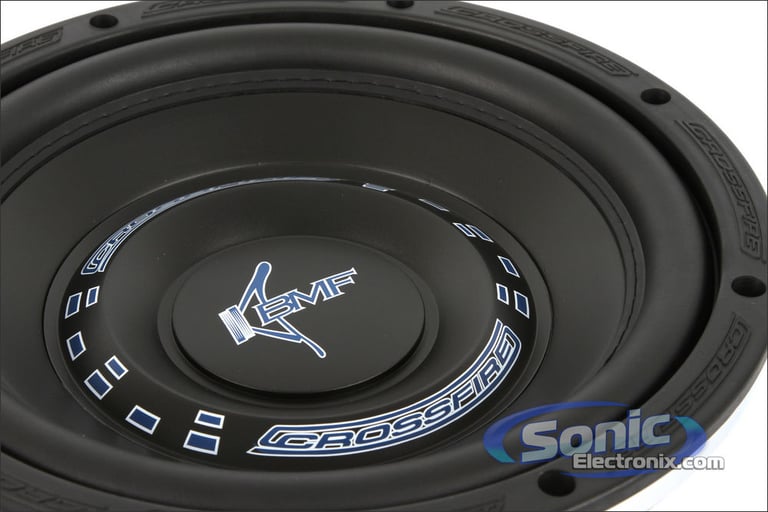

  • Co-polymer cone material
  • Stitched rubber surround

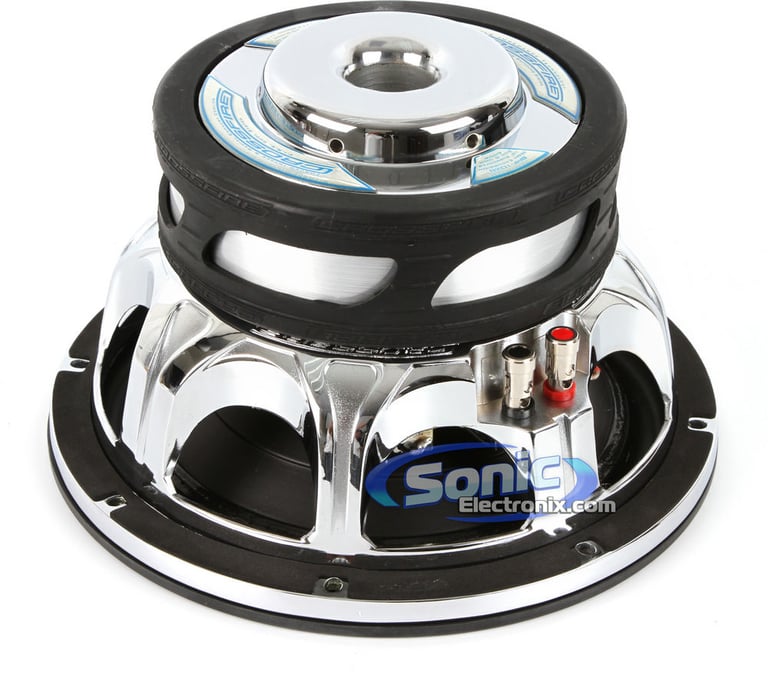

  • Proprietary chrome aluminum cast frame
  • Flexible Impedance Technology (FIT)

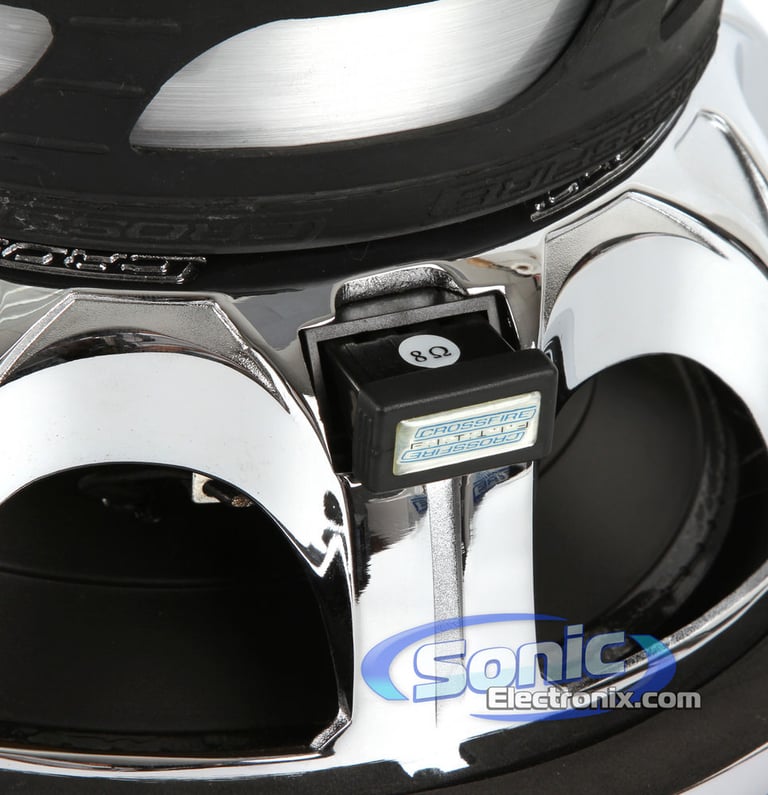

  • Dual Voice Coil (DVC) impedance selector

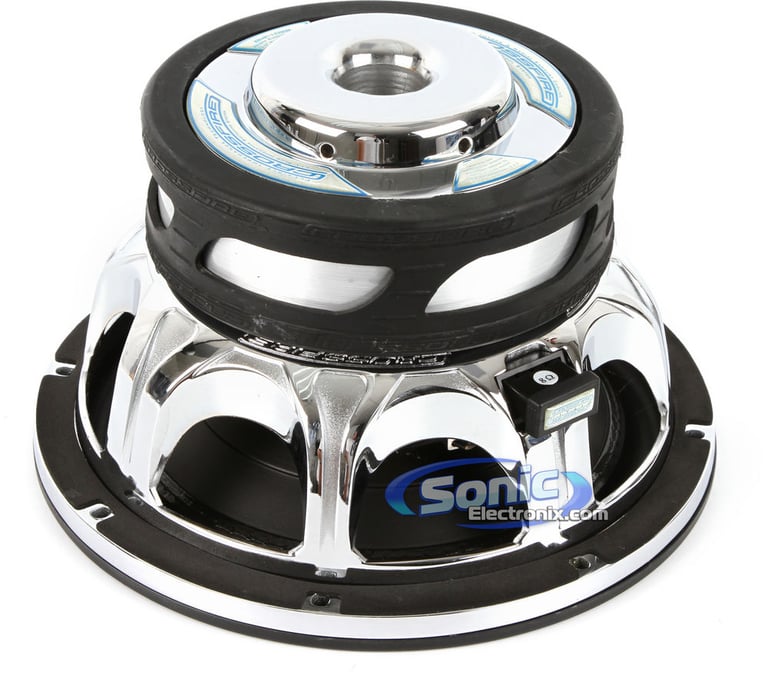

  • Chromed signature etched back plate
  • Chrome plated extended/vented back plate

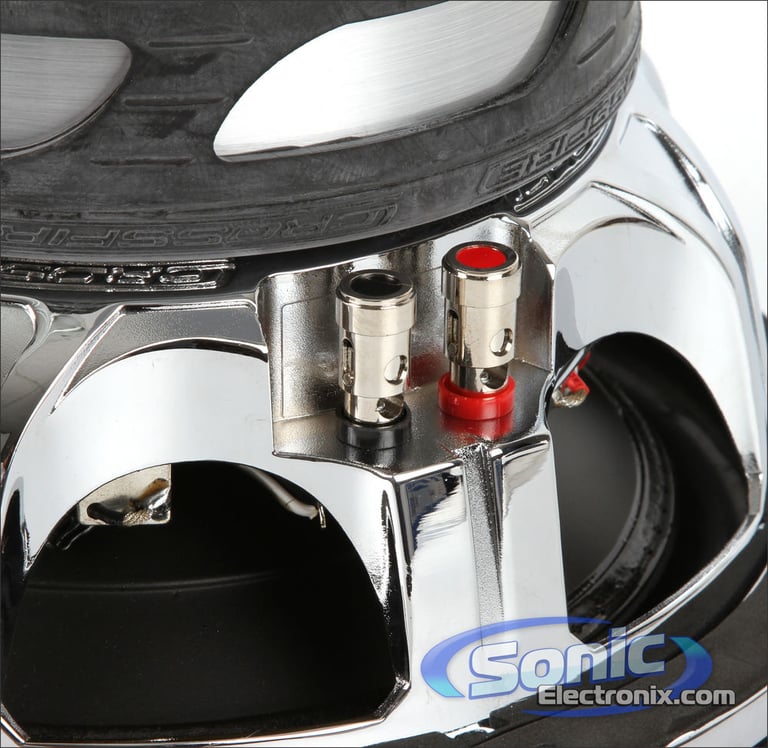

  • Compression nickel-plated sprig loaded input terminals
  • Designed for both vented and sealed enclosures
  • 2-1/2" 4 Layer Dual 4 Ohm Kapton voice coil
  • Dual 85 oz. ceramic stacked magnet structure
  • Frequency response: 20-250 Hz
  • Sensitivity: 83.4 dB
  • Xmax: 14mmm
  • Mounting depth: 5-7/8"
  • Cutout dimensions: 9-1/2"
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Crossfire BMF1028 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Crossfire BMF1028 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Crossfire BMF1028 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Crossfire BMF1028 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

R2-W10D2 small

Alpine R2-W10D2

• Peak Power: 2250 watts
• RMS Power: 750 watts
• Impedance: Dual 2 ohm
• Kevlar Reinforced Pulp Paper Cone
• High-Amplitude Multi-Roll (HAMR) Surround
• Mount depth: 5.92"
• Sensitivity: 82.3 dB

(3)

$319.95

List price $480.00

Specifications & Details


Subwoofer Specifications
Series
BMF Series
Subwoofer Size
10"
Peak Power Handling
800 watts
RMS Power Handling
400 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
20 - 250 Hz
Sensitivity
83.4 dB
Xmax (millimeters)
14 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Copolymer
Woofer Surround
Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Bandpass
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.45 cubic feet
Maximum Sealed Box Volume
1.20 cubic feet
Minimum Ported Box Volume
0.95 cubic feet
Maximum Ported Box Volume
1.90 cubic feet
Top-Mount Depth (Mounting Depth)
5-7/8"
Cutout Diameter
9-1/2"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

BMF1028

Weight:

18.50lbs

Internal SKU:

bmf1028

Internal Product ID:

36225
