*LAST CALL!* Alpine MRD-M1005

Class D Monoblock Amplifier

Alpine
Shop all Alpine
Product videos
highlight-star-icon

1,000 watts RMS x 1 at 2 ohms • Bass Engine® with low-pass filter, subsonic filter, and parametric EQ, • Amp Link • preamp outputs

Learn more about the mrdm1005

We apologize

This item has been discontinued

Product Highlights


1,000 watts RMS x 1 at 2 ohms • Bass Engine® with low-pass filter, subsonic filter, and parametric EQ, • Amp Link • preamp outputs

Description


Alpine brand icon

Authorized dealer

  • Class D mono subwoofer car amplifier
  • RMS Power Rating:
    • 500 watts x 1 chan. at 4 ohms
    • 1000 watts x 1 chan. at 2 ohms

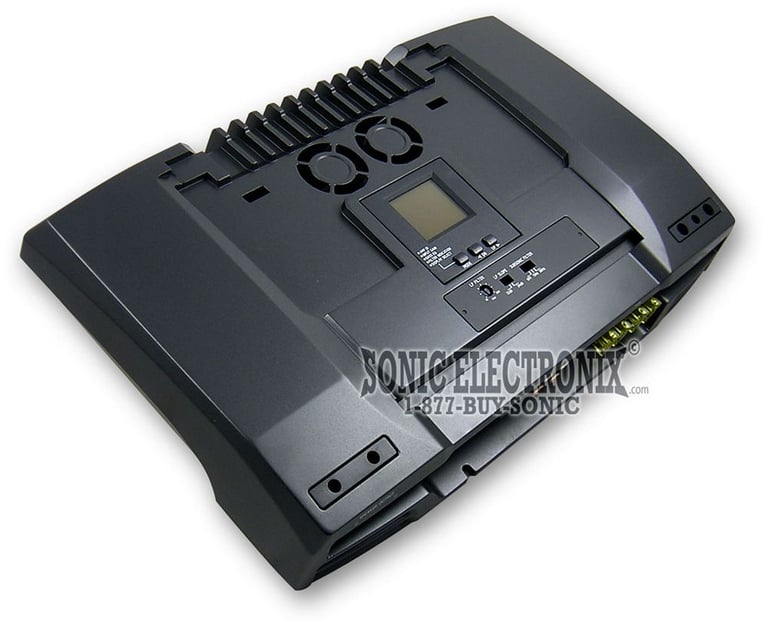

  • Internal, variable-speed cooling fan
  • Amp Link for single-cable hookup to compatible Alpine receivers
  • STAR Topology for cleaner sound
  • Bass Engine® features:
    • Low-pass digital filter, 30-200 Hz, with a selectable 12 or 24 dB/octave slope
    • Selectable subsonic filter (off, 15Hz, or 30 Hz)
    • Parametric EQ variable from 30-160 Hz, ±12 dB
    • Bass Compensator enhances low-end definition

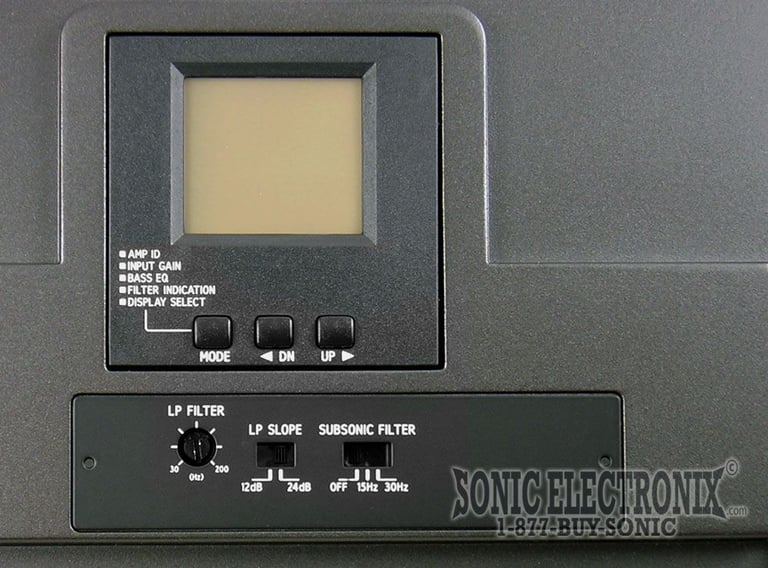

  • Top-mounted digital control center with cover
  • CEA-2006 Compliant
  • MOSFET power supply and output stages
  • Preamp outputs
  • Time correction 0-10 milliseconds in 0.1ms steps
  • Phase adjustment 0-180°
  • Turn-on delay

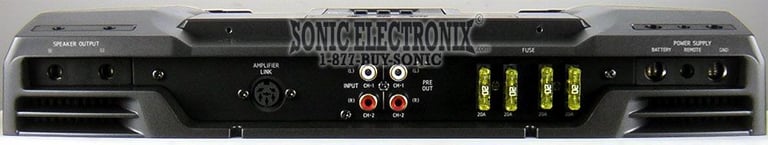

  • 4-gauge power and ground leads
  • Extra-large terminals
  • Dimensions: 13" L x 8-11/16" W x 2-5/16" H
  • 90 days Sonic Electronix repair warranty

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
500 watts x 1 channel
RMS Power @ 2 ohms
1000 watts x 1 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
Not Bridgeable
Amplifier Specifications
Number of Channels
1 - Mono
Total RMS Power Output
1000 watts
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
Not Bridgeable
Preamp Outputs
1 pair
Low-Pass Crossover Frequency
30 - 200 Hz
Fuse Rating
20A x 4
Warranty and Return Policy

Item Details


Manufacturer:

Model Number:

MRD-M1005

Weight:

14.00lbs

Internal SKU:

mrdm1005

Internal Product ID:

3732

Product and How-to Videos


Customer Ratings & Reviews



5 star
86%
4 star
14%
3 star
0%
2 star
0%
1 star
0%



Durability
4.6
Value
4.7
Features
5
Design
4.5
Usability
5

Customer Reviews

Sort by:

Loading...

ozzy34

I got this amp pushing two 12" type R's and it just bangs! Its got a sweet design and is extremeley durable. i definately recommend this amp.

By barry on February 26, 2007

11

found this helpful.

sweet

I bought 2 of these crazy amps. One to power each of my 12" Type X subwoofers.

I love the blue output, and the fact that you can tweak so much, all digitaly. They are some crazy amps, and really push my subs. My only complaint is that Alpine didn't make a more powerful amp for their Type X subs. You won't find these amps cheaper anywhere else. HIGHLY RECOMMENDED!!!

By Matthew on December 5, 2005

10

found this helpful.

nice amp

I have one of these pushing 2 pioneer premier 12's and it makes them pound people stop to stare at me when I have it turned up. This thing is small but mighty I like it soooo much im going to get to more of the same subs and another one of these amp for my 1999 stratus even though i'll probaly blow my back window out

By blake on February 9, 2006

9

found this helpful.

Looks clean

I saw this up at my local Alpine authorized dealer... definetly looks clean.. and its realitvely small and compact compared to the m1001. i would recommend it, setting it up looks easy.

By Brett on March 16, 2005

9

found this helpful.

AWESOME AMP!!!

I've got this amp pushing 2 kicker l5's and it just pounds. Anytime I drive through a parking lot with it turned up I set off a couple different car alarms. This is a great buy, it never heats up, it's small, and if you have an Alpine head unit with Amp-Link you can monitor voltage, heat, cooling status, and adjust your gain right from the head unit. It's an awesome amp.

By Nickolas on October 1, 2005

11

found this helpful.

AWESOME AMP

This amp is great for high SPL subs that need a lot of power. This amp produces the RMS power like notthing and never over heats. Great amp, great price.

By Sam on September 16, 2005

9

found this helpful.

Great Amp!

This is a really strong amp. The LCD is also a nice little feature. I broke mine because i took a sharp turn and my sub hit the amp.
my warranty was out of date, so alpine charged 70 dollars to repair it.
Great amp though.

By ryan on July 13, 2007

6

found this helpful.
