Clarion XR2420

360W 4-Channel XR Series Class AB Car Amplifier

Clarion
Shop all Clarion
Product videos
highlight-star-icon

• 60W x 4-Chan. @ 4 ohm
• 480W Max
• MOSFET power supply

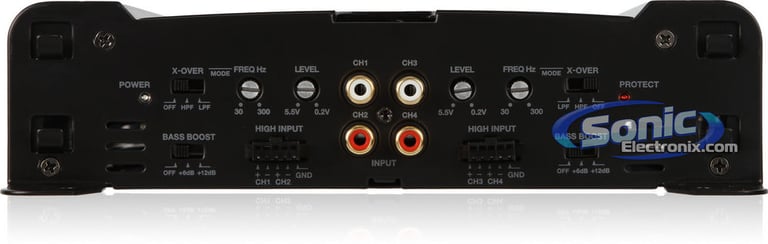

• Line and Speaker-Level Inputs
• Gold-Plated RCA and Speaker Level Inputs
• Variable High/Low Pass Filter

Learn more about the xr2420

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
CR1291B main

Scosche CR1291B (CR1291) Dash Kit

Install a new Double-DIN car stereo in select 2007-2019 vehicles from Dodge, Jeep, Chrysler (Black)

71
-23.17%

$9.95

List price $12.95

72-7902 main

Metra 72-7902

Install New Speakers in select 1990-2024 vehicles from Ram, Dodge, Jeep

20
-28.59%

$9.99

List price $13.99

AD-EU1 main

Raptor AD-EU1 Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 2000-2018 vehicles from BMW, Mercedes-Benz, Ford

3
-23.09%

$9.99

List price $12.99

70-6522 main

Metra 70-6522 Wiring Harness

Install a new car stereo in select 2007-2018 vehicles from Dodge, Jeep, Chrysler

37
-10.35%

$25.99

List price $28.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

SXE-1726S main

Alpine SXE-1726S

440W Peak (80W RMS) 6.5" SXE Series 2-way 4-ohm Coaxial Car Speakers

13
-21.82%

$42.99

List price $54.99

KDC-BT382U main

Kenwood KDC-BT382U

Single DIN CD Receiver with Bluetooth and Built-in Alexa (SiriusXM Ready)

13
-10.50%

$179.00

List price $200.00

43DSC69304 main

Kicker DSC6930 (43DSC69304)

720W Peak (180W RMS) 6x9” DS Series 3-way 4-ohm Coaxial Car Speakers with Integrated Midrange

33
-14.29%

$119.99

List price $139.99

Product Highlights


• 60W x 4-Chan. @ 4 ohm
• 480W Max
• MOSFET power supply
• Line and Speaker-Level Inputs
• Gold-Plated RCA and Speaker Level Inputs
• Variable High/Low Pass Filter

Description


Clarion brand icon

Authorized dealer

General Features

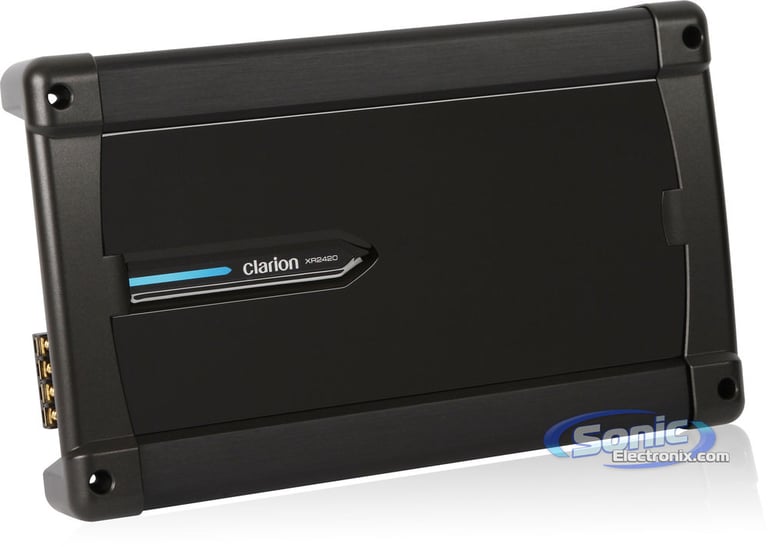

  • XR Series 4-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 60 watts x 4 chan.
    • 2 ohm: 90 watts x 4 chan.
    • Bridged, 4 ohm: 180 watts x 2 chan.
  • Max power output: 480 watts
  • MOSFET power supply
  • Power and protection LED indicators
  • Selectable bass boost: 0/6/12 dB @ 50Hz
  • 4/3/2 channel operation
  • Line and speaker-level inputs
  • Heavy duty black anodized aluminum
  • Gold-plated RCA level inputs

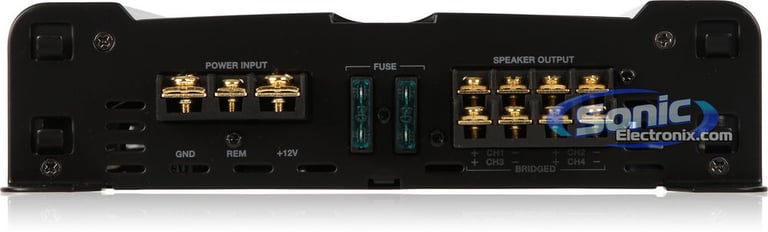

  • Gold-plated screw terminals
  • Variable high-pass filter (30-300 Hz, 12 dB/octave)
  • Variable low-pass filter (30-300 Hz, 12 dB/octave)
  • CEA-2006 compliant amplifier
  • Dimensions: 14"L x 8-1/2"W x 2-1/4"H

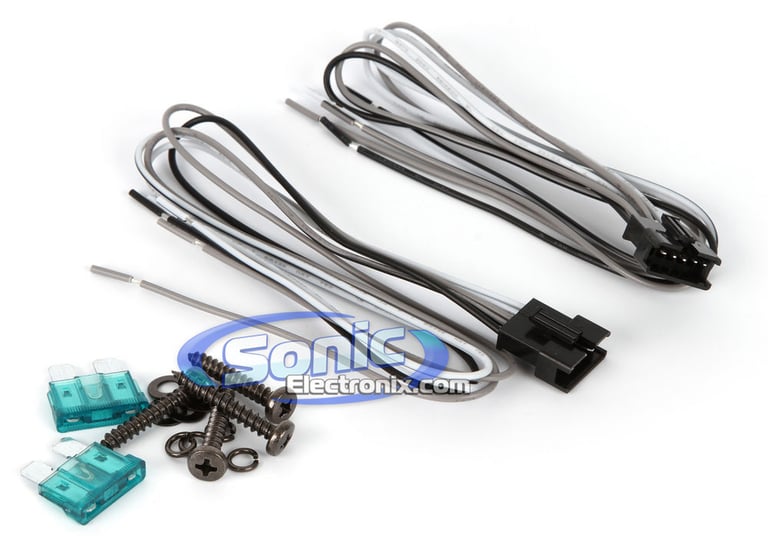

  • 8-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 1-year Sonic Electronix Warranty

Product history:

Clarion XR2420 thumbnail
(newest, current model)
Clarion XR2410 thumbnail
(previous model, replaced by Clarion XR2420)

Loading...
82-6901,DB6502 main

Polk Audio DB6502 DB+ 6.5" 600 Watt Car Speakers with Free 6" x 9" Adapters

600W Peak (200W RMS) 6.5" DB+ Series 2-way Component Speakers with 6" x 9" Speaker Adapters

47
-9.13%

$211.72

List price $232.98

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(25)

$279.99

List price $335.99

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$304.99

List price $379.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

MDX2000.4 2 Ohm small

PRV Audio MDX2000.4 2 Ohm

• 330 watts x 4 channel @ 4 ohm
• 500 watts x 4 channel @ 2 ohm
• Bridged: 1000 watts x 2 channel @ 4 ohm
• Total RMS Power: 2000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$219.91

List price $274.89

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
60 watts x 4 channel
RMS Power @ 2 ohms
90 watts x 4 channel
Bridged RMS Power
180 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
480 watts
Total RMS Power Output
360 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
.01%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
30 - 300 Hz
Low-Pass Crossover Frequency
30 - 300 Hz
Signal-to-Noise Ratio
75 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
No
Fuse Rating
30A x 2
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

XR2420

Weight:

9.50lbs

Internal SKU:

xr2420

Internal Product ID:

43542
