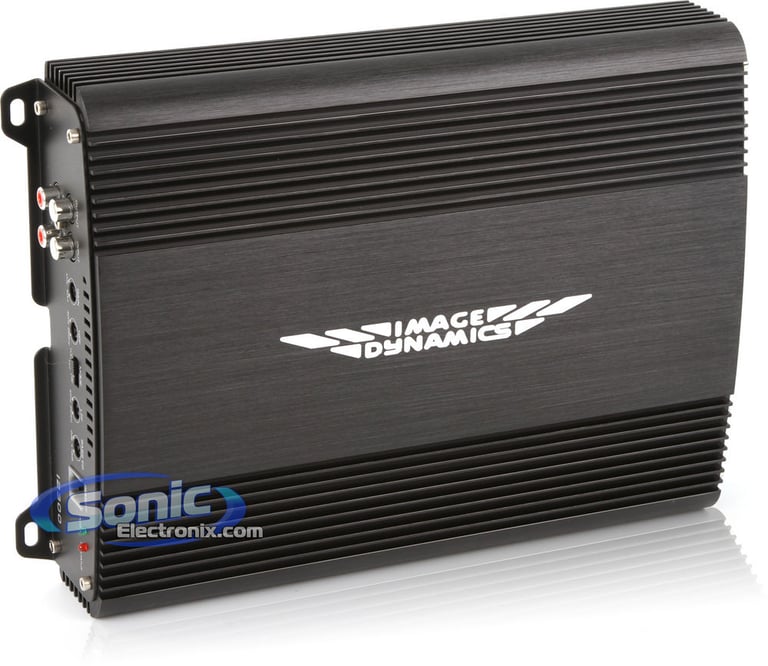

Image Dynamics i2300

250W RMS Bridgeable 2-Channel Class A/B i Series High Fidelity Car Amplifier

Image Dynamics
Shop all Image Dynamics
Product videos
highlight-star-icon

• RMS: 75W x 2 @ 4 ohm, 125W x 2 @ 2 ohm
• 250W RMS x 1 Channel @ 4 Ohm Bridged
• Pulse Width Modulated MOSFET Power Supply
• LED Status Indicator
• Fully Adjustable Bass EQ
• 3-Way System Protection
• Low Level Line Inputs
• Aluminum Finned Heatsink

Learn more about the i2300

We apologize

This item has been discontinued


Loading...
72-8104 main

Metra 72-8104

Install New Speakers in select 1990-2024 vehicles from Toyota, Subaru, Mitsubishi

87
-20.01%

$11.99

List price $14.99

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28
DEH-S4220BT main

Pioneer DEH-S4220BT

Single DIN CD Receiver with Bluetooth and Amazon Alexa

9
-11.77%

$149.99

List price $170.00

Lowest price in 30 days
H7694 main

Cerwin Vega H7694

800W Peak (150W RMS) 6x9" HED Series 4-Way Coaxial 4-ohm Speakers

32
-25.93%

$79.99

List price $107.99

Limited time!
46CSC54 main

Kicker CSC5 (46CSC54)

450W Peak (150W RMS) 5.25” CS Series 2 Way Coaxial 4-ohm Speakers

5
-33.36%

$79.96

List price $119.99

JVC KD-T925BTS

Single DIN CD Multimedia Receiver with Bluetooth and Built-in Alexa (SiriusXM Ready)

2
-9.13%

$199.00

List price $219.00

JBL GX9638 (JBLGX9638AM)

600W Peak (200W RMS) 6x9" GX Series 3 Way Coaxial 2.3-ohm Speakers with Dual Tweeters

16
-10.01%

$89.95

List price $99.95

Product Highlights


• RMS: 75W x 2 @ 4 ohm, 125W x 2 @ 2 ohm
• 250W RMS x 1 Channel @ 4 Ohm Bridged
• Pulse Width Modulated MOSFET Power Supply
• LED Status Indicator
• Fully Adjustable Bass EQ
• 3-Way System Protection
• Low Level Line Inputs
• Aluminum Finned Heatsink

Description


Image Dynamics brand icon

Authorized dealer

Affordable and Reliable I Series Amplifiers

Image Dyanimics' I series amplifiers are perfect for those looking to get a great performing amplifier that they can trust time and time again. The i2300 is a 2-channel amplifier that is rated at 75W RMS x 2 chan. @ 4 ohms, 125W RMS x 2 chan. @ 2ohms, and 250W RMS x 1 chan. @ 4ohms bridged. With that kind of power this amplifier will power up those brand new after market speakers or even a single subwoofer at the bridged impedance. The amplifier features a heavy duty aluminum alloy heatsink for extreme heat dissipation and a 3-way protection system along with a soft star feature for ultimate protection. Low and high-pass filters and adjustable bass boost will give you complete control of fine tuning your audio system for the best sound possible. Low and high level inputs make this amplifier suitable for any vehicle and any application.

General Features:

  • 2-Channel Class AB i Series Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 75 watts x 2 chan.
    • 2 ohm: 125 watts x 2 chan.
    • Bridged, 4 ohm: 250 watts x 1 chan.
  • CEA Power Rating @ 14.4V:
    • 2 ohm: 150 watts x 2 chan.
  • Pulse Width Modulated MOSFET power supply
  • LED status indicator
  • Fully adjustable bass EQ (0-18 dB @ 40 Hz)
  • Soft delay remote turn on/off circuit to eliminate pops and clicks
  • 2/1 Channel operation
  • Low level line inputs and outputs
  • 3-Way System Protection circuitry (thermal, DC, and speaker short protection)
  • Remote bass level sold separately
  • Heavy duty aluminum finned heatsink for extreme heat dissipation
  • Silver-plated RCA level inputs
  • Silver-plated screw terminals
  • Input sensitivity: 0.5V-4.0V
  • Variable High-Pass Filter (40-250 Hz)
  • Variable Low-Pass Filter (40-250 Hz)
  • Crossover Slope: 12 dB
  • Damping Factor: >150
  • THD (Total Harmonic Distortion): 0.5%
  • Frequency Response: 20-22,000 Hz
  • Signal-to-Noise Ratio: >94 dB
  • Fuse Rating: 2 x 25 amp
  • Dimensions: 13-3/4"L x 8"W x 2-1/4"H
  • 8-gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99


Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
75 watts x 2 channel
RMS Power @ 2 ohms
125 watts x 2 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
250 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Total RMS Power Output
250 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.5%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
40 - 250 Hz
Low-Pass Crossover Frequency
40 - 250 Hz
Signal-to-Noise Ratio
94 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fuse Rating
2A x 25
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

I2300

Weight:

8.00lbs

Internal SKU:

i2300

Internal Product ID:

37929
