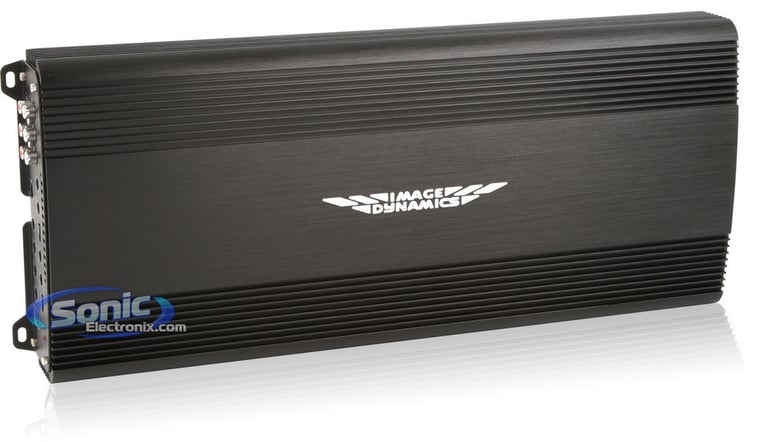

Image Dynamics i5800

760W RMS 5-Channel Class AB i Series Car Amplifier

Image Dynamics
Shop all Image Dynamics
Product videos
highlight-star-icon

• Full-Range RMS: 65W x 4 @ 4 ohm, 90W x 4 @ 2 ohm
• Subwoofer RMS: 250W x 1 @ 4 ohm, 400W x 1 @ 2 ohm
• CEA-2006 Compliant
• Heavy Duty Aluminum Finned Heatsink
• Low Level Line Inputs
• Dimensions: 18-1/2"L x 8"W x 2-1/4"H

Learn more about the i5800

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

Limited time!
KFC-1666S main

Kenwood KFC-1666S

600W Peak (60W RMS) 6.5" Sport Series 2 Way Coaxial 4-ohm Car Speakers

51
-38.75%

$49.00

List price $80.00

Alpine SXE-1726S

440W Peak (80W RMS) 6.5" SXE Series 2-way 4-ohm Coaxial Car Speakers

13
-21.82%

$42.99

List price $54.99

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

Product Highlights


• Full-Range RMS: 65W x 4 @ 4 ohm, 90W x 4 @ 2 ohm
• Subwoofer RMS: 250W x 1 @ 4 ohm, 400W x 1 @ 2 ohm
• CEA-2006 Compliant
• Heavy Duty Aluminum Finned Heatsink
• Low Level Line Inputs
• Dimensions: 18-1/2"L x 8"W x 2-1/4"H

Description


Image Dynamics brand icon

Authorized dealer

Affordable and Reliable I Series Amplifiers

Image Dyanimics' I series amplifiers are perfect for those looking to get a great performing amplifier that they can trust time and time again. The i5800 is a 5-channel amplifier that is rated at 75W RMS x 4 chan. @ 4 ohms, 115W RMS x 4 chan. @ 2ohms, and 230W RMS x 2 chan. @ 4ohms bridged. With that kind of power this amplifier will power up those brand new after market speakers and subwoofers for a complete car audio installation. The 5/4/3/2 and mono channel operation abilities of the this amplifier make it extremely versatile and adaptable for any application. The amplifier features a heavy duty aluminum alloy heatsink for extreme heat dissipation and a 3-way protection system along with a soft star feature for ultimate protection. Low and high-pass filters and adjustable bass boost will give you complete control of fine tuning your audio system for the best sound possible. Low and high level inputs make this amplifier suitable for any vehicle and any application.

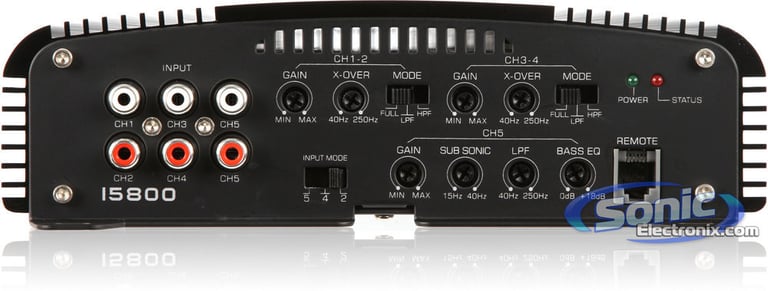

General Features:

  • 5-Channel Class AB i Series Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 65 watts x 4 chan. + 250 x 1 chan.
    • 2 ohm: 90 watts x 4 chan. + 400 x 1 chan.
    • Bridged, 4 ohm: 180 watts x 2 chan. + 400 x 1 chan. @ 2 ohm
  • CEA Power Rating @ 14.4V:
    • 2 ohm: 100 watts x 4 chan. + 425 x 1 chan.
  • Pulse Width Modulated MOSFET power supply
  • LED status indicator
  • Fully adjustable bass EQ (0-18 dB @ 40 Hz)
  • Soft delay remote turn on/off circuit to eliminate pops and clicks
  • 5/4/3/2/1 Channel operation
  • Low level line inputs and outputs
  • 3-Way System Protection circuitry (thermal, DC, and speaker short protection)
  • Remote bass level sold separately
  • Heavy duty aluminum finned heatsink for extreme heat dissipation
  • Silver-plated RCA level inputs
  • Silver-plated screw terminals
  • Input sensitivity: 0.5V-4.0V
  • Variable High-Pass Filter (40-250 Hz)
  • Variable Low-Pass Filter (40-250 Hz)
  • Crossover Slope: 12 dB
  • Damping Factor: >150
  • THD (Total Harmonic Distortion): 0.5%
  • Frequency Response: 20-22,000 Hz
  • Signal-to-Noise Ratio: >94 dB

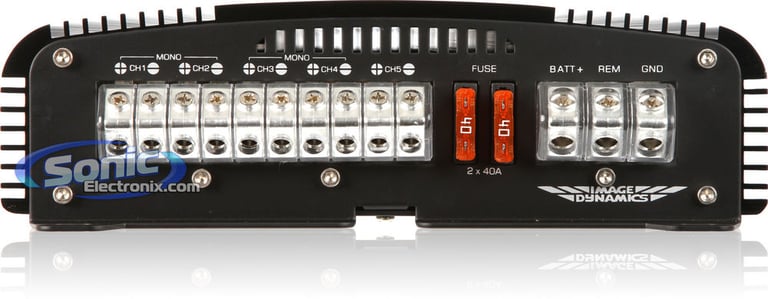

  • Fuse Rating: 2 x 40 amp
  • Dimensions: 18-1/2"L x 8"W x 2-1/4"H
  • 4-gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99


Best selling similar products

VAD11005v2 small

NVX VAD11005 v2 (VAD11005v2)

• 80 watts x 4 channel + 350 watts x 1 channel @ 4 ohm
• 125 watts x 4 channel + 600 watts x 1 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm + 600 watts x 1 channel @ 2 ohm
• Total RMS Power: 1100 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(46)

$349.99

List price $419.99

VAD22008v2 small

NVX VAD22008 v2 (VAD22008v2)

• 150 watts x 6 channel + 250 watts x 2 channels @ 4 ohm
• 225 watts x 6 channel + 400 watts x 2 channels @ 2 ohm
• Bridged: 450 watts x 3 channel + 850 watts x 1 channel @ 4 ohm
• Total RMS Power: 2200 watts
• Class D 2 ohm Stable 8-Channel Amplifier

(2)

$399.99

List price $539.99

NDA11005 small

NVX NDA11005

• 100 watts x 4 channel + 315 watts x 1 channel @ 4 ohm
• 150 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 1100 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(9)

$259.99

List price $323.99

MVPA6 small

NVX MVPA6

• 100 watts x 6 channel @ 4 ohm
• 150 watts x 6 channel @ 2 ohm
• Bridged: 300 watts x 3 channel @ 4 ohm
• Total RMS Power: 900 watts
• Class D 2 ohm Stable 6-Channel Amplifier

(7)

$319.99

List price $383.99

HDP-D90 small

Alpine Status HDP-D90

• 50 watts x 8 channel + 80 watts x 4 channel @ 4 ohm
• Total RMS Power: 720 watts
• Class D 4 ohm Stable 12-Channel Digital Sound Processor Amplifier
• High-resolution (Hi-Res) audio playback
• Selectable pre-configured sound system configurations
• Embedded RTA signals for customized sound tuning
• Bluetooth audio streaming with included external module

(1)

$1999.95

List price $3480.00

LC-5.1300 small

AudioControl LC-5.1300

• 100 watts x 4 channel + 300 watts x 1 channel @ 4 ohm
• 200 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• Bridged: 400 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 1300 watts
• Class D 2 ohm Stable 5-Channel Amplifier

(2)

$660.00

List price $1369.00

EPICFIVE small

AudioControl EPICFIVE

• 75 watts x 4 channel + 300 watts x 1 channel @ 4 ohm
• 150 watts x 4 channel + 500 watts x 1 channel @ 2 ohm
• 700 watts x 1 channel @ 1 ohm (subwoofer output)
• Bridged: 400 watts x 2 channel @ 4 ohm
• Total RMS Power: 1100 watts
• Class D 1 ohm Stable 5-Channel Amplifier

(2)

$259.00

List price $259.00

MICRO85U small

Diamond Audio MICRO85U

• + @ 4 ohm
• 85 watts x 1 channel + 375 watts x 1 channel @ 2 ohm
• Bridged: 200 watts x 1 channel @ 4 ohm + 375 watts x 1 channel @ 2 ohm
• Total RMS Power: 1035 watts
• Class D 2 ohm Stable 5-Channel-Channel Amplifier

$659.99

List price $719.99

46CXA6605t small

Kicker CXA660.5T (46CXA6605T)

• 65 watts x 4 channel + 150 watts x 1 channel @ 4 ohm
• 90 watts x 4 channel + 300 watts x 1 channel @ 2 ohm
• Bridged: 180 watts x 2 channel @ 4 ohm + 300 watts x 1 channel @ 2 ohm
• Total RMS Power: 660 watts
• Class A/B 2 ohm Stable 5-Channel Amplifier

$449.99

List price $479.99

XQA16005 small

NVX XQA16005

• 125 watts x 4 channel + 300W x1 @ 4 ohm
• 200 watts x 4 channel + 500W x 1 @ 2 ohm
• Bridged: 400 watts x 2 channel @ 4 ohm + 800W @ 1 ohm
• Total RMS Power: 1600 watts
• Class D 1 ohm Stable 5-Channel Amplifier

(2)

$449.99

List price $719.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
65 watts x 4 channel
RMS Power @ 2 ohms
90 watts x 4 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
180 watts x 2 channel
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
250 watts x 1 channel
RMS Power @ 2 ohms
400 watts x 1 channel
RMS Power @ 1 ohm
Not Stable
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
5-Channel
Total RMS Power Output
760 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
2 ohms
THD at Rated RMS Power
0.05%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
40 - 250 Hz
Low-Pass Crossover Frequency
40 - 250 Hz
Signal-to-Noise Ratio
94 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fuse Rating
40A x 2
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

I5800

Weight:

15.00lbs

Internal SKU:

i5800

Internal Product ID:

37931
