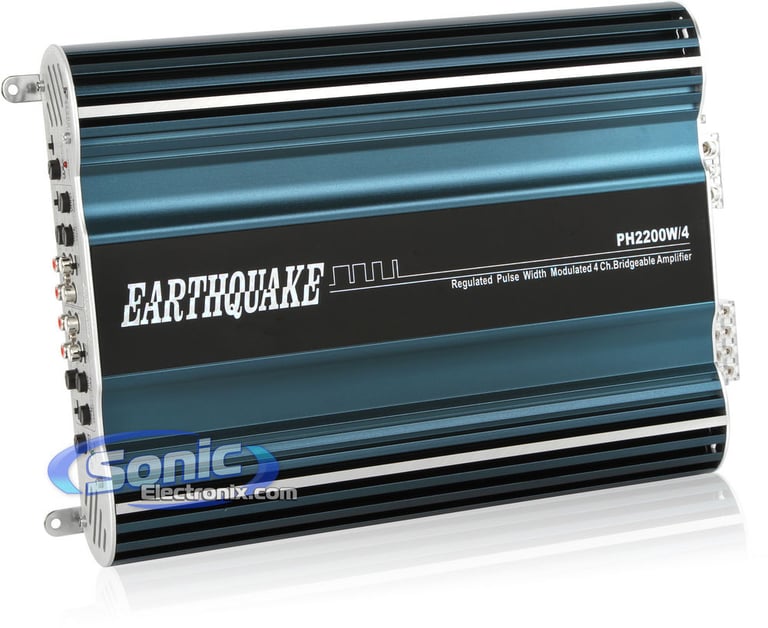

Earthquake Sound PH2200W/4

2200W 4-Channel Class A/B Power House Series Car Amplifier

Product videos
highlight-star-icon

• 125W x 4-Chan. @ 4 ohm
• 250W x 2 Chan. @ 4 ohm
• 500W x 2 Chan. @ 4 ohm Bridged
• Preamp RCA Outputs
• Low-Level RCA Inputs
• Variable Low-Pass Filter
• 2-Way System Protection

Learn more about the ph2200w4

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

55
RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

US2-C65A-175 main

SSV Works US2-C65A-175

120W Peak (60W RMS) Cage Mount Speaker Pods with 1.75" Clamp

US2-C65A-200 main

SSV Works US2-C65A-200

120W Peak (60W RMS) Cage Mount Speaker Pods with 2" Clamp

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

220-US2-C65U-150 main

SSV Works US2-C8U-150

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

220-US2-C65U-200 main

SSV Works US2-C8U-200

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

220-US2-C65A-150 main

SSV Works US2-C65A-150

Loaded 8" Cage-Mount Speaker-Pods Enclosure with SSV Works Speakers

Product Highlights


• 125W x 4-Chan. @ 4 ohm
• 250W x 2 Chan. @ 4 ohm
• 500W x 2 Chan. @ 4 ohm Bridged
• Preamp RCA Outputs
• Low-Level RCA Inputs
• Variable Low-Pass Filter
• 2-Way System Protection

Description


Earthquake Sound brand icon

Authorized dealer

  • Power House Series 4-Channel Class A/B Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 125 watts x 4 chan.
    • 2 ohm: 250 watts x 4 chan.
    • Bridged, 4 ohm: 500 watts x 2 chan.
  • Max power output: 2000 watts
  • MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Bass Boost/EQ:
    • +18dB @ 45 Hz for low-pass mode application
    • +12dB @ 12,000 Hz for high-pass mode applications
  • Soft Start Turn-on
  • Signal Sensor with Remote On/Auto On feature
  • 2/1 channel operation
  • Built-in variable crossover-VARIXR
  • 3-Way switch creates a low-pass,full-range, or high-pass signal for the RCA outputs
  • Preamp RCA outputs to daisy chain multiple amps
  • 2-Way System Protection circuitry
  • Heavy duty aluminum alloy heatsink
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Input sensitivity:
    • Low level: 0.2V-5V
    • High level: 0.7V-10V
  • Variable high-pass filter (20-5,000 Hz)
  • Variable low-pass filter (20-5,000 Hz)
  • Damping factor: >800
  • Dimensions: 8-1/2"L x 10-1/8"W x 2-3/8"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 5-year Manufacturer's warranty

Best selling similar products

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(22)

$159.99

List price $215.99

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(111)

$209.99

List price $239.99

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(44)

$304.99

List price $379.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
125 watts x 4 channel
RMS Power @ 2 ohms
250 watts x 4 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
500 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
2000 watts
Total RMS Power Output
1000 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.016%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
20 - 5,000 Hz
Low-Pass Crossover Frequency
20 - 5,000 Hz
Signal-to-Noise Ratio
104 dB
Bass Boost
12dB @ 12 kHz, 18dB @ 45 Hz
Remote bass/level controller
No
Fuse Rating
30A x 2
Warranty and Return Policy
Parts Warranty Duration
5 years
Labor Warranty Duration
5 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

PH2200W/4

Weight:

11.50lbs

Internal SKU:

ph2200w4

Internal Product ID:

38081

Product and How-to Videos


  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews


Earthquake Sound PH2200W/4 thumbnail image

5 star
50%
4 star
0%
3 star
0%
2 star
50%
1 star
0%



Durability
3
Value
3.5
Features
4
Design
5
Usability
3

Customer Reviews

Sort by:

Loading...

Small In size good in power

pros : small , easy connection, lots of features with built in crossover, solid amp has built in fan but doesn't turn on untill amp is really hot.

cons: gets hot and clips after playing loud without distortion after 30 mins. the manual should have more information on setting the built in crossover.

By Ricky on September 26, 2011

10 found this helpful


Powerful clear sound

I have had the red series ph2200 4 channel for many years. Has ran faultlessly in multiple car's. My favourite of all my 4 channel amps I have ever had.

The amp does need a good powersource with fat wiring to run at its full potential.

By Anonymous on June 9, 2019
