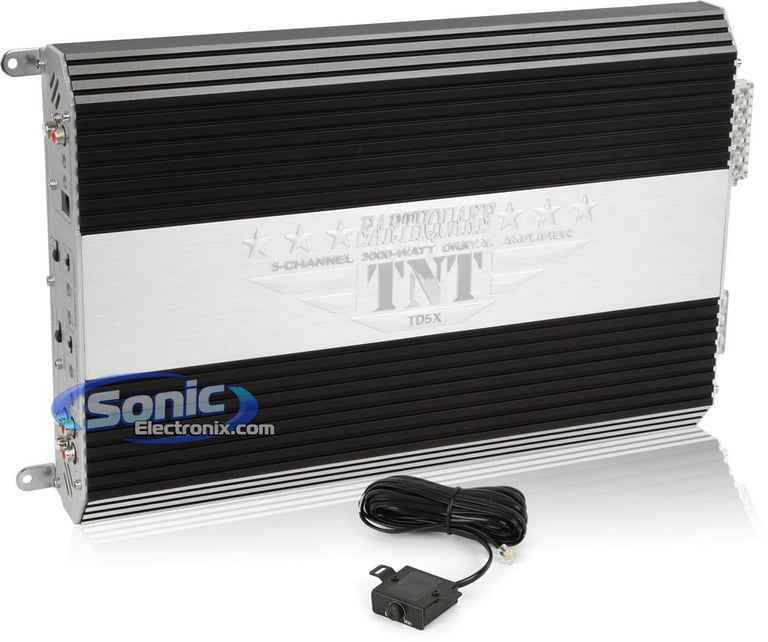

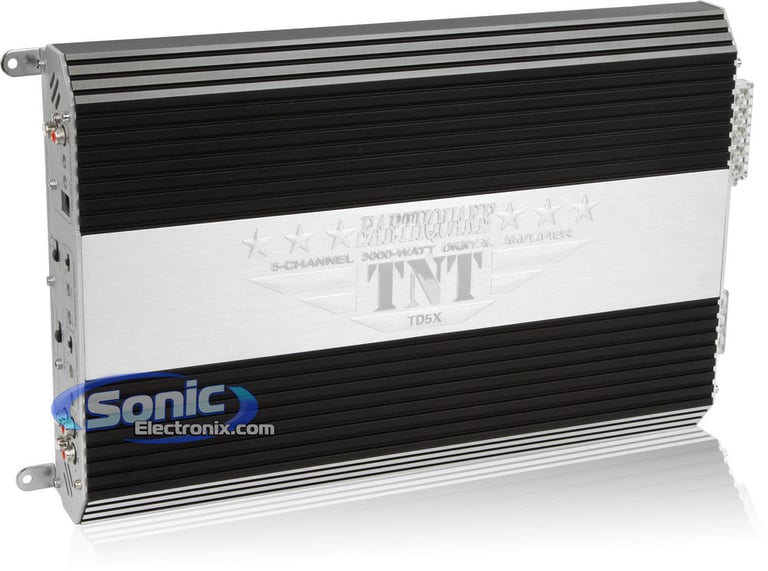

Earthquake Sound TD5X

3000W Max 5-Channel Full Digital TNT Series Class D Car Amplifier

Product videos
highlight-star-icon

• Full-Range RMS: 100W x 4 @ 4 ohm
• Subwoofer RMS: 600W x 1 @ 4 ohm
• Class D Circuitry
• Fully Regulated MOSFET Power Supply
• Wired Bass Remote Included
• Dimensions: 16-3/8"D x 9-3/4"W x 2-1/4"H

Learn more about the td5x

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
NSP4 main

NVX NSP4

300W Peak (100W RMS) 4" N-Series 2-Way Coaxial Car Speakers

25
-25.00%

$44.99

List price $59.99

Product Highlights


• Full-Range RMS: 100W x 4 @ 4 ohm
• Subwoofer RMS: 600W x 1 @ 4 ohm
• Class D Circuitry
• Fully Regulated MOSFET Power Supply
• Wired Bass Remote Included
• Dimensions: 16-3/8"D x 9-3/4"W x 2-1/4"H

Description


Earthquake Sound brand icon

Authorized dealer

  • TNT Series 5-Channel Class D Car Amplifier
  • Max Power Rating:
    • 4 ohm: 100 watts x 4 chan. + 600 watts x 1 chan. @ 2 ohm
    • Bridged, 4 ohm: 100 watts x 2 chan. + 300 watts x 1 chan.
  • Max power output: 3000 watts
  • Fully regulated MOSFET power supply

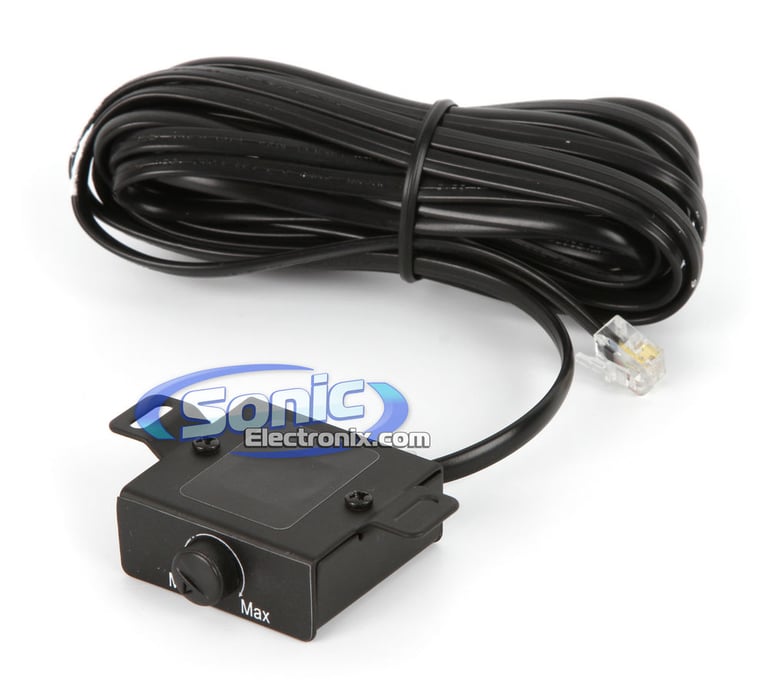

  • Remote bass control included
  • LED power (green) and protect (red) indicators
  • Variable bass boost (0-10 dB)
  • Soft Start Turn-on
  • 5/4/3 channel operation
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • Push/Pull switching power supply

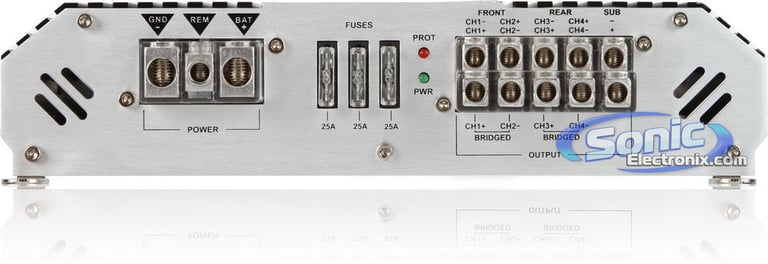

  • 8-Gauge speaker connections
  • Nickel-Plated RCA level inputs
  • Nickel-Plated screw terminals

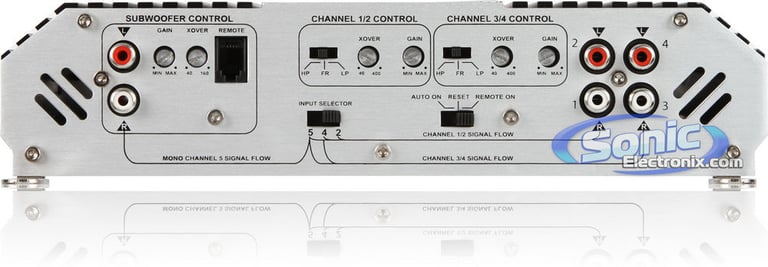

  • Variable High-Pass Filter (40-400 Hz)
  • Variable Low-Pass Filter (40-400 Hz)
  • Subsonic Filter (40-160 Hz)
  • THD (Total Harmonic Distortion): >0.01 @ 4 ohm, >0.016% @ 2 ohm
  • Channel Separation: >60 dB
  • Signal-to-Noise-Ratio: 95 dB
  • Fuse Rating: 3 x 25 amps
  • Dimensions: 16-3/8"D x 9-3/4"W x 2-1/4"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 1-year Manufacturer's warranty
