Description

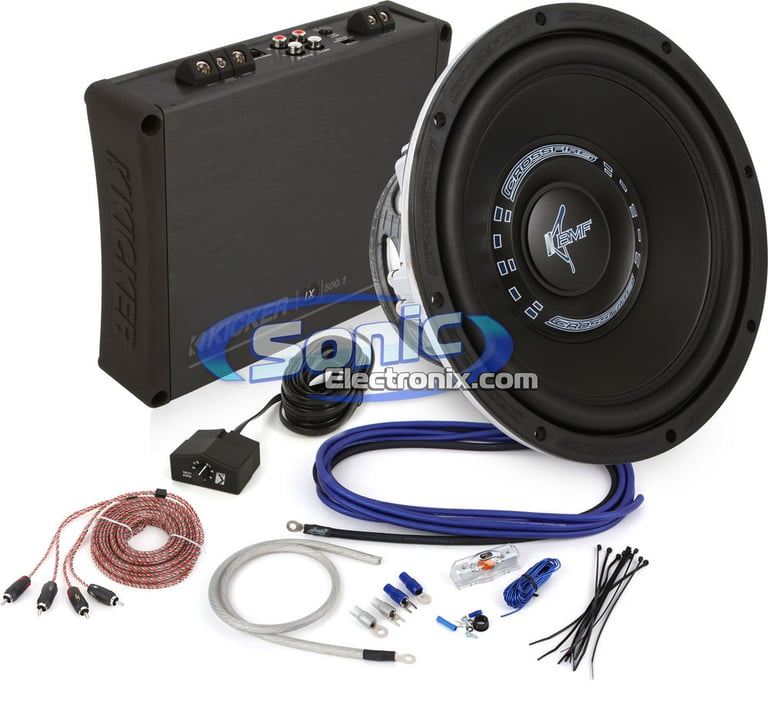

Crossfire and Kicker Bass Bundle

This Sonic Electronix Exclusive Bass package showcases a Kicker 10IX500.1 amplifier along with a 12" BMF Series Crossfire Subwoofers. This excellent bass package pushes 500 watts of clean, continuous RMS power. The Crossfire Subwoofer has a Dual 4 ohm Voice Coil; meant to be wired in parallel, to a final impedance of 2 Ohms. For more information regarding subwoofer wiring, please check out our Subwoofer Wiring Diagram.

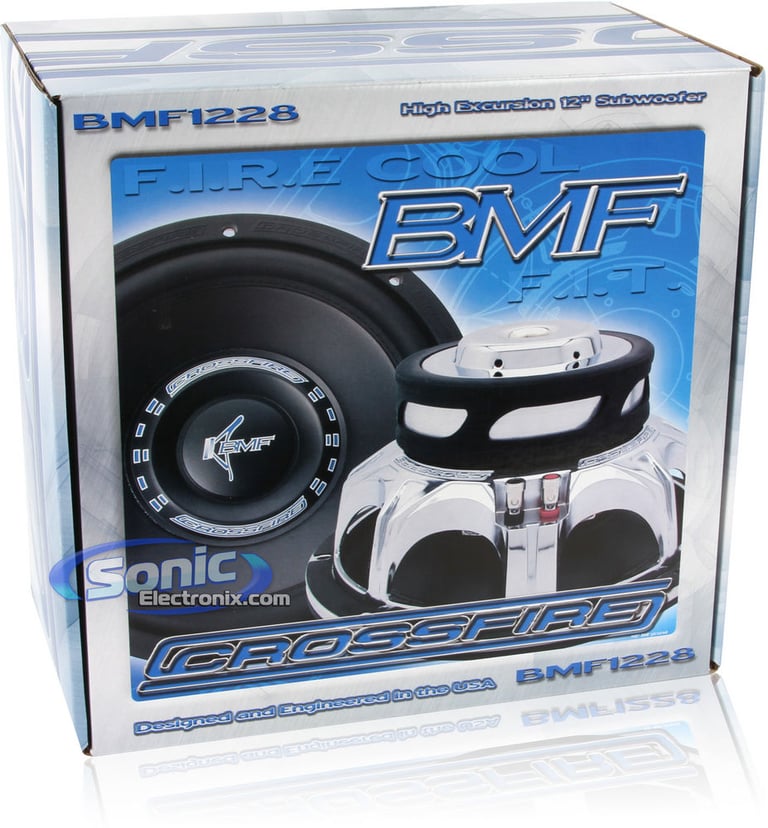

This Crossfire BMF1228 12" BMF series subwoofer requires 500 watts of RMS power. The included Kicker 10IX500.1 amplifier will compliment this required power by supplying a perfect match-up of certified RMS continuous power. This package also includes a complete 4 gauge amplifier kit, which is perfect to supply power to the amplifier. With the Crossfire subwoofer, Kicker amplifier, and Stinger amplifier kit, this bass bundle is great for anyone looking to upgrade their vehicle's audio system

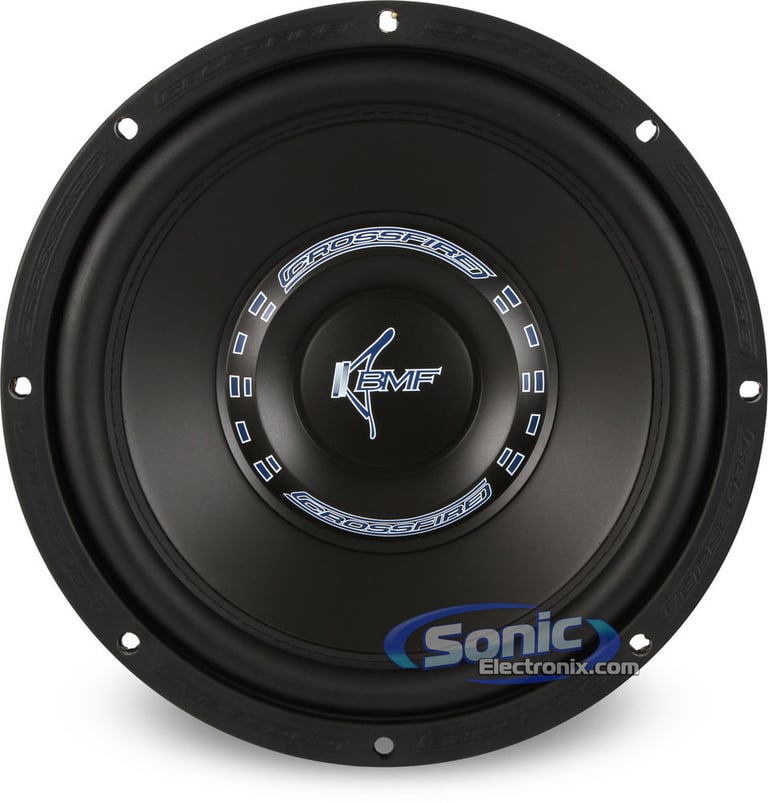

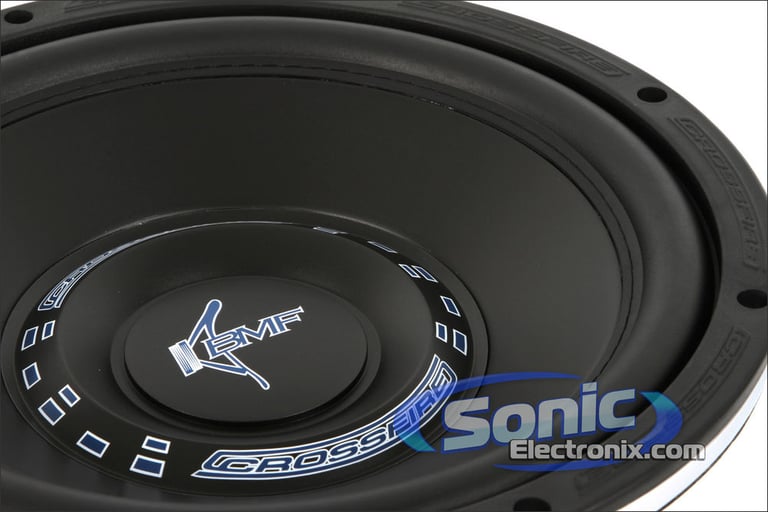

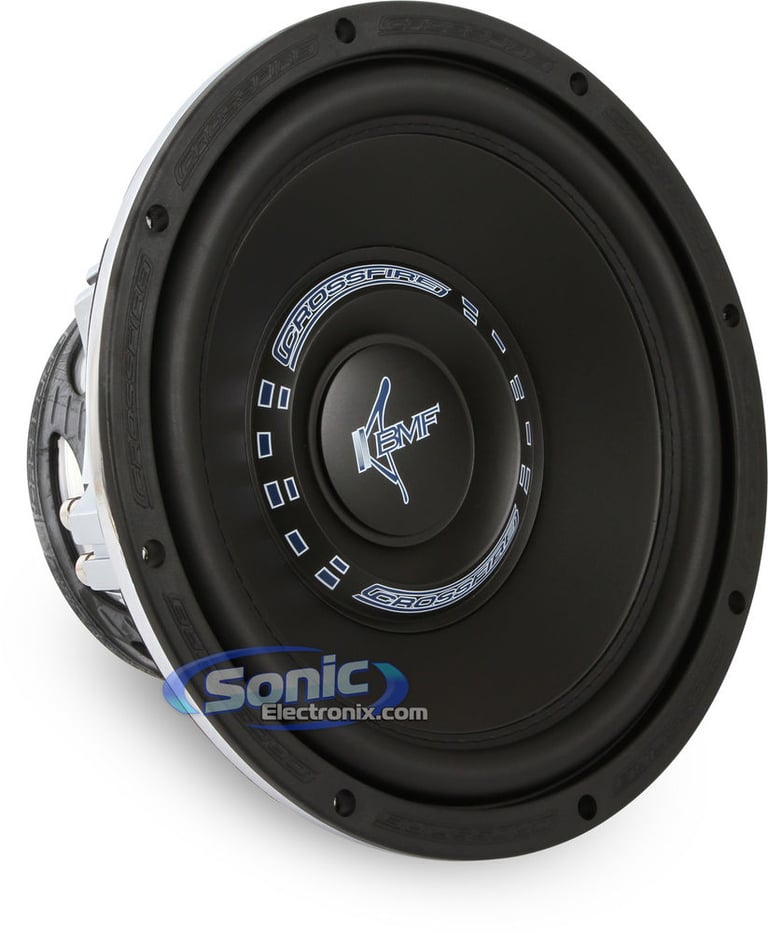

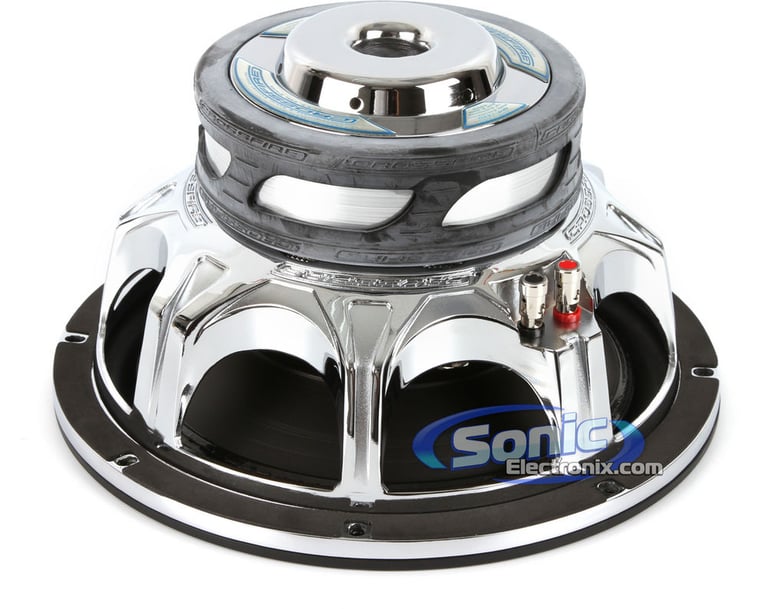

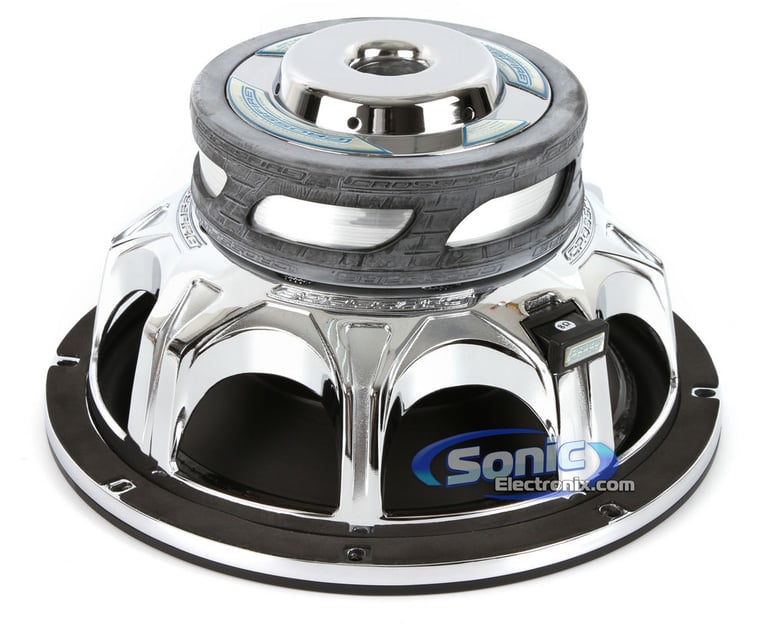

Crossfire BMF1228 Features:
  • 12" Dual 4 Ohm BMF Series Car Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 500 watts
  • Impedance: 4 Ohm
  • Co-polymer cone material
  • Stitched rubber surround
  • Proprietary chrome aluminum cast frame
  • Flexible Impedance Technology (FIT)

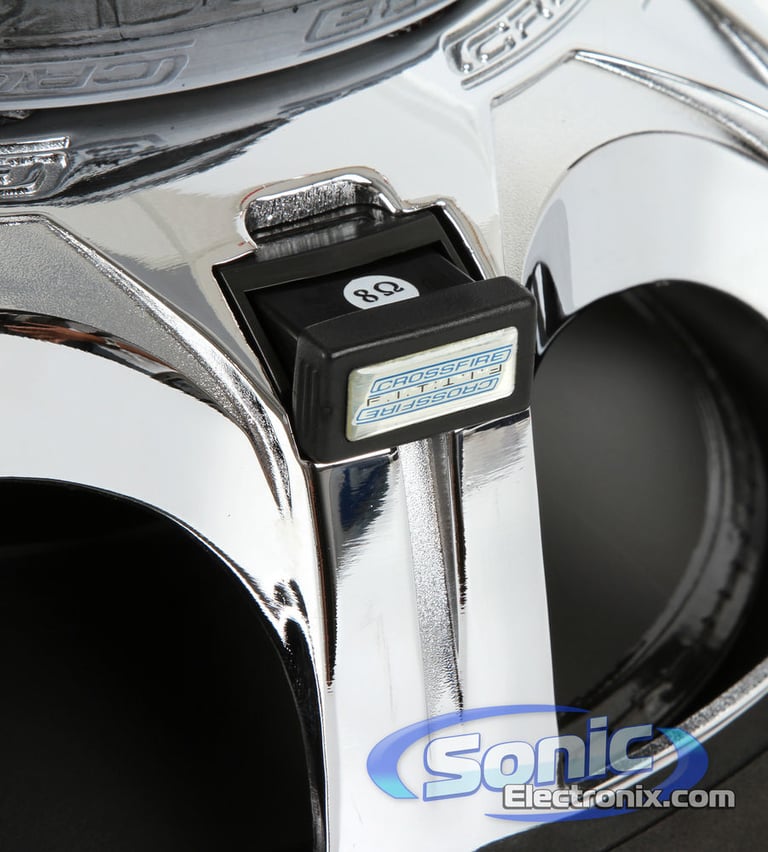

  • Dual Voice Coil (DVC) impedance selector
  • Chromed signature etched back plate
  • Chrome plated extended/vented back plate

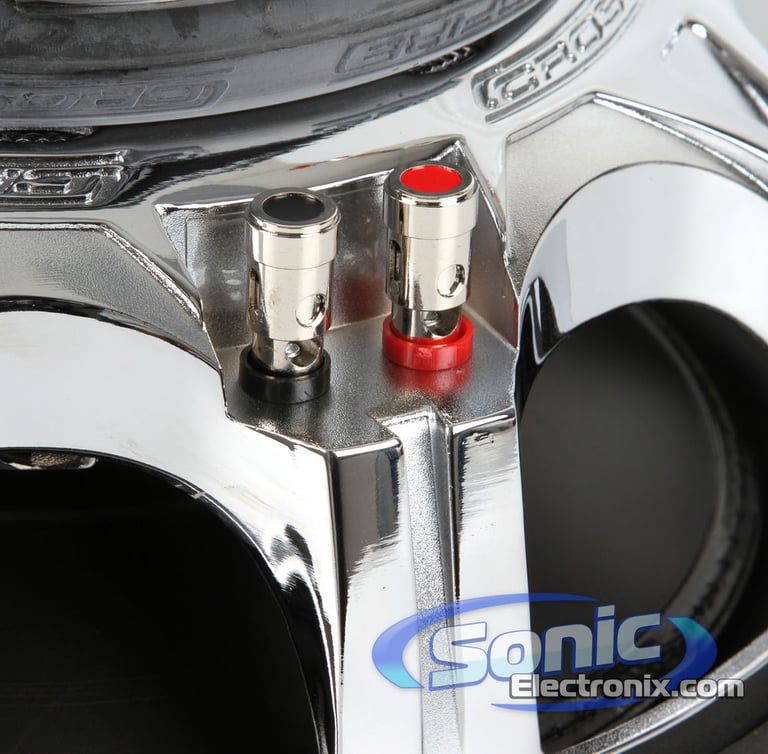

  • Compression nickel-plated sprig loaded input terminals
  • Designed for both vented and sealed enclosures
  • 2-1/2" 4 Layer Dual 4 Ohm Kapton voice coil
  • Dual 85 oz. ceramic stacked magnet structure
  • Frequency response: 20-250 Hz
  • Sensitivity: 84.6 dB
  • Xmax: 14mmm
  • Mounting depth: 6-3/8"
  • Cutout dimensions: 11-1/8"
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

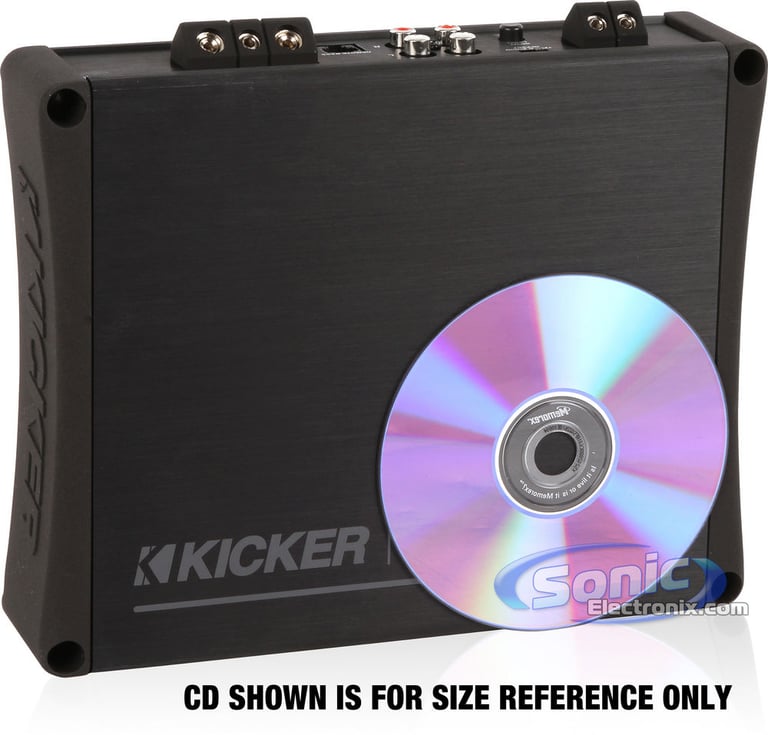

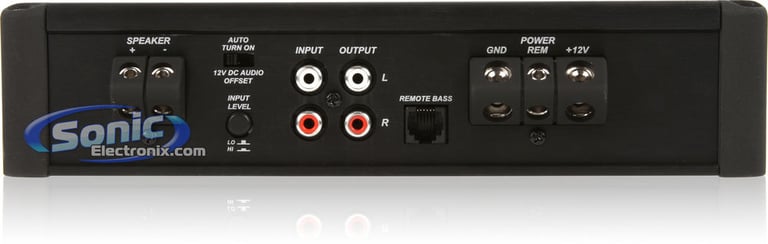

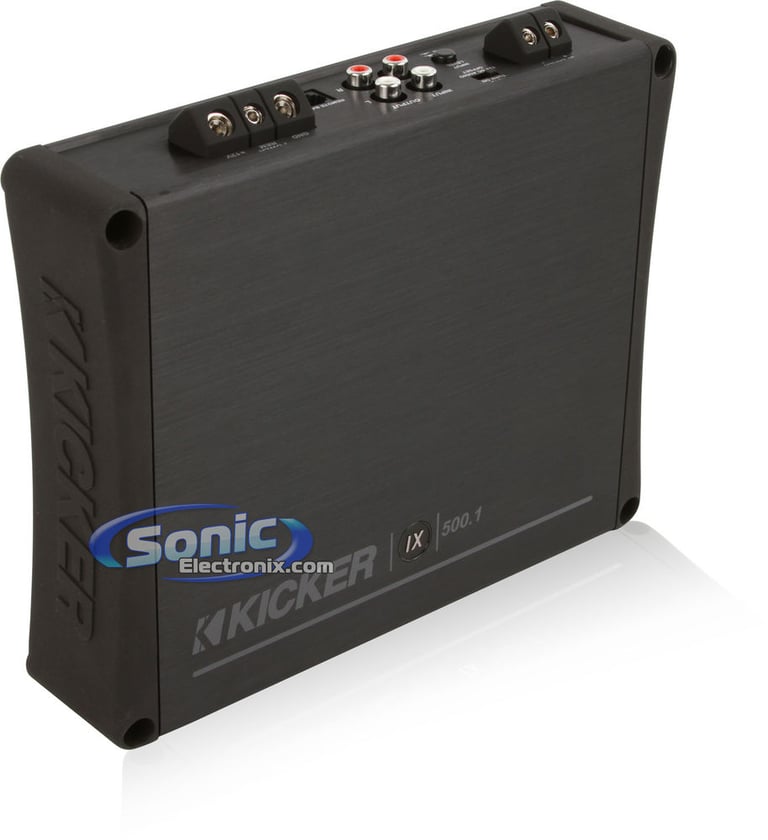

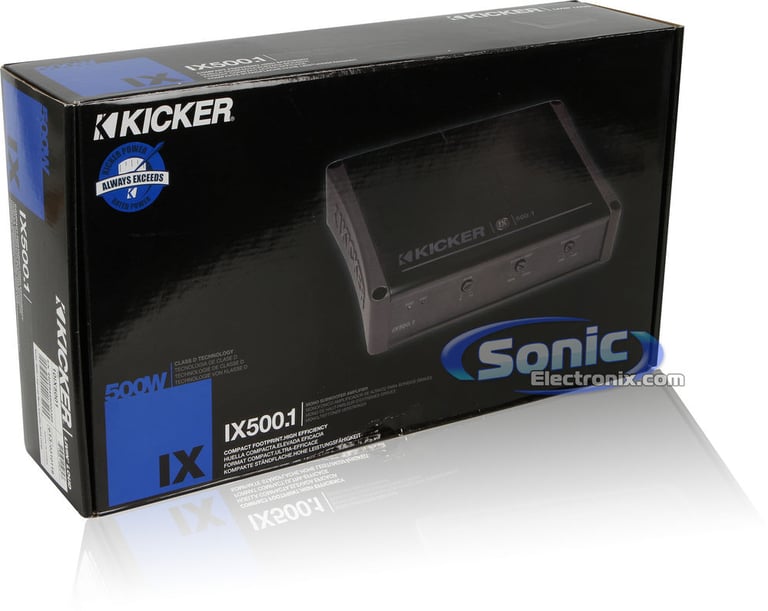

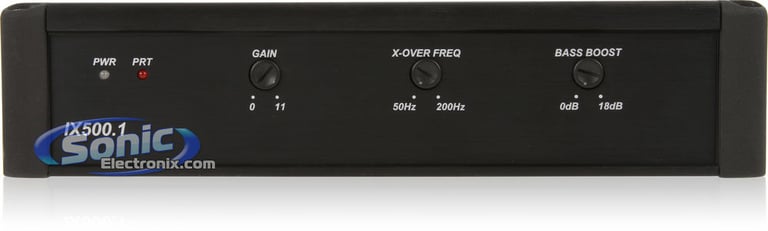

Kicker 10IX500.1 Features:
  • IX Series Monoblock Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 275 watts x 1 chan.
    • 2 ohm: 500 watts x 1 chan.
  • Max power output: 1000 watts x 1 chan.
  • High-efficiency regulated MOSFET power supply

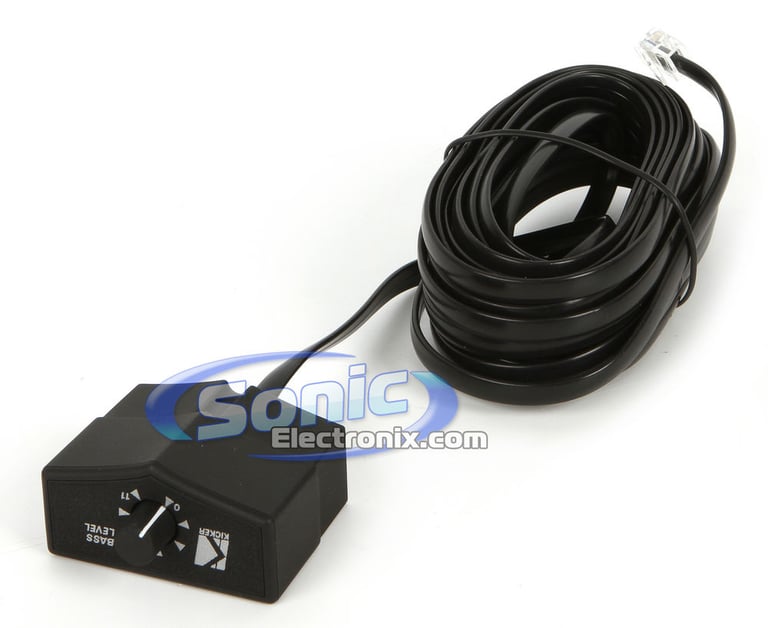

  • Remote bass level input (remote level control sold separately)
  • LED power (blue) and protect (red) indicators
  • Variable Bass Boost (0 to +18 dB bass boost at 40 Hz)
  • Optional Kicker 10IXSM stacking mounts available for a clean install
  • Optional vinyl skins for personalizing heat sinks available
  • Super-small footprint for easy mounting, decreased weight, and increased cargo space
  • Mono channel operation
  • Preamp RCA outputs
  • 5-Way System Protection circuitry (thermal, overload, speaker short protection, undervoltage, and overvoltage)
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Input sensitivity:
    • Low level: 125mV-5V
    • High level: 250mV-10V
  • Variable low-pass filter (50-200 Hz, 24 dB/octave)
  • Fixed subsonic filter (24 dB at 25 Hz)
  • CEA-2006 compliant amplifier
  • Frequency response: 25-200 Hz
  • Dimensions: 9-3/8"L x 7-7/8"W x 2-3/16"H
  • 4-gauge power and ground wiring is required for installation.
  • Authorized Internet Dealer
  • 2-year Manufacturer's warranty

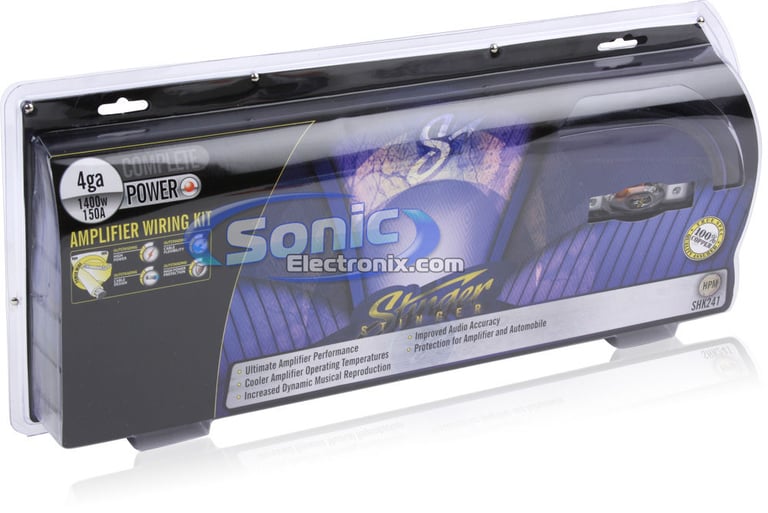

Stinger SK6241 Features:
  • 4 Gauge 6000 Series Power Amplifier Wiring Kit
  • Designed specifically for car audio systems up to 1750 watts
  • Premium power and ground wire provides optimal power transfer
  • Made from 100% oxygen-free copper for a pure uninterrupted transfer of power
  • Mini-ANL style fuse holder for maximum power delivery and safety
  • Pre-Installed black nylon mesh covering protects power & ground wire from damage
  • TruSpec cables/wires meet or exceed the industry standard of copper required for the gauge size
  • Matte finish HyperTwist wire construction provides excellent flexibility
  • Pre-Terminated power connections provide reliable performance
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Stinger SK6241 Includes:

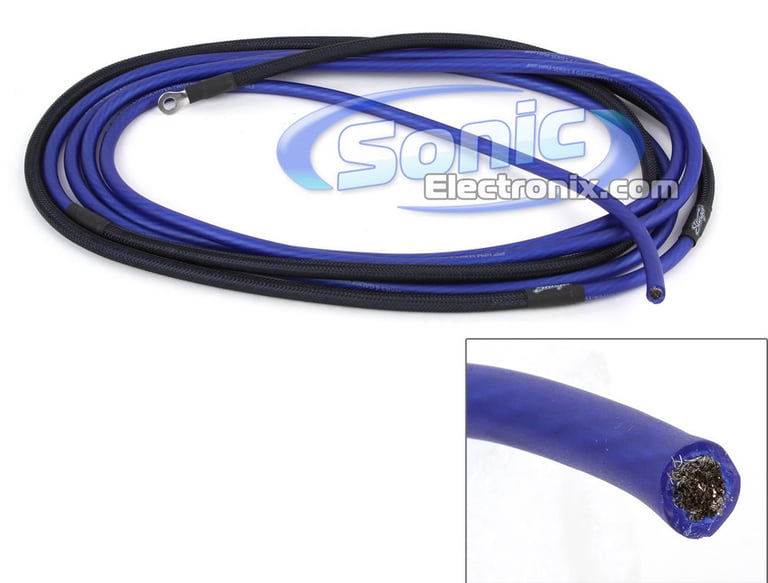

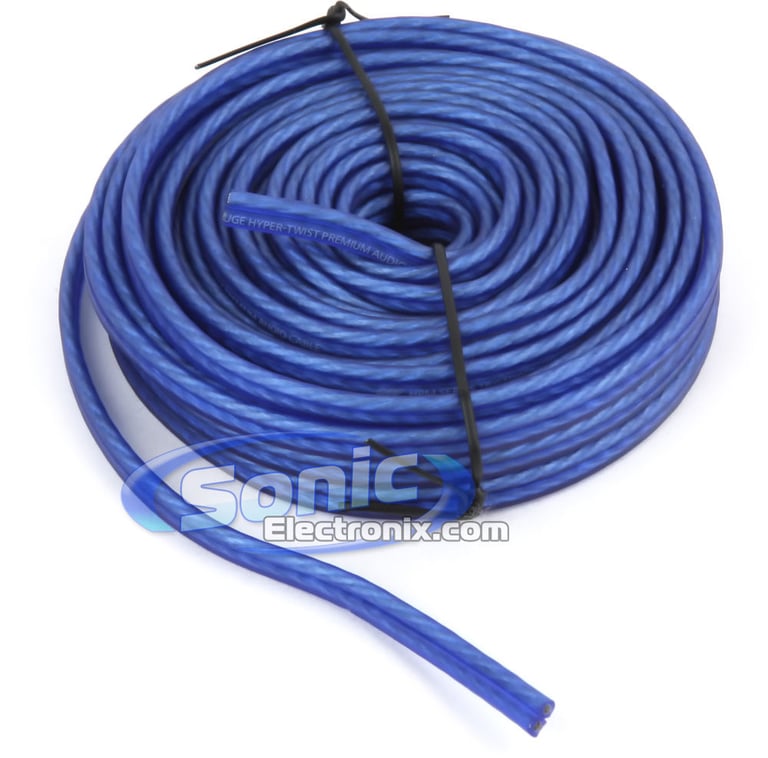

  1. 17 ft. of 4 Gauge matte blue hyper-twist power wire

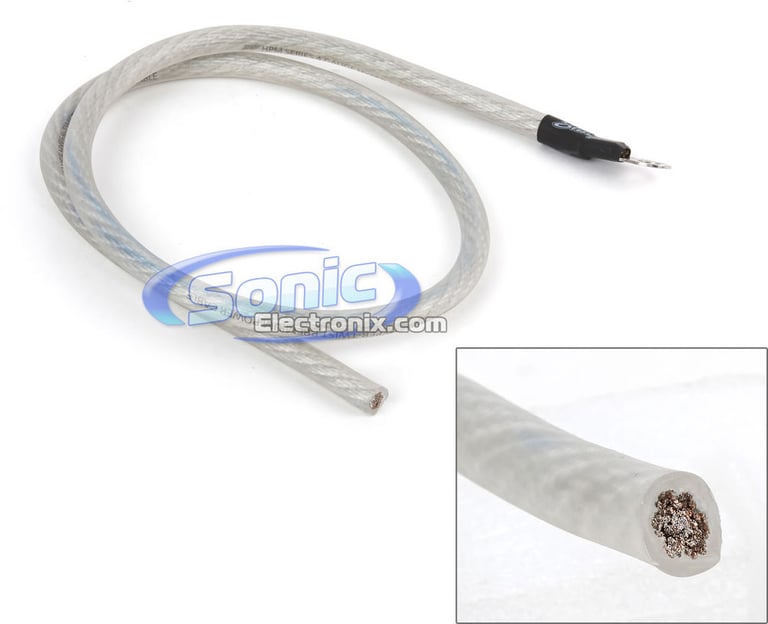

  2. 3 ft. of 4 Gauge Matte silver hyper-twist ground wire
  3. 17 ft. of 18 Gauge Blue turn-on wire
  4. 175 Amp Mini-ANL Fuse

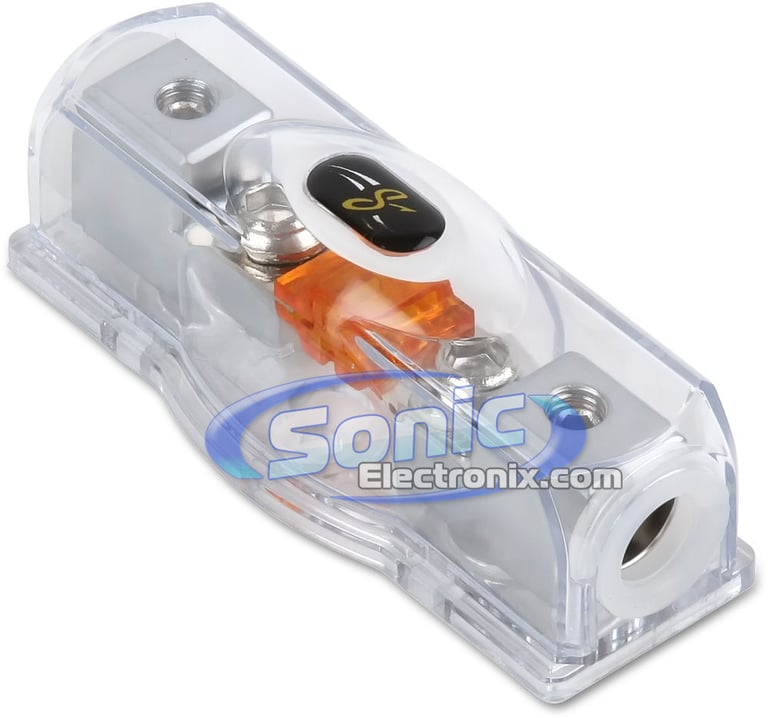

  5. Mini-ANL Style fuse holder
  6. Pre-Terminated ends
  7. Mesh wire loom
  8. Stinger metal badge

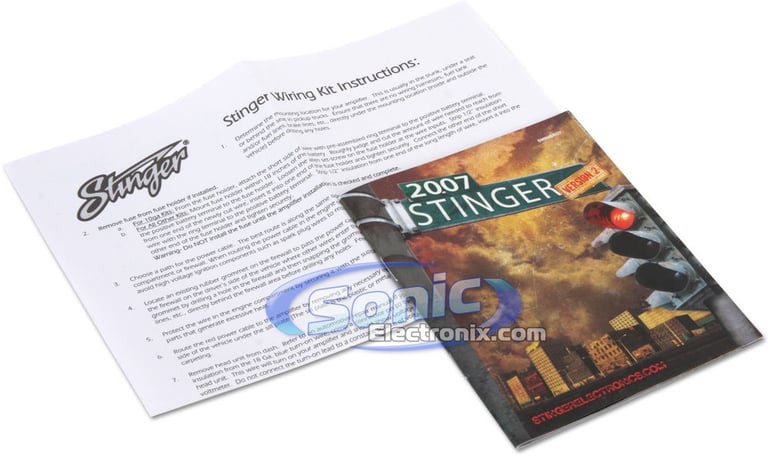

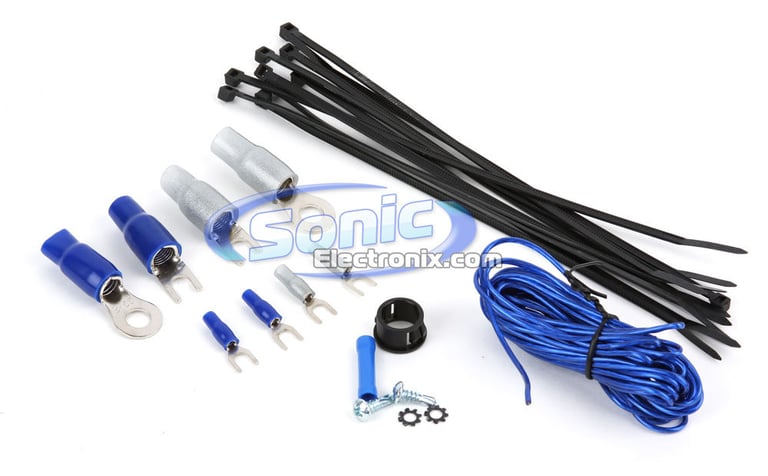

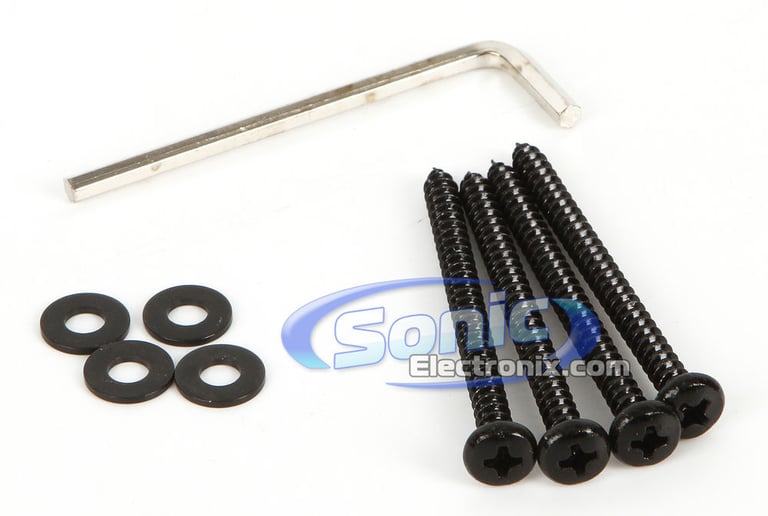

  9. Includes installation accessories

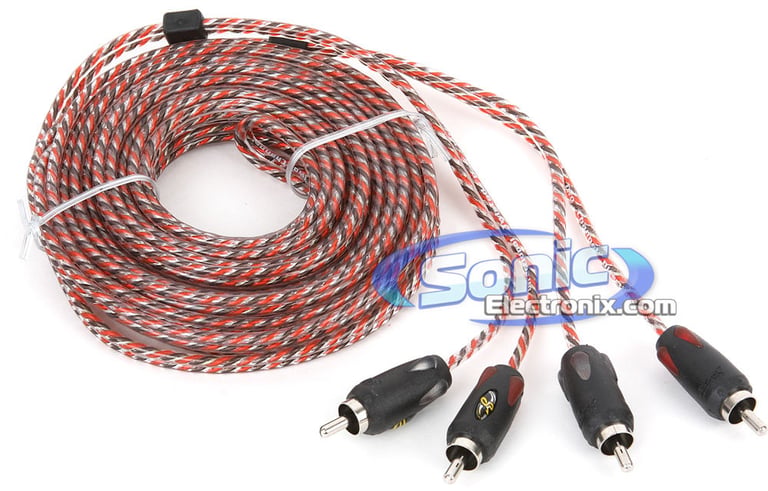

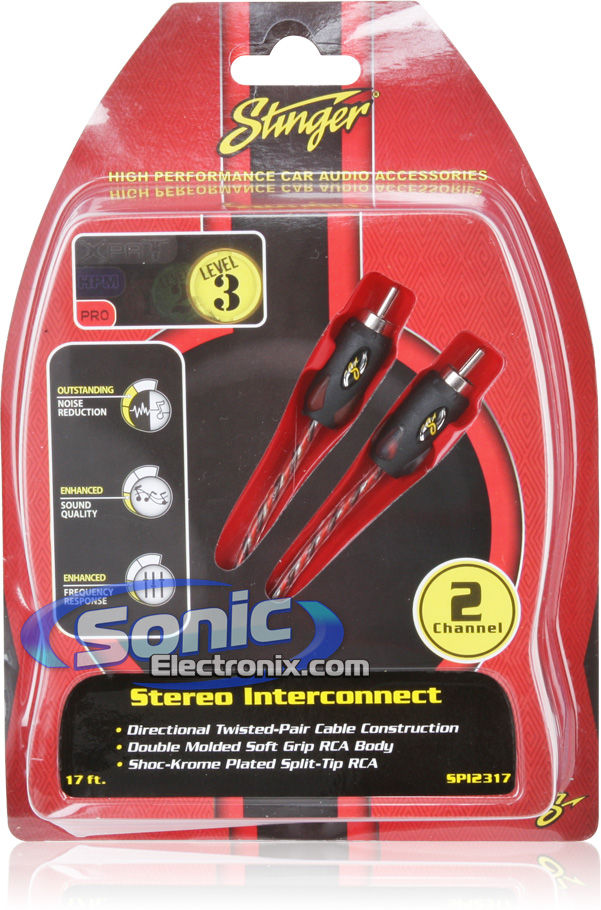

Stinger SPI2317 Features:
  • 17 ft. 2-Channel PRO3 Series Interconnect Cable
  • Directional twisted-pair conductors sheds unwanted interference
  • Directional, high-twist construction retains signal integrity
  • ShocKrome end with split top delivers performance while preventing corrosion
  • Ultra-compact design for easy installation
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(196)

$369.95

List price $399.95

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

QB12SPA small

NVX QB12SPA

• 12" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$199.99

List price $299.98

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
275 watts x 1 channel
RMS Power @ 2 ohms
500 watts x 1 channel
RMS Power @ 1 ohm
Not Stable
Peak Power Output
1000 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
1000 watts
Total RMS Power Output
500 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
Not Bridgeable
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 200 Hz
Subsonic Filter
25 Hz
Signal-to-Noise Ratio
95 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fan Cooled
No
CEA-2031 Compliant
Yes
Subwoofer Specifications
Subwoofer Size
12"
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
RMS Power Handling
500 watts
Total RMS Power Handling
500 watts
Peak Power Handling
1000 watts
Total Peak Power Handling
1000 watts
Woofer Surround
Rubber
Woofer Composition
Copolymer
Minimum Sealed Box Volume
0.8 cubic feet
Maximum Sealed Box Volume
1.8 cubic feet
Minimum Ported Box Volume
1.5 cubic feet
Maximum Ported Box Volume
2.75 cubic feet
Sensitivity
84.6 dB
Frequency Response
20 - 250 Hz
Xmax (millimeters)
14 mm
Top-Mount Depth (Mounting Depth)
6-3/8"
Cutout Diameter
11-1/8"
Recommended Enclosure Type
Bandpass
Ported / Vented
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

BMF1228_10IX500.1

Weight:

34.08lbs

Internal SKU:

bmf1228_10ix5001

Internal Product ID:

38490

Customer Ratings & Reviews


1000W Crossfire + Kicker Bass Bundle thumbnail image

5 star
0%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
0
Value
0
Features
0
Design
0
Usability
0

Customer Reviews

Sort by:

Loading...
Sorry, no reviews found


SK6241 main

Stinger SK6241

• 4 Gauge 6000 Series Power Amplifier Wiring Kit
• Designed Specifically for Car Audio Systems up to 1750 Watts
• HyperTwist Wire Construction
• TruSpec Cables/Wires
• Pre-Terminated Power Connections
• Made From 100% Oxygen-Free Copper

(19)

$106.99

List price $229.00


900-00245-01 small

Beats by Dre Powerbeats2 - White

PowerBeats2 Wireless Sport Headphones w/ In Line Mic and Volume Control (White) - 900-00245-01

(1)

$179.99

List price $199.95

RP-HTX7-P1 small

Panasonic RP-HTX7-P1 - Pink

Over-Ear Retro-Style Monitor Headphones (Pink)

$36.99

List price $69.99

KDC-MP208 small

Kenwood KDC-MP208

CD, MP3, WMA Receiver with Remote and Front 3.5mm Aux Input

(9)

$84.99

List price $99.99

MS 300 BA BLACK small

Phiaton MS 300 BA BLACK

Hybrid Dual Driver In-Ear Headphones With in-line mic

$99.00

List price $129.00

KFC-W112S small

Kenwood KFC-W112S

200W 12" Performance Series Single 8 ohm Subwoofer

(48)

$39.99

List price $99.99

J22 Black small

JBL J22 - Black

High Performance In-Ear Headphones

$39.95

List price $49.95

Vega-69 small

Cerwin-Vega Vega 69 ** CLOSEOUT **

6" x 9" 2-way VEGA Series Speakers (Vega69, V69)

(5)

$59.95

List price $129.99

BT OV STU WHT small

Beats Studio 2.0 - White

Professional Over-Ear Studio Headphones with Built-In Active Noise Cancelling Function

(2)

$175.96

List price $299.95

J22i Black small

JBL J22i - Black

High Performance Earbuds Stereo Headset with iPhone Remote/Mic

$49.95

List price $79.95

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2022 Ford E Series

2011 Ram 5500

2004 Ford Expedition

2014 MINI Countryman

2023 Ford Edge

2018 Volvo S60

2011 Ford Edge

2009 Ford E Series

2010 Audi Q5

2012 Audi TT Quattro

Vehicle
Store
Delete

2000 Harley Davidson FXSTD/I Softail Deuce

Vehicle
Store
Delete

2021 Can-Am Commander 1000R DPS

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
