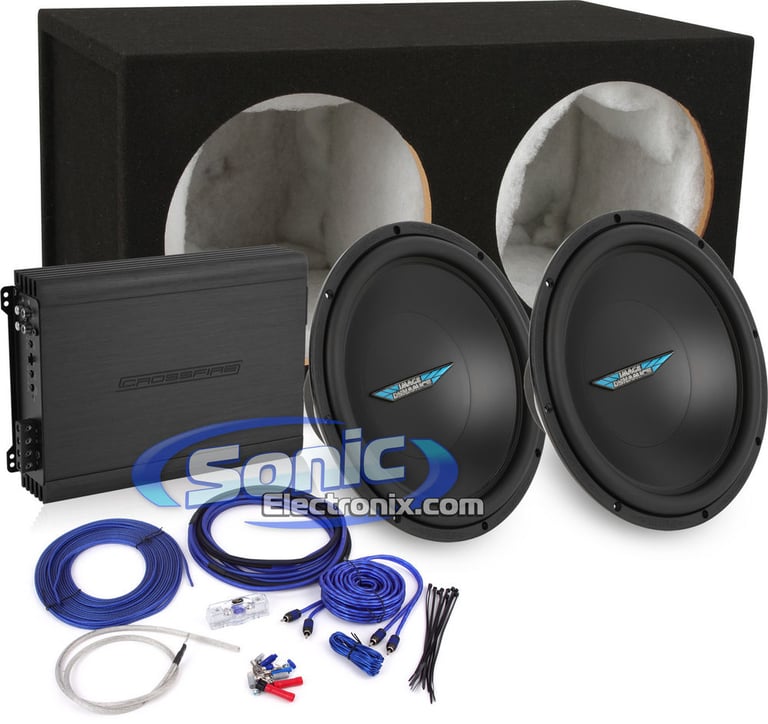

700W 12" Image Dynamics + Crossfire Bass Bundle

Two 12" Image Dynamics CTX128 Subwoofers + Crossfire BMF300.2 2-Channel Amplifier + Amp Kit

EXCLUSIVE
highlight-star-icon

Two 12" Single 8 ohm CTX Series Subwoofers • 700W Max • 300W RMS • Crossfire 2-Channel Class A/B Car Amplifier • MOSFET Power Supply • Dual 12" Sealed Enclosure • Stinger 8 Gauge Amplifier Kit

Learn more about the 2-ctx128_bmf3002

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

Description


Image Dynamics brand icon

Authorized dealer

Image Dynamics and Crossfire Bundle

This Sonic Electronix Exclusive Bass package showcases a Crossfire BMF300.2 Amplifier along with two 12" CTX series Image Dynamics subwoofers. This excellent bass package pushes 300 watts of clean, continuous RMS power. The Image Dynamics subwoofers have Single 8 ohm voice coils; meant to be wired together and then directly to the amplifier, to a final impedance of 4 Ohms. For more information regarding subwoofer wiring, please check out our Subwoofer Wiring Diagram.

These Image Dynamics CTX128 CTX series subwoofers require 175 watts of RMS power each. The included Crossfire BMF300.2 amplifier will compliment this required power by supplying a near perfect match-up of certified RMS continuous power. This package also includes a 8 gauge Stinger amplifier kit which is perfect to supply power to the amplifier. With the Image Dynamics subwoofer, Crossfire amplifier, and Stinger amplifier kit, this bass bundle is great for anyone looking to upgrade their vehicle's audio system

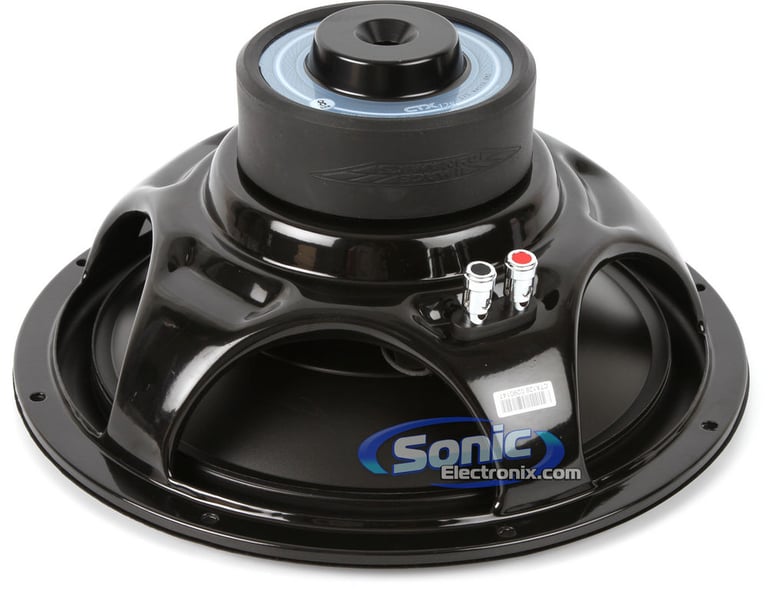

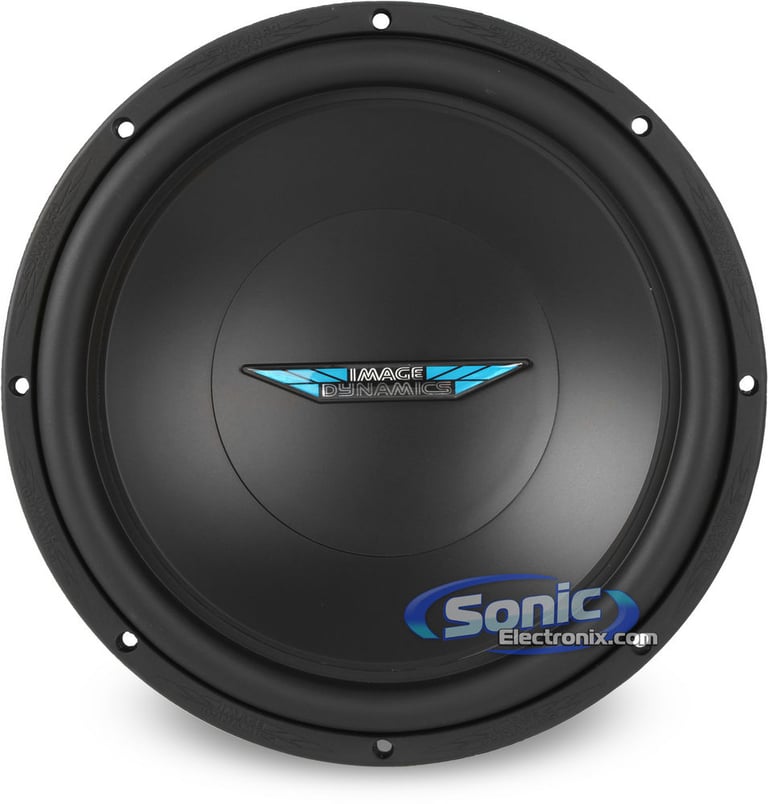

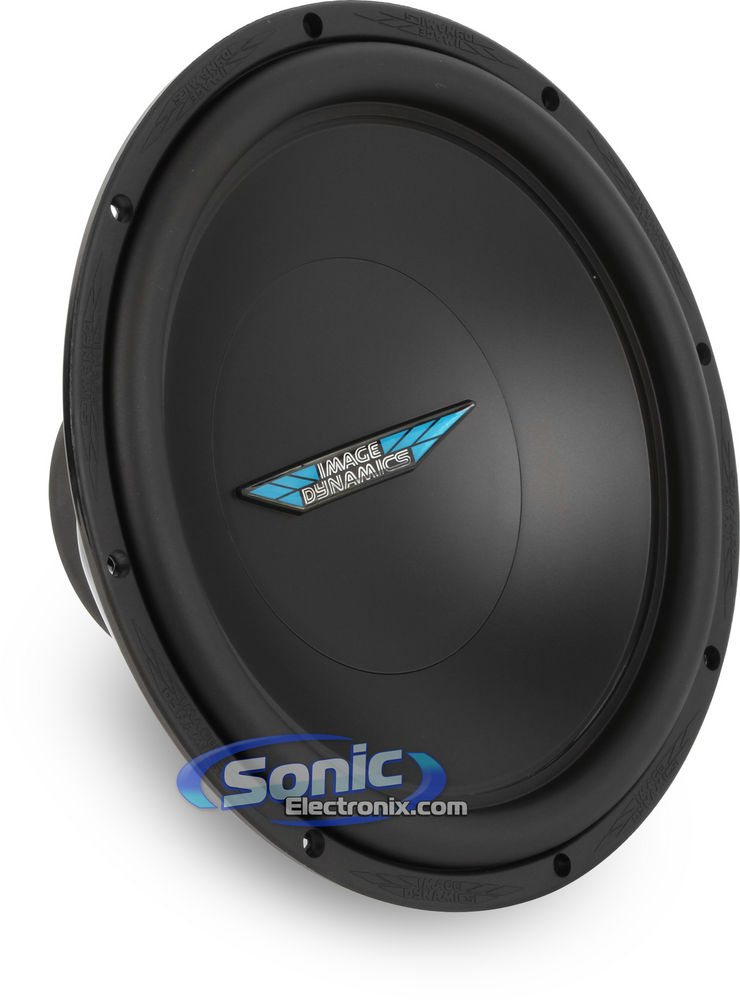

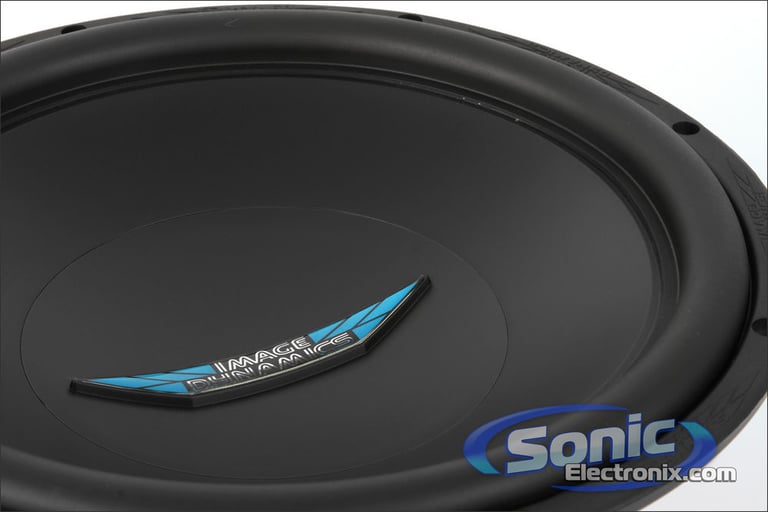

Image Dynamics CTX128 Features:
  • 12" Single 8 ohm CTX Series Subwoofer
  • Power Handling:
    • Peak: 350 watts
    • RMS: 175 watts
    • Recommended Power Range: 50-350 watts
  • Poly-mica cone woofer
  • Butyl rubber surround
  • Spring loaded push terminals for easy installation
  • Conex spider with integrated tinsel leads
  • Black anodized aluminum voice coil former
  • Frequency response: 16-180 Hz
  • Sensitivity: 86 dB
  • Mounting Depth: 5-3/4"
  • Cutout Dimensions: 11"
  • 1-year Manufacturer's Warranty

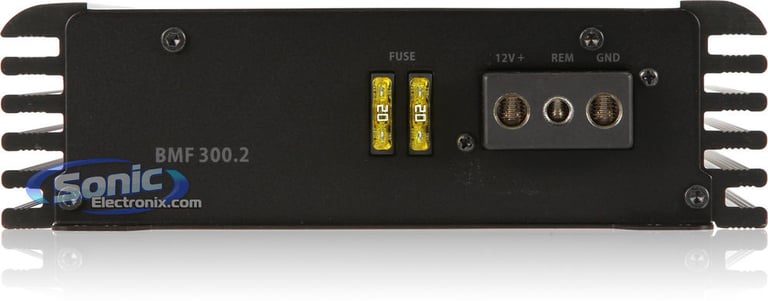

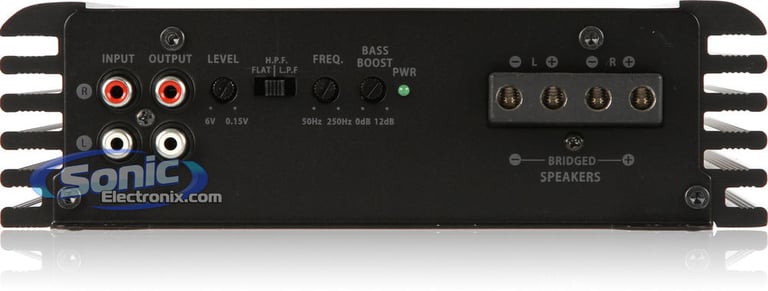

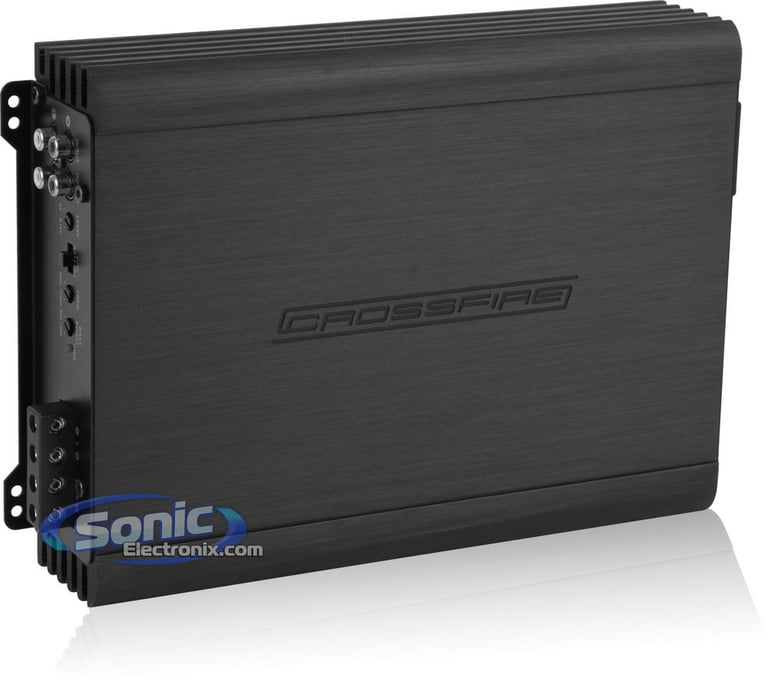

Crossfire BMF300.1 Features:
  • BMF Series 2-Channel Class A/B Car Amplifier
  • RMS Power Rating: (12.5V)
    • 4 ohm: 75 watts x 2 chan.
    • 2 ohm: 150 watts x 2 chan.
    • Bridged, 4 ohm: 300 watts x 1 chan.
  • Total power output: 300 watts x 1 chan.
  • High efficiency MOSFET power supply
  • LED power (green) indicator
  • Variable Bass Boost (0 to +12 dB at 45Hz)
  • Soft Start, on/off circuitry
  • Military spec. audiophile grade components
  • Multi-stranded power toroid
  • High-efficiency Bipolar output transistors
  • Wire free PC Board layouts
  • Over-sized capacitor bank
  • Variable high-pass and low-pass electronics crossovers
  • 2/1 channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 5-Way System Protection circuitry
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Input sensitivity:
    • Low level: 0.15V-6V
  • Full-range crossover filter
  • Variable high-pass filter (50-250 Hz)
  • Variable low-pass filter (50-250 Hz)
  • Dimensions: 10-5/8"L x 8"W x 2-3/8"H
  • 8 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

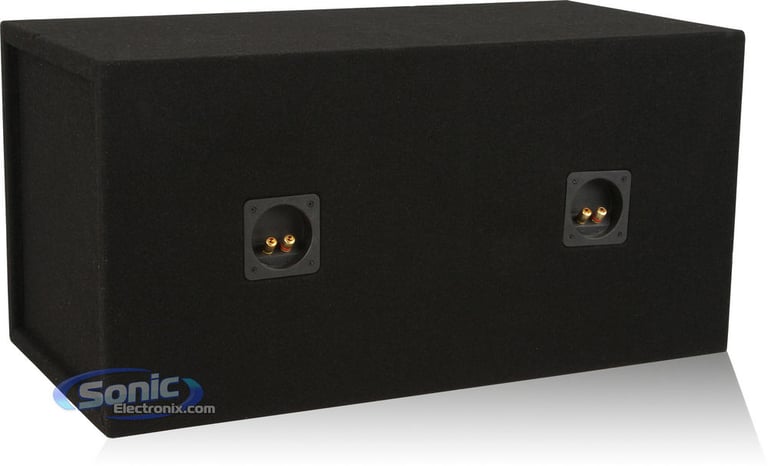

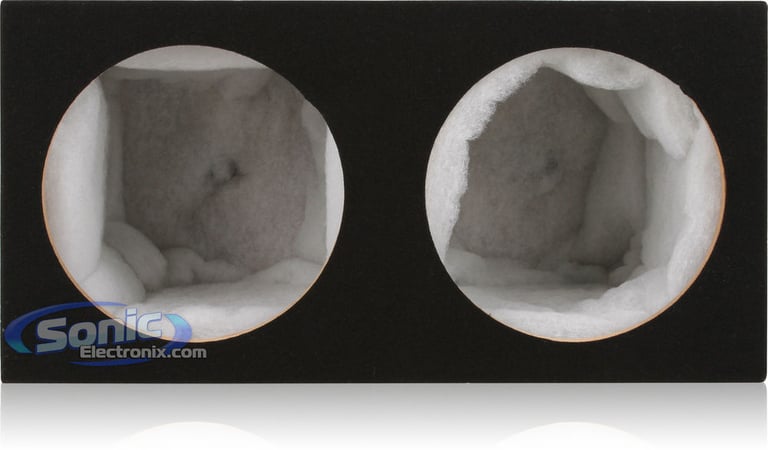

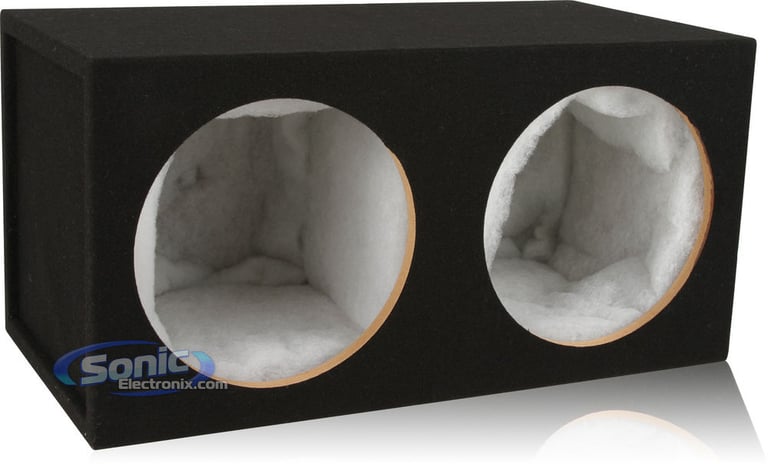

12DSPF Dual 12" Sub Box Features
  • 12" Dual Sealed Subwoofer Enclosure
  • Durable MDF enclosure for car subwoofers
  • Covered in a black carpet
  • Pre-lined with Poly-Fil

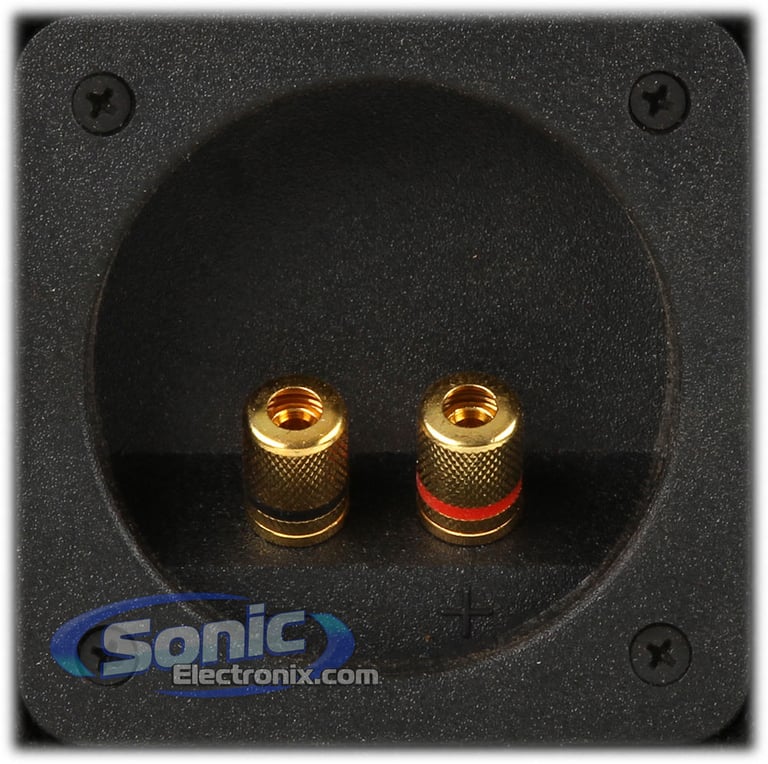

  • Two sets of gold-plated speakers terminals
  • Banana-clip ready
  • Subwoofer mounting depth: 12-1/2"
  • Subwoofer cutout diameter: 11"
  • Box volume: 1.13 cubic feet (per chamber)
  • Total box volume: 2.26 cubic feet
  • Dimensions: 14"D x 28-1/4"W x 14"H

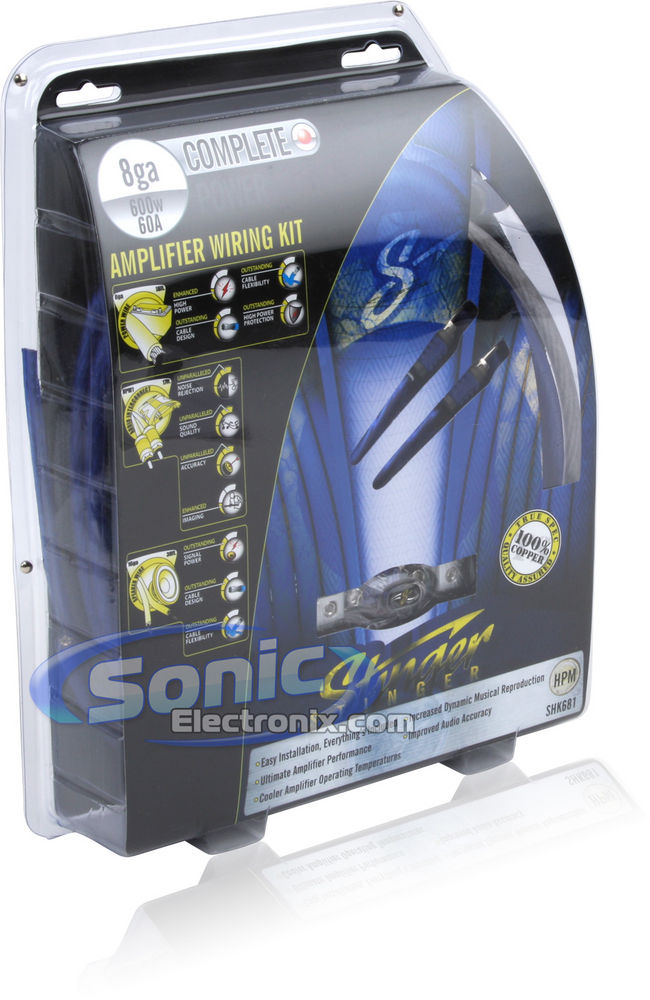

Stinger SHK681 Features:
  • 8 Gauge HPM Series Complete Amplifier Wiring Kit
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

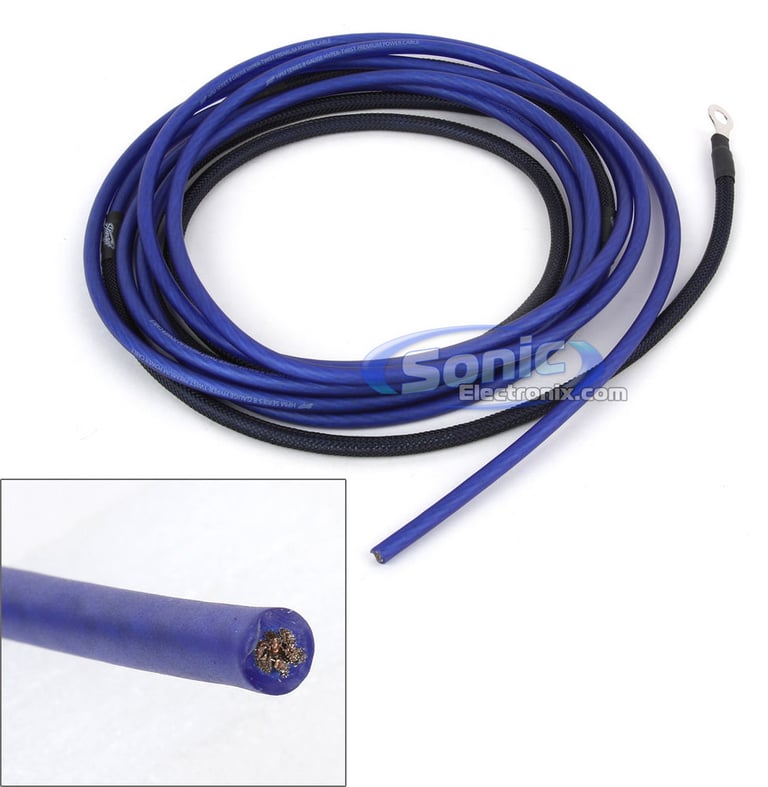

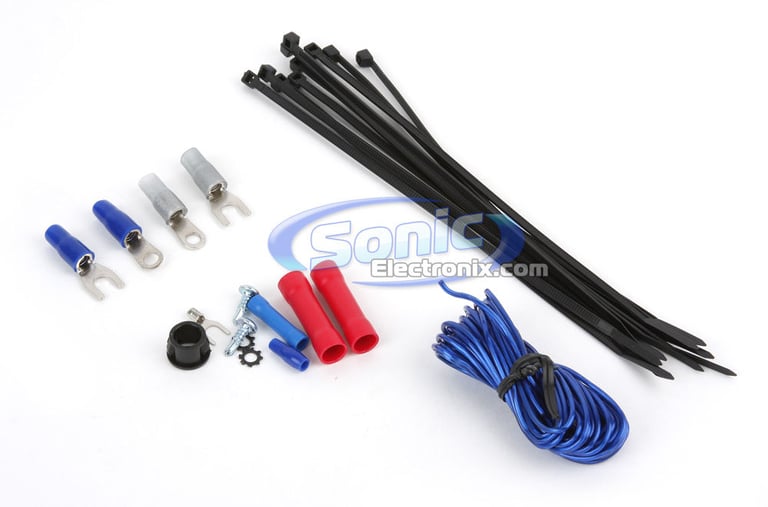

Stinger SHK681 Includes:
  1. 18 ft. 8 Gauge matte blue hyper-twist power wire

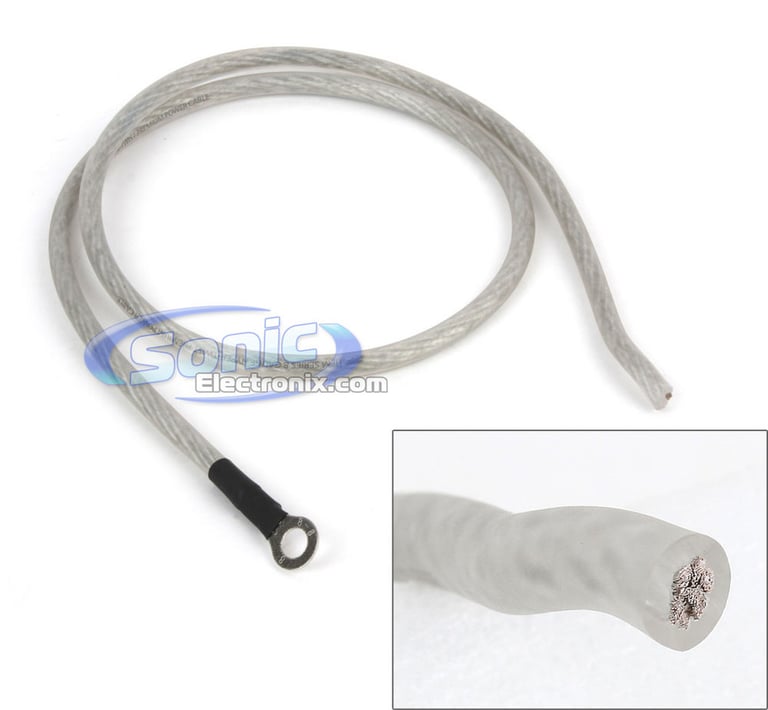

  2. 3 ft. 8 Gauge matte silver hyper-twist ground wire

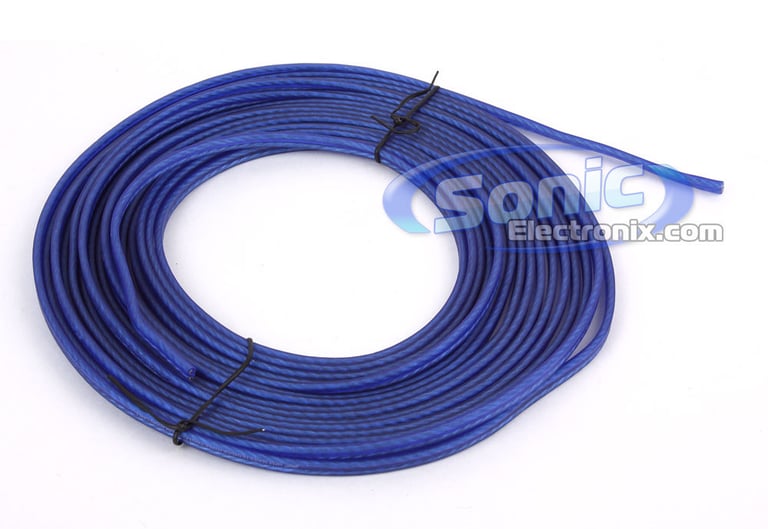

  3. 30 ft. 16 Gauge blue speaker wire

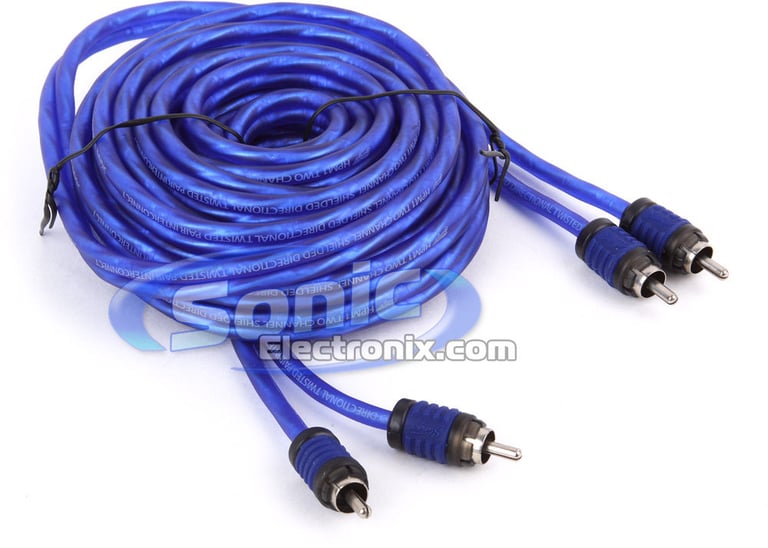

  4. 17 ft. 2 Channel HPM1 Twister-pair interconnect cables
  5. 17 ft. 18 Gauge blue remote wire
  6. Black nylon wire covering braid

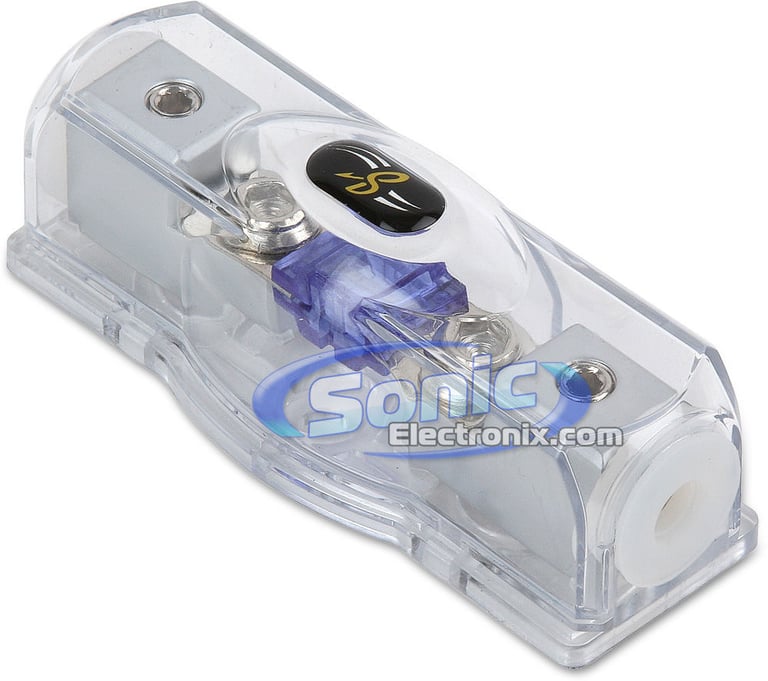

  7. MIDI Style (SHD801) Fuse holder
  8. 60A MIDI Style fuse

Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(156)

$369.95

List price $399.95

51PTRTP10 small

Kicker PTRTP10 (51PTRTP10)

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$499.99

List price $549.99

BPKG212v2 small

Belva BPKG212v2 Dual 12" Bass Package

• Works with both Factory and Aftermarket Audio Systems
• Dual 12" Belva Subwoofers
• Monoblock Amp with Bass Knob
• Ported Enclosure
• Complete Amp Wiring Kit

(81)

$279.99

List price $323.99

Specifications & Details


Full Range Amplifier Power Specifications
RMS Power @ 4 ohms
75 watts x 2 channel
RMS Power @ 2 ohms
150 watts x 2 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
300 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Maximum Input Gauge Size
8 AWG
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 250 Hz
Low-Pass Crossover Frequency
50 - 250 Hz
Bass Boost
0 - 12 dB
Remote bass/level controller
No

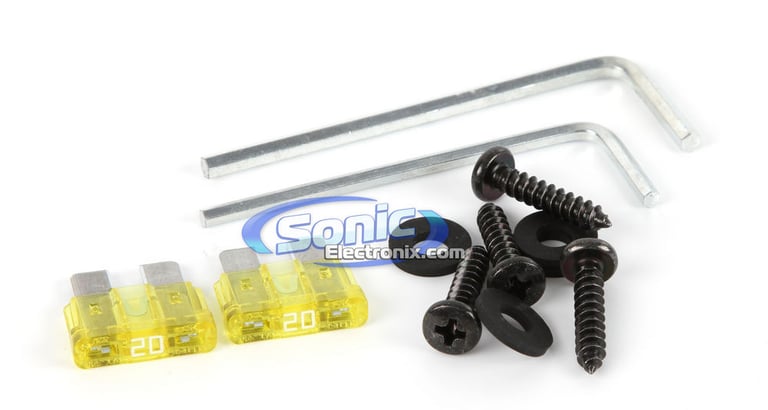

Fuse Rating
20A x 2
CEA-2031 Compliant
No
Subwoofer Specifications
Subwoofer Size
12"
RMS Power Handling
175 watts
Total RMS Power Handling
350 watts
Peak Power Handling
350 watts
Total Peak Power Handling
700 watts
Woofer Surround
Butyl Rubber
Woofer Composition
Polypropylene-Mica
Voice Coil(s)
Single
Impedance (Per Voice Coil)
8 ohm
Sensitivity
86 dB
Frequency Response
16 - 180 Hz
Enclosure Specifications
Box Type
Sealed
Number of Subwoofers
2
Box Style/Shape
Square/Rectangle
Height
14"
Width
28-1/4"
Depth
14"
Wood Thickness
3/4"
Number of Terminals
2
Terminal Type
Binding posts (banana clip ready)
Box Exterior Color
Black
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

2-CTX128_BMF300.2

Weight:

59.60lbs

Internal SKU:

2-ctx128_bmf3002

Internal Product ID:

38624

Customer Ratings & Reviews


700W 12

5 star
94%
4 star
0%
3 star
6%
2 star
0%
1 star
0%



Durability
4.9
Value
4.8
Features
4.7
Design
4.6
Usability
4.8

Customer Reviews

Sort by:

Loading...

Awesome Deal!

The following review is for 12DSPF, which is a part of the bundle you are viewing.

No need of a huge review here. Very sturdy, carpeting is great, leaves me with alot of space in my trunk. It holds 2 kicker CVR's that are 1600 watts max. Wont be dissapointed if you buy this! I've had it for 6 months and not a single problem!

By Jake on December 19, 2011

16 found this helpful


The following review is for CTX128, which is a part of the bundle you are viewing.
By Anthony on August 23, 2023 Checkmark Icon Verified purchase

11 found this helpful


They Slam!

The following review is for CTX128, which is a part of the bundle you are viewing.

Have these powered by my NVX JAD 1200 amp at 4 ohms. They absolutely slam and are very tight and accurate in a 1.1 cubic foot sealed box. They prefer a slightly larger box so they could get better.

By Derek on March 31, 2017 Checkmark Icon Verified purchase

10 found this helpful


Solid As A Rock

The following review is for 12DSPF, which is a part of the bundle you are viewing.

Box was bought for the Pioneer 3000 watt 12" Subs and its a Perfect Match for them plus,it saves trunk space. Subs Mounting Holes are nice cut. However,I did add a extra lining of polyfil but,it was nothing to it. "GOOD BOX" For Subs that requires small enclosures!

By calhoonism on May 7, 2013

11 found this helpful


Great Box!

The following review is for 12DSPF, which is a part of the bundle you are viewing.

The price and quick shipping made this an excellent deal!

By Fullthrotl1 on December 21, 2012

9 found this helpful


Impressed

The following review is for 12DSPF, which is a part of the bundle you are viewing.

I have had many complements from friends seeing this box in action and it even hits harder than some ported boxes. My friends own with the same subs I guess the filling inside really makes the difference but the only down side is that the box is rather small in person but that gives u more trunk space. Overall the box does its job just fine.

By SAM on June 19, 2012

9 found this helpful


Nice box, no screws

The following review is for 12DSPF, which is a part of the bundle you are viewing.

Box is fantastic. Comes with padding, perfectly sized. My dual 12 inchers sound fantastic.

Words of warning: Does not come with screws or internal wiring. That's up to you.

By Matt on May 14, 2012

9 found this helpful


Gets the job done!

The following review is for 12DSPF, which is a part of the bundle you are viewing.

This in not necessarily a big box but it makes speakers hit hard!! Great box!

By Mack on January 3, 2012

9 found this helpful


Very Lavish Subwoofer Housing

The following review is for 12DSPF, which is a part of the bundle you are viewing.

Excellent quality for the price. Perfect compact rectangular prism that produces distinct clear slams. Strong and sturdy, exactly what your looking for.

By Kumar on December 22, 2011

9 found this helpful


Great box!

The following review is for 12DSPF, which is a part of the bundle you are viewing.

I received this box with a bass combo deal, and I wasn't expecting the best quality. But when I received it I was pleasantly surprised. It is made of 3/4 inch MDF which makes it solid and heavy and very sturdy. Its sealed nicely and I have had no air leaks whatsoever, my only complaint is the use of cheap binding posts. Prefab boxes can work just fine, you just have to pay close attention to the air requirements of your sub and that of the box.

By Michael on December 6, 2011

10 found this helpful




iSound-1620 small

DreamGear iSound-1620 (Red)

Travel Speaker with FM Radio Ideal for iPod, iPhone, iPad, Galaxy S4/S3/S2, Galaxy Note, MP3 Players

$12.99

List price $24.99

Objective2 (Silver) small

JDS Labs, Inc Objective2 Professional Grade Desktop Headphone Amplifier Open Box

AC Rechargeable Battery Desktop Amplifier with Dual Gain Switch (AC Power Adapter Sold Separately)

$114.99

List price $159.00

ICON-HDP-RED small

NuForce Icon HDP Audiophile Grade Headphone Amplifier & DAC (Red)

24-Bit/192 kHz Headphone Amp and Preamp Output with USB, S/PDIF Coaxial, and 3.5mm Optical

$299.99

List price $449.00

HAFX8P small

JVC HAFX8P (HA-FX8P) Pink RIPTIDZ In-Ear Headphones/Earbuds

Lightweight Rubber Earbuds w/ 3 Sets of Silicone Earpieces (Pink)

$8.99

List price $9.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1994 Mazda B4000

2023 Audi A4

1969 Ford Thunderbird

1990 Nissan D21

1995 BMW 740iL

2006 Kia Sorento

2000 Toyota Avalon

2015 Lexus ES350

2011 Volvo XC90

2022 Jeep Compass

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
