JBL MS-12SD2

450W RMS 12" MS Series Dual 2 ohm Subwoofer

JBL
Shop all JBL
Product videos
highlight-star-icon

• 1800W Peak
• 450W RMS
• Polypropylene Cone
• Polyurethane/Fabric Surround
• Sealed and Vented Enclosures
• Aluminum Frame
• 56 oz. Barium Ferrit Magnet

Learn more about the ms12sd2

We apologize

This item has been discontinued


Loading...
VSP65 main

NVX VSP65

600W Peak (200W RMS) 6.5" V-Series 2 Way Coaxial Car Speakers

64
-15.39%

$109.99

List price $129.99

C1-400x main

JL Audio C1-400x

70W RMS 4" C1 Series 2 Way Coaxial 4-ohm Car Speakers

8
ZXI-44 main

DS18 ZXI-44

300W Peak (100W RMS) 4" ZXI Series 2-way 4-ohm Coaxial Car Speakers

FRING4 main

NVX FRING4

Universal 4" Self-Adhesive Foam Speaker Baffle Ring Kit (Pack of 2)

4
-36.91%

$11.98

List price $18.99

REF4032CFXAM main

Infinity Reference REF-4032cfx (REF4032CFXAM)

210W Peak (70W RMS) 4" Reference Series 2 Way Coaxial 3-ohm Speakers

1
-42.84%

$79.99

List price $139.95

CX 100 main

Hertz CX 100

240W Peak (80W RMS) 4" Cento Series 2-Way Coaxial 4-ohm Car Speakers

4

$249.99

List price $260.00

ML 1650.3 main

Hertz ML 1650.3

500W Peak (250W RMS) 6.5" Mille Legend Series 4-ohm Midrange Car Woofers

-5.66%

$999.99

List price $1060.00

VSP4 main

NVX VSP4

450W Peak (150W RMS) 4" V-Series 2 Way Coaxial Car Speakers

17
-16.67%

$54.99

List price $65.99

Product Highlights


• 1800W Peak
• 450W RMS
• Polypropylene Cone
• Polyurethane/Fabric Surround
• Sealed and Vented Enclosures
• Aluminum Frame
• 56 oz. Barium Ferrit Magnet

Description


JBL brand icon

Authorized dealer

The New Sound of JBL: MS Series Subwoofers

JBL MS-12SD2 Subwoofer JBL MS-12SD2 Subwoofer Cone

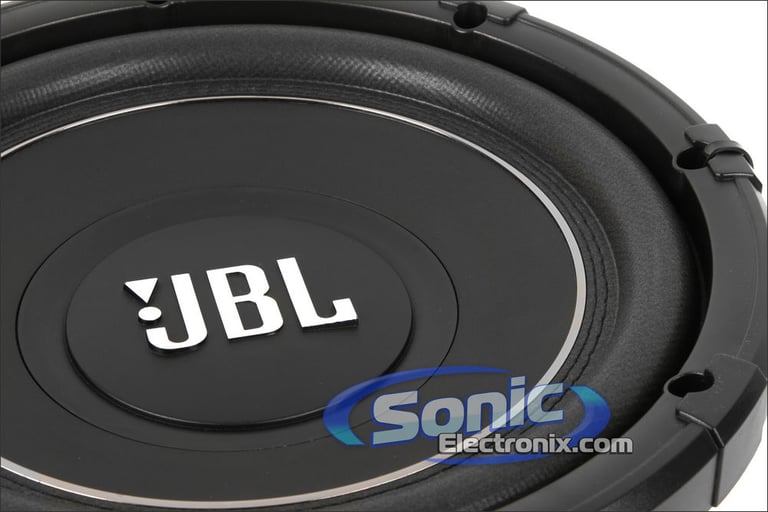

The Cone

No sound system is complete without some seriously deep bass. The hard hitting 12" JBL MS-12SD2 subwoofer provides just that. The dual voice coils allow for greater flexibility and more wiring options.

  • Lightweight polypropylene cone
  • Double stitched laminated polyurethane and fabric surround
  • Peak power handling: 1800 watts
  • RMS power handing: 900 watts

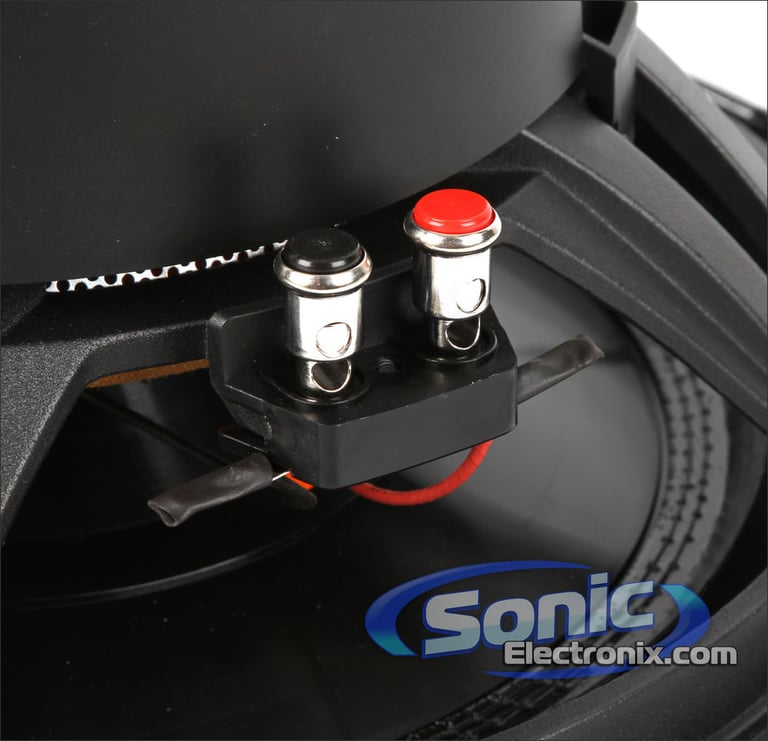

  • JBL MS-12SD2 Subwoofer Connections

    The Details Matter

    JBL has carefully engineered and constructed the MS-12DS2 from the ground up to ensure use for years to come. The durable, light weight aluminum basket is nonferrous, which dedicates more magnetic power to the motor assembly.

  • 56 oz. Barium ferrit magnet structure
  • Silver-plated push terminals
  • Stitched tensil weaves
  • Vented pole piece


  • The Sound of quality

    Sonic Electronix, one of the leaders in car audio, recently visited Harman, the premium global audio and infotainment group, at their research and development locations in Northridge, California and Detroit, Michigan. The purpose of these visits was to utilize and combine the powerful brand of Harman and the industry leading knowledge behind Sonic Electronix to begin working together on developing future car audio projects.


    General Features

    • 12" Dual 2 ohm MS Series Subwoofer
    • Power Handling:
      • Peak: 1800 watts
      • RMS: 450 watts
    • Impedance: Dual 2 ohm
    • Polypropylene cone material
    • Laminated polyurethane and fabric surround
    • Vented pole piece
    • Designed for both sealed and vented enclosures
    • Aluminum frame with black epoxy coating
    • 2-1/2" Copper voice coil with Kapton former
    • 56 oz. Barium ferrit magnet structure
    • Silver-plated push terminals
    • Frequency response: 30-400 Hz
    • Sensitivity: 87 dB
    • Authorized Internet Dealer
    • 1-year Manufacturer's warranty

    Subwoofer Wiring Guide


    Wiring Guide to Wire 1 JBL MS-12SD2 Subwoofer

    Mono Amp

    Mono Amp - Option 1

    2 Channel Amp - Bridged

    Wiring Guide to Wire 2 JBL MS-12SD2 Subwoofers

    Mono Amp

    2 Channel Amp

    4 Channel Amp - Bridged

    Wiring Guide to Wire 3 JBL MS-12SD2 Subwoofers

    Mono Amp

    Mono Amp - Option 1

    4 Channel Amp

    Wiring Guide to Wire 4 JBL MS-12SD2 Subwoofers

    2 Channel Amp

    4 Channel Amp


    Loading...
    Limited time!
    46CSC654 main

    Kicker CSC65 (46CSC654)

    600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

    122
    -33.36%

    $79.96

    List price $119.99

    Limited time!
    46CSC6934 main

    Kicker CSC693 (46CSC6934)

    900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

    40
    -30.02%

    $111.96

    List price $159.99

    Limited time!
    Club 622 main

    JBL Club 622

    360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

    5
    -28.58%

    $99.95

    List price $139.95

    43DSC6504 main

    Kicker DSC650 (43DSC6504)

    480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

    28
    -10.53%

    $84.99

    List price $94.99

    DB652 main

    Polk Audio DB652 (DB 652)

    600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

    12
    -9.16%

    $109.00

    List price $119.99

    PNW-65CS2 main

    AudioControl PNW-65CS2

    250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

    4
    -5.90%

    $319.00

    List price $339.00

    MPK 163.3 main

    Hertz MPK163.3

    600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

    2
    -14.89%

    $999.99

    List price $1175.00

    SXE-6926S main

    Alpine SXE-6926S

    280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

    13
    -20.84%

    $56.99

    List price $71.99

    NSP65 main

    NVX NSP65

    540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

    93
    -35.19%

    $69.99

    List price $107.99

    XED62 main

    Cerwin-Vega XED62

    600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

    15
    -16.67%

    $49.99

    List price $59.99


    Best selling similar products

    Marine Club 12 small

    JBL CB122 Club Marine 12

    • Peak Power: 1200 watts
    • RMS Power: 400 watts
    • Polypropylene Cone
    • Rubber Surround
    • Impedance: Single 4 ohm
    • Mount depth: 7-13/16"
    • Sensitivity: 89 dB

    (1)

    $119.95

    List price $379.95

    VCW124v3 small

    NVX VCW124 Version 3 (VCW124v3)

    • Peak Power: 2400 watts
    • RMS Power: 1200 watts
    • Impedance: Dual 4 ohm
    • Carbon Fiber Enhanced Non-Pressed Paper Cone
    • Custom High Roll Foam Surround with black nylon stitching
    • Mount depth: 7.02"
    • Sensitivity: 85 dB (1W/1m)

    (132)

    $239.99

    List price $287.99

    SQW124 small

    NVX SQW124

    • Peak Power: 1200 watts
    • RMS Power: 600 watts
    • Impedance: Dual 4 ohm
    • Polypropylene Cone
    • Rubber Surround
    • Mount depth: 3.51"
    • Sensitivity: 84 dB

    $299.99

    List price $359.99

    12W6v3-D4 small

    JL Audio 12W6v3-D4

    • RMS Power: 600 watts
    • Impedance: Dual 4 ohm
    • Mineral-Filled Polypropylene Cone
    • Butyl Rubber Surround
    • Mount depth: 7.52"
    • Sensitivity: 85.4 dB

    (25)

    $949.99

    List price $949.99

    VCW122v3 small

    NVX VCW122 Version 3 (VCW122v3)

    • Peak Power: 2400 watts
    • RMS Power: 1200 watts
    • Impedance: Dual 2 ohm
    • Carbon Fiber Enhanced Non-Pressed Paper Cone
    • Custom High Roll Foam Surround with black nylon stitching
    • Mount depth: 7.02"
    • Sensitivity: 85 dB (1W/1m)

    (94)

    $239.99

    List price $287.99

    SRX1240 small

    Memphis SRX1240

    • Peak Power: 500 watts
    • RMS Power: 250 watts
    • Impedance: Single 4 ohm
    • Polypropylene Cone
    • Rubber Surround
    • Mount depth: 4.92"
    • Sensitivity: 85 dB

    $79.99

    List price $139.95

    SW-M12D2 small

    Sundown Audio M-12 D2 12" (M12D2)

    • Peak Power: 4000 watts
    • RMS Power: 2000 watts
    • Impedance: Dual 2 ohm
    • Polypropylene Cone
    • High Roll Foam Surround
    • Mount depth: 10.88"
    • Sensitivity: 80.6 dB

    (1)

    $599.99

    List price $719.99

    Stage 122 small

    JBL Stage 122 (JBLSUBST122AM)

    • Peak Power: 1000 watts
    • RMS Power: 250 watts
    • Impedance: Single 4 ohm
    • Polypropylene Cone
    • Rubber Surround
    • Mount depth: 6"
    • Sensitivity: 91 dB

    $109.95

    List price $129.95

    YSW122 small

    NVX YSW122

    • Peak Power: 1600 watts
    • RMS Power: 800 watts
    • Impedance: Dual 2 ohm
    • Enhanced Pressed Paper Cone
    • High Roll Foam Surround
    • Mount depth: 6.5"
    • Sensitivity: 85 dB

    (3)

    $149.99

    List price $227.99

    12TW3-D4 small

    JL Audio 12TW3-D4

    • RMS Power: 400 watts
    • Impedance: Dual 4 ohm
    • Mica Injected Polypropylene - MIPP Cone
    • Rubber Surround
    • Mount depth: 3.5"
    • Sensitivity: 84.11 dB

    (20)

    $569.99

    List price $569.99

    Specifications & Details


    Subwoofer Specifications
    Series
    MS Series
    Subwoofer Size
    12"
    Peak Power Handling
    1800 watts
    RMS Power Handling
    450 watts
    Voice Coil(s)
    Dual
    Impedance (Per Voice Coil)
    2 ohm
    Voice Coil Diameter
    2"
    Frequency Response
    30 - 400 Hz
    Sensitivity
    87 dB
    Xmax (millimeters)
    29.3 mm
    Subwoofer Design
    Round / Circle
    Main Cone Color
    Black
    Woofer Composition
    Polypropylene
    Woofer Surround
    Poly Coated Cloth
    Magnet Structure
    Single Stacked
    Subwoofer Grille
    No
    Re-Cone Kit Available
    No
    Recommended Enclosure Specifications
    Recommended Enclosure Type
    Ported / Vented
    Sealed
    Optimum Sealed Box Volume
    0.95 cubic feet
    Optimum Ported Box Volume
    1.7 cubic feet
    Top-Mount Depth (Mounting Depth)
    6-3/4"
    Cutout Diameter
    10-15/16"
    Shallow Mount Installation
    No
    T/S Parameters (Electromechanical)
    Free-Air Resonance (Fs)
    35 Hz
    Equivalent Compliance (Vas)
    49 liters
    Total Speaker Q Value (Qts)
    0.73
    Electrical Q Value (Qes)
    0.78
    Electrical Resistance of Voice Coil (Re)
    3.7 ohm
    Mechanical Q Value (Qms)
    10.08
    Warranty and Return Policy
    Parts Warranty Duration
    1 year
    Labor Warranty Duration
    1 year
    Warranty Provider
    Manufacturer

    Item Details


    Manufacturer:

    JBL

    Model Number:

    MS-12SD2

    Weight:

    15.00lbs

    Internal SKU:

    ms12sd2

    Internal Product ID:

    39485

    Product and How-to Videos


    • JBL MS Series Car Subwoofers
    • Harman International: The Pursuit of Great Sound
    • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

    Customer Ratings & Reviews


    JBL MS-12SD2 thumbnail image

    5 star
    60%
    4 star
    10%
    3 star
    30%
    2 star
    0%
    1 star
    0%



    Durability
    4.1
    Value
    4.2
    Features
    4.1
    Design
    4.6
    Usability
    4.5

    Customer Reviews

    Sort by:

    Loading...

    JBL

    the jbl Ms 12 are a great starting subwoofer and can handle a lot of power. the amp I had couldn't keep up with two of these they were running about 1200 watts at 4 ohm and hit pretty hard

    By Fishy on January 30, 2015

    32 found this helpful


    Did okay at first, then not so good

    I bought a pair of these looking for just a nice clean setup. I hooked them up at 2 ohms to my old kicker zx1000 and they did okay. Keeping in mind they may be seeing about half power for the first 2 weeks,and after 50 hours freeair with maybe 100 rms to each sub. Were the subs broke in? Yes. I tuned and clamped this setup to push 800 rms. Now they say 450rms a piece. Really JBL? First the Infinity Kappas sound like crap now these. I guess they sold out like most company's. The subs sound horrible on real lows struggle very sloppy, CANT BELIEVE THIS

    By Fat Nate on June 11, 2014

    30 found this helpful


    Pretty Good Subs

    These subs were recommended to me by a SonicElectronix employee on the phone. I gave it some thought and decided to go with these, only because JBL products are used in my home studio so I assume the sound quality is very good. This is supposed to be an upgrade from the do-it-yourself Crunch subwoofer + box I got a couple years ago (and that was a pretty good set-up, actually.)

    These subs are pretty good for the price. I have them amped up to a Belva BB2000D which gives the sub nearly 600 watts rms, although JBL states this sub can do 450 watts rms. Needless to say, they can definitely take the power.

    The only issue I have with these subs is that...they're in a sealed enclosure. So this subwoofer absolutely SLAMS on certain frequencies (roughly 60-80-ish Hz) and anything below that sweetzone, the bass kinda rolls-off. Also, sometimes the subwoofer sounds like it is struggling to hit very quickly, which is odd since I was under the impression that sealed sub boxes give tighter bass response.

    So I honestly can't say whether that's an issue with the enclosure or just a limitation of the subwoofer itself. I need to put this sub into a properly tuned ported box to truly gauge its performance. So until then, I gotta give this sub a 7 out of 10.

    For those who want to go with great sound quality and are on a budget, these are good for the money; they put out good volume and can hit most low notes. BUT if you can afford something better - please buy better. Personally, I have NVX speakers working like slaves in my ride, so I'll be saving up for the NVX x-series subwoofer to complete the package and enjoy sweet blissful bass. But until then - JBL was a descent choice.

    By Jonathan on July 1, 2014

    29 found this helpful


    Good Sounding Subs

    Bought 2 of these and stuck them in a vented box. sound is great. hits hard on a PA ac2500.1m amp wired at 2Ohm. worth the money

    By Michael on January 8, 2015

    26 found this helpful


    Underwhelmed

    When I received the subwoofer something seemed off about the quality. The holes where the basket meets the cone were misaligned.... Odd for a new subwoofer, but not too major of a problem. After being broken in after a couple weeks the dust cap just came off. Not a big problem either but seriously wtf jbl?
    Honestly it's a decent sub for the money, but I wish I just spent more and got a better sub.

    By Dante on June 2, 2014

    24 found this helpful


    great product...great price...fast shipping

    this sub is as good as any in its price range and even alot more. classic JBL quality, both in build and sound. hard to beat at this price. sonicelectronix offered great price, easy ordering and very fast standard shipping.

    By classicrockguy on January 2, 2015

    25 found this helpful


    JBL MS 12SD2

    Good Speaker For The Money. Good S.Q. Good Power Handling Capability. Overall A Good Speaker.

    By Nathan on April 4, 2012

    25 found this helpful


    awesome speakers,,great pricing..& fast secure shipping..

    these subs are great ,jbl has always been a well known brand & now i know why ,,these subs are very clear ,& hit hard.

    By derell on March 3, 2015

    18 found this helpful


    great

    Yes it is a great speaker to have you need to have one

    By lito on February 13, 2015

    17 found this helpful


    Worth the price

    The sound good. Can't really complain for what they cost.

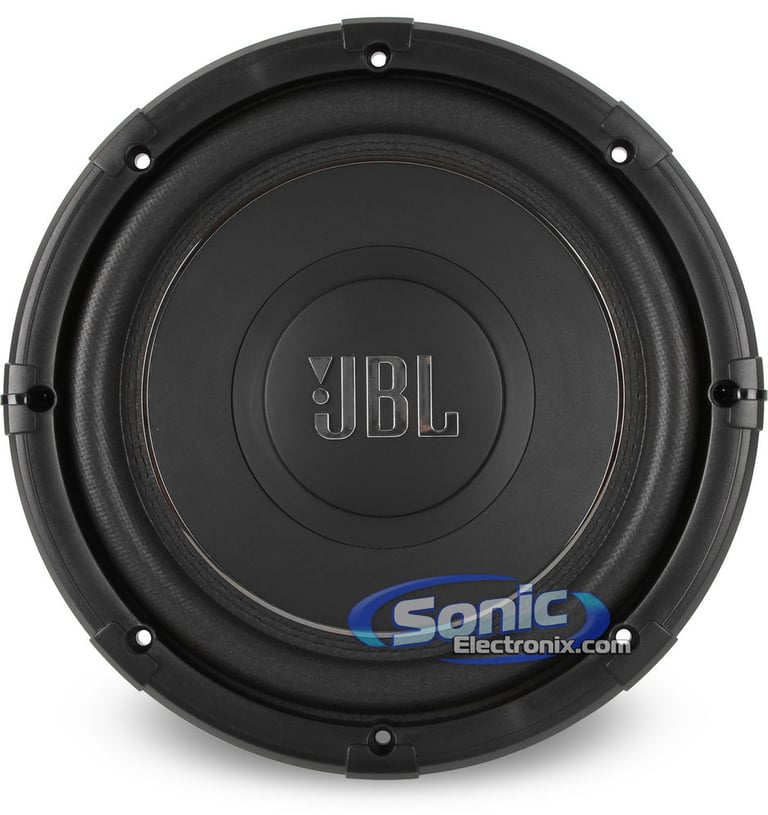

    I bought 2 for a enclosed box. After like a week the center JBL plastic cap popped off... No big deal really. Didn't change the sound so I just gorilla super glued it back on and it hasn't come off since. In all reality, you get what you pay for. That being said though I'm still happy with the performance.

    By Justin on February 23, 2015

    13 found this helpful




    PCEP40003 small

    Epilady PCEP40003

    Epilady Ep40003 Lice Comb Electric Compact

    $33.99

    List price $58.00

    VD-12D4 small

    SKAR Audio VD-12D4-OPEN BOX

    500W 12" VD Series Shallow Mount Dual 4 Ohm Subwoofer

    $89.99

    List price $189.99

    NWZ-E383BLK small

    Sony NWZ-E383 - Black

    Walkman Portable MP3 Audio and Video Media Player with Clear Audio Technologies and 4 GB Storage

    (1)

    $64.99

    List price $64.99

    Related Searches


    Save up to 10 different vehicles in your garage
    Vehicle
    Store
    Delete

    2014 Lexus ES350

    2002 Saturn SC1

    1981 BMW 733i

    2011 MINI Countryman

    1995 Mazda MPV

    1972 Mercury Capri

    2000 Saturn LW2

    2008 Lexus IS250

    2009 Buick Allure

    2021 Ford Transit Cargo

    Add vehicle Clear all vehicles
    Where to find vehicle info
    Are you sure you want to clear your garage?
    This action cannot be undone. Confirm
    This page was not designed for products.
    If you continue, you will be redirected to a category customized for your vehicle. Continue
    Loading...
    Identify your vehicle and submodel details
    • Owner's manual
    • Vehicle's insurance card
    • Vehicle registration
    • Vehicle produced after 2005: Inside driver's side door
    • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
    Car Info Side Door Icon
    Vehicle Registration Icon
    Vehicle Insurance Icon

    Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

    • You see only parts engineered for your exact vehicle
    • You avoid incompatible radios, speakers, or wiring
    • Installation is smoother, faster, and frustration-free
    • You get the correct accessories the first time

    Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
