Name: NVX JAD800.4 - As-is, Intermittent or Unfound Defect Used
Brand: NVX
SKU: LS-jad8004-OBC3
Price: 189.99 USD
Availability: Discontinued

by NVX

About
Specs & Details
Reviews
Add-ons
Recently Viewed
Related Searches

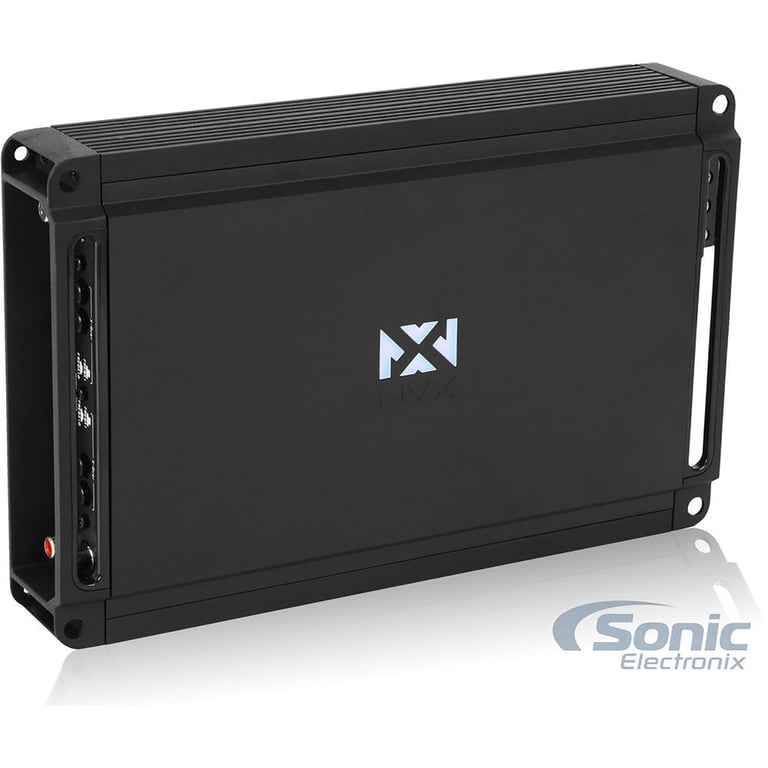

NVX JAD800.4 - As-is, Intermittent or Unfound Defect Used Image 1 — NVX JAD800.4 - As-is, Intermittent or Unfound Defect Used

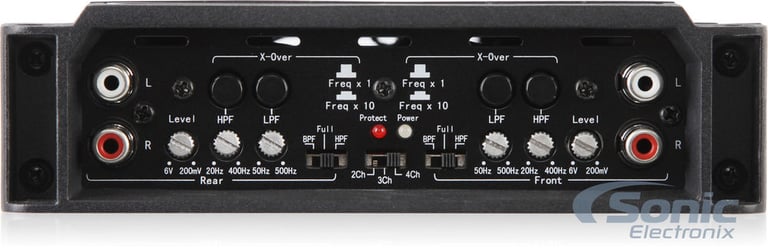

NVX JAD800.4 - As-is, Intermittent or Unfound Defect Used Image 2 — NVX JAD800.4 - As-is, Intermittent or Unfound Defect Used

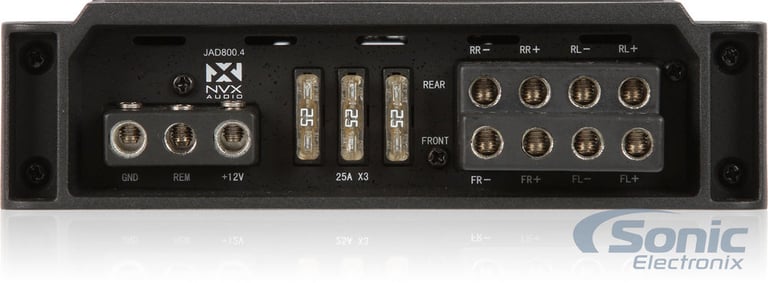

NVX JAD800.4 - As-is, Intermittent or Unfound Defect Used Image 3 — NVX JAD800.4 - As-is, Intermittent or Unfound Defect Used

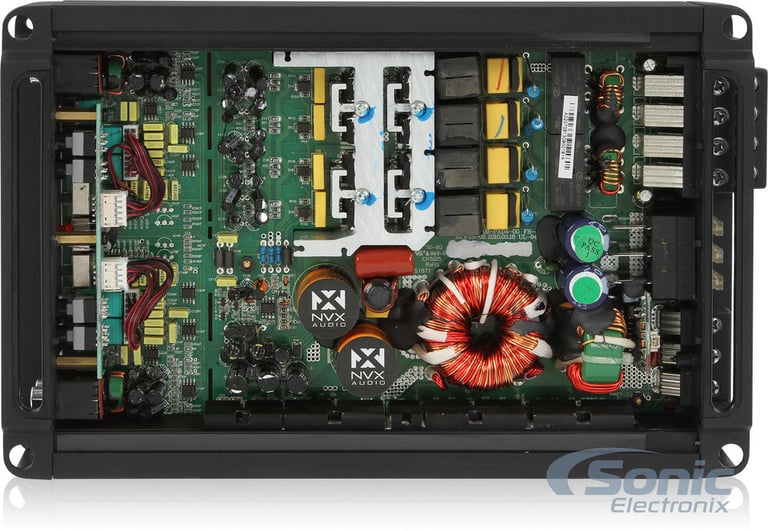

NVX JAD800.4 - As-is, Intermittent or Unfound Defect Used Image 4 — NVX JAD800.4 - As-is, Intermittent or Unfound Defect Used

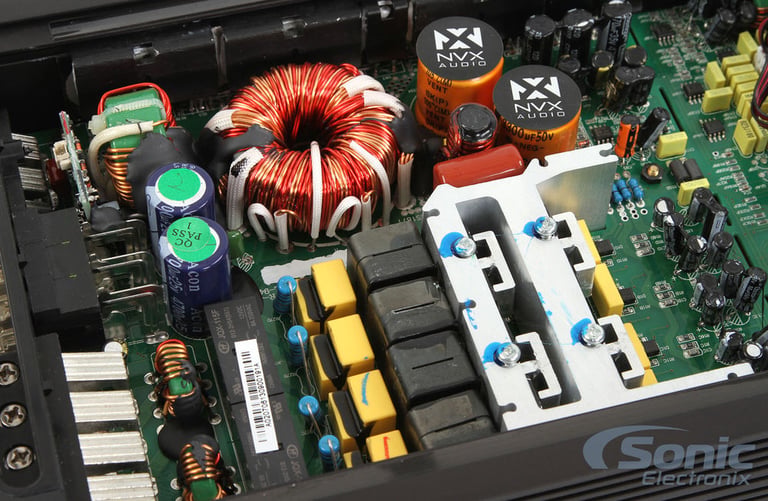

NVX JAD800.4 - As-is, Intermittent or Unfound Defect Used Image 5 — NVX JAD800.4 - As-is, Intermittent or Unfound Defect Used

NVX JAD800.4 - As-is, Intermittent or Unfound Defect Used Image 6 — NVX JAD800.4 - As-is, Intermittent or Unfound Defect Used

NVX JAD800.4 - As-is, Intermittent or Unfound Defect Used Image 7 — NVX JAD800.4 - As-is, Intermittent or Unfound Defect Used

NVX JAD800.4 - As-is, Intermittent or Unfound Defect Used Image 8 — NVX JAD800.4 - As-is, Intermittent or Unfound Defect Used

NVX JAD800.4 - As-is, Intermittent or Unfound Defect Used Image 9 — NVX JAD800.4 - As-is, Intermittent or Unfound Defect Used

NVX JAD800.4 - As-is, Intermittent or Unfound Defect Used Image 10 — NVX JAD800.4 - As-is, Intermittent or Unfound Defect Used

Product highlights

• 4 ohm: 125 watts x 4-Chan. RMS
• 2 ohm: 200 watts x 4-Chan. RMS
• Bridged, 4 ohm: 400 x 2 chan. RMS
• Pulse Width Modulated MOSFET Power Supply
• 4/3/2 Channel Operation

Learn more about the LS-jad8004-OBC3

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Item Condition - As-is, Intermittent or Unfound Defect:
An Intermittent or Unfound Defect product include defect(s) that are unfound or intermittent in nature. Details and information on the extent of the defect(s) will be documented as thoroughly as possible in the product description. While repair, service or the salvage of parts is probable, no guarantee, warranty or returns are permitted on a product with an intermittent or unfound defect. A product in this condition is sold as-is.

NVX JAD Series Amplifiers

NVX's new line of JAD series amplifiers are perfect for those looking for a small footprint, high output amplifier. They boast an abundance of features such as variable high and low pass filters, bridgeable channels, and gain level control. The sleek design of the chassis combined with the illuminated badge makes these amplifiers eye-catchers. The JAD800.4 4-channel is ideal for running a couple of pairs of speakers or even a couple subwoofers. The broad frequency response of 20 to 20,000 hertz will ensure every note is properly reproduced. Get the justice you deserve with NVX today!

Sonic Electronix Power Certified Amplifier

NVX's JAD800.4 4-Channel amplifier is a Sonic Electronix Certified Amplifier. This amp's power output has been professionally tested with our SMD Amplifier Dyno, bringing you it's true power ratings. Learn more about this amp's Sonic Electronix Certified Power Here!

Impedance	Claimed Output	Certified Results	Dynamic Results
4 Ω	125W @ 14.4v	175W @ 14.75v	178W @ 14.81v
2 Ω	200W @ 14.4v	297W @ 14.64v	324W @ 14.77v

General Features:

Class D 4-Channel Amplifier
CEA-2006 Compliant
Peak Power Rating: 1600
RMS Power Rating:

4 ohm: 125 watts x 4 chan.
2 ohm: 200 watts x 4 chan.
Bridged, 4 ohm: 400 x 2 chan.

Sonic Electronix Certified Power Rating*:

4 ohm: 175 watts x 4 chan.
2 ohm: 297 watts x 4 chan.

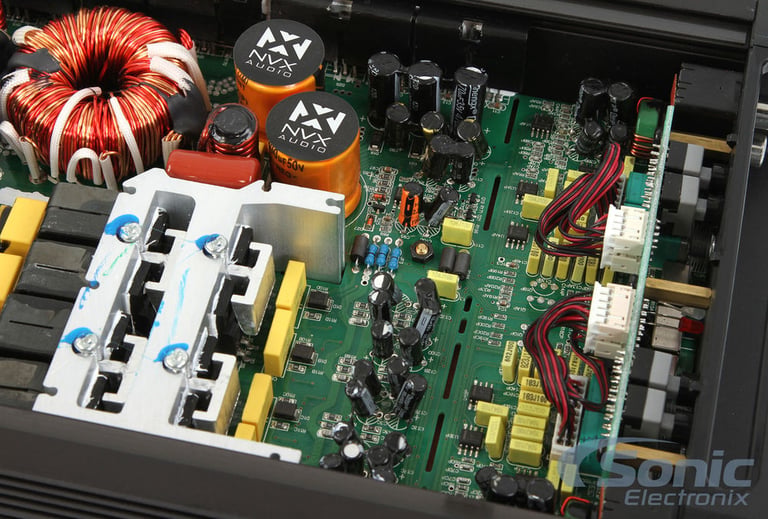

Non-regulated efficient S.M.P.S power supply design
Pulse Width Modulated MOSFET power supply
LED power (green) and protect (red) indicators
High speed rectifying diodes
Soft start turn-on
4, 3, or 2 channel operation
3-way protection circuitry (thermal, overload, and speaker short protection)
Heavy duty aluminum alloy heat-sink
Nickel-plated RCA level inputs
Nickel-plated screw terminals
Input sensitivity: 200mV - 6V
Frequency Response: 20 - 20,000 Hz
Total Harmonic Distortion (THD): <1.00%
Signal to Noise Ration: 106dB
Selectable crossover modes: BPF / FULL / LPF
x1 & x10 Frequency multiplier, Front & Rear
Variable high-pass filter: 20 - 400 Hz or 200 - 4,000 Hz, 24 dB/octave
Variable low-pass filter: 50 - 500 Hz or 500 - 5,000, 24 dB/octave

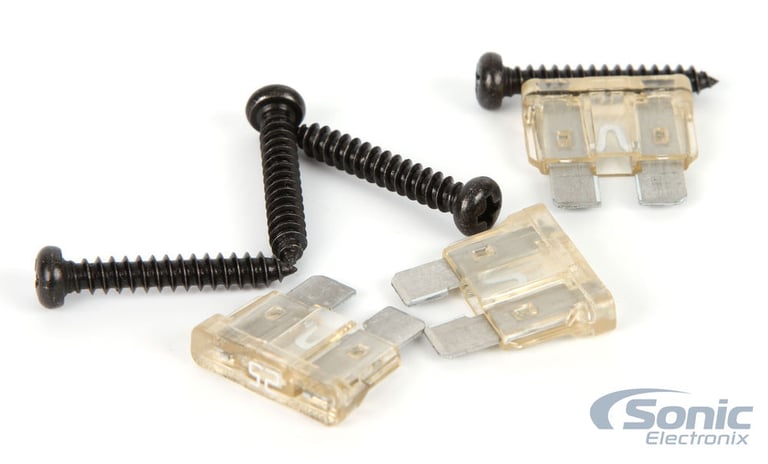

Fuse Rating: 25A x 3

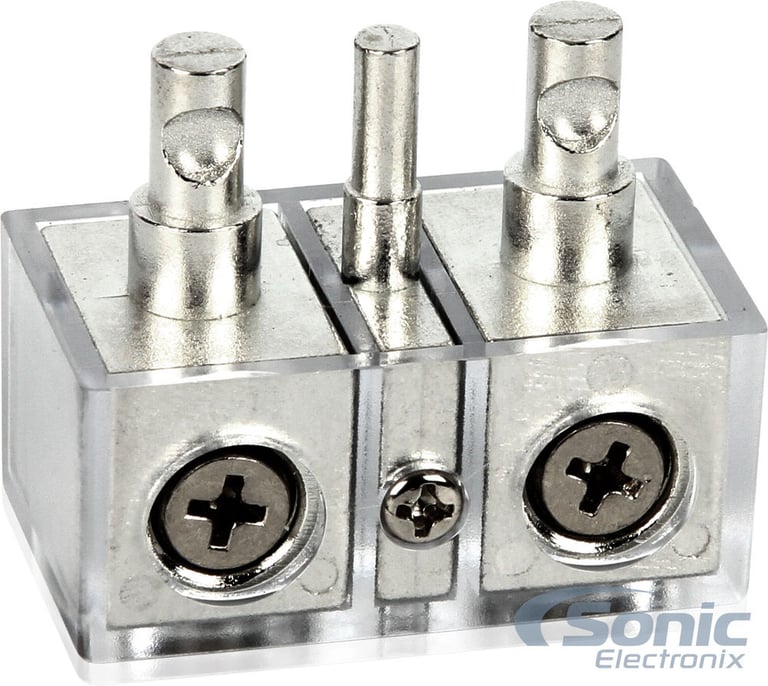

Gauge adapter included, allowing amplifier to accept 8, 4, 2, and 1/0
4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
Dimensions: 6-7/10"W x 10-4/10"L x 1-8/10"H
Authorized Internet Dealer
1-year Manufacturer's Warranty

Extend your NVX Manufacturer's Warranty to 2 Years when you install your new NVX amplifier with a compatible NVX power installation kit! This offer is only available through Authorized NVX dealers and will only last for a limited time. With this amplifier, the following power kits will qualify for the extended warranty program: NVX XAPK1D, NVX XKIT44, or NVX XAPK4

*The Sonic Electronix Certified Power Ratings listed are based on a test of a specific sample amplifier. Actual power ratings may slightly vary between amps.

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

125 watts x 4 channel

RMS Power @ 2 ohms

200 watts x 4 channel

Bridged RMS Power

400 watts x 2 channel

Amplifier Specifications

Series

JAD Series

Amplifier Class

Number of Channels

4-Channel

Total Peak Power Output

1600 watts

Total RMS Power Output

800 watts

Maximum Input Gauge Size

1/0 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

<1.00%

Speaker Level Inputs

Preamp Outputs

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)
Full (AP)

High-Pass Crossover Frequency

20 - 4,000 Hz

Low-Pass Crossover Frequency

50 - 5,000 Hz

Signal-to-Noise Ratio

106 dB

Remote bass/level controller

Fuse Rating

25A x 3

Sonic Certified Amplifier

Yes

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer
