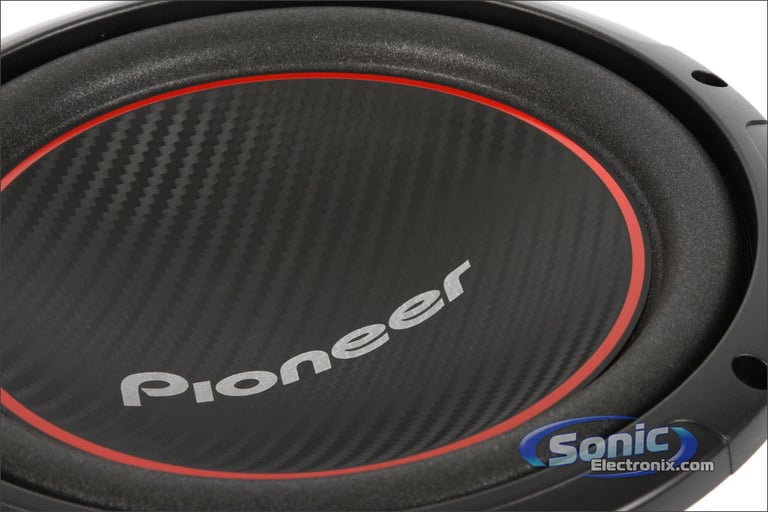

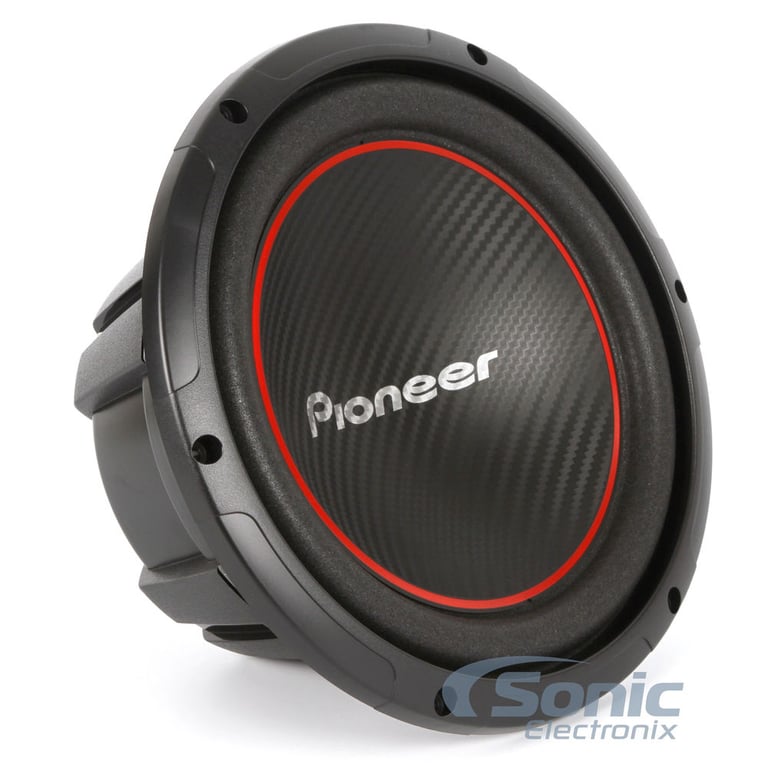

Pioneer TS-W254R

250W 10" Champion Series Single 4 ohm Subwoofer

Pioneer
Shop all Pioneer
Product videos
highlight-star-icon

• 1100W Peak
• 250W RMS
• IMPP Composite Seamless Cone
• Extended Pole Yoke
• Extended Excursion Design
• 6-Layer Long High Temperature Voice Coil

Learn more about the tsw254r

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

tsw106m thumbnail

Pioneer TS-W106M

OUR PRICE: $47.99

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-8104 main

Metra 72-8104

Install New Speakers in select 1990-2024 vehicles from Toyota, Subaru, Mitsubishi

87
-20.01%

$11.99

List price $14.99

LPHTY01 main

PAC LPHTY01

Vehicle Specific Audio Integration T-Harness for select 1985-2021 vehicles from Toyota, Subaru, Scion

-54.27%

$58.99

List price $129.00

SBK929GB main

American International SBK929GB

Single DIN or Double DIN Stereo Dash Kit for select 2015-2024 vehicles from Subaru (Gloss Black)

2
-64.08%

$22.99

List price $64.00

72-8110 main

Metra 72-8110

Install New Speakers and Tweeters in select 2003-2025 vehicles from Subaru, Toyota, Scion

8
82-8901 main

Metra 82-8901

6.5" to 6.75" Speaker Adapter for select 1998-2021 vehicles from Subaru, Audi

3
-55.90%

$14.99

List price $33.99

LPHNI03 main

PAC LPHNI03

Vehicle Specific Audio Integration T-Harness for select 2002-2021 vehicles from Nissan, Subaru, Infiniti

-42.20%

$63.00

List price $109.00

82-8900 main

Metra 82-8900

6.5" Multi Speaker Adapter for select 2005-2021 vehicles from Subaru

1
-55.90%

$14.99

List price $33.99

82-4201 main

Metra 82-4201

2.5" Tweeter Mounting Adapters for select 1999-2024 vehicles from Toyota, Subaru, Ram

1
-54.57%

$9.99

List price $21.99

SWRSU-38D main

Crux SWRSU-38D

Install a New Car Stereo and Retain Harman Kardon Amplifier, Steering Wheel Controls and Other Factory Features in select 2015-2022 vehicles from Subaru

1
-35.71%

$125.55

List price $195.30

HRN-HRR-SU2 main

iDataLink Maestro HRN-HRR-SU2 Wiring harness

Install a New Car Stereo in select 2012-2021 vehicles from Subaru, Toyota (Requires ADS-MRR or ADS-MRR2 Module)

-27.28%

$79.99

List price $109.99

Product Highlights


• 1100W Peak
• 250W RMS
• IMPP Composite Seamless Cone
• Extended Pole Yoke
• Extended Excursion Design
• 6-Layer Long High Temperature Voice Coil

Description


Pioneer brand icon

Authorized dealer



Best Bang for Your Buck!
Clarion WG2520D
Clarion
WG2520D
Pioneer TS-W254R
Pioneer
TS-W254R
10"
Subwoofer Size
Strontium Ferrite
Magnet Type
CEA-2031
Speaker Rating
RMS
Power Handling
300 Watts 250 Watts
Xmax
Value
6.0 mm 4.7 mm
Sale
Price
$44.99 $69.95


Product Features

  • 10" Single 4 ohm Champion Series Component Car Subwoofer
  • Power Handling:
    • Peak: 1100 watts
    • RMS: 250 watts
  • Impedance: 4 ohm
  • IMPP Composite seamless cone woofer for a rich bass sound
  • Urethane surround for generous amounts of excursion
  • Extended pole yoke improves linearity during long excursion
  • Vented pole yoke allows better heat dissipation and increased power handling
  • Extended excursion design provides longer travel to create loud bass output

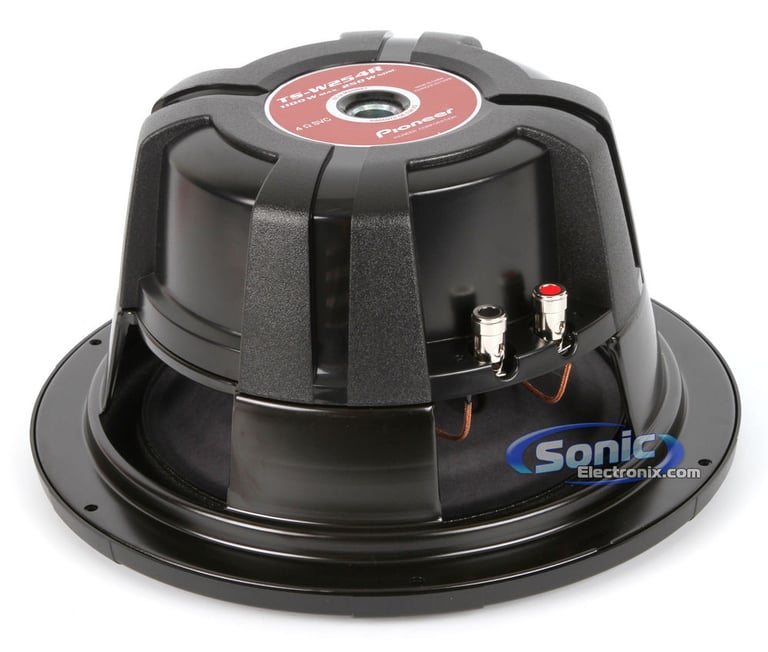

  • Large binding posts for heavy gauge wire
  • Best tuned parameters provide superior sound quality and reliability
  • 6-Layer long high temperature voice coil design
  • 33 oz large strontium magnet structure
  • Frequency Response: 20-220 Hz
  • Sensitivity: 93 dB
  • Xmax: 4.7 mm
  • Mounting Depth: 5"
  • Cutout Dimensions: 9-1/4"
  • 1-year Sonic Electronix Warranty

Product history:

Pioneer TS-W106M thumbnail
(newest, current model)
Pioneer TS-W254R thumbnail
(previous model, replaced by Pioneer TS-W106M)
Pioneer TS-W253R thumbnail
(previous model, replaced by Pioneer TS-W254R)
Pioneer TS-W252R thumbnail
(previous model, replaced by Pioneer TS-W253R)
Pioneer TS-W251R thumbnail
(previous model, replaced by Pioneer TS-W252R)
Pioneer TS-W250R thumbnail
(previous model, replaced by Pioneer TS-W251R)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Pioneer TS-W254R Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Pioneer TS-W254R Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Pioneer TS-W254R Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Pioneer TS-W254R Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(89)

$139.99

List price $139.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(15)

$189.95

List price $159.95

R2-W10D2 small

Alpine R2-W10D2

• Peak Power: 2250 watts
• RMS Power: 750 watts
• Impedance: Dual 2 ohm
• Kevlar Reinforced Pulp Paper Cone
• High-Amplitude Multi-Roll (HAMR) Surround
• Mount depth: 5.92"
• Sensitivity: 82.3 dB

(3)

$319.95

List price $480.00

Specifications & Details


Subwoofer Specifications
Series
Champion Series
Subwoofer Size
10"
Peak Power Handling
1100 watts
RMS Power Handling
250 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Frequency Response
20 - 220 Hz
Sensitivity
93 dB
Xmax (millimeters)
4.7 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Red
Woofer Composition
Injection Molded Polypropylene
Woofer Surround
Urethane
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.65 cubic feet
Maximum Sealed Box Volume
1.25 cubic feet
Minimum Ported Box Volume
0.90 cubic feet
Maximum Ported Box Volume
1.5 cubic feet
Top-Mount Depth (Mounting Depth)
5"
Cutout Diameter
9-1/4"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

TS-W254R

Weight:

8.00lbs

Internal SKU:

tsw254r

Internal Product ID:

40345

Product and How-to Videos


  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews


Pioneer TS-W254R thumbnail image

5 star
70%
4 star
25%
3 star
3%
2 star
2%
1 star
0%



Durability
4.5
Value
4.8
Features
4.4
Design
4.5
Usability
4.9

Customer Reviews

Sort by:

Loading...

Better than expected

I only have the one sub in my Fiesta ST. It has better thump/punch than the two 12" Hifonics in my former truck. I have a 250 watt amp running into it and I can't turn up the amp past 2 without overpowering the rest of the speakers.

By IronMaiden on September 4, 2014

57 found this helpful


ts-w254r

I love this sub. it says my rating 1100watt hah i got it on a boss blx 5000watt amp with a 3 fared spl batter cap now all i need is 2 more.

By pimp on October 5, 2011

51 found this helpful


Great buy

Great product and great value. No problems and would purchase again if needed.

By Drew on February 14, 2013

50 found this helpful


can't beat this sub

I bought two of these for the back of my Tahoe. I paired them with a 4oo watt amp. The combo sounds great! You can't beat the price. No issues what so ever. Sonic is a great place to order form.

By Williefoofoo on December 10, 2012

44 found this helpful


Good sub

Definately a good entry level subwoofer. Bought one for my truck and shoved it into a .75 cube box and it's powered by a 300watt amp. Thumps pretty hard for what it is and is definately an upgrade from my rather BS Boss Phantom Series 10", I don't have many problems with it, it was simple and straight forward. Don't know if it really can handle 1K watts as described nor can I devulge its dependability since I've only had it a couple weeks. And the red ring that's on the sub and carbon fiber look to it is definitely a plus, I have been keeping with a red theme in the truck (red stereo buttons, custom painted LED dash, and red stitching on the seats) and this does a great job of matching it.

By Andrew on January 28, 2012

46 found this helpful


Amazing!

Incredible Sound. Sounds very clear and bass is sufficient for a small vehicle. I currently have it in my 2013 Civic SI and the sound has been great thus far.

By Christian on March 26, 2014

44 found this helpful


Like these subs

Put a pair of these on a Fosgate 500X1D wired for 2ohms. These sound great and really push out the bass. The only negative mark that I can give these is they are a little small. They do not quite measure to be 10 in. Doesn't really matter though, they sound really good even when pushed really hard.

By Kirk on January 22, 2014

42 found this helpful


Great sub

Hooked this up to the rear channels of a Lanzar 4 channel. Bridged the channels down to 2 ohms and this thing rocks! Sounds really good, and for the money can't beat it. I used it in a sealed box in a 1994 chevy silverado under the back seat. Worked out great for the small box.

By 3:23 Tech on January 12, 2015

41 found this helpful


:)

Excellent subwoofer really good for the price, i listen to electric dance music and it sounds perfect

By Edgar on June 27, 2014

41 found this helpful

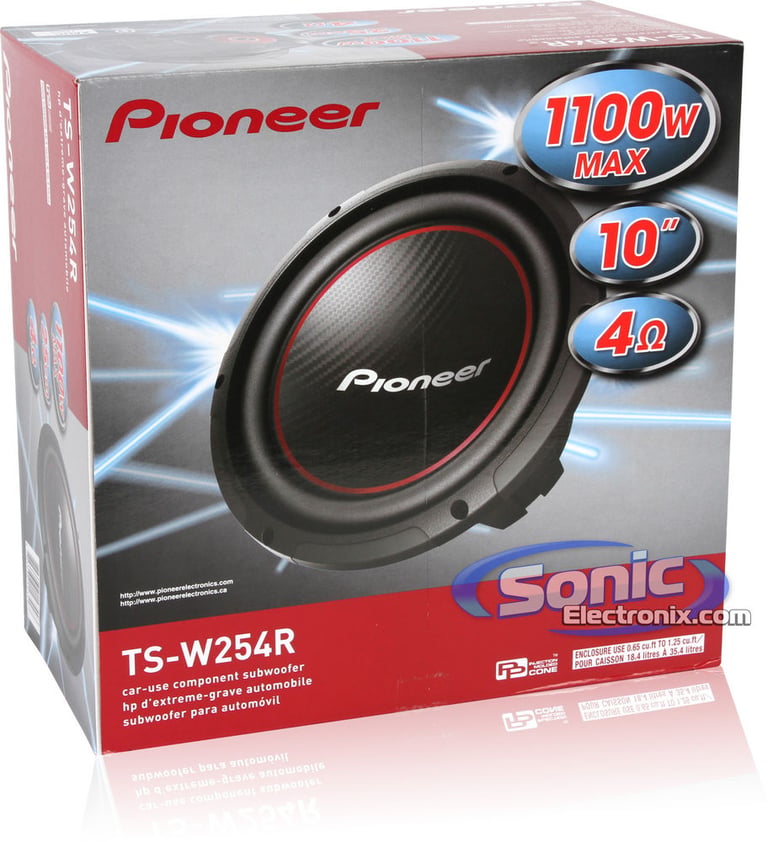

pioneer TS- W254R's

these sub's rock i just finished 4 of them in my single cab f150 4x4 and yeah they do the job very well and they can handle more power then 250 watts.

By wolfpup on November 6, 2013

42 found this helpful




TS-W251R small

Pioneer TS-W251R

Replaces TS-W250R, 10" Single 4 ohm Subwoofer

(8)

$39.99

List price $59.99

8138 small

Naztech Ultima Coffee Brown Size 2 (8138)

Universal Brown Vertical Cell Phone Case with Magnetic Flip Cover

$7.99

List price $34.99

No picture

Naztech Boa Black/Red Size 1 (8985)

Universal Black/Red Vertical Cell Phone Case

$8.49

List price $34.99

PCW1200 small

Blaupunkt PCw1200 12"

(1)

$29.99

List price $59.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1997 Saab 900

1980 Buick Electra

2019 Subaru WRX

2013 Hyundai Tucson

2014 Lexus IS350

1998 Volkswagen Passat

1969 MG MGB

1973 Dodge Challenger

1979 Porsche 911

1987 Dodge Aries

Vehicle
Store
Delete

2006 Harley Davidson FXSTSI Springer Softail

Vehicle
Store
Delete

2022 Can-Am Defender HD10 XT

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
