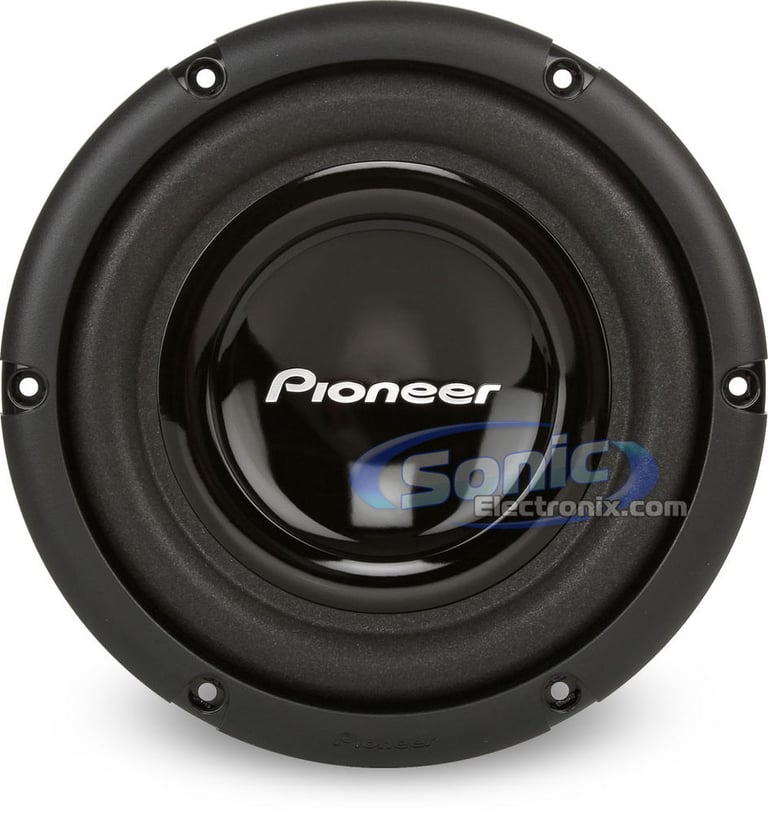

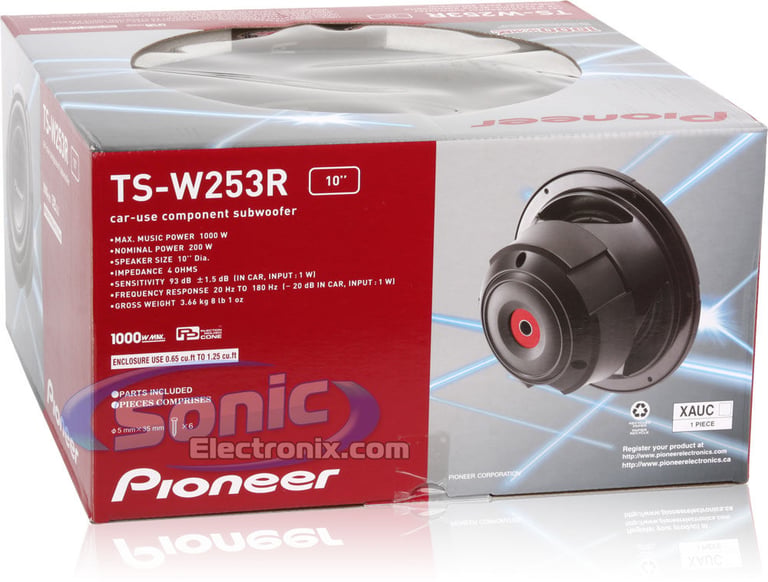

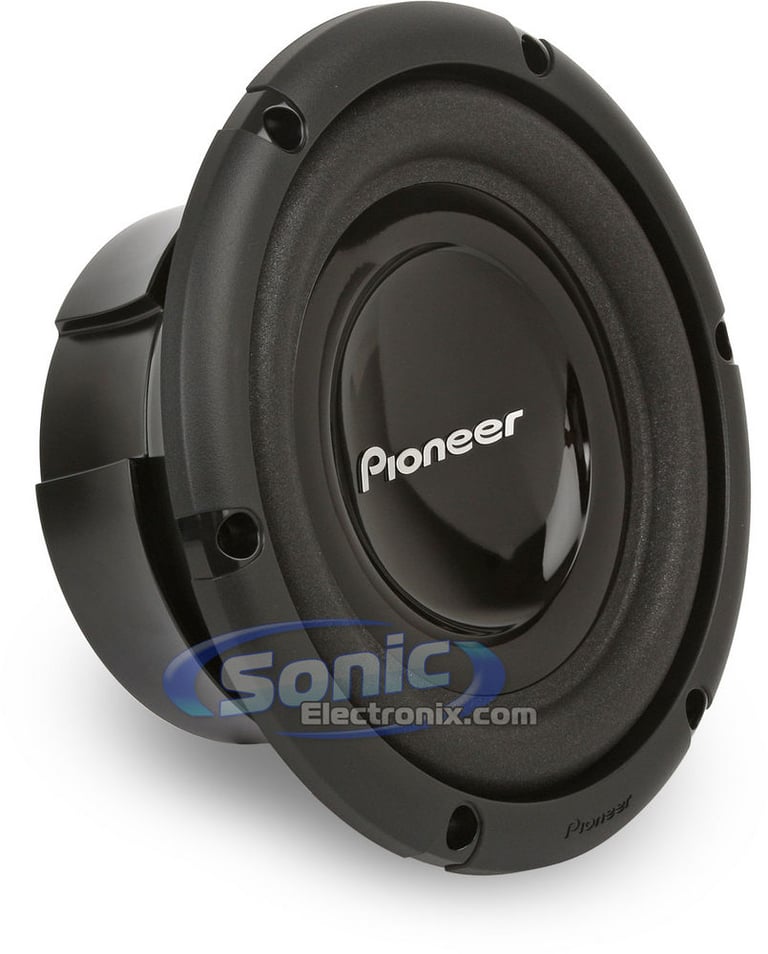

Pioneer TS-W253R

10" Single 4 ohm Champion Series Car Subwoofer

Pioneer
Shop all Pioneer
Product videos
highlight-star-icon

10" Single 4 ohm Champion Series Subwoofer • 1000W Max • 200W RMS • IMPP Composite and paper cone woofer • Double cone design with reinforcement nodes • Urethane surround

Learn more about the tsw253r

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

tsw106m thumbnail

Pioneer TS-W106M

OUR PRICE: $47.99

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-8104 main

Metra 72-8104

Install New Speakers in select 1990-2024 vehicles from Toyota, Subaru, Mitsubishi

87
-20.01%

$11.99

List price $14.99

LPHTY01 main

PAC LPHTY01

Vehicle Specific Audio Integration T-Harness for select 1985-2021 vehicles from Toyota, Subaru, Scion

-54.27%

$58.99

List price $129.00

SBK929GB main

American International SBK929GB

Single DIN or Double DIN Stereo Dash Kit for select 2015-2024 vehicles from Subaru (Gloss Black)

2
-64.08%

$22.99

List price $64.00

72-8110 main

Metra 72-8110

Install New Speakers and Tweeters in select 2003-2025 vehicles from Subaru, Toyota, Scion

8
82-8901 main

Metra 82-8901

6.5" to 6.75" Speaker Adapter for select 1998-2021 vehicles from Subaru, Audi

3
-55.90%

$14.99

List price $33.99

LPHNI03 main

PAC LPHNI03

Vehicle Specific Audio Integration T-Harness for select 2002-2021 vehicles from Nissan, Subaru, Infiniti

-42.20%

$63.00

List price $109.00

82-8900 main

Metra 82-8900

6.5" Multi Speaker Adapter for select 2005-2021 vehicles from Subaru

1
-55.90%

$14.99

List price $33.99

82-4201 main

Metra 82-4201

2.5" Tweeter Mounting Adapters for select 1999-2024 vehicles from Toyota, Subaru, Ram

1
-54.57%

$9.99

List price $21.99

SWRSU-38D main

Crux SWRSU-38D

Install a New Car Stereo and Retain Harman Kardon Amplifier, Steering Wheel Controls and Other Factory Features in select 2015-2022 vehicles from Subaru

1
-35.71%

$125.55

List price $195.30

HRN-HRR-SU2 main

iDataLink Maestro HRN-HRR-SU2 Wiring harness

Install a New Car Stereo in select 2012-2021 vehicles from Subaru, Toyota (Requires ADS-MRR or ADS-MRR2 Module)

-27.28%

$79.99

List price $109.99

Product Highlights


10" Single 4 ohm Champion Series Subwoofer • 1000W Max • 200W RMS • IMPP Composite and paper cone woofer • Double cone design with reinforcement nodes • Urethane surround

Description


Pioneer brand icon

Authorized dealer

  • 10" Single 4 ohm Champion Series Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 200 watts
  • IMPP Composite and paper cone woofer
  • Double cone design with reinforcement nodes
  • Urethane surround
  • Nomex spider
  • Projected pole yoke with vented pole
  • 6 Layer, long copper voice coil
  • 32oz. Strontium magnet structure
  • Stamped basket with magnet cover

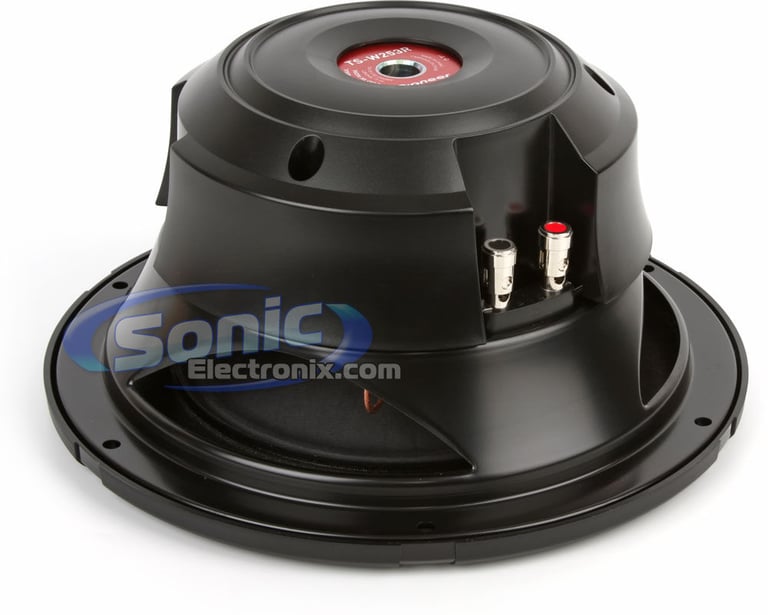

  • Integrated single-sided spring compression terminals
  • 1-year Sonic Electronix warranty

Product history:

Pioneer TS-W106M thumbnail
(newest, current model)
Pioneer TS-W254R thumbnail
(previous model, replaced by Pioneer TS-W106M)
Pioneer TS-W253R thumbnail
(previous model, replaced by Pioneer TS-W254R)
Pioneer TS-W252R thumbnail
(previous model, replaced by Pioneer TS-W253R)
Pioneer TS-W251R thumbnail
(previous model, replaced by Pioneer TS-W252R)
Pioneer TS-W250R thumbnail
(previous model, replaced by Pioneer TS-W251R)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Pioneer TS-W253R Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Pioneer TS-W253R Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Pioneer TS-W253R Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Pioneer TS-W253R Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(89)

$139.99

List price $139.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(15)

$189.95

List price $159.95

R2-W10D2 small

Alpine R2-W10D2

• Peak Power: 2250 watts
• RMS Power: 750 watts
• Impedance: Dual 2 ohm
• Kevlar Reinforced Pulp Paper Cone
• High-Amplitude Multi-Roll (HAMR) Surround
• Mount depth: 5.92"
• Sensitivity: 82.3 dB

(3)

$319.95

List price $480.00

Specifications & Details


Subwoofer Specifications
Series
Champion Series
Subwoofer Size
10"
Peak Power Handling
1000 watts
RMS Power Handling
200 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Injection Molded Polypropylene
Woofer Surround
Urethane
Subwoofer Grille
Optional (Accessory required and sold separately)
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Sealed
Minimum Sealed Box Volume
.65 cubic feet
Maximum Sealed Box Volume
1.25 cubic feet
Top-Mount Depth (Mounting Depth)
5"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

TS-W253R

Weight:

9.00lbs

Internal SKU:

tsw253r

Internal Product ID:

20057

Product and How-to Videos


Customer Ratings & Reviews


Pioneer TS-W253R thumbnail image

5 star
50%
4 star
42%
3 star
6%
2 star
3%
1 star
0%



Durability
4.3
Value
4.7
Features
4.3
Design
4.3
Usability
4.8

Customer Reviews

Sort by:

Loading...

Not used to a 10 that will hit a decent low!

Im running it solo in a custom fiberglass box around 0.75-0.82 and it hits a clean 25hz! I think its getting somewhere around 250rms 900w max its hard to judge a class D @ 2 ohms. Im just happy when it knocks the congestion outta my chest and does it without a load of cone distortion. I'd buy another one if I had the money free'd up!

By Ken on March 6, 2010

25 found this helpful


pioneer ts-w253r

I just brought this 10" Pioneer and let me tell u wow
It sounds great. Put in a sealed box .85cuft and it will sound great. Lows are great and clear put poly phil in box it will make a big difference .

By MANTON RANGER 2011 on June 28, 2011

14 found this helpful


pretty big thump

i got two of these hooked to a crunch p.1100 and they hit good. once i got them broken in they sound pretty good. good product lasts a good while and saves cash!

By Gator, Joyce on August 1, 2010

13 found this helpful


Nice Sub

The following review is for a previous version (TS-W252R).

I bought this sub for my jeep wrangler and really wasn't expecting much at all, as a matter of fact is was a temporary sub that I only had in to keep my whole system together, but I was rather impressed. It puts out a good amount of punch especially in something with limited room like a jeep. If you're looking for something that won't ruin your car while you run it, then this is your guy. It's got a good hard thump that will leave you feeling pretty satisfied.

By Ryan on April 9, 2008

13 found this helpful


nice sub value

I have mine in a .75 cu ft box w/ polyfill driven w/ 220w rms and it provides good thump without distortion.

By Troy on July 13, 2011

12 found this helpful


Nice Sub

Awesome sound in a small package! Mounting depth is a huge plus for tight areas.

By Adam on December 7, 2010

13 found this helpful


Great all around sound

I have two of these hooked up to my kicker amp and in a sealed box and they rock. They hit hard to any music and at the price they are great for any system your building. They will make your eyes shake.

By Rob on November 16, 2009

13 found this helpful


Best 10's for the money

I have 3 of these, hooked up to a 300w alpine amp and a 600w sony amp. They seem to made out of great material & the magnet on this sub is huge for a 10. Seriously these things thump, you can hear me from at least 3 street away. The only personal con that i have with them is the outer rim of the woofer. I think it should be removable. My box hold 3 10's and i have to kinda squeeze them in. But besides that their amazing.

By Jon on January 13, 2010

12 found this helpful


Great Sub!

Does the trick and looks good too! Great response and smooth sound when hooked to proper wattage.

By Greg on July 1, 2011

11 found this helpful


Great Sub For the Price

i bought this sub and have it in my f 150 it sounds really great and hits the only thing about them is that if there is to big of a box they rattle. just use the size of box that they recommend.

By Silver03 on January 8, 2010

11 found this helpful




8138 small

Naztech Ultima Coffee Brown Size 2 (8138)

Universal Brown Vertical Cell Phone Case with Magnetic Flip Cover

$7.99

List price $34.99

No picture

Naztech Boa Black/Red Size 1 (8985)

Universal Black/Red Vertical Cell Phone Case

$8.49

List price $34.99

PCW1200 small

Blaupunkt PCw1200 12"

(1)

$29.99

List price $59.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1997 Saab 900

1980 Buick Electra

2019 Subaru WRX

2013 Hyundai Tucson

2014 Lexus IS350

1998 Volkswagen Passat

1969 MG MGB

1973 Dodge Challenger

1979 Porsche 911

1987 Dodge Aries

Vehicle
Store
Delete

2006 Harley Davidson FXSTSI Springer Softail

Vehicle
Store
Delete

2022 Can-Am Defender HD10 XT

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
