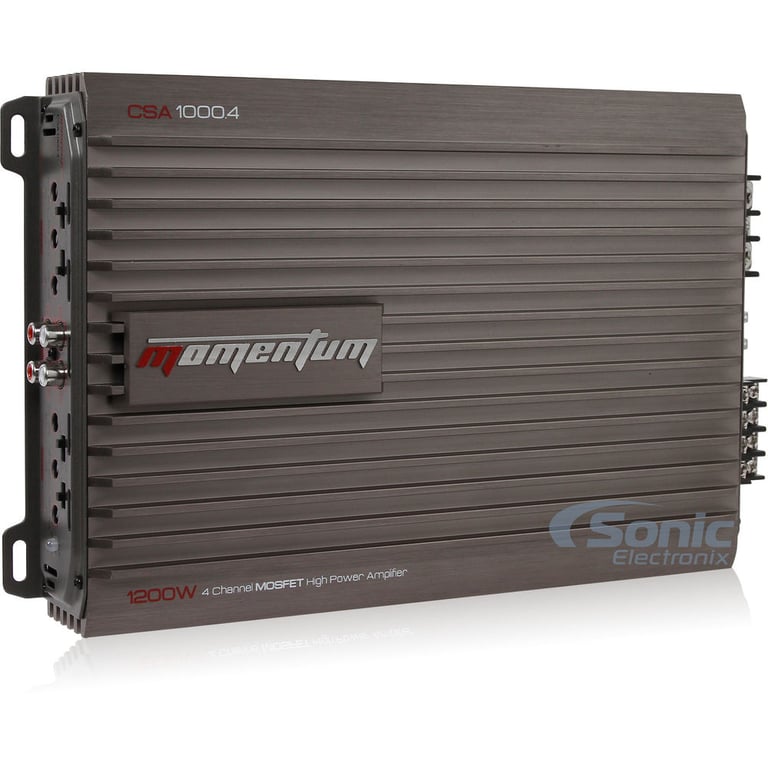

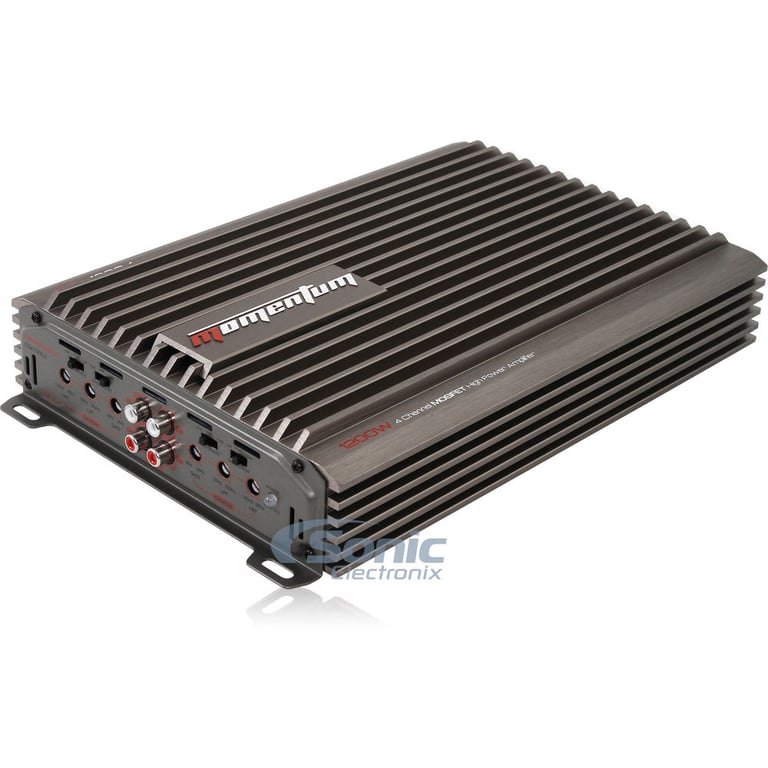

Cadence Momentum CSA1000.4

1200W 4-Channel Momentum CSA Series Class AB Full Range Amplifier

Cadence
Shop all Cadence
Product videos
highlight-star-icon

• RMS: 150 x 4 @ 4 ohm, 300W x 4 @ 2 ohm, Bridged 600W x 2 @ 4 ohm
• Total Peak Power: 1200W
• High Speed MOSFET Power Supply
• Silver Pate Connectors
• Heavy Duty Aluminum Heat Sink
• 8.00" W x 10.70" L x 2.00" H

Learn more about the csa10004

We apologize

This item has been discontinued


Loading...
70-1817 main

Metra 70-1817 Wiring Harness

Install a new car stereo in select 1984-2006 vehicles from Dodge, Chrysler, Plymouth

29
-14.31%

$5.99

List price $6.99

Product Highlights


• RMS: 150 x 4 @ 4 ohm, 300W x 4 @ 2 ohm, Bridged 600W x 2 @ 4 ohm
• Total Peak Power: 1200W
• High Speed MOSFET Power Supply
• Silver Pate Connectors
• Heavy Duty Aluminum Heat Sink
• 8.00" W x 10.70" L x 2.00" H

Description


Cadence brand icon

Authorized dealer

General Features:

  • Momentum CSA Series 4-Channel Class AB Full Range Amplifier
  • RMS Power Rating:
    • 4 ohm: 150 watts x 4 chan.
    • 2 ohm: 300 watts x 4 chan.
    • Bridged, 4 ohm: 600 watts x 2 chan.
  • Max power total : 1200 watts
  • Minimum THD: < 0.1%
  • Frequency Response: 20Hz - 20 kHz
  • S/N Ratio: > 96dB
  • Damping Factor: > 100 @ 100Hz
  • Channel Separation: > 50dB
  • High Speed MOSFET Power Supply
  • Silver Pate Connectors
  • Acrylic Molded Terminals
  • Power & Diagnostic LED Indicators
  • Soft Start Turn On/Off Circuitry
  • Heavy Duty Aluminum Heat Sink
  • Tri-Mode Capability
  • Studio-Grade Bipolar Output Stage Transistors for Smooth Audio Response
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Preamp Input Voltage: 200mV - 8V
  • Selectable Bass Boost: 0dB / 6dB / 12dB

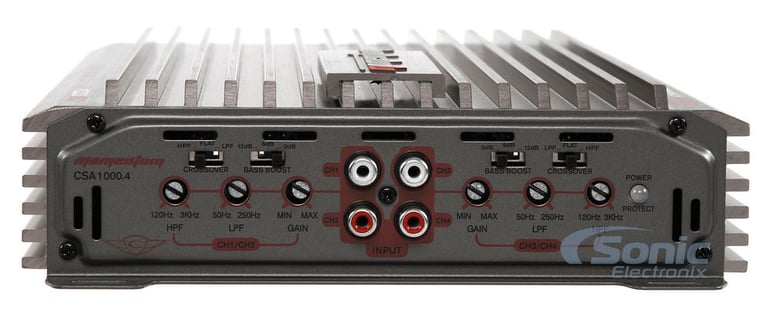

  • Selectable Crossover: LPF / Full / HPF
  • Variable high-pass filter: 120 - 3,000 Hz, 24 dB/octave)
  • Variable low-pass filter: 50 - 250 Hz, 24 dB/octave)
  • Fuse Rating: 25A x 2
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 8.00"W x 10.70"L x 2.00"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Check out the Cadence Momentum CSA5000.1 Owner's Manual
