Name: DEI - Directed Audio D2400 R/B
Brand: Directed
SKU: LS-dei-d2400-RB
Price: 215.00 USD
Availability: Discontinued

by Directed

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

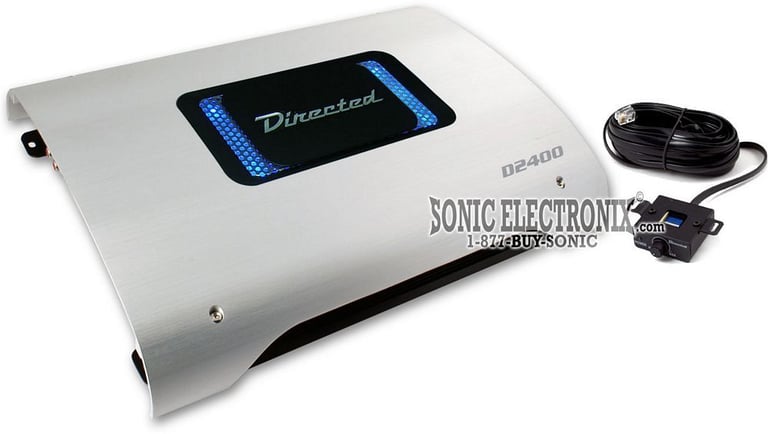

DEI - Directed Audio D2400 R/B Image 1 — DEI - Directed Audio D2400 R/B

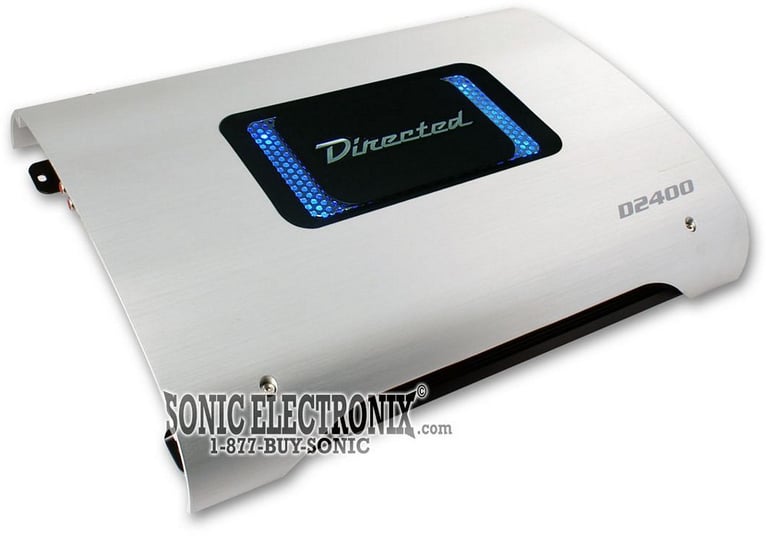

DEI - Directed Audio D2400 R/B Image 2 — DEI - Directed Audio D2400 R/B

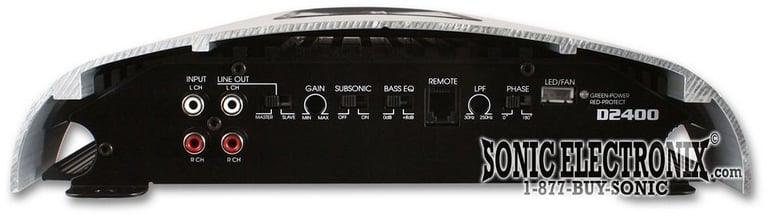

DEI - Directed Audio D2400 R/B Image 3 — DEI - Directed Audio D2400 R/B

DEI - Directed Audio D2400 R/B Image 4 — DEI - Directed Audio D2400 R/B

DEI - Directed Audio D2400 R/B Image 5 — DEI - Directed Audio D2400 R/B

DEI - Directed Audio D2400 R/B Image 6 — DEI - Directed Audio D2400 R/B

Product videos

Product highlights

Class-D Monoblock Amplifier • 12400W Max • 1200W RMS x 1 @ 1 • Remote Level Control Included • Variable Crossover • 8dB Bass Boost • Adjustable Input Sensitivity

Learn more about the LS-dei-d2400-RB

Product Highlights

Class-D Monoblock Amplifier • 12400W Max • 1200W RMS x 1 @ 1 • Remote Level Control Included • Variable Crossover • 8dB Bass Boost • Adjustable Input Sensitivity

Description

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

Class-D Monoblock Amplifier
Super-efficient Class D PWM design runs much cooler than conventional amps
RMS Power Output:

400 watts x 1 chan. @ 4 ohm
800 watts x 1 chan. @ 2 ohm
1200 watts x 1 chan. @ 1 ohm

High-speed MOSFET switching power supply
High-current complimentary Class D MOSFET outputs stable into one ohm loads
Thermal, DC offset, reverse polarity, and short circuit protection with status LED
Continuously variable 12dB/Oct low-pass crossover
Switchable 24dB/Oct. subsonic filter
Switchable 8dB bass EQ
Switchable 180° phase inversion

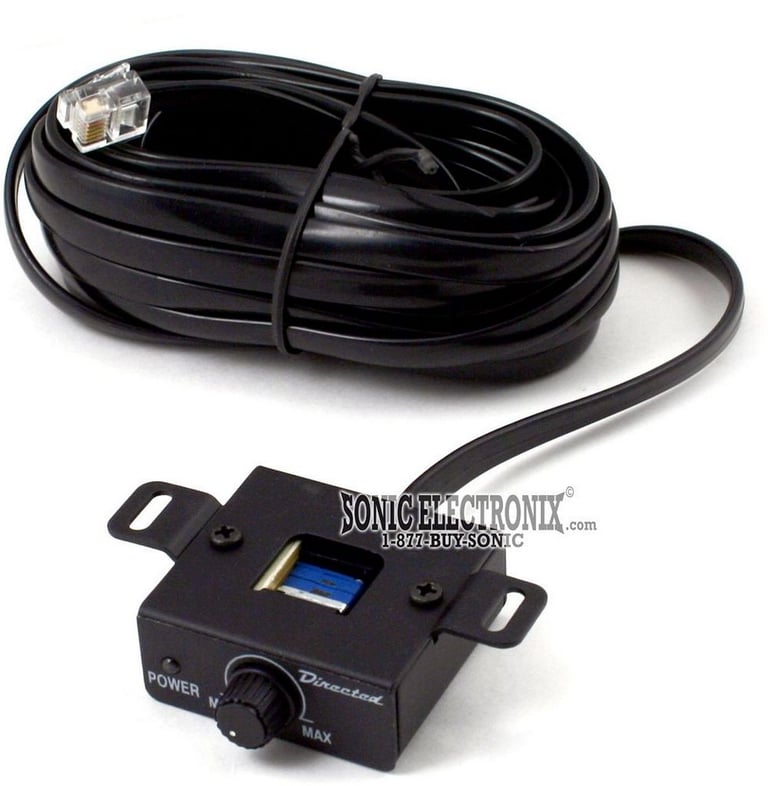

Remote subwoofer level control
Master/Slave Function
Variable input sensitivity: 150mV - 7.5V
Chrome-plated wire terminals and RCA connectors ensure maximum signal transfer
Rugged 2-piece heatsink and cover
RCA Outputs: 1 pair
LED/FAN Connector: provides power for optional LED light or cooling fan
Dimensions:13-1/4"L x 10-1/4"W x 2-1/4"H
90 days Repair Only Warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

400 watts x 1 channel

RMS Power @ 2 ohms

600 watts x 1 channel

RMS Power @ 1 ohm

1200 watts x 1 channel

Amplifier Specifications

Amplifier Class

Number of Channels

1 - Mono

Total Peak Power Output

2400 watts

Total RMS Power Output

1200 watts

Minimum Impedance Unbridged

1 ohm

Minimum Impedance Bridged

Not Bridgeable

THD at Rated RMS Power

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)

Low-Pass Crossover Frequency

30 - 250 Hz

Subsonic Filter

On / Off

Bass Boost

0 - 8 dB

Remote bass/level controller

Yes

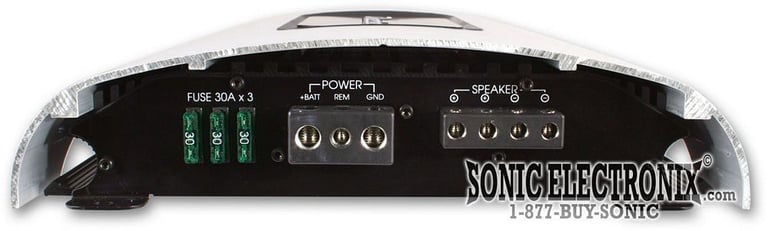

Fuse Rating

30A x 3
