See all parts that fit your 1989 Summit

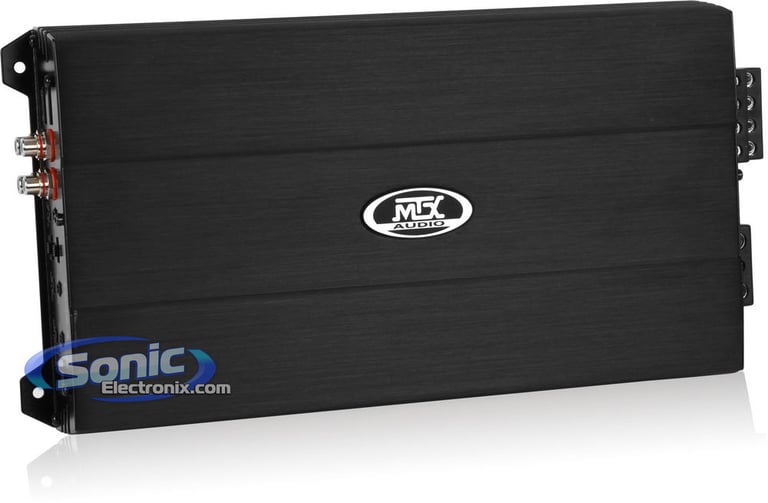

MTX TH90.4

720W 4-Channel TH Series Class A/B Car Amplifier

MTX
Shop all MTX
Product videos
highlight-star-icon

• 4 ohm: 60 watts x 4-Chan.
• 2 ohm: 90 watts x 4-Chan.
• Bridged, 4 ohm: 180 watts x 4-Chan.
• 4/3/2 Channel Operation

Learn more about the th904

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

xthunder1254 thumbnail

MTX XTHUNDER125.4

OUR PRICE: $399.95

View item

Loading...
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00

KMM-X705 main

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

DB402 main

Polk Audio DB402 (DB 402)

270W Peak (90W RMS) 4" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

4
-9.99%

$90.00

List price $99.99

Product Highlights


• 4 ohm: 60 watts x 4-Chan.
• 2 ohm: 90 watts x 4-Chan.
• Bridged, 4 ohm: 180 watts x 4-Chan.
• 4/3/2 Channel Operation

Description


MTX brand icon

Authorized dealer

General Features:

  • 4-Channel TH Series Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 60 watts x 4 chan.
    • 2 ohm: 90 watts x 4 chan.
    • Bridged, 4 ohm: 180 watts x 2 chan.
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +12 dB bass boost at 50 Hz)
  • Soft start turn-on
  • 4/3/2 channel operation
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Input sensitivity:
    • Low level: 200mV
  • Variable low-pass filter (40-400 Hz, 12 dB/octave)
  • Variable high-pass filter (40-400 Hz, 12 dB/octave)
  • CEA-2006 compliant amplifier
  • Frequency response: 20-30000 Hz
  • 4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 14-1/3"W x 7-1/8"L x 2-1/8"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Product history:

MTX XTHUNDER125.4 thumbnail
(newest, current model)
MTX TH90.4 thumbnail
(previous model, replaced by MTX XTHUNDER125.4)

Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(25)

$279.99

List price $335.99

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$304.99

List price $379.99

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

MDX2000.4 2 Ohm small

PRV Audio MDX2000.4 2 Ohm

• 330 watts x 4 channel @ 4 ohm
• 500 watts x 4 channel @ 2 ohm
• Bridged: 1000 watts x 2 channel @ 4 ohm
• Total RMS Power: 2000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$219.91

List price $274.89

GM-DX874 small

Pioneer GM-DX874

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable 4-Channel Amplifier

(14)

$220.00

List price $300.00

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
60 watts x 4 channel
RMS Power @ 2 ohms
90 watts x 4 channel
Bridged RMS Power
180 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
720 watts
Total RMS Power Output
360 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohm
THD at Rated RMS Power
1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
40 - 400 Hz
Low-Pass Crossover Frequency
40 - 400 Hz
Signal-to-Noise Ratio
80 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

MTX

Model Number:

TH90.4

Weight:

7.50lbs

Internal SKU:

th904

Internal Product ID:

43784

Product and How-to Videos
