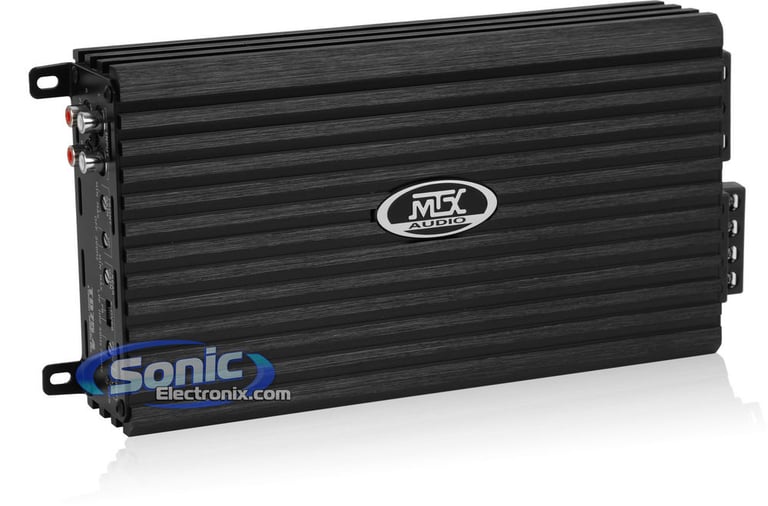

Name: MTX TD75.4 R/B
Brand: MTX
SKU: LS-td754-RB
Price: 99.95 USD
Availability: Discontinued

by MTX

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

Product videos

Product highlights

4-Channel TD Series Class A/B Car Amplifier • 4 ohm: 75 watts x 4 chan. • 2 ohm: 100 watts x 4 chan. • Bridged, 4 Ohm: 200 x 2 chan. • 4/3/2 channel operation

Learn more about the LS-td754-RB

Product Highlights

4-Channel TD Series Class A/B Car Amplifier • 4 ohm: 75 watts x 4 chan. • 2 ohm: 100 watts x 4 chan. • Bridged, 4 Ohm: 200 x 2 chan. • 4/3/2 channel operation

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

General Features:

4-Channel TD Series Class A/B Car Amplifier
RMS Power Rating:

4 ohm: 75 watts x 4 chan.
2 ohm: 100 watts x 4 chan.
Bridged, 4 Ohm: 200 x 2 chan.

LED power (green) and protect (red) indicators
Variable Bass Boost (0 to +12 dB bass boost at 50 Hz)
Soft start turn-on
4/3/2 channel operation
3-way protection circuitry (thermal, overload, and speaker short protection)
Heavy duty aluminum alloy heat-sink

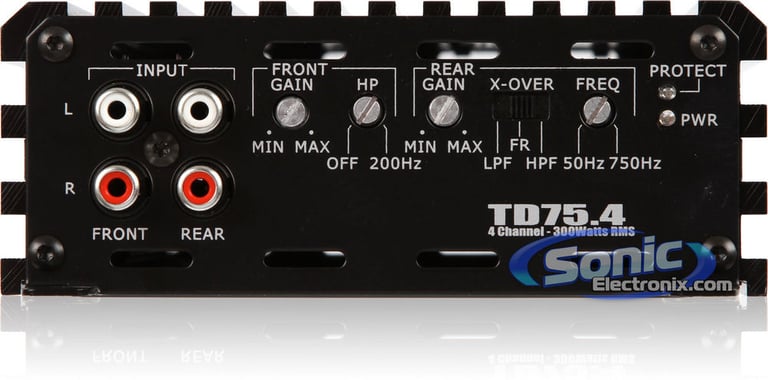

Nickel-plated RCA level inputs

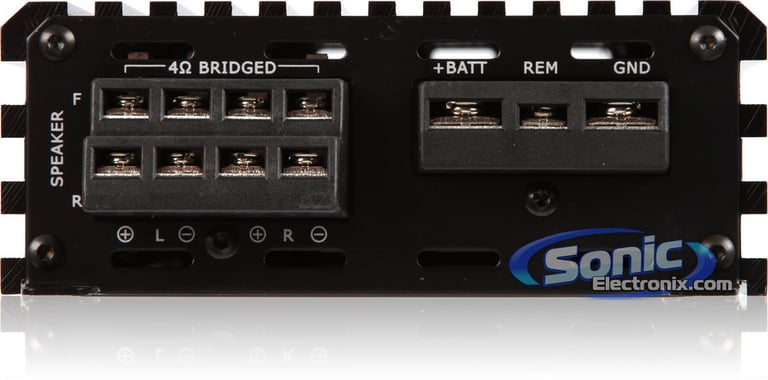

Nickel-plated screw terminals
Input sensitivity:

Low level: 200mV

Variable low-pass filter (50-750 Hz, 12 dB/octave)
Variable high-pass filter (10-200 Hz, 12 dB/octave)
CEA-2006 compliant amplifier
Subsonic filter (10-50 Hz 12 dB at 15 Hz)
Frequency response: 10-220 Hz
4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
Dimensions: 5-1/2"W x 10"L x 2-1/8"H
Authorized Internet Dealer
90-Day Manufacturer's Warranty

Extend your MTX warranty to 2 Years when you install your new MTX amplifier with a compatible STREETWIRES amplifier kit! For a limited time, you can register your MTX amplifier and power kit to qualify for an additional 1 year of coverage. This offer is only available through authorized MTX Dealer in the United States of America or Canada and will only last for a limited time. With this amplifier, the following power kits will qualify for the extended warranty program: StreetWires ZN3K-04,StreetWires ZN3KI-04

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

75 watts x 4 channel

RMS Power @ 2 ohms

100 watts x 4 channel

Bridged RMS Power

200 watts x 2 channel

Amplifier Specifications

Amplifier Class

A/B

Number of Channels

4-Channel

Total RMS Power Output

400 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

Not Bridgeable

Speaker Level Inputs

Preamp Outputs

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)

High-Pass Crossover Frequency

10 - 200 Hz

Low-Pass Crossover Frequency

50 - 750 Hz

Subsonic Filter

10 - 50 Hz

Signal-to-Noise Ratio

80 dB

Bass Boost

0 - 12 dB

Remote bass/level controller

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Sonic Electronix
