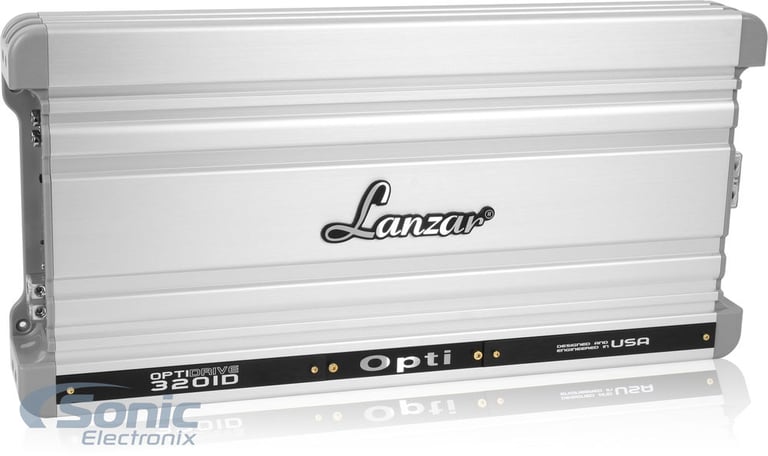

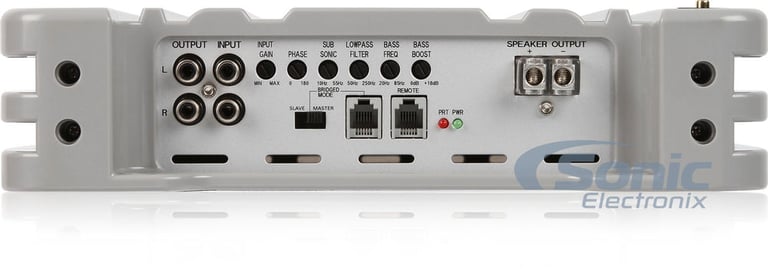

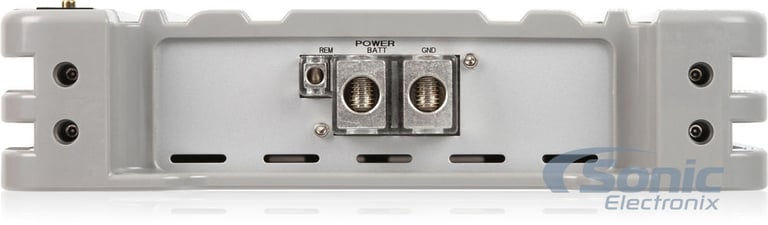

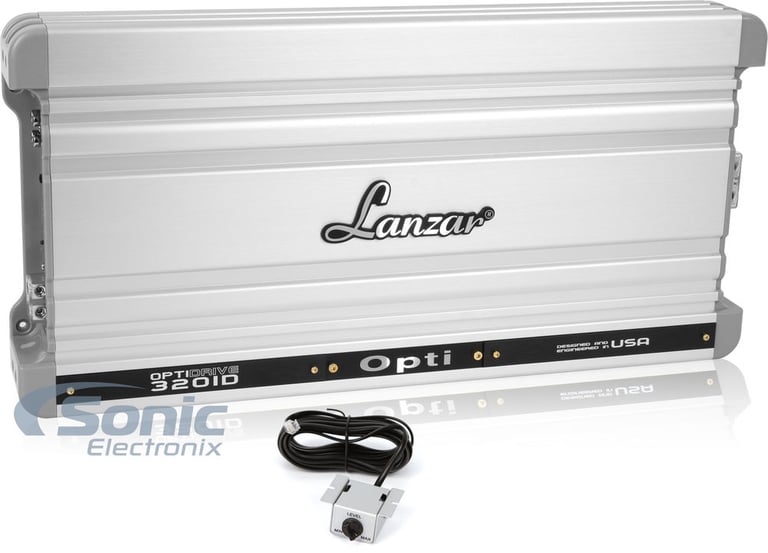

Lanzar OPTI3201D

3200W RMS Monoblock Class D OptiDrive Series Car Amplifier

Lanzar
Shop all Lanzar
Product videos
highlight-star-icon

• RMS: 820W x 1 @ 4 ohm, 1500W x 1 @ 2 ohm, 2100W x 1 @ 1 ohm
• Total RMS Power: 3200W
• Class D Circuitry
• Bass Boost: 0-18 dB
• 0.5 Ohm Stable
• Dimensions: 19-3/4"L x 10-11/16"W x 2-1/8"H

Learn more about the opti3201d

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

REF6532IXAM main

Infinity Reference REF6532IXAM

360W Peak (120W RMS) 6.5" Reference Series 2 Way Coaxial 3-ohm Speakers

3
-20.01%

$119.95

List price $149.95

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

SXE-1726S main

Alpine SXE-1726S

440W Peak (80W RMS) 6.5" SXE Series 2-way 4-ohm Coaxial Car Speakers

13
-21.82%

$42.99

List price $54.99

Product Highlights


• RMS: 820W x 1 @ 4 ohm, 1500W x 1 @ 2 ohm, 2100W x 1 @ 1 ohm
• Total RMS Power: 3200W
• Class D Circuitry
• Bass Boost: 0-18 dB
• 0.5 Ohm Stable
• Dimensions: 19-3/4"L x 10-11/16"W x 2-1/8"H

Description


Lanzar brand icon

Authorized dealer

General Features

  • OptiDrive Series Monoblock Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 820 watts x 1 chan.
    • 2 ohm: 1500 watts x 1 chan.
    • 1 ohm: 2100 watts x 1 chan.
    • 0.5 ohm: 3200 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply

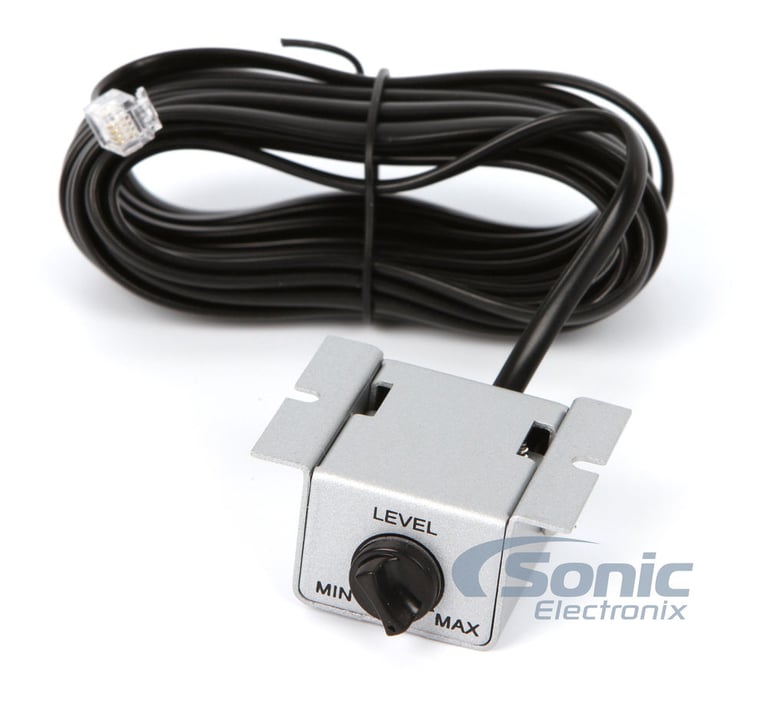

  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +18 dB)
  • Soft Start Turn-on
  • Double sided Epoxy PCB circuit board
  • Mono channel operation
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • Gold-plated RCA level inputs
  • Custom Terminal Block for speaker connections
  • Input sensitivity:
    • Low level: 200V-8V
  • Variable low-pass filter (50-250 Hz, 24 dB/octave)
  • Subsonic filter (15-40 Hz, 24 dB/octave)
  • Phase Shift: 0-180°
  • Damping factor: >400 @ 20Hz/4 ohm
  • Frequency response: 15-250 Hz
  • Dimensions: 19-3/4"L x 10-11/16"W x 2-1/8"H
  • 0-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website (SonicElectronix.com) when purchased together with this amplifier
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
