Name: JL Audio JX500/1D-FACTORY REFURBISHED
Brand: JL Audio
SKU: LS-jx5001d-RB
Price: 299.95 USD
Availability: Discontinued

by JL Audio

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

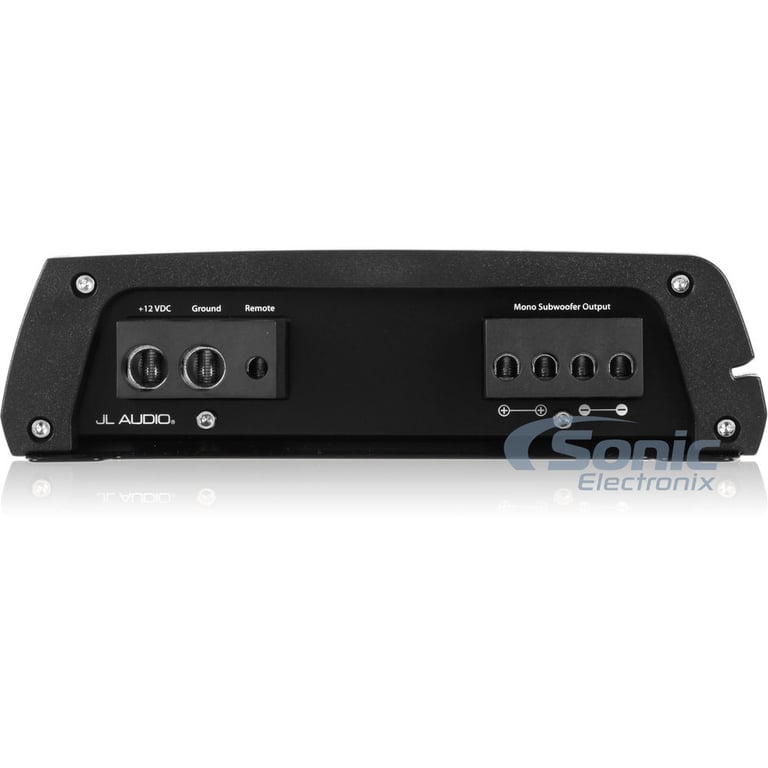

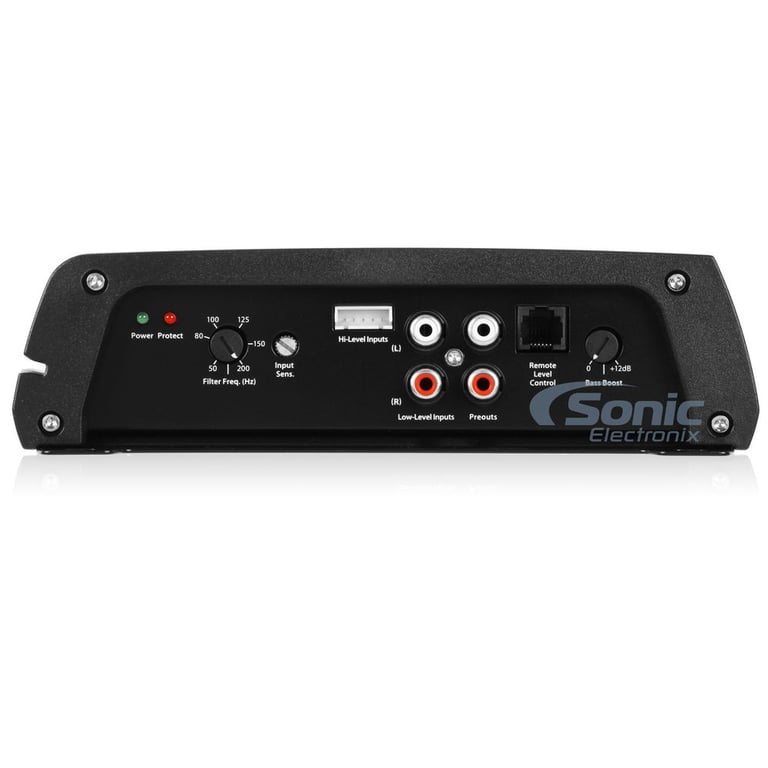

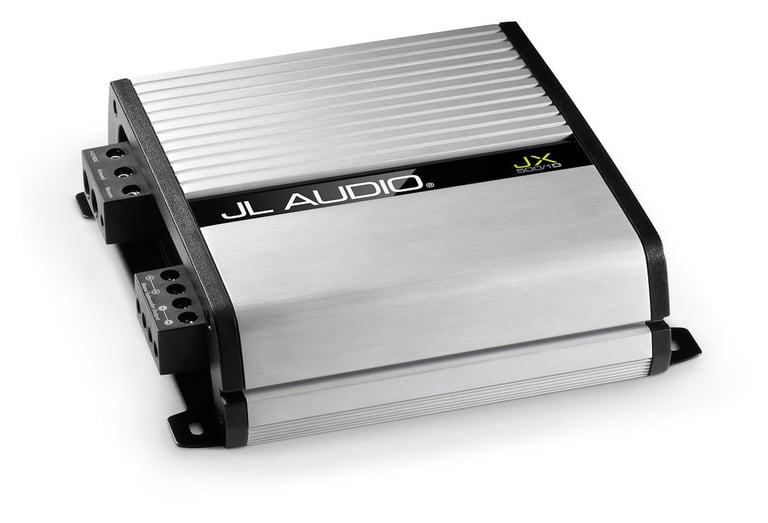

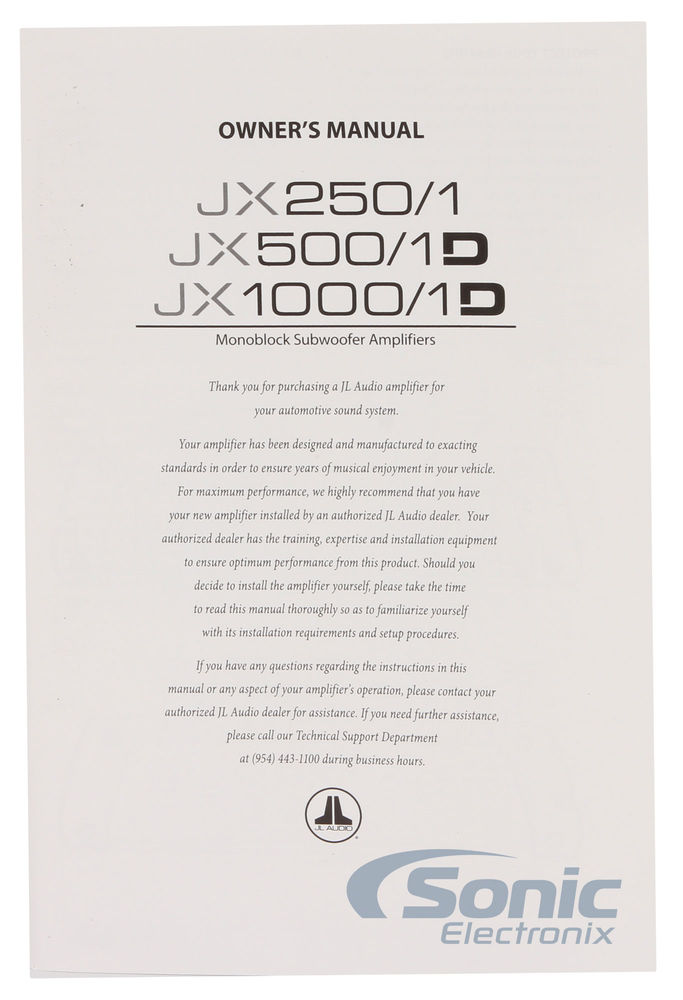

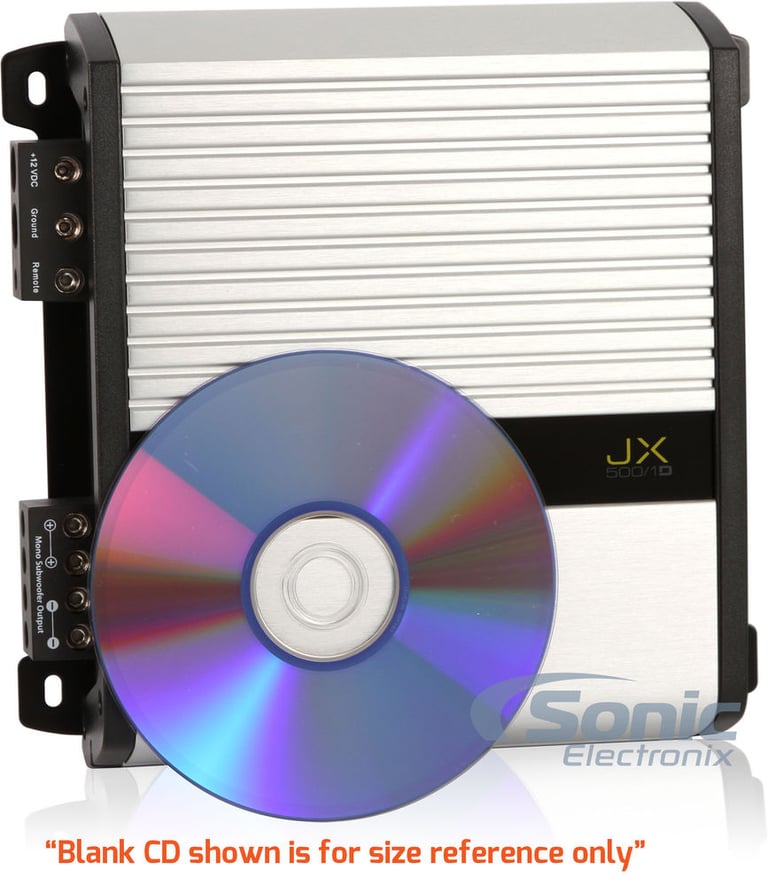

JL Audio JX500/1D-FACTORY REFURBISHED Image 1 — JL Audio JX500/1D-FACTORY REFURBISHED

JL Audio JX500/1D-FACTORY REFURBISHED Image 2 — JL Audio JX500/1D-FACTORY REFURBISHED

JL Audio JX500/1D-FACTORY REFURBISHED Image 3 — JL Audio JX500/1D-FACTORY REFURBISHED

JL Audio JX500/1D-FACTORY REFURBISHED Image 4 — JL Audio JX500/1D-FACTORY REFURBISHED

JL Audio JX500/1D-FACTORY REFURBISHED Image 5 — JL Audio JX500/1D-FACTORY REFURBISHED

JL Audio JX500/1D-FACTORY REFURBISHED Image 6 — JL Audio JX500/1D-FACTORY REFURBISHED

JL Audio JX500/1D-FACTORY REFURBISHED -video

Product videos

Product highlights

• Peak: 235W x 1 @ 4 ohm, 300W x 1 @ 3 ohm, 410W x 1 @ 2 ohm
• Total RMS Power: 410W
• Class D Circuitry
• Bass Boost: 0-12 dB
• Variable Slope Low-Pass Filter
• Dimensions: 7-3/4"L x 7-3/4"W x 2-1/8"H

Learn more about the LS-jx5001d-RB

Product Highlights

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

JL Audio Quality with an Affordable Price Tag

The new JL Audio JX Series of amplifiers was designed with a specific purpose: to create a high quality amplifier with a moderate price tag. JL Audio created an entire line of JX series amplifiers to provide an amp configuration for everyone. The line includes three monoblock amplifiers, a two-channel, and a four-channel. Each amp is true to the ratings and provides excellent output for your new speakers or subwoofers. The smaller and more compact chassis ensure that these amplifiers can be mounted just about anywhere. In assisting with matching many of the JL Audio subwoofers together, these amplifiers have specific ratings at 3 ohms. For your next audio system, consider the 2012 JL Audio JX amplifiers for an affordable, high quality amplifier.

JX Series 1-Channel Class D Car Amplifier
RMS Power Rating (14.4V):
- 4 ohm: 300 watts x 1 chan.
- 3 ohm: 400 watts x 1 chan.
- 2 ohm: 500 watts x 1 chan.
RMS Power Rating (12.5V):
- 4 ohm: 235 watts x 1 chan.
- 3 ohm: 300 watts x 1 chan.
- 2 ohm: 410 watts x 1 chan.
Unregulated PWM switching type power supply
Remote bass level input (JL Audio RBC-1 sold separately)
LED power (green) and protect (red) indicators
Variable Bass Boost (0 to +12 dB bass boost centered at 45 Hz)
Soft start turn-on prevent clicking and popping when system turns on
1 channel operation
Speaker-level (high-level) inputs with signal sensing for automatic turn-on
Preamp RCA outputs to daisy chain multiple amps
3-Way System Protection circuitry (thermal, low impedance, and speaker short protection)
Heavy duty aluminum alloy heatsink for effective heat dissipation
Nickel-plated RCA level inputs
Nickel-plated screw terminals
Input sensitivity:
- Low level: 200mV-4V
- High level: 2.0V-10V
Variable low-pass filter (50-200 Hz, 12 dB/octave)
Damping factor: >1000 @ 4 ohm / >80 @ 2 ohm
Frequency response: 10-150 Hz (+/– 1 dB)
Dimensions: 7-3/4"L x 7-3/4"W x 2-1/8"H
4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
1-year SonicElectronix.com warranty

Specifications & Details

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

340 watts x 1 channel

RMS Power @ 2 ohms

500 watts x 1 channel

Amplifier Specifications

Series

JX Series

Amplifier Class

Number of Channels

1 - Mono

Total RMS Power Output

500 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

Not Bridgeable

THD at Rated RMS Power

Speaker Level Inputs

Yes

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)

Low-Pass Crossover Frequency

50 - 200 Hz

Signal-to-Noise Ratio

90 dB

Bass Boost

0 - 12 dB

Remote bass/level controller

Optional (Accessory required and sold separately)

JL Audio RBC-1

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Sonic Electronix
