Name: Crunch P1-5050.5 (Factory Refurbished)
Brand: Crunch
SKU: LS-p150505-RB
Price: 109.99 USD
Availability: Discontinued

by Crunch

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

Crunch P1-5050.5 (Factory Refurbished) Image 1 — Crunch P1-5050.5 (Factory Refurbished)

Crunch P1-5050.5 (Factory Refurbished) Image 2 — Crunch P1-5050.5 (Factory Refurbished)

Crunch P1-5050.5 (Factory Refurbished) Image 3 — Crunch P1-5050.5 (Factory Refurbished)

Crunch P1-5050.5 (Factory Refurbished) Image 4 — Crunch P1-5050.5 (Factory Refurbished)

Crunch P1-5050.5 (Factory Refurbished) Image 5 — Crunch P1-5050.5 (Factory Refurbished)

Crunch P1-5050.5 (Factory Refurbished) Image 6 — Crunch P1-5050.5 (Factory Refurbished)

Crunch P1-5050.5 (Factory Refurbished) Image 7 — Crunch P1-5050.5 (Factory Refurbished)

Crunch P1-5050.5 (Factory Refurbished) Image 8 — Crunch P1-5050.5 (Factory Refurbished)

Crunch P1-5050.5 (Factory Refurbished)-video

Product videos

Product highlights

• 4 ohm: 125 watts x 4 chan. + 300 watts x 1 chan. (Sub)
• 2 ohm: 200 watts x 4 chan. + 500 watts x 1 chan. (Sub)
• Variable Bass Boost: 0 - 12 dB
• SEPP Class A/B Analog
• Wired Bass Remote Included

Learn more about the LS-p150505-RB

Product Highlights

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

General Features

Power One Series 5-Channel Class A/B Car Amplifier
Max Power Rating (14.4V):

4 ohm: 125 watts x 4 chan. + 300 watts x 1 chan. (Sub)
2 ohm: 200 watts x 4 chan. + 500 watts x 1 chan. (Sub)
Bridged, 4 ohm: 400 watts x 2 chan.

SEPP Class A/B analog amplifier
Pulse Width Modulated MOSFET power supply
LED power (green) and protect (red) indicators

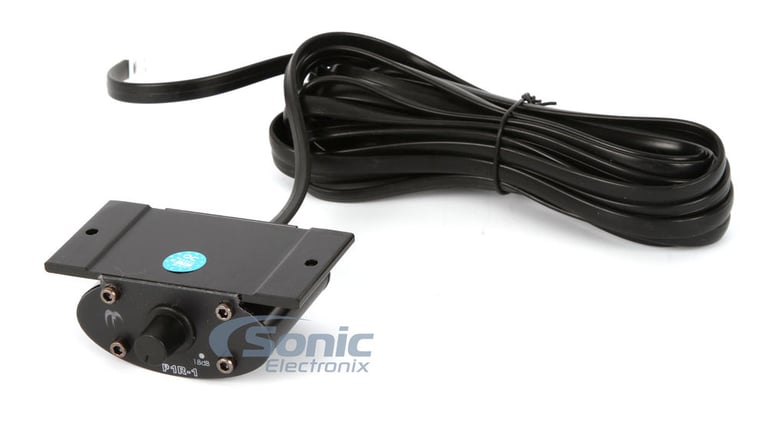

Wired remote bass level control included
5/4/3 channel operation
3-way protection circuitry (thermal, overload, and speaker short protection)
Heavy duty aluminum alloy heat-sink for extreme heat dissipation
Input sensitivity: 200mV - 6V
Frequency Response: 10 - 45,000 Hz
Total Harmonic Distortion (THD): <0.05%
Signal to Noise Ration: >90 dB
Selectable crossover modes (Ch 1-4): FULL / HPF
Variable high-pass filter: 10 - 150 Hz
Variable low-pass filter: 30 - 150 Hz
Variable subsonic filter: 15 - 55 Hz
Variable Bass Boost: 0 to +2 dB bass boost at 45 Hz

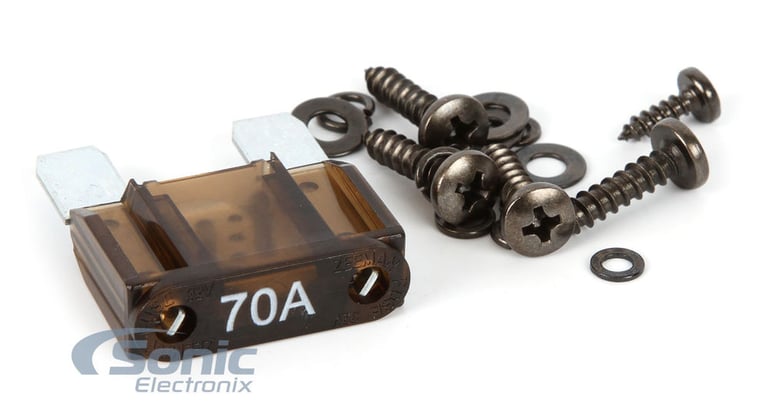

Fuse Rating: 70A x 1
4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
Dimensions: 21-11/16"L x 9-1/16"W x 2-1/16"H
Authorized Internet Dealer
90 Day Sonic Electronix Warranty

Specifications & Details

Power Specifications - Full Range Channels

Peak Power @ 4 ohms

125 watts x 4 channel

Peak Power @ 2 ohms

200 watts x 4 channel

Bridged Peak/Max Power

400 watts x 2 channel

Power Specifications - Subwoofer Channel

Peak Power @ 4 ohm

300 watts x 1 channel

Peak Power @ 2 ohms

500 watts x 1 channel

Peak Power @ 1 ohm

Not Stable

Amplifier Specifications

Series

Power One Series

Amplifier Class

A/B

Number of Channels

5-Channel

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

<0.05%

Speaker Level Inputs

Preamp Outputs

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)
Full (AP)
Subsonic

High-Pass Crossover Frequency

10 - 150 Hz

Low-Pass Crossover Frequency

30 - 150 Hz

Subsonic Filter

15 - 55 Hz

Signal-to-Noise Ratio

>90 dB

Channel Separation

>80 dB

Bass Boost

0 - 12 dB

Remote bass/level controller

Yes

Fuse Rating

70A x 1

Strappable

Sonic Certified Amplifier

Not Tested

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Sonic Electronix
