Name: MB Quart ONX1.2000D (Factory Refurbished)
Brand: MB Quart
SKU: LS-onx12000d-RB
Price: 149.99 USD
Availability: Discontinued

by MB Quart

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

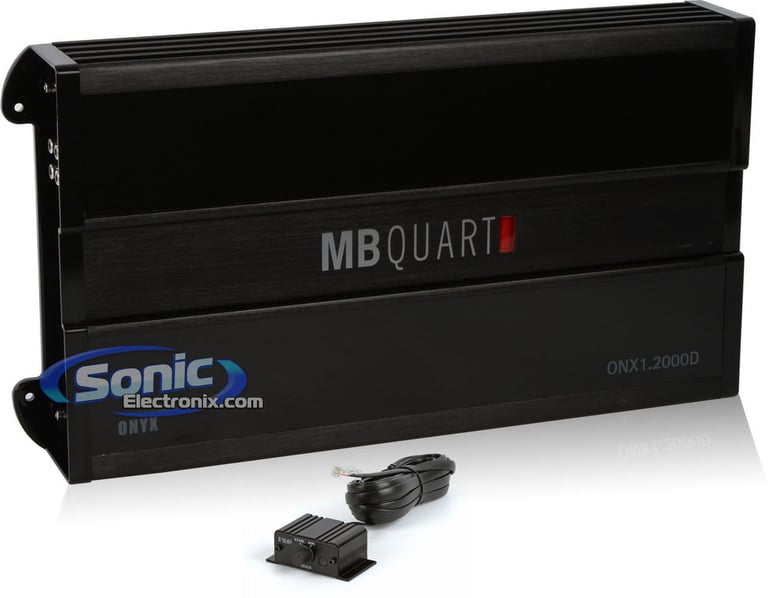

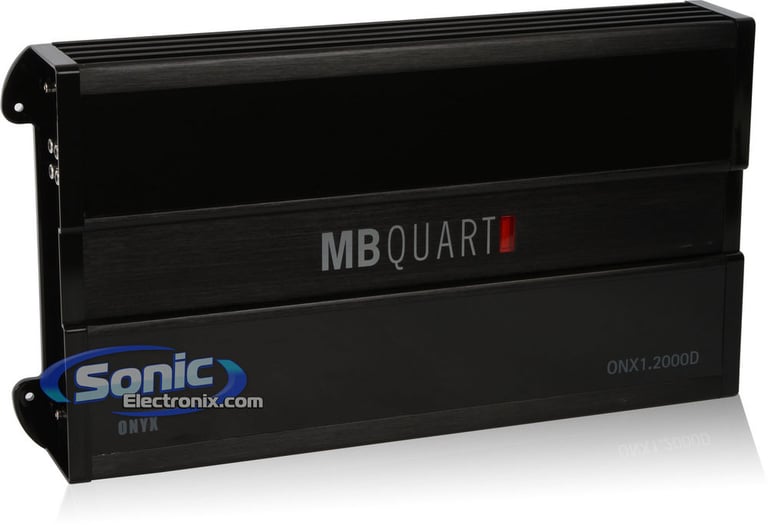

MB Quart ONX1.2000D (Factory Refurbished) Image 1 — MB Quart ONX1.2000D (Factory Refurbished)

MB Quart ONX1.2000D (Factory Refurbished) Image 2 — MB Quart ONX1.2000D (Factory Refurbished)

MB Quart ONX1.2000D (Factory Refurbished) Image 3 — MB Quart ONX1.2000D (Factory Refurbished)

MB Quart ONX1.2000D (Factory Refurbished) Image 4 — MB Quart ONX1.2000D (Factory Refurbished)

MB Quart ONX1.2000D (Factory Refurbished) Image 5 — MB Quart ONX1.2000D (Factory Refurbished)

MB Quart ONX1.2000D (Factory Refurbished) Image 6 — MB Quart ONX1.2000D (Factory Refurbished)

MB Quart ONX1.2000D (Factory Refurbished) Image 7 — MB Quart ONX1.2000D (Factory Refurbished)

MB Quart ONX1.2000D (Factory Refurbished)-video

Product videos

Product highlights

• Peak: 650W x 1 @ 4 ohm, 1300W x 1 @ 2 ohm, 2000W x 1 @ 1 ohm
• Total Peak Power: 2000W
• Wired Bass Remote Included
• Bass Boost: 0-10 dB
• 1 Pair of Preamp Outputs
• Dimensions: 14-7/8"L x 9"W x 2-1/2"H

Learn more about the LS-onx12000d-RB

Product Highlights

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

Success is a Measurement of Quality and Power

The success of any car audio amplifier depends on system quality and construction, ease of installation and configuration, and sound enhancing features. MB Quart engineers built the all new Onyx series amplifiers from the ground up to be an affordable amplifier with the audiophile and performance enthusiast in mind. This series is composed of value-packed class-D and A/B class amplifiers that boast affordability without sacrifice to power or quality. All Onyx Amplifiers come clothed in a beautiful new age piano black finish which accents interiors and brings a whole new level of sophistication to swallow. To match, the line of Onyx Speakers shows off the same piano black finish applied to their polypropylene cone woofers. It’s a perfect match every time.

Speaking of features, Onyx amplifiers bring the full tuning spectrum to your fingertips with variable high-pass, low-pass and subsonic filters built-in. To increase endurance, MB Quart designed Onyx amplifiers with military grade printed circuit boards and built-in system diagnostics that keep these amps running strong. High speed MOSFET output devices are used in the power supply to give you the best watts-per-dollar ratio. It’s not hard to see how success has been written all over these amplifiers, though with a piano finish that looks that good, we know you will be staring.

ONYX Series Monoblock Class D Car Amplifier
RMS Power Rating:
- 4 ohm: 650 watts x 1 chan.
- 2 ohm: 1300 watts x 1 chan.
- 1 ohm: 2000 watts x 1 chan.
CEA-2006 compliant amplifier
PWM (Pulse Width Modulated) MOSFET power supply

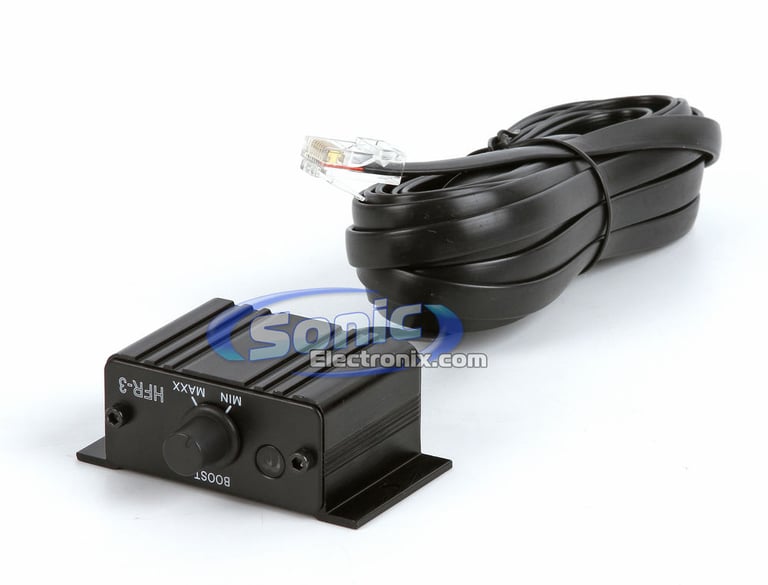

MB QR-2 Wired remote bass level control included

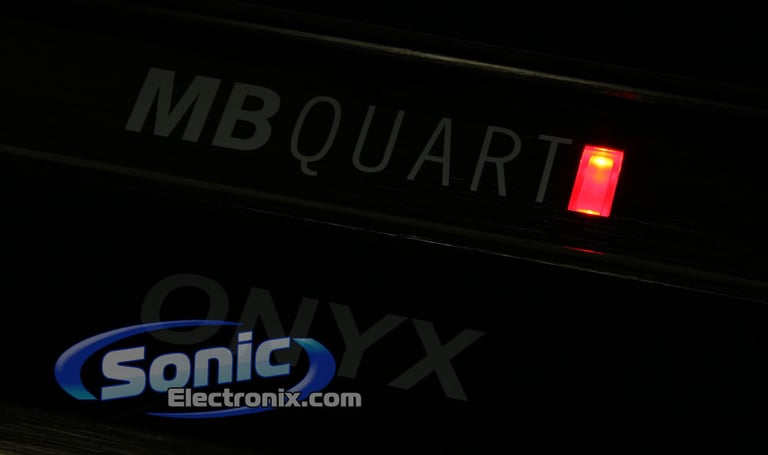

LED power (green) and protect (red) indicators
Variable Bass Boost (0 to +10 dB bass boost at 45 Hz
Mono channel operation

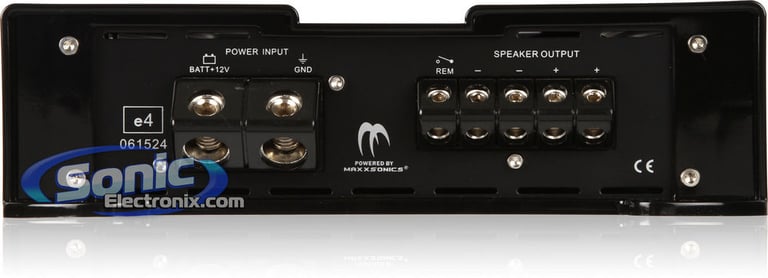

Dual speaker terminals simplify the hookup of multiple speakers
Preamp RCA outputs to daisy chain multiple amps
4-Way System Protection circuitry (DC, thermal, overload, and speaker short protection)
Piano black gloss finish with illuminated logo
Heavy duty aluminum alloy convection heatsink for superb heat dissipation
Silver-plated RCA level inputs
Silver-plated screw terminals

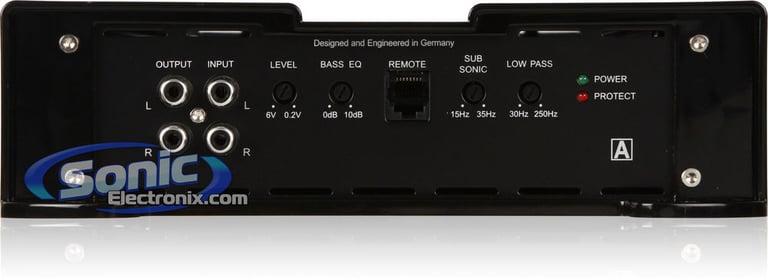

Input sensitivity:
- Low level: 200mV-6V
Variable low-pass filter (30-250 Hz, 24 dB/octave)
Subsonic filter (24 dB at 15-35 Hz)
Damping factor: >200
Frequency response: 15-250 Hz
Dimensions: 14-7/8"L x 9"W x 2-1/2"H
0-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
Authorized Internet Dealer
90-Day Manufacturer's warranty

Specifications & Details

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

650 watts x 1 channel

RMS Power @ 2 ohms

1300 watts x 1 channel

RMS Power @ 1 ohm

2000 watts x 1 channel

Amplifier Specifications

Amplifier Class

Number of Channels

1 - Mono

Total RMS Power Output

2000 watts

Maximum Input Gauge Size

1/0 AWG

Minimum Impedance Unbridged

1 ohm

Minimum Impedance Bridged

Not Bridgeable

THD at Rated RMS Power

0.10%

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)

Low-Pass Crossover Frequency

30 - 250 Hz

Subsonic Filter

15 - 35 Hz

Signal-to-Noise Ratio

>95 dB

Bass Boost

0 - 10 dB

Remote bass/level controller

Yes

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Manufacturer
