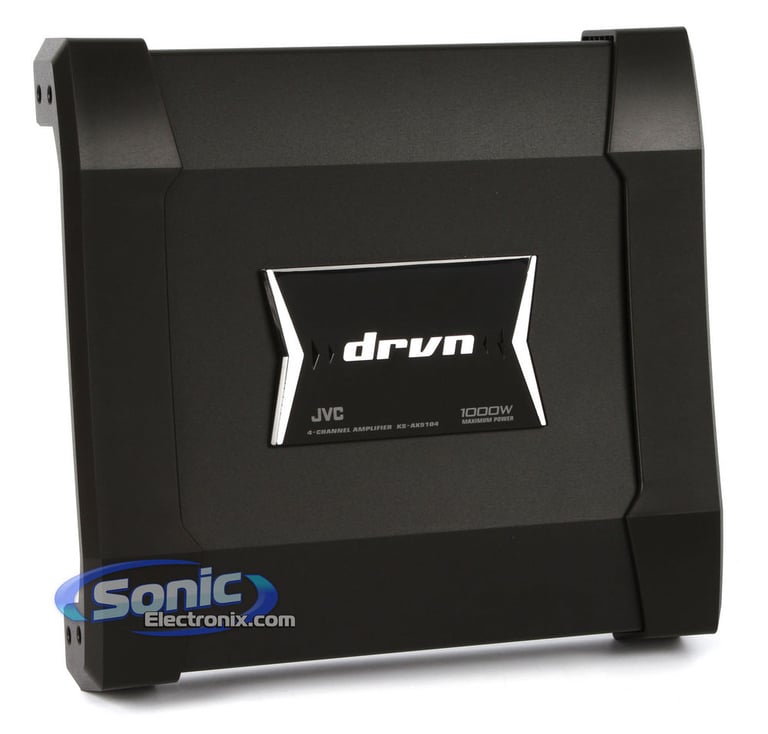

JVC KS-AX5104

1000W 4-Channel DRVN Series Class A/B Car Amplifier

JVC
Shop all JVC
Product videos
highlight-star-icon

• 4 ohm: 70 watts x 4-Chan.
• 2 ohm: 100 watts x 4-Chan.
• Bridged, 4 ohm: 200 watts x 2 chan.
• Pulse Width Modulated MOSFET Power Supply

Learn more about the ksax5104

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
70-1743 main

Metra 70-1743 Wiring Harness

Install a new car stereo in select 1987-1996 vehicles from Mitsubishi, Dodge, Eagle

3

Product Highlights


• 4 ohm: 70 watts x 4-Chan.
• 2 ohm: 100 watts x 4-Chan.
• Bridged, 4 ohm: 200 watts x 2 chan.
• Pulse Width Modulated MOSFET Power Supply

Description


JVC brand icon

Authorized dealer

General Features:

  • 4-Channel DRVN Series Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 70 watts x 4 chan.
    • 2 ohm: 100 watts x 4 chan.
    • Bridged, 4 ohm: 200 watts x 2 chan.
  • Pulse Width Modulated MOSFET power supply

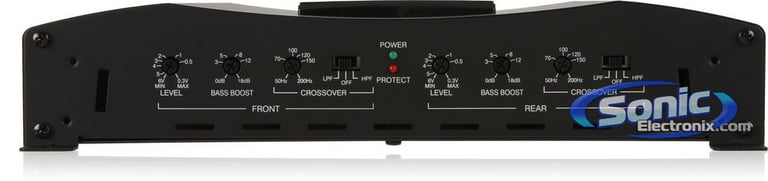

  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +12 dB bass boost at 50 Hz)
  • Soft start turn-on
  • 4/3/2 channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation

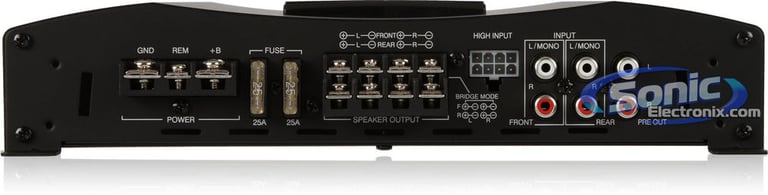

  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Variable low-pass filter (50-200 Hz, 24 dB/octave)
  • Variable high-pass filter (50-200 Hz, 24 dB/octave)
  • Frequency response: 5-50000 Hz
  • 8 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 12-1/4"W x 11-13/16"D x 2-3/8"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Loading...
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

KMM-X705 main

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28

Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(25)

$279.99

List price $335.99

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$304.99

List price $379.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

MDX2000.4 2 Ohm small

PRV Audio MDX2000.4 2 Ohm

• 330 watts x 4 channel @ 4 ohm
• 500 watts x 4 channel @ 2 ohm
• Bridged: 1000 watts x 2 channel @ 4 ohm
• Total RMS Power: 2000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$219.91

List price $274.89

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
70 watts x 4 channel
RMS Power @ 2 ohms
100 watts x 4 channel
Bridged RMS Power
200 watts x 2 channel
Amplifier Specifications
Series
DRVN Series
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
1000 watts
Total RMS Power Output
400 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
.04%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 200 Hz
Low-Pass Crossover Frequency
50 - 200 Hz
Signal-to-Noise Ratio
80 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
No
Fuse Rating
25A x 2
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JVC

Model Number:

KS-AX5104

Weight:

9.00lbs

Internal SKU:

ksax5104

Internal Product ID:

45045
