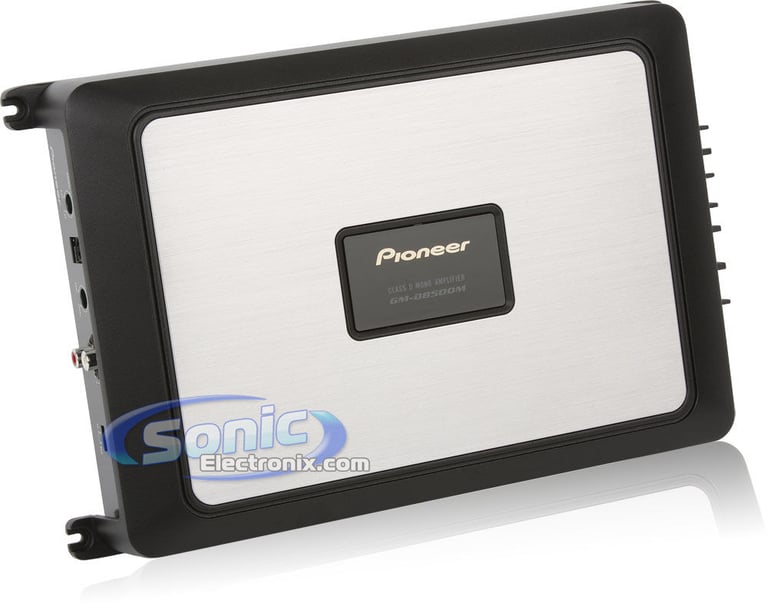

Pioneer GM-D8500M Open Box Core Only

(Core Only) Open Box/Brand New, 1200W Max, GM Digital Series Class D Monoblock Amplifier

Pioneer
Shop all Pioneer
Product videos
highlight-star-icon

GM Series Monoblock Car Amplifier • Class D • 300W x 1 Chan. @ 4 Ohm • 600W x 1 Chan. @ 2 Ohm • 1200W Max • 0-12 dB Bass Boost • Chrome-Plated Terminals • Speaker-Level Inputs • Balanced Isolator Input Circuit

Learn more about the LS-gmd8500m-OBINC-1

We apologize

This item has been discontinued

Product Highlights


GM Series Monoblock Car Amplifier • Class D • 300W x 1 Chan. @ 4 Ohm • 600W x 1 Chan. @ 2 Ohm • 1200W Max • 0-12 dB Bass Boost • Chrome-Plated Terminals • Speaker-Level Inputs • Balanced Isolator Input Circuit

Description


Pioneer brand icon

Authorized dealer

Item Condition - Missing Parts:

This product is missing parts and has been previously used and/or returned. See the description for details.

  • Please note: Item sold is AMP ONLY!!!
  • GM Series Class D Monoblock Car Amplifier
  • Amp only for a discounted price
  • RMS Power Rating:
    • 4 ohm: 300 watts x 1 chan.
    • 2 ohm: 600 watts x 1 chan.
  • Max power output: 1200 watts x 1 chan.
  • MOSFET power supply
  • LED power indicator
  • Wired remote bass level control included
  • Variable bass boost (0-12 dB at 50 Hz)
  • Compact amplifier design
  • Balanced isolator input circuit
  • Speaker-level inputs with included high-level to RCA adapter
  • Heavy duty aluminum alloy heatsink
  • Chrome-plated RCA level inputs
  • Chrome-plated screw terminals
  • Variable low-pass filter (40-240 Hz, 12 dB/octave)
  • CEA-2006 compliant amplifier
  • Frequency response: 10-240 Hz
  • Dimensions: 11-3/8"L x 7-7/8"W x 2-1/4"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 1-year SonicElectronix.com warranty

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
300 watts x 1 channel
RMS Power @ 2 ohms
600 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
1200 watts
Total RMS Power Output
600 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
0.03%
Speaker Level Inputs
Yes - with included adapter
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
40 - 240 Hz
Signal-to-Noise Ratio
80 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Fuse Rating
30A x 2
Warranty and Return Policy
Parts Warranty Duration
Not warranted
Labor Warranty Duration
Not warranted
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

GM-D8500M-OBINC-1

Weight:

8.50lbs

Internal SKU:

LS-gmd8500m-OBINC-1

Internal Product ID:

45351
