Name: Massive Audio BX4 (OPEN BOX COMPLETE)
Brand: Massive Audio
SKU: LS-bx4-OBCRA233729
Price: 169.95 USD
Availability: Discontinued

by Massive Audio

About
Specs & Details
Product Videos
Reviews
Add-ons
Related Searches

Massive Audio BX4 (OPEN BOX COMPLETE) Image 1 — Massive Audio BX4 (OPEN BOX COMPLETE)

Massive Audio BX4 (OPEN BOX COMPLETE) Image 2 — Massive Audio BX4 (OPEN BOX COMPLETE)

Massive Audio BX4 (OPEN BOX COMPLETE) Image 3 — Massive Audio BX4 (OPEN BOX COMPLETE)

Massive Audio BX4 (OPEN BOX COMPLETE) Image 4 — Massive Audio BX4 (OPEN BOX COMPLETE)

Massive Audio BX4 (OPEN BOX COMPLETE) Image 5 — Massive Audio BX4 (OPEN BOX COMPLETE)

Massive Audio BX4 (OPEN BOX COMPLETE) Image 6 — Massive Audio BX4 (OPEN BOX COMPLETE)

Massive Audio BX4 (OPEN BOX COMPLETE) Image 7 — Massive Audio BX4 (OPEN BOX COMPLETE)

Massive Audio BX4 (OPEN BOX COMPLETE) Image 8 — Massive Audio BX4 (OPEN BOX COMPLETE)

Massive Audio BX4 (OPEN BOX COMPLETE) Image 9 — Massive Audio BX4 (OPEN BOX COMPLETE)

Massive Audio BX4 (OPEN BOX COMPLETE) Image 10 — Massive Audio BX4 (OPEN BOX COMPLETE)

Massive Audio BX4 (OPEN BOX COMPLETE) Image 11 — Massive Audio BX4 (OPEN BOX COMPLETE)

Massive Audio BX4 (OPEN BOX COMPLETE) Image 12 — Massive Audio BX4 (OPEN BOX COMPLETE)

Massive Audio BX4 (OPEN BOX COMPLETE) Image 13 — Massive Audio BX4 (OPEN BOX COMPLETE)

Massive Audio BX4 (OPEN BOX COMPLETE) Image 14 — Massive Audio BX4 (OPEN BOX COMPLETE)

Massive Audio BX4 (OPEN BOX COMPLETE)-video

Product videos

Product highlights

• 120W x 4-Chan. @ 4 ohm
• 240W x 4-Chan. @ 2 ohm
• 480W x 2 Chan. @ 4 ohm
• 3-Way System Protection
• 4/3/2 Channel Operation

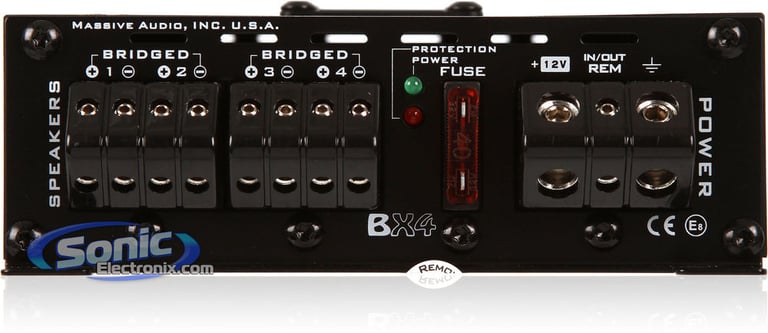

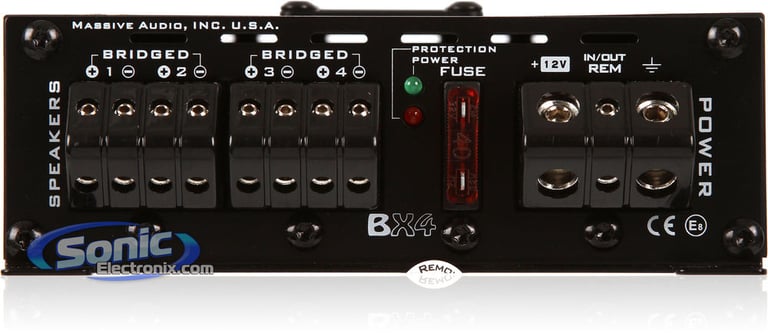

• 8 Gauge Power and Ground Inputs
• Selectable LPF or HPF

Learn more about the LS-bx4-OBCRA233729

Product Highlights

• 120W x 4-Chan. @ 4 ohm
• 240W x 4-Chan. @ 2 ohm
• 480W x 2 Chan. @ 4 ohm
• 3-Way System Protection
• 4/3/2 Channel Operation
• 8 Gauge Power and Ground Inputs
• Selectable LPF or HPF

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

This is an Open Box Item

We have checked, tested, and confirmed this item to function properly. It contains all the same parts as a new unit, but shows some visible signs of use.

This open box product has a 30-day return policy and a 90-day warranty

Item Condition: Open Box Complete

Item has been installed, used, and has box damage

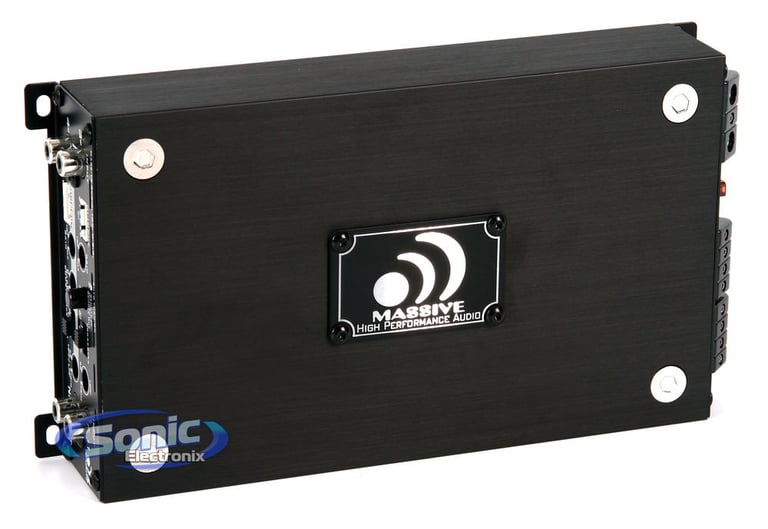

BX Series 4-Channel Class D Car Amplifier
RMS Power Rating:

4 ohm: 120 watts x 4 chan.
2 ohm: 240 watts x 4 chan.
Bridged, 4 ohm: 480 watts x 2 chan.

Max power output: 480 watts x 1 chan.
Pulse Width Modulated MOSFET power supply
LED power (green) and protect (red) indicators
Variable Bass Boost (0 to +12 dB bass boost)
4/3/2 channel operation

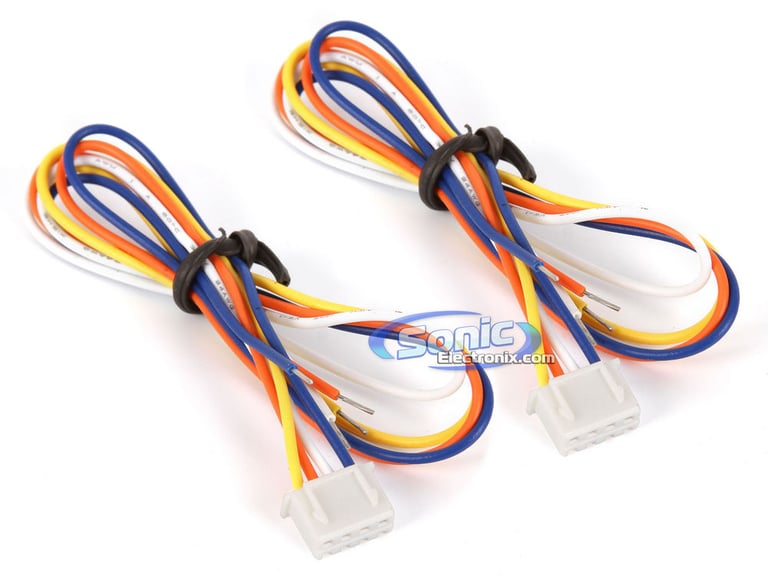

Speaker-level (high-level) inputs with signal sensing for automatic turn-on
3-way protection circuitry (thermal, overload, and speaker short protection)
Noise Rejection Circuitry for ultra clean output
Heavy duty aluminum alloy heat-sink
Nickel-plated RCA level inputs
Nickel-plated screw terminals
Input sensitivity: 0.2-6V

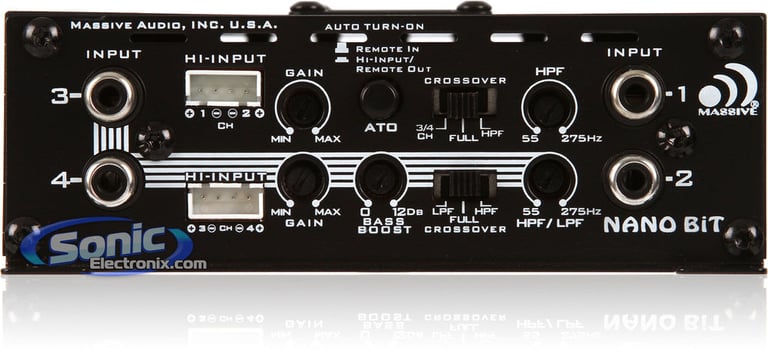

Selectable LPF / FULL / HPF crossover frequency
Variable high-pass filter: 55-275 Hz
Variable low-pass filter: 55-275 Hz
CEA-2006 compliant amplifier
Frequency response: 30-45000 Hz
8 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
Dimensions: 5"W x 8-5/16"D x 1-5/8"H
1-year Sonic Electronix Warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

140 watts x 4 channel

RMS Power @ 2 ohms

240 watts x 4 channel

Bridged RMS Power

480 watts x 2 channel

Amplifier Specifications

Amplifier Class

Number of Channels

4-Channel

Total Peak Power Output

960 watts

Total RMS Power Output

480 watts

Maximum Input Gauge Size

8 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

0.3%

Speaker Level Inputs

Yes

Preamp Outputs

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)
Full (AP)

High-Pass Crossover Frequency

55 - 275 Hz

Low-Pass Crossover Frequency

55 - 275 Hz

Signal-to-Noise Ratio

90 dB

Bass Boost

0 - 12 dB

Remote bass/level controller

Fuse Rating

40A x 1

Strappable

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Sonic Electronix
