JL Audio e2150 FACTORY R/B

2-Channel Amplifier REFURBISHED

JL Audio
Shop all JL Audio
Product videos
highlight-star-icon

2-Channel Class AB Amplifier • 45W RMS x 2 @ 4 • High and Low Level Inputs • 6dB Bass Boost • 1 Pair RCA Output • On Board Crossover

Learn more about the LS-e2150-RB

We apologize

This item has been discontinued

Product Highlights


2-Channel Class AB Amplifier • 45W RMS x 2 @ 4 • High and Low Level Inputs • 6dB Bass Boost • 1 Pair RCA Output • On Board Crossover

Description


JL Audio brand icon

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

  • 2-Channel Class AB Amplifier
  • Absolute Symmetry Class AB Circuit
  • Differential, Noise-Cancelling Input Topology
  • RMS Power Rating:
    • 14.4V
    • 70 watts x 2 chan. @ 4 ohm
    • 110 watts x 2 chan. @ 2 ohm
    • 140 watts x 1 chan. @ 8 ohm (Bridged)
    • 220 watts x 1 chan. @ 4 ohm (Bridged)
    • 12.5V
    • 45 watts x 2 chan. @ 4 ohm
    • 75 watts x 2 chan. @ 2 ohm
    • 90 watts x 1 chan. @ 8 ohm (Bridged)
    • 150 watts x 1 chan. @ 4 ohm (Bridged)
  • Low and High-Level Inputs
  • Preamp outputs: 1 Pair
  • Power and Protection LEDs
  • Remote Bass Control Port (Controller RBC-1 optional and not included.)
  • Bass EQ: 6dB @ 48 Hz
  • Adjustable Input Sensitivity
  • Built-In Crossover: High/Low Pass 50 - 100 Hz
  • Power connectors: 8 - 4 AWG
  • Speaker Connection: 8 - 16 AWG
  • Dimensions: 9.8" L x 9.25" W x 2.36" H
  • 30 days Sonic Electronix repair warranty

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
70 watts x 2 channel
RMS Power @ 2 ohms
110 watts x 2 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
220 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Total RMS Power Output
220 watts
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.08%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 200 Hz
Low-Pass Crossover Frequency
50 - 200 Hz
Signal-to-Noise Ratio
104 dB
Bass Boost
0 - 6 dB
Fuse Rating
20A

Item Details


Manufacturer:

Model Number:

e2150-RB

Weight:

14.00lbs

Internal SKU:

LS-e2150-RB

Internal Product ID:

9823

Product and How-to Videos


Customer Ratings & Reviews

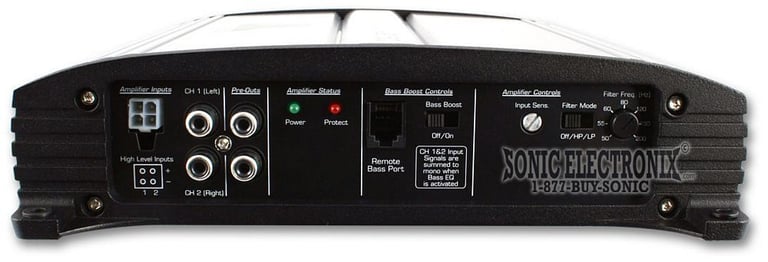

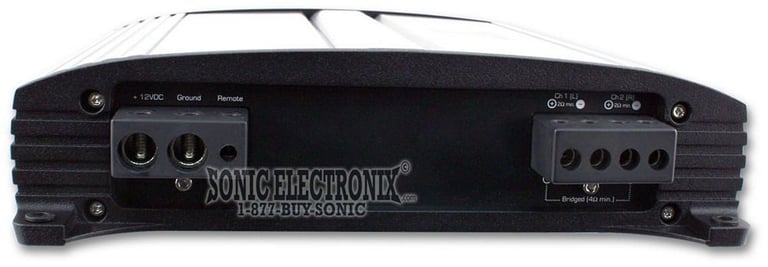

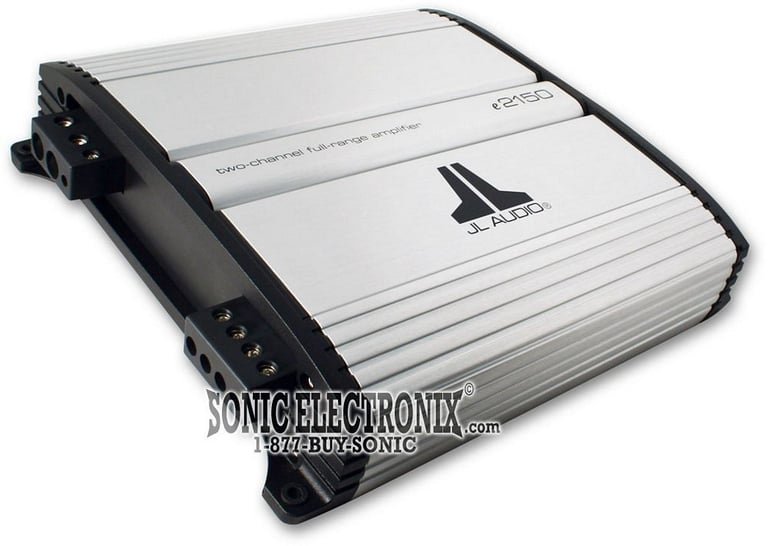

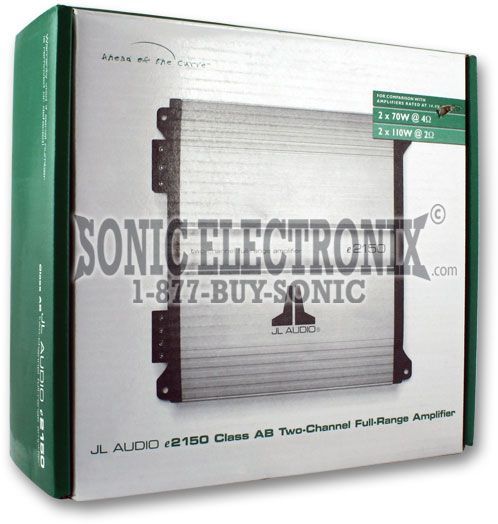

JL Audio e2150 FACTORY R/B thumbnail image
