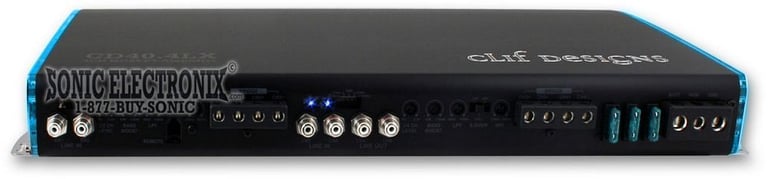

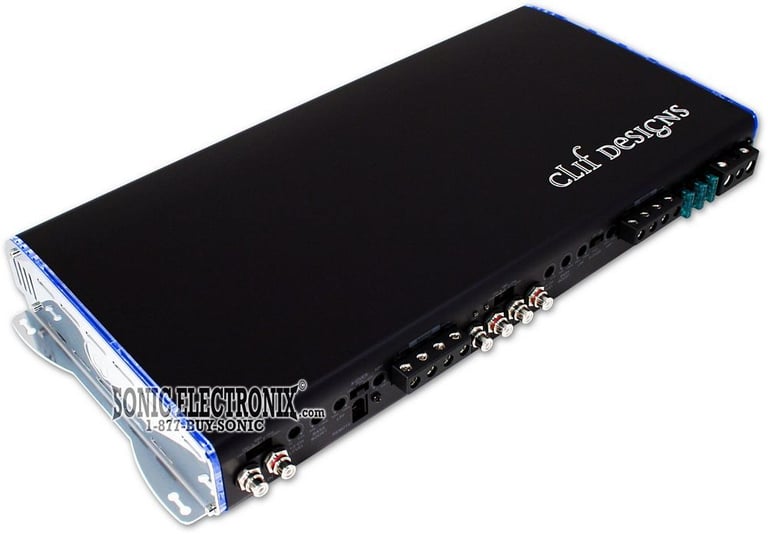

Clif Designs CD40.4LX Factory Refurbished

4-Channel Amplifier

Product videos
highlight-star-icon

1400 Watt 4-Channel Class-A/B Amplfier • 100W RMS x 4 @ 4 Ohm • 700W Peak x 2 chan. @ 2 Ohm • Tri-Mode Operation • Soft Start Circuitry

Learn more about the LS-cd404lx-RB

We apologize

This item has been discontinued

Product Highlights


1400 Watt 4-Channel Class-A/B Amplfier • 100W RMS x 4 @ 4 Ohm • 700W Peak x 2 chan. @ 2 Ohm • Tri-Mode Operation • Soft Start Circuitry

Description


Clif Designs brand icon

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

  • 1400 Watt 4-Channel Class-A/B Amplifier
  • Factory Refurbished with Full 1-year Warranty
  • RMS Power Ratings:
    • 100 watts x 4 chan. @ 4 Ohm
    • 150 watts x 4 chan. @ 2 Ohm
    • 175 watts x 4 chan. @ 1 Ohm
    • Bridged, @ 2 ohm: 350 watts x 2 chan.
  • RCA Outputs: 1 Pair
  • Variable Input Gain Control: 0.2V - 8V
  • 2 Ohm Mono Stable
  • 1/2/3 Channel Operational (MIXED MONO)
  • Regulated Power Supply
  • Soft Start Circuitry
  • 3-Way Short Circuit Protection
  • Full MOSFET Circuitry
  • Built-In Crossover: HPF (120 - 800 Hz), LPF (40 - 120 Hz)
  • Variable Bass Boost: 0 - 18 dB
  • Damping Factor: 150
  • Channel Seperation: 65 dB
  • Dimensions: 16.5" L 8.5" W 2.1" H
  • Authorized Internet Dealer
  • 1-year SonicElectronix.com warranty

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
100 watts x 4 channel
RMS Power @ 2 ohms
150 watts x 4 channel
RMS Power @ 1 ohm
175 watts x 4 channel
Bridged RMS Power
350 watts x 2 channel
Amplifier Specifications
Number of Channels
4-Channel
Total RMS Power Output
700 watts
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
2 ohms
THD at Rated RMS Power
0.02%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
120 - 800 Hz
Low-Pass Crossover Frequency
40 - 120 Hz
Signal-to-Noise Ratio
100 dB
Channel Separation
65 dB
Bass Boost
0 - 18 dB
Fuse Rating
30A x 2

Item Details


Manufacturer:

Model Number:

CD40.4LX-RB

Weight:

12.00lbs

Internal SKU:

LS-cd404lx-RB

Internal Product ID:

10450

Product and How-to Videos


Customer Ratings & Reviews


Clif Designs CD40.4LX Factory Refurbished thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Nice Amp

picked this up as refurbished. Really nice all around. blue light is nice, but performance for the price cant be beat. I have some MB Quarts hooked up to it and they sound clean and loud.

By IVAN on December 11, 2012

1 found this helpful
