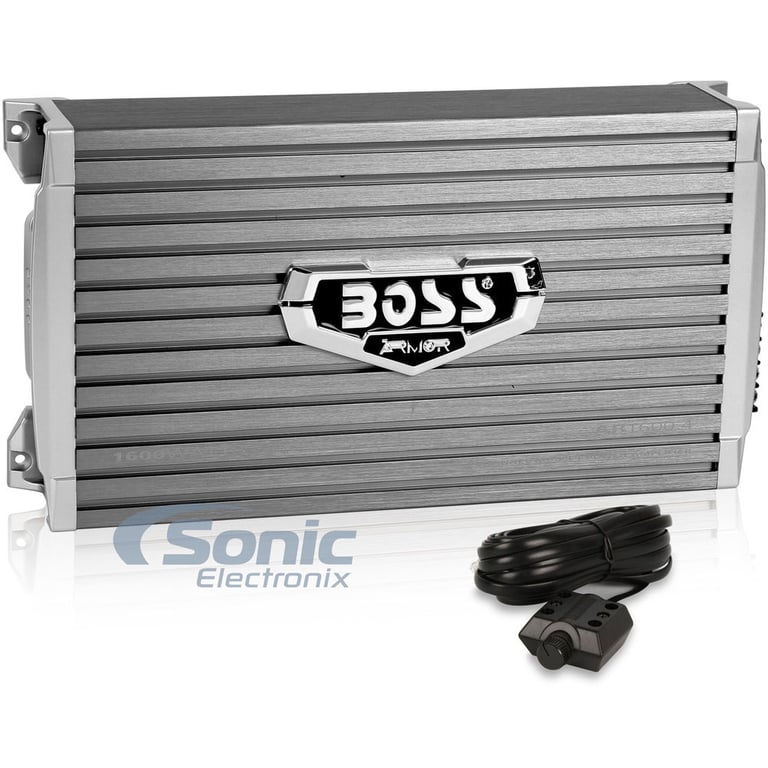

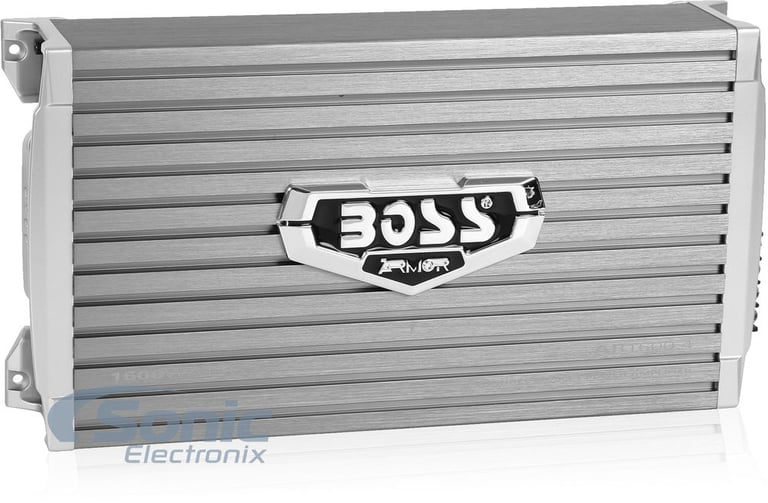

Boss AR1600.4

1600W 4-Channel ARMOR Series Class A/B Car Amplifier + Remote

5
Boss
Shop all Boss
Product videos
highlight-star-icon

• 4 ohms: 160 watts x 4 chan.
• 2 ohms: 400 watts x 4 chan.
• Bridged, 4 ohms: 800 watts x 2 chan.
• Pulse Width Modulated MOSFET Power Supply

Learn more about the ar16004

We apologize

This item has been discontinued

Show me more products from this category
Go to Category

Product Highlights

• 4 ohms: 160 watts x 4 chan.
• 2 ohms: 400 watts x 4 chan.
• Bridged, 4 ohms: 800 watts x 2 chan.
• Pulse Width Modulated MOSFET Power Supply

Description

Boss

Authorized dealer

General Features:

  • 4-Channel ARMOR Series Class A/B Car Amplifier
  • RMS Power Rating:
    • 4 ohms: 160 watts x 4 chan.
  • Max Power Rating
    • 2 ohms: 400 watts x 4 chan.
    • Bridged, 4 ohms: 800 watts x 2 chan.
  • Pulse Width Modulated MOSFET power supply
  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +18 dB bass boost at 50 Hz)
  • Soft start turn-on
  • 4/3/2 channel operation
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation
  • Nickel-plated RCA level inputs

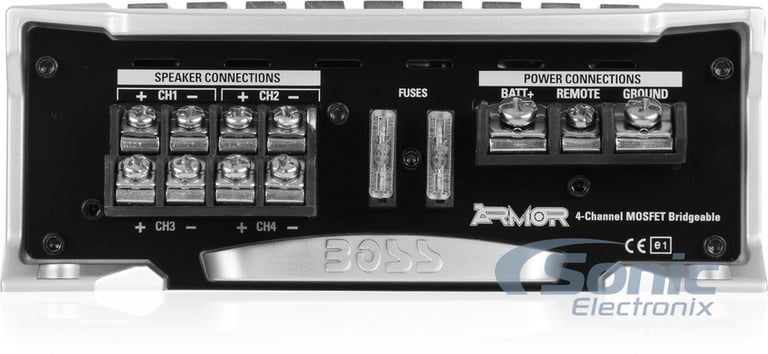

  • Nickel-plated screw terminals
  • Input sensitivity:
    • Low level: 125mV-5V
    • High level: 250mV-10V

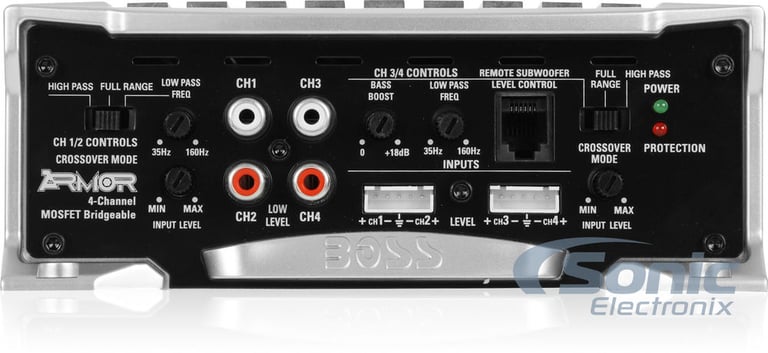

  • Variable high-pass filter (200 Hz fixed, 24 dB/octave)
  • Variable low-pass filter (35-160 Hz, 24 dB/octave)
  • Damping factor: 125
  • Frequency response: 9-50000 Hz
  • 8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 12-1/3"W x 5"D x 2-8/10"H
  • Authorized Platinum Internet Dealer
  • 1 year Sonic Electronix, and 5 years Manufacturer's warranty

Specifications & Details

Power Specifications - Full Range Channels
RMS Power @ 4 ohms
160 watts x 4 channel
Bridged RMS Power
800 watts x 2 channel
Power Specifications - Subwoofer Channel
RMS Power @ .5 ohm
Power Specifications - Full Range Channels
Peak Power @ 4 ohms
400 watts x 4 channel
Bridged Peak/Max Power
800 watts x 2 channel
Power Specifications - Subwoofer Channel
Peak Power @ .5 ohm
Amplifier Specifications
Series
Armor Series
Marine Certified
No
Amplifier Class
A/B
Number of Channels
4
Total Peak Power Output
1600 watts
Total RMS Power Output
800 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
Frequency Response
THD at Rated RMS Power
.01%
Speaker Level Inputs
No
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
200 Fixed
Low-Pass Crossover Frequency
35 - 160 Hz
Signal-to-Noise Ratio
105 dB
Channel Separation
90 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fan Cooled
No
Fuse Rating
25A x 2
Total Fuse Rating
50
Strappable
No
CEA-2031 Compliant
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Low-Level Input Sensitivity
High-Level Input Sensitivity
What is in the box?
Paperwork
User manual
WITB: Amplifiers
Amplifier

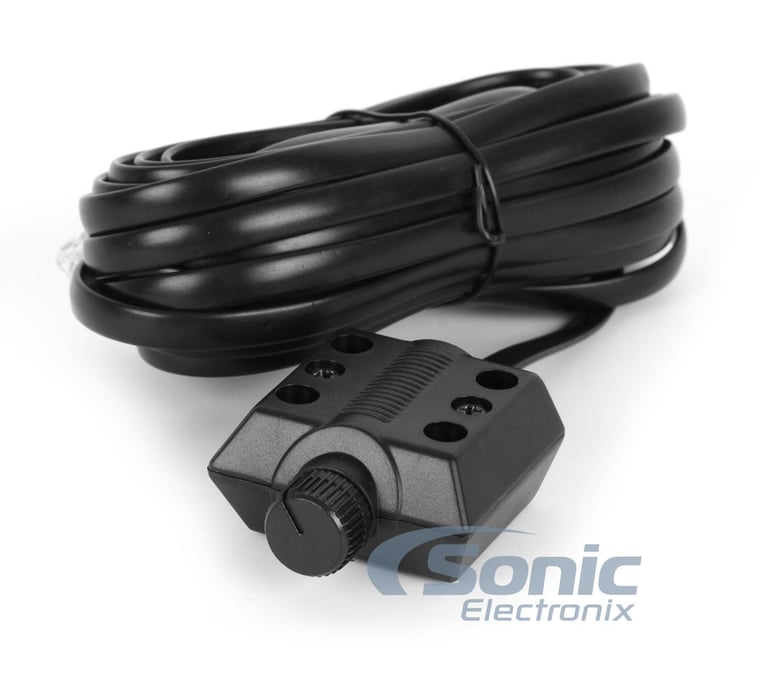

Wired gain knob (wire attached)

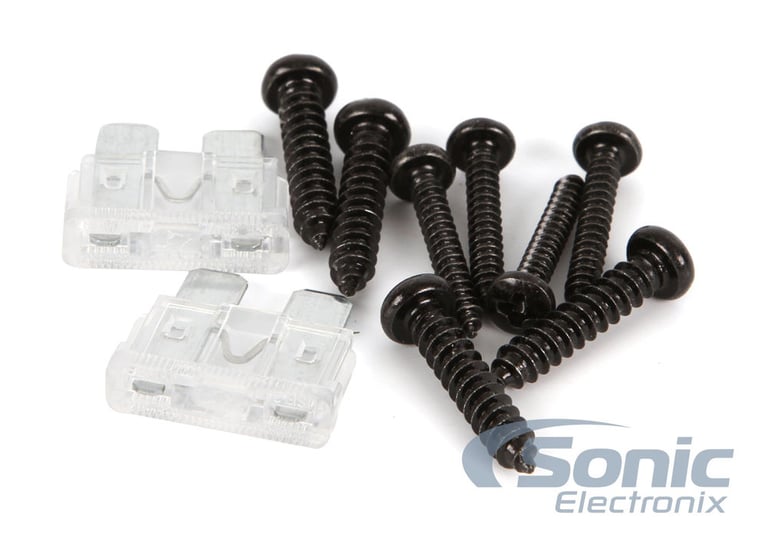

Mounting screws (6)

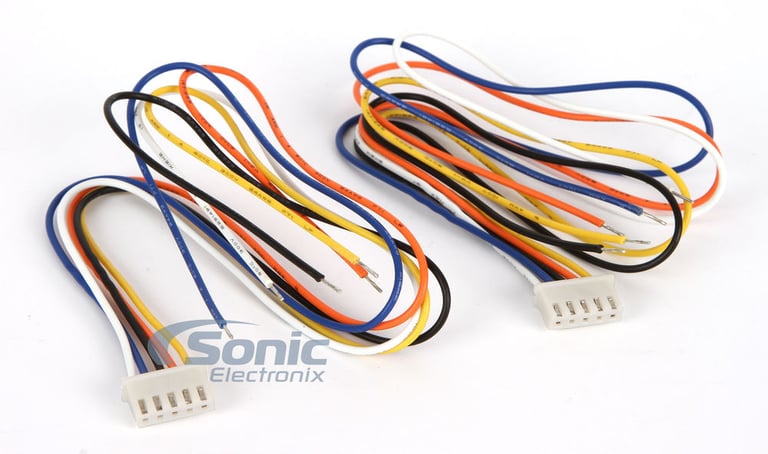

High-level input wiring harness w/ molex connectors (2)
Other Accessory #6
Warranty and Return Policy
Parts Warranty Duration
6 years
Labor Warranty Duration
6 years
Warranty Provider
Manufacturer

Item Details

Manufacturer:

Boss

Model Number:

AR1600.4

Weight:

7.25lbs

Internal SKU:

ar16004

Internal Product ID:

52116
