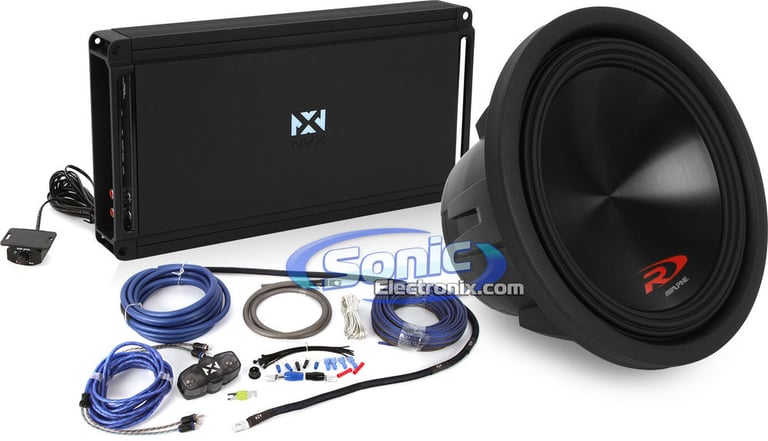

12" Alpine SWR-12D2 1000W Subwoofer + NVX 1200W RMS Amplifier + Amp Kit

General Features:

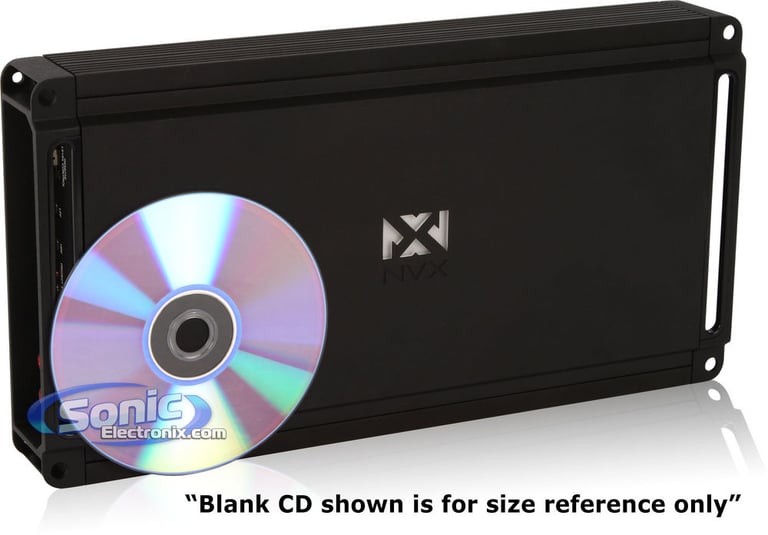

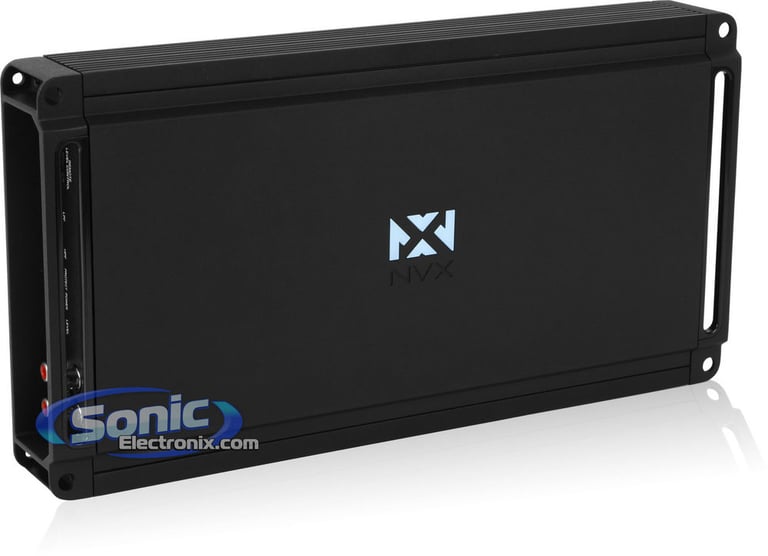

• Class D Monoblock Amplifier with Bass Remote
• RMS Power Rating:
• 4 ohms: 500 watts x 1 chan.
• 2 ohms: 800 watts x 1 chan.
• 1 ohm: 1200 watts x 1 chan.
• Sonic Electronix Certified Power Rating*:
• 4 ohms: 662 watts x 1 chan.
• 2 ohms: 1037 watts x 1 chan.
• 1 ohms: 1384 watts x 1 chan.
• Non-regulated efficient S.M.P.S power supply design
• Pulse Width Modulated MOSFET power supply

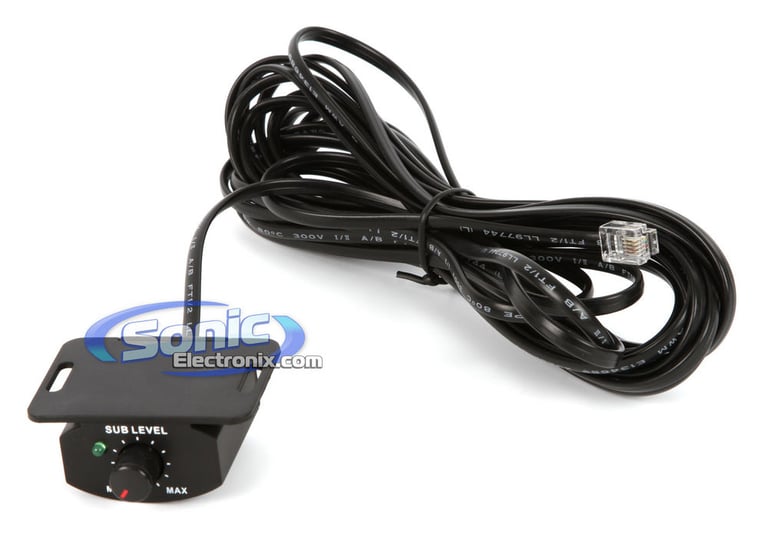

• Wired remote bass level control included
• LED power (green) and protect (red) indicators

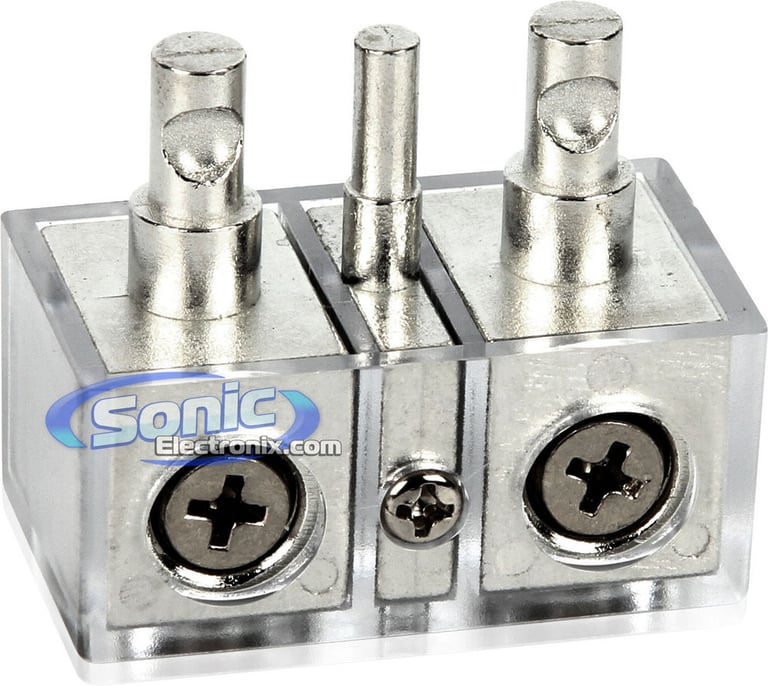

• Power and ground Gauge adapter included (Up to 0 gauge)
• Soft start turn-on
• Mono channel operation
• Preamp RCA outputs to daisy chain multiple amps
• 3-way protection circuitry (thermal, overload, and speaker short protection)

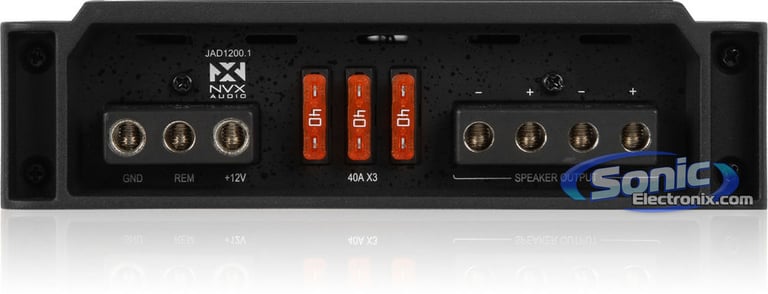

• Dual speaker terminals simplify the hookup of multiple speakers
• Heavy duty aluminum alloy heat-sink
• Nickel-plated RCA level inputs
• Nickel-plated screw terminals

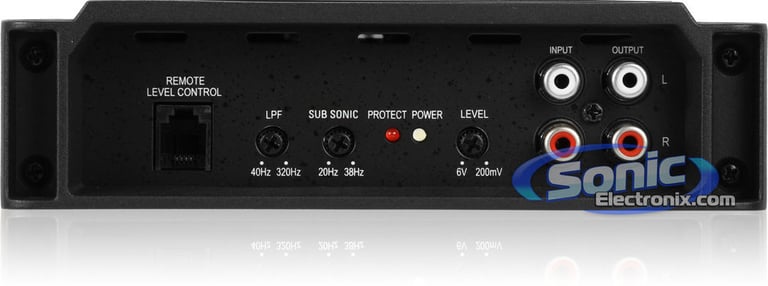

• Variable subsonic filter (20-38 Hz, 24 dB/octave)
• Variable low-pass filter (40-320 Hz, 24 dB/octave)
• Damping factor: 200
• Input Sensitivity: 200mV-6V
• Frequency response: 20-200 Hz
• Accepts 8, 4, 2, and 1/0 Gauge wire with gauge adapter
• Also found as: JAD12001, JAD-12001, JAD1200
• 4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier
• Dimensions: 6-7/10"W x 12-8/10"L x 1-8/10"H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Extend your NVX Manufacturer's Warranty to 2 Years when you install your new NVX amplifier with a compatible NVX power installation kit! This offer is only available through Authorized NVX dealers and will only last for a limited time. With this amplifier, the following power kits will qualify for the extended warranty program: NVX XAPK1D, NVX XKIT42, or NVX XAPK4

*The Sonic Electronix Certified Power Ratings listed are based on a test of a specific sample amplifier. Actual power ratings may slightly vary between amps.

General Features:

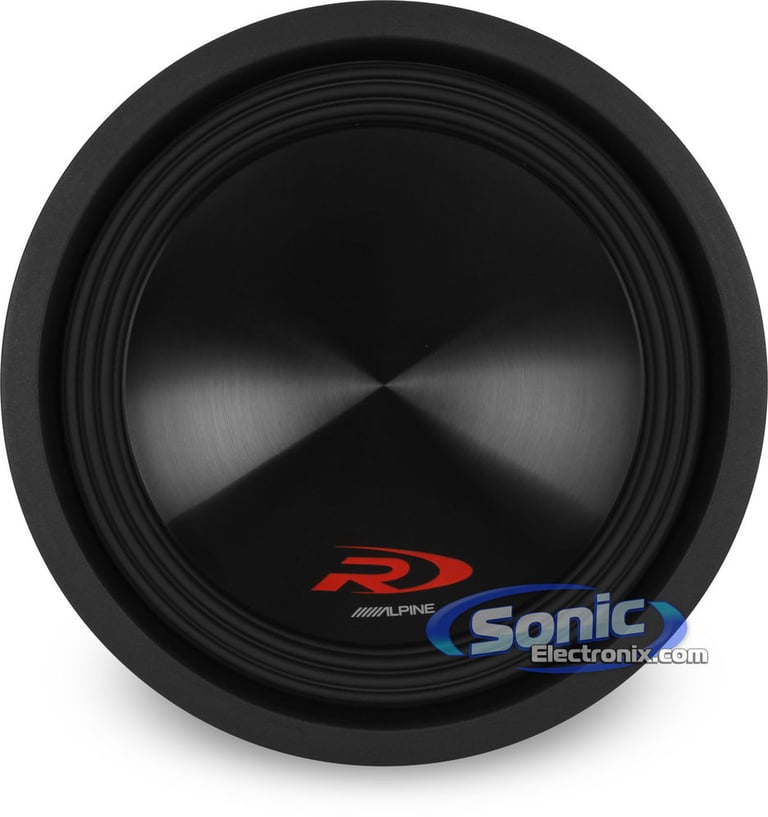

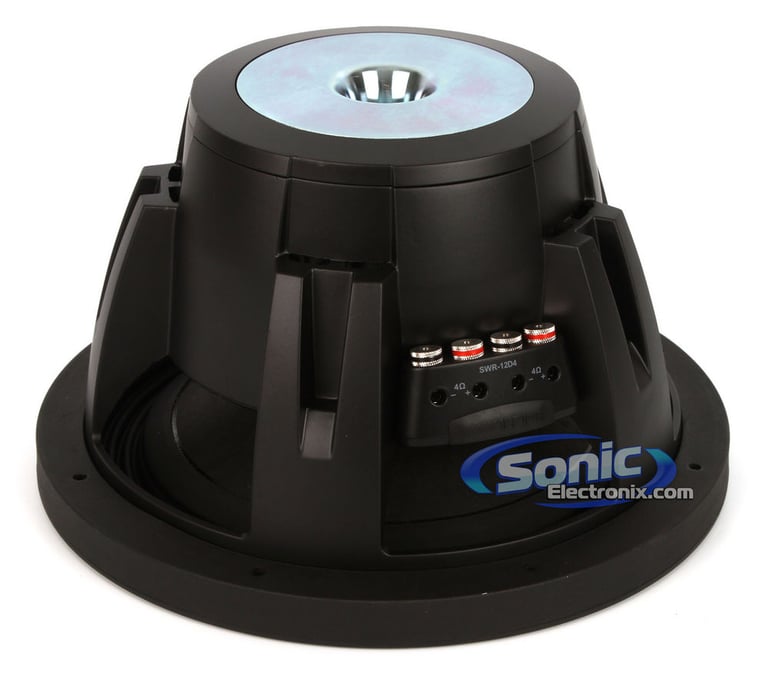

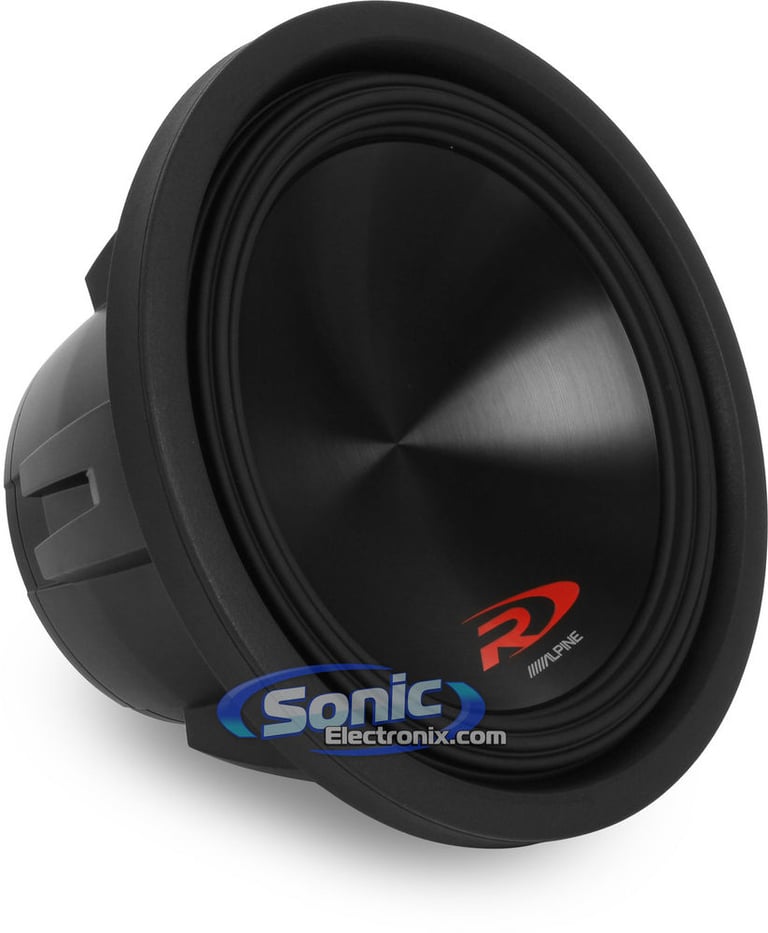

• 12" Dual 2-Ohm Type-R Series Car Subwoofer
• Power Handling:
• Peak: 3000 watts
• RMS: 300-1000 watts
• Impedance: Dual 2 ohms
• Kevlar treated pulp cone
• Durable HAMR Santoprene™ surround
• Progressive Conex spider
• Compound Radius Curve pole geometry
• Oversized 2.6", High-Temperature, 4-Layer Dual Voice Coil
• Frequency response: 26-300 Hz
• Resonance Frequency (Fs): 31Hz
• Top-mount depth: 6-3/8"
• Sensitivity: 84dB
• 1-year Sonic Electronix Warranty

General Features:

• 4 Gauge 2-Channel X-Series Complete Amplifier Installation Kit
• Designed specifically for car audio systems up to 1000 watts RMS
• Premium power and ground wire provides optimal power transfer
• Made from silver-tinned 100% virgin copper for a pure uninterrupted transfer of power and signal
• Audio Interconnect RCA cables are made with twisted-pair technology for noise reduction
• Solid Brass and satin-chromed ANL/Mini-ANL Fuse holder offers ideal protection for high powered systems
• True-to-Gauge cables/wires meet or exceed the industry standard of copper required for the gauge size
• Strand Count: 1862
• BC-5W2 Compliant
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Kit includes:

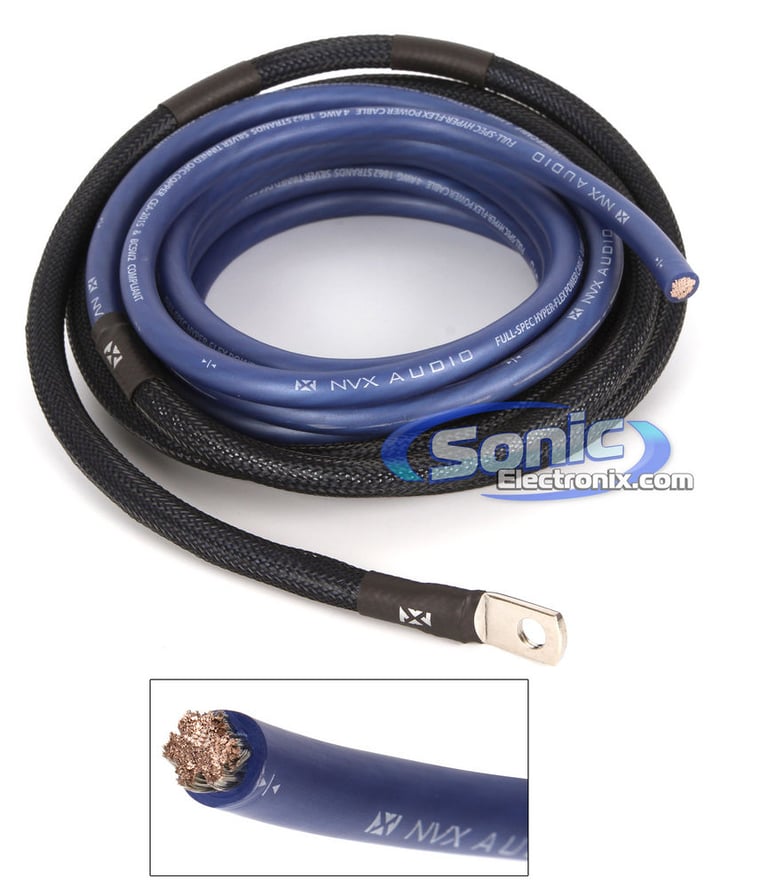

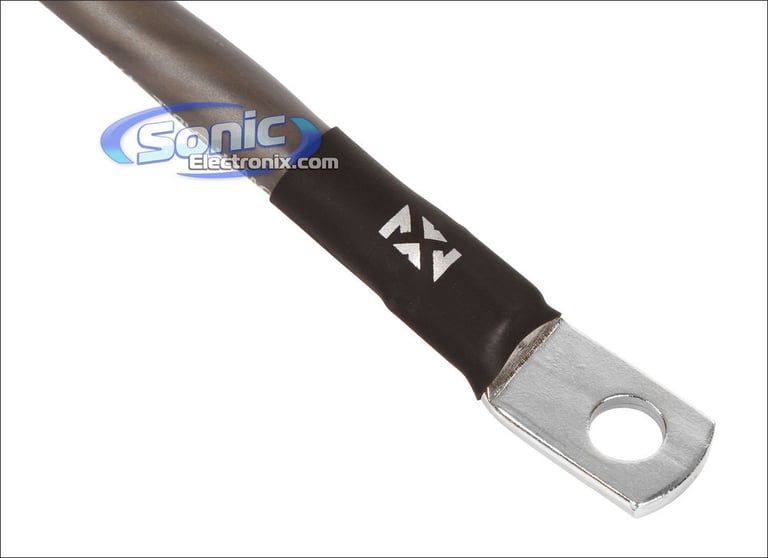

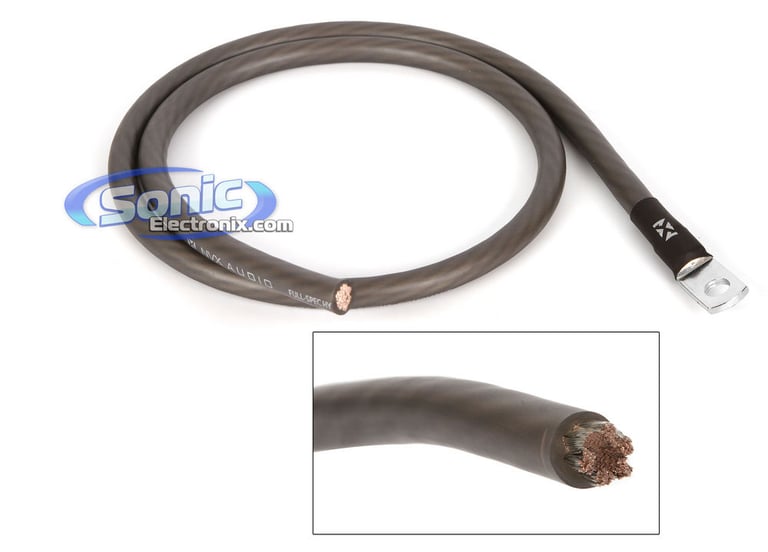

1. 20 ft. (6.1 meters) Frosted Blue 4 gauge power wire with seamless crimp ring terminal

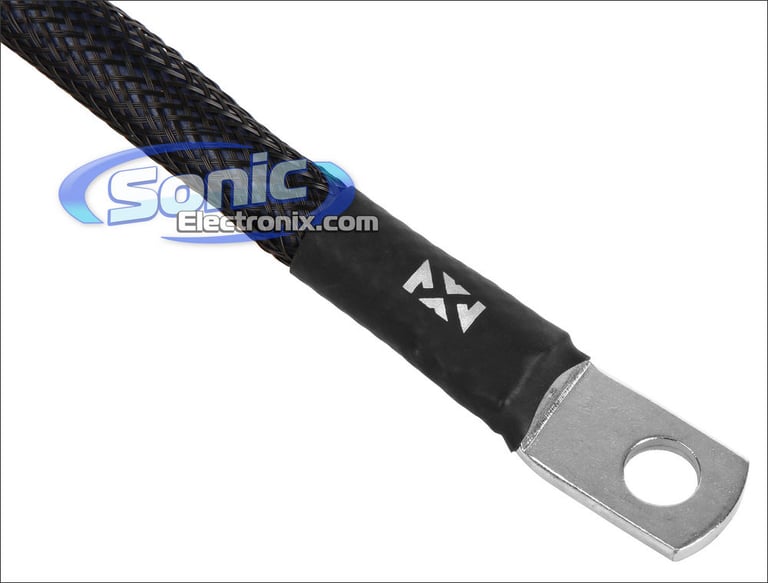

2. 3 ft. (.91 meters) Frosted Black 4 gauge ground wire with seamless crimp ring terminal

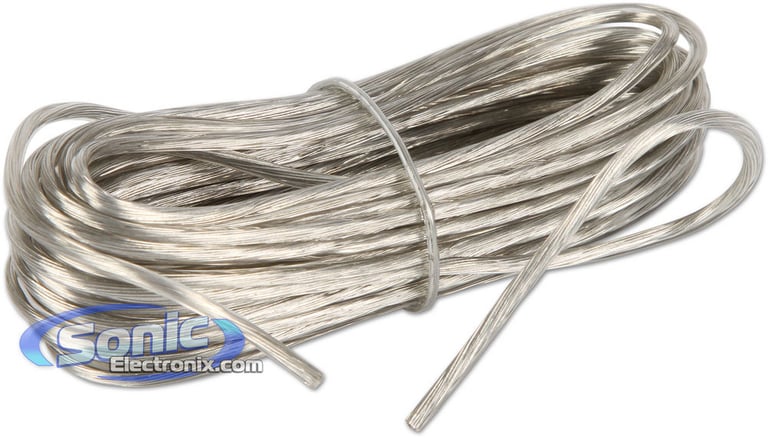

3. 20 ft. (6.1 meters) Clear 18 gauge remote lead wire

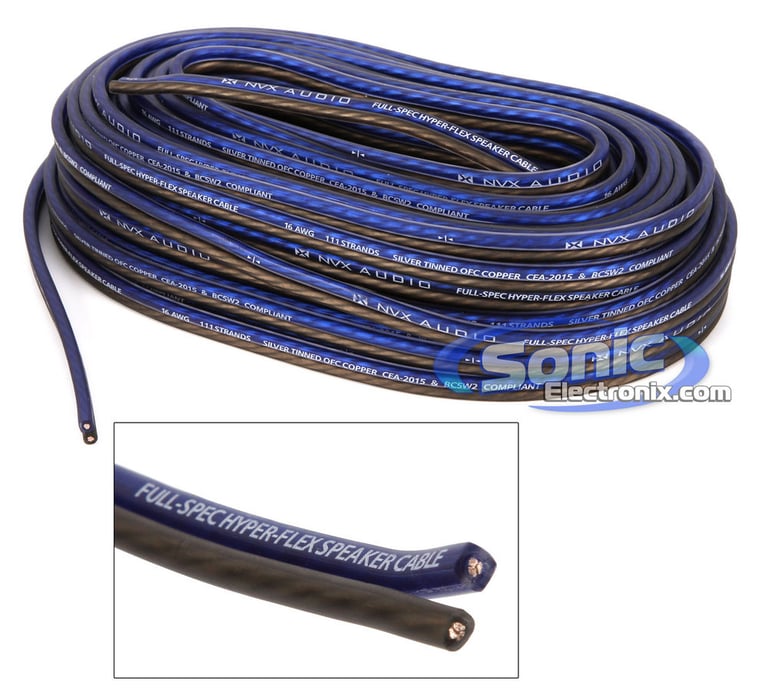

4. 40 ft. (12.2 meters) Frosted Black/Blue 16 gauge speaker wire

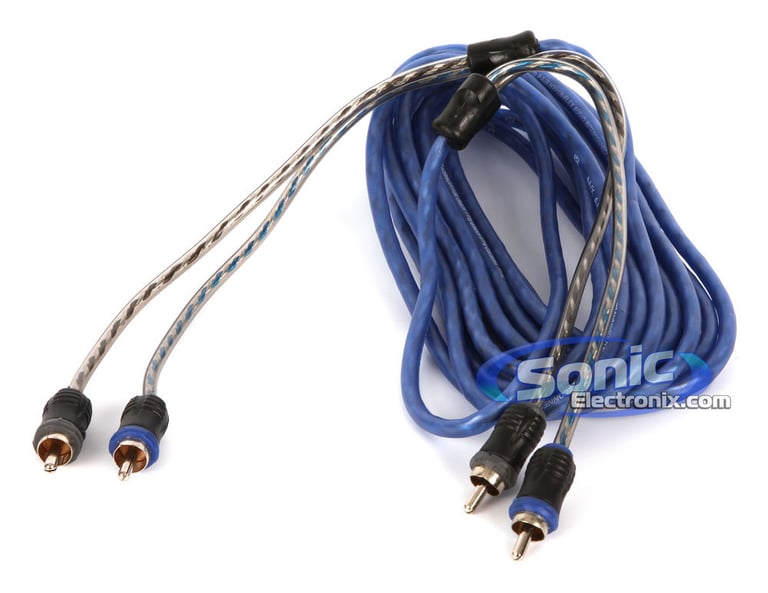

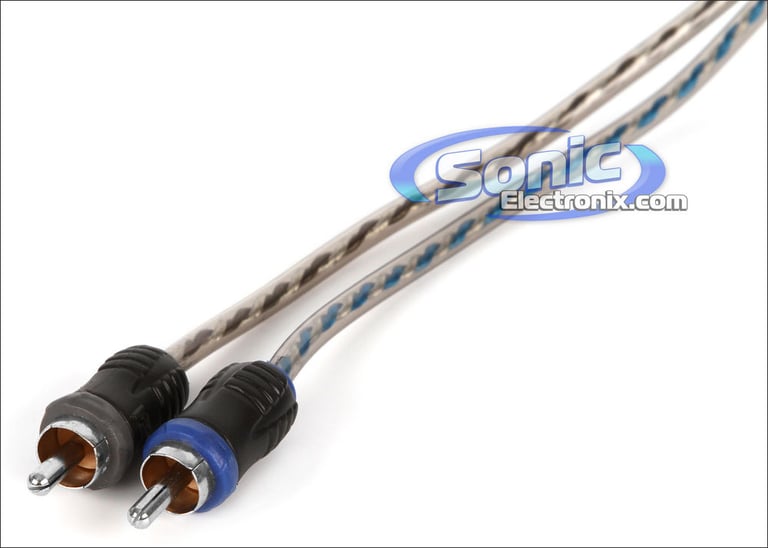

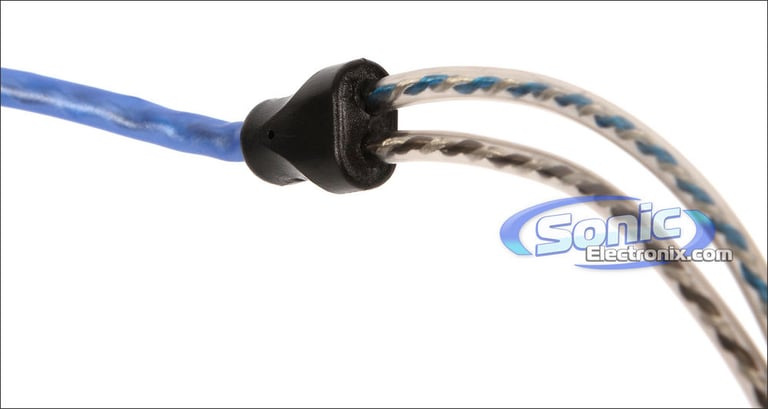

5. One 16 ft. (5 meters) 2-channel twisted construction RCA interconnect Cable (NVX XIV25)

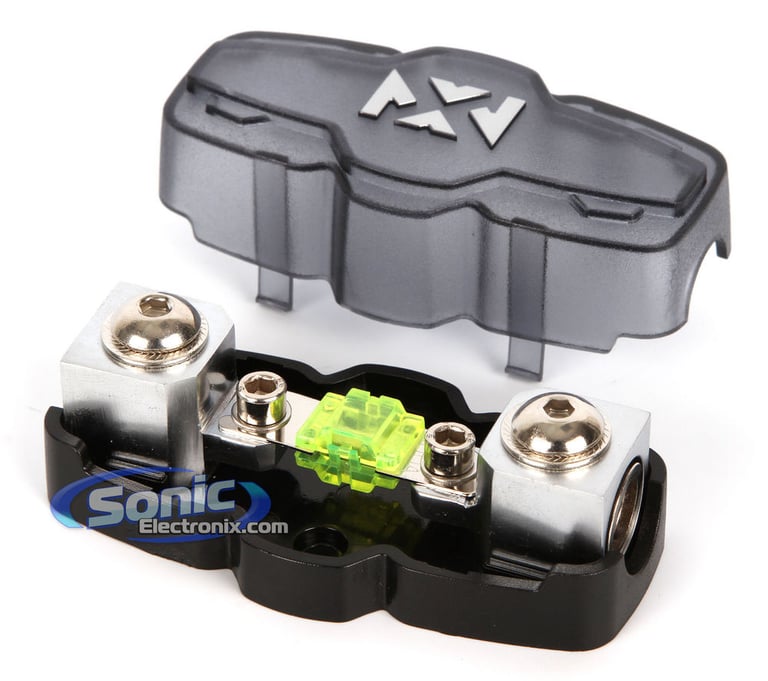

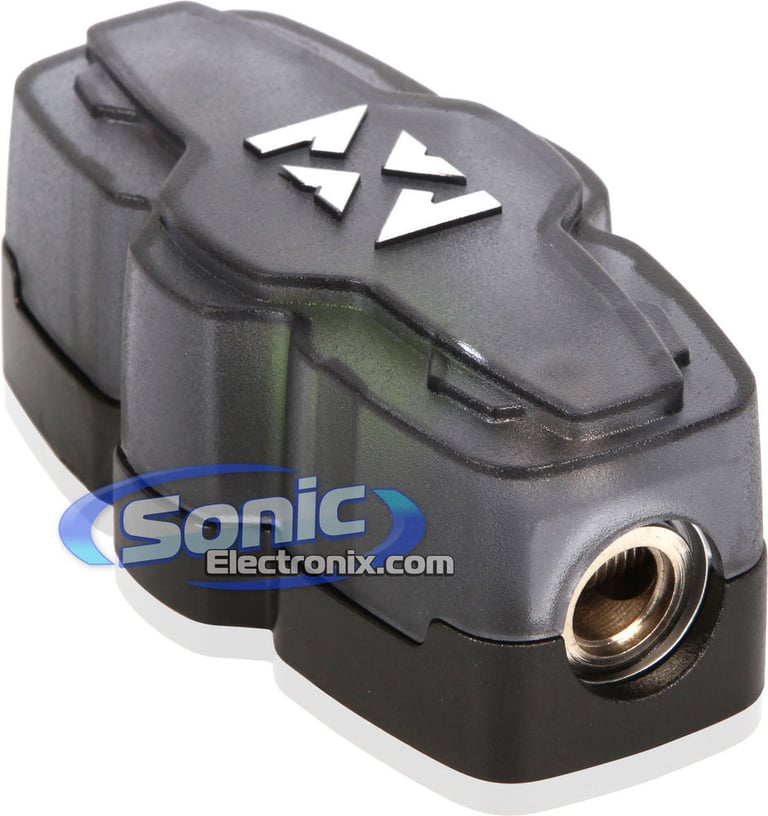

6. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 100 amp Mini-ANL fuse

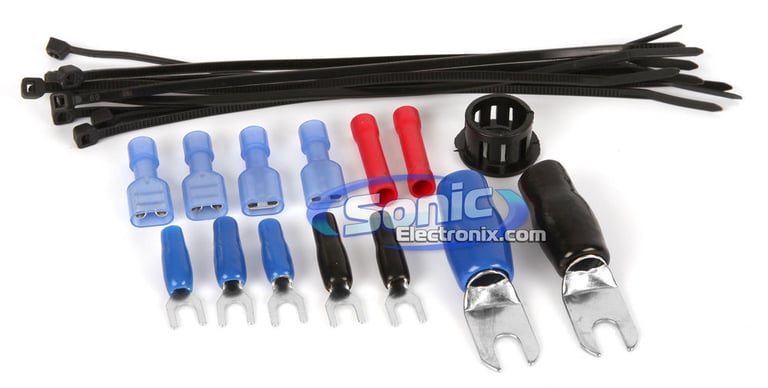

7. One Black rubber firewall grommet
8. Two 4 Gauge Nickel Plated spade terminals
9. Four 18 Gauge Spade terminal
10. Two 18 Gauge Red butt connectors
11. Four 16 Gauge quick disconnect
12. Five 16 Gauge Nickel Plated spade terminals
13. Ten 6" Black zip ties
