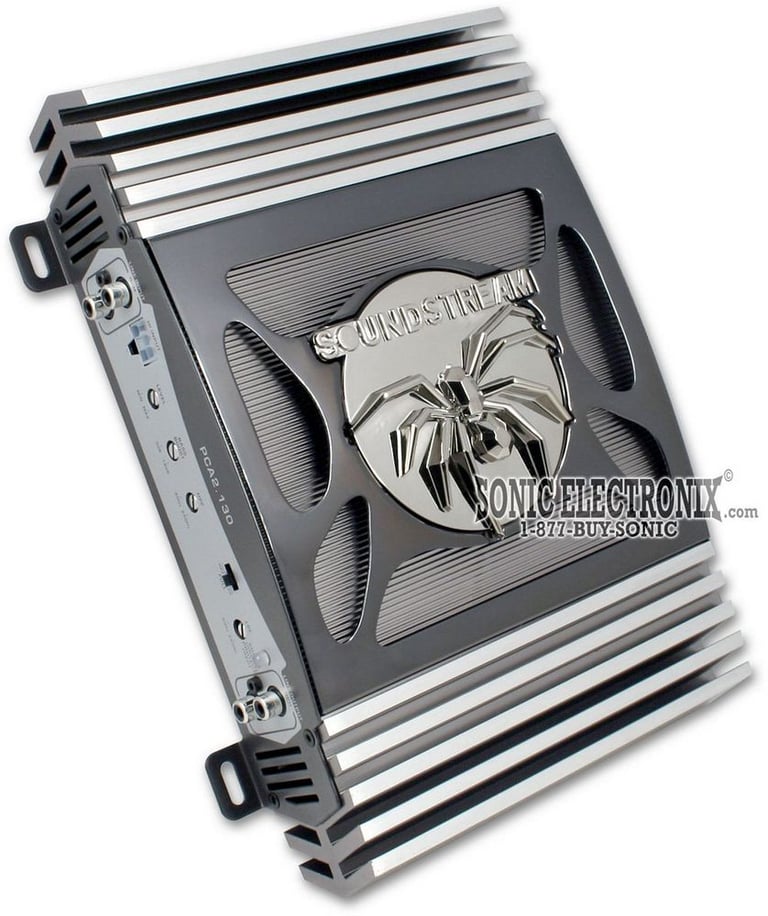

Soundstream PCA2.130

2-Channel Amplifier

Product videos
highlight-star-icon

2-Channel Picasso Series Amplifier • 40W RMS x 2 @ 4 • 130W RMS Bridged • High & Low Inputs • Line Out • PWM MOSFET Circutry • Tri-Guard • Tri-Mode Operation • Phase Inversion Switch

Learn more about the pca2130

We apologize

This item has been discontinued


Loading...
72-5601 main

Metra 72-5601

Install New Speakers in select 1998-2024 vehicles from Ford, Lincoln, Mercury

6
-10.01%

$8.99

List price $9.99

NSP68 main

NVX NSP68

540W Peak (180W RMS) 6x8" N-Series 2 Way Coaxial Car Speakers

59
-16.67%

$79.99

List price $95.99

FRING68 main

NVX FRING68

Universal 6x8" or 5x7" Self-Adhesive Foam Speaker Baffle Ring Kit (Pack of 2)

12
-46.68%

$15.99

List price $29.99

Limited time!
R168X2 main

Rockford Fosgate Prime R168X2

220W Peak (110W RMS) 6x8" Prime Series 2 Way Coaxial 4-ohm Speakers

16
-11.11%

$79.99

List price $89.99

Limited time!
Kappa 683XF main

Infinity Kappa 683XF (INFSPKKA683XFAM)

600W Peak (200W RMS) 6x8" Kappa Series 2-Way Coaxial 3-ohm Car Speakers

3
-32.13%

$223.95

List price $329.95

Stadium 862F main

JBL Stadium 862F

600W Peak (200W RMS) 6x8" Stadium Series 2-way Coaxial 3-ohm Speakers

5
-16.67%

$249.95

List price $299.95

Limited time!
TS-G6820S main

Pioneer TS-G6820S

500W Peak (80W RMS) 6x8" G-Series 2-way 4-ohm Coaxial Car Speakers

4
-23.09%

$49.99

List price $65.00

Rockford Fosgate Punch Pro PPS4-8 (Sold Individually)

250 Peak (125W RMS) 8” Punch Pro Series Pro-Audio 4-ohm Speaker

19

Crunch CS5768CX

500W Peak (100W RMS) 5x7"/6x8" CS Series 2-Way Coaxial 4-ohm Car Speakers

13
-11.77%

$29.99

List price $33.99

Product Highlights


2-Channel Picasso Series Amplifier • 40W RMS x 2 @ 4 • 130W RMS Bridged • High & Low Inputs • Line Out • PWM MOSFET Circutry • Tri-Guard • Tri-Mode Operation • Phase Inversion Switch

Description


Soundstream brand icon

Authorized dealer

  • 2-Channel Picasso Series Amplifier
  • Full MOSFET Circuitry
  • RMS Power Rating:
    • 40 Watts x 2 Channels @ 4 Ohm
    • 65 Watts x 2 Channels @ 2 Ohm
    • 130 Watts x 1 Channel @ 4 Ohm (Bridged)
  • PWM Circuitry
  • 4 Gauge Power / Ground Connections
  • Tri-Guard Protection Circuit
  • IDI (Inetlligent Distress Indicator) Protection LED
  • Platinum RCA Inputs and Outputs
  • Bi-Linear Selectable 12dB Crossovers for Inputs and Outputs (Hi / Full / Low)
  • Variable Subwoofer Equalizer: 0 - 18 dB
  • Phase Inversion Switch: 0° - 180°
  • OEM Floating Ground Input
  • Tri-Mode Operation
  • Line Outputs
  • Frequency Response: 10 Hz - 30 kHz
  • Damping Factor: >200
  • Variable Input Sensitivity: 0.5 - 4V
  • Dimensions: 11" L x 9" W x 2-1/2" H
  • 1-year SonicElectronix.com warranty

Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95


Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
40 watts x 2 channel
RMS Power @ 2 ohms
65 watts x 2 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
130 watts x 1 channel
Amplifier Specifications
Number of Channels
2-Channel
Total RMS Power Output
130 watts
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.02%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
40 - 250 Hz
Low-Pass Crossover Frequency
40 - 250 Hz
Signal-to-Noise Ratio
97 dB
Bass Boost
0 - 18 dB

Item Details


Manufacturer:

Model Number:

PCA2.130

Weight:

7.05lbs

Internal SKU:

pca2130

Internal Product ID:

5418

Product and How-to Videos


Customer Ratings & Reviews


Soundstream PCA2.130 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
4
Value
5
Features
5
Design
4
Usability
5

Customer Reviews

Sort by:

Loading...

Awesome Clarity

I used to have one of these hooked up in my old 91' Jag' to some coaxial 3.5" speakers and it made a world of difference. Packs a nice little punch when paired with a 10" or smaller subwoofer that doesn't need alot of power too.

By Devin on March 28, 2006
