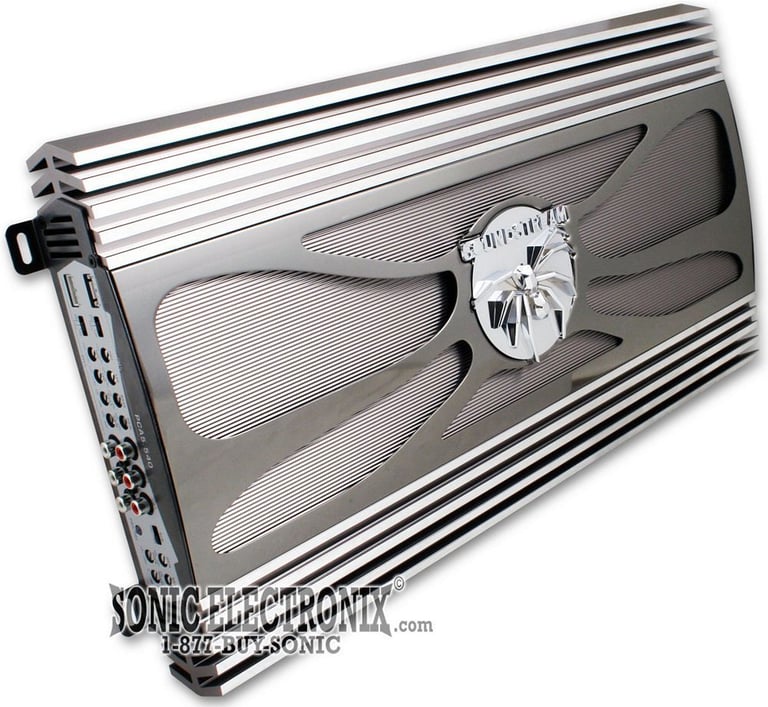

Soundstream PCA5.540

Picasso 5-Channel Amplifier

Soundstream
Shop all Soundstream
Product videos
highlight-star-icon

5-Channel Picasso Series Amplifier • 60Wx4 + 110Wx1 RMS @ 4 • 180W RMS x 2 Bridged • High & Low Inputs • PWM MOSFET Circutry • Tri-Guard • 0-18dB Bass Boost • Phase Inversion Switch

Learn more about the pca5540

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

CVP8 main

Cerwin-Vega CVP8 (Sold Individually)

350W Peak (170W RMS) 8" CVPRO Series Pro Full Range 4-ohm Speaker

-16.67%

$49.99

List price $59.99

Product Highlights


5-Channel Picasso Series Amplifier • 60Wx4 + 110Wx1 RMS @ 4 • 180W RMS x 2 Bridged • High & Low Inputs • PWM MOSFET Circutry • Tri-Guard • 0-18dB Bass Boost • Phase Inversion Switch

Description


Soundstream brand icon

Authorized dealer

  • 5-Channel Picasso Series Amplifier
  • Full MOSFET Circuitry
  • RMS Power Rating:
    • 60 Watts x 4 Channels + 110 Watts x 1 Channel @ 4 Ohm
    • 100 Watts x 4 Channels + 180 Watts x 1 Channel @ 2 Ohm
    • 180 Watts x 2 Channel @ 4 Ohm (Bridged)
  • PWM Circuitry
  • Tri-Guard Protection Circuit
  • IDI (Inetlligent Distress Indicator) Protection LED
  • Platinum RCA Inputs and Outputs
  • Bi-Linear Selectable 12dB Crossovers for Inputs and Outputs (Hi / Full / Low)
  • Variable Subwoofer Equalizer: 0 - 18 dB
  • Phase Inversion Switch: 0° - 180°
  • OEM Floating Ground Input
  • Frequency Response: 10 Hz - 30 kHz
  • Damping Factor: >200
  • Variable Input Sensitivity: 0.5 - 4V
  • Dimensions: 9-1/2" L x 18" W x 2-1/2" H
  • 1-year SonicElectronix.com warranty

Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

DS 1200X4 small

Taramps DS 1200X4

• 192 watts x 4 channel @ 4 ohm
• 300 watts x 4 channel @ 2 ohm
• Bridged: 600 watts x 2 channel @ 4 ohm
• Total RMS Power: 1200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(5)

$219.99

List price $258.00

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

R2-500X4 small

Rockford Fosgate Prime R2 R2-500X4

• 75 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(10)

$359.99

List price $359.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
60 watts x 4 chan. + 110 watts x 1 chan.
RMS Power @ 2 ohms
100 watts x 4 chan. + 180 watts x 1 chan.
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
180 watts x 2 channel
Amplifier Specifications
Number of Channels
5-Channel
Total RMS Power Output
360 watts
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.02%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
40 - 250 Hz
Low-Pass Crossover Frequency
40 - 250 Hz
Signal-to-Noise Ratio
97 dB
Bass Boost
0 - 18 dB
Fuse Rating
30A x 3

Item Details


Manufacturer:

Model Number:

PCA5.540

Weight:

18.15lbs

Internal SKU:

pca5540

Internal Product ID:

5431
