SMD DD-1 HV Distortion Detector by Steve Meade Designs

Distortion Detector/Analyzer for High(er) Voltage Systems (DD1-HV, DD1HV)

Product videos
highlight-star-icon

Distortion Detector/Analyzer for High(er) • Distortion Detector's Circuitry Is 100% Analog • Distortion Detection Trigger Level > 1.0% Harmonic Distortion • Operating Range of Input Signal is 1.2Vrms – 200Vrms. (40,000 Watts at 1 ohm) Autoranging • Signal Present LED Trigger Voltage 750mVrms

Learn more about the smd-dd1hv

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
99-5717 main

Metra 99-5717 Dash Kit

Install a new Single-DIN car stereo in select 2004-2007 Taurus and Sable

14
-43.61%

$96.99

List price $171.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

NSP68 main

NVX NSP68

540W Peak (180W RMS) 6x8" N-Series 2 Way Coaxial Car Speakers

59
-16.67%

$79.99

List price $95.99

Limited time!
46CSC684 main

Kicker CSC68 (46CSC684)

450W Peak (150W RMS) 6x8” CS Series 2 Way Coaxial 4-ohm Speakers

11
-33.36%

$79.96

List price $119.99

R168X2 main

Rockford Fosgate Prime R168X2

220W Peak (110W RMS) 6x8" Prime Series 2 Way Coaxial 4-ohm Speakers

16

Hifonics ZS5768CX

500W Peak (180W RMS) 5x7" / 6x8” Zeus Series 4-ohm Coaxial Speakers

4
-18.92%

$29.99

List price $36.99

Product Highlights


Distortion Detector/Analyzer for High(er) • Distortion Detector's Circuitry Is 100% Analog • Distortion Detection Trigger Level > 1.0% Harmonic Distortion • Operating Range of Input Signal is 1.2Vrms – 200Vrms. (40,000 Watts at 1 ohm) Autoranging • Signal Present LED Trigger Voltage 750mVrms

Description


Steve Meade Designs brand icon

Authorized dealer

General Features:

  • Distortion Detector/Analyzer for High(er) Voltage Systems
  • Distortion Detector’s circuitry is 100% analog
  • Distortion Detection trigger level > 1.0% Harmonic Distortion
  • Guaranteed operating range of input signal is 1.2Vrms – 200Vrms. (40,000 Watts at 1ohm) Autoranging
  • Signal Present LED trigger voltage 750mVrms

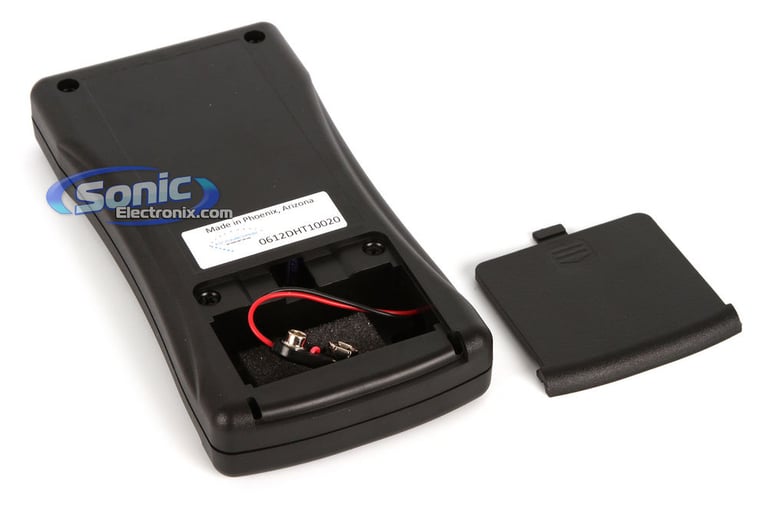

  • Low Battery LED trigger battery voltage < 5.6Vdc
  • Auto-shut off timer 8 - 10 minutes after ON button is pressed
  • For Systems running below 18 volts or check out the SMD DD-1 Distortion Detector
  • To precisely calibrate your crossovers use the SMD CC-1 Crossover Calibrator by Steve Meade Designs
  • Also found as: DD1-HV, DD1HV
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

What's Included:

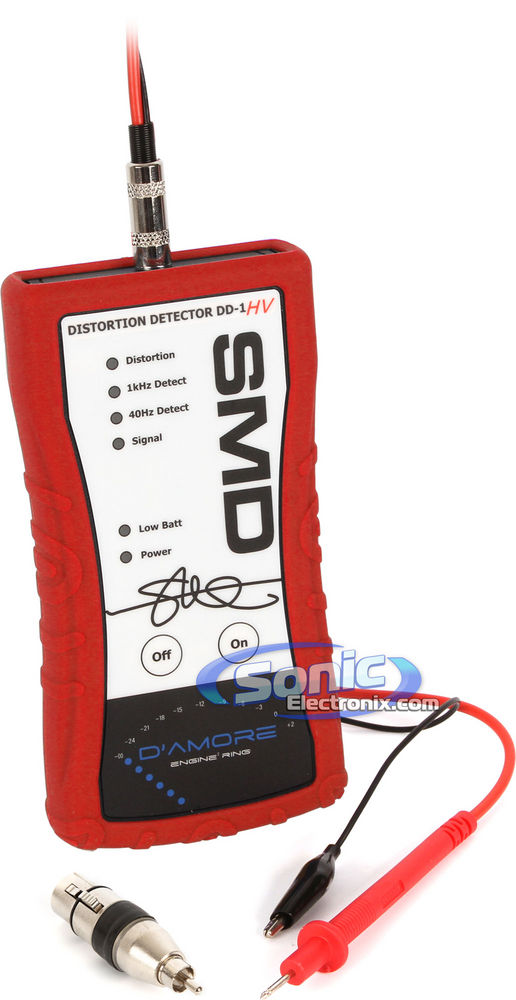

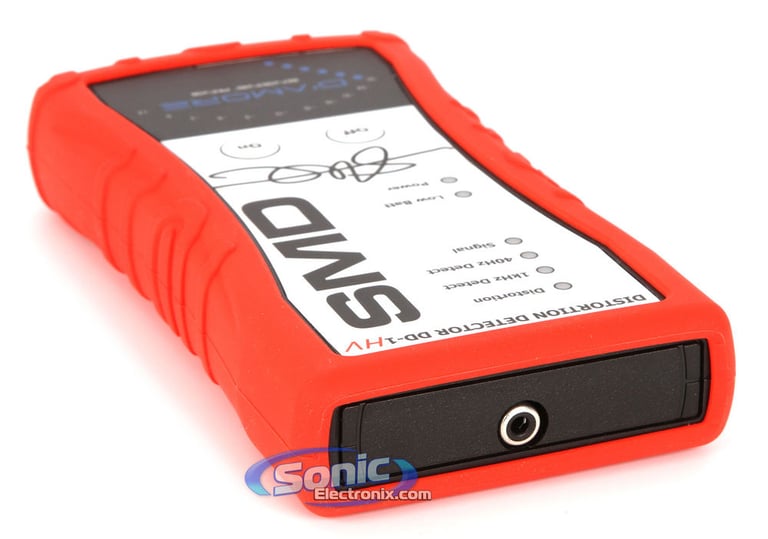

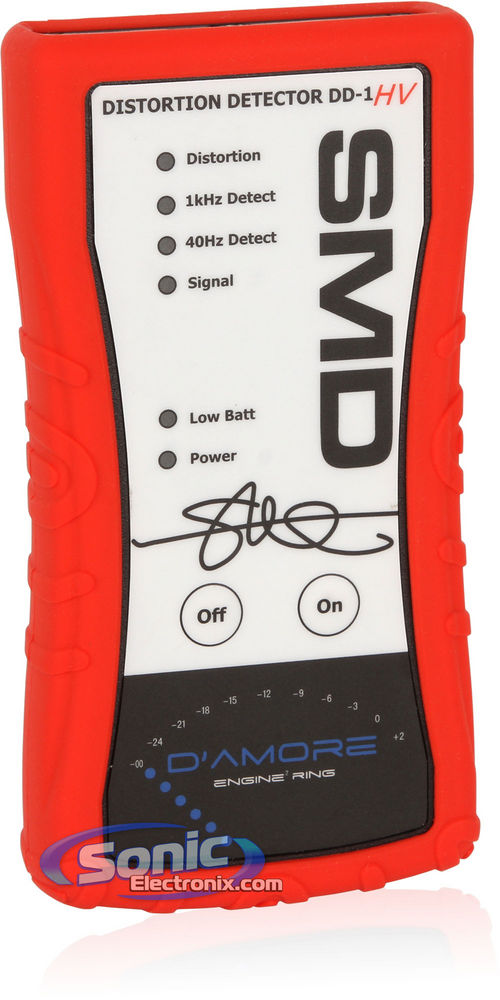

  1. The Distortion Detector (DD-1)

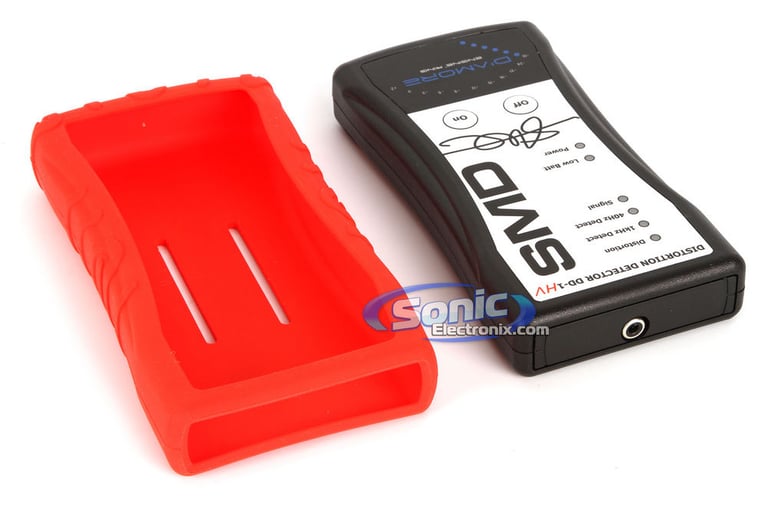

  2. Protective silicon rubber boot
  3. Calibrated Test tone CD

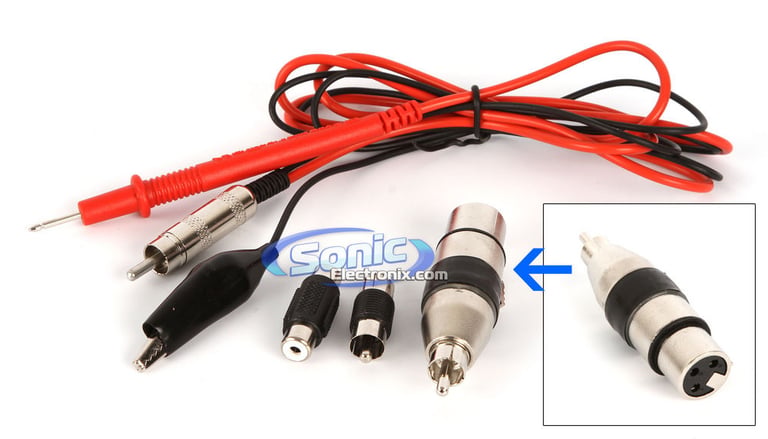

  4. Harness
  5. Product manual
