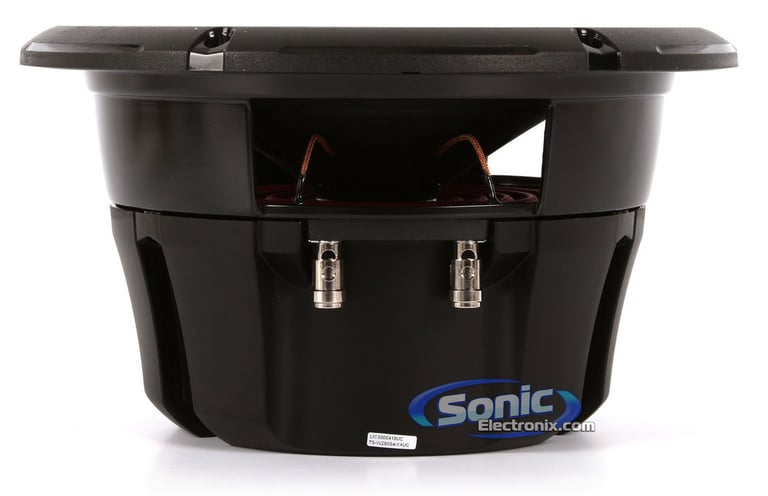

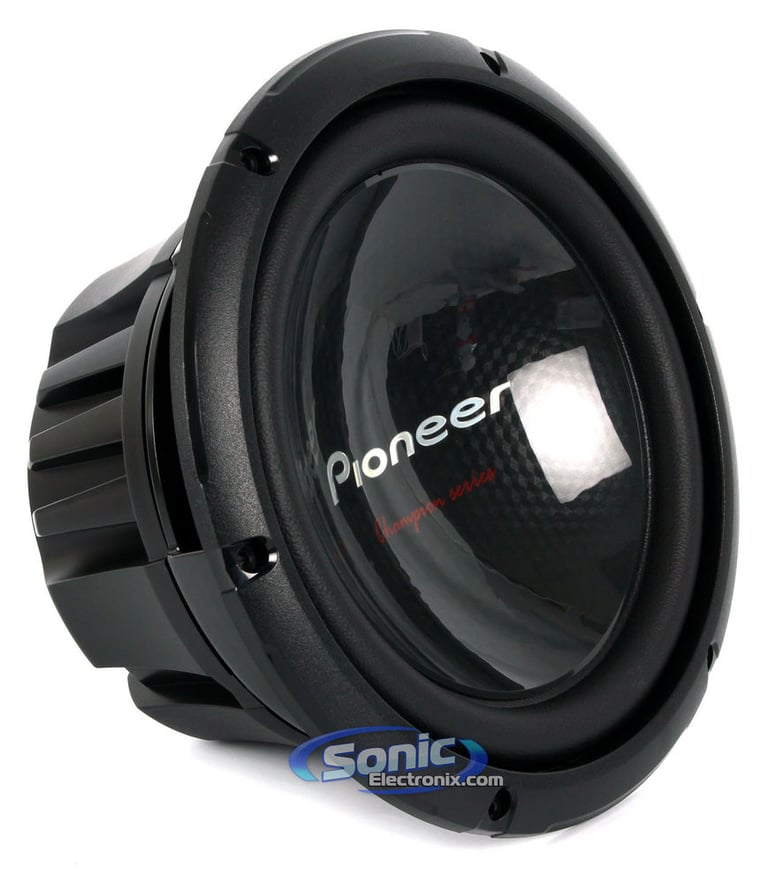

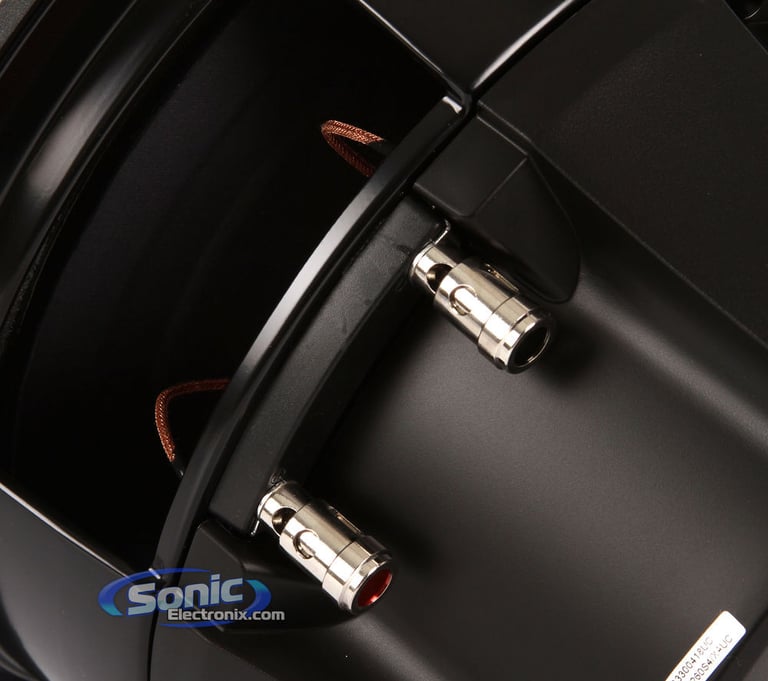

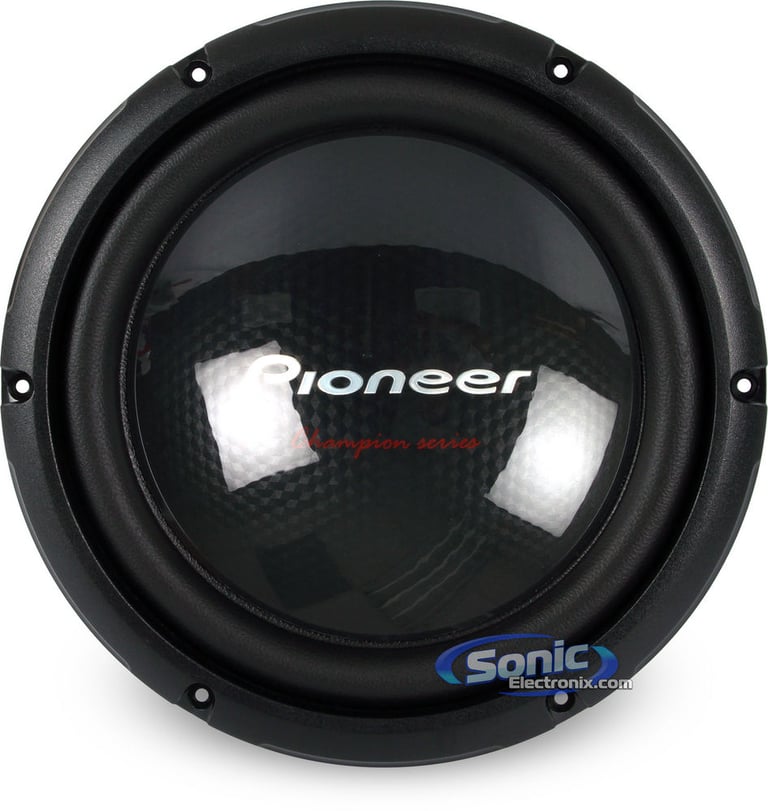

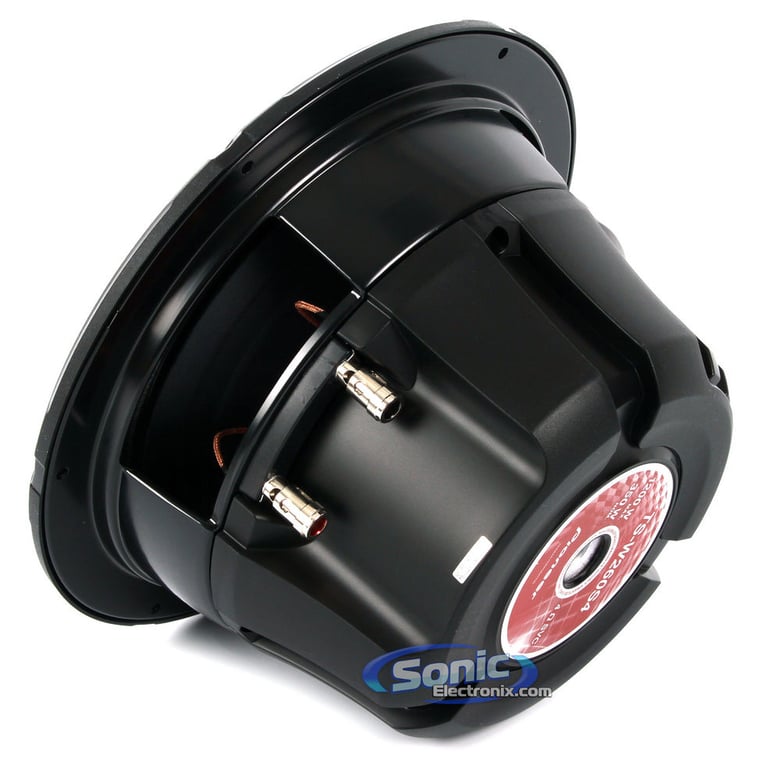

Pioneer TS-W260S4

350W 10" Champion Series Single 4-Ohm Subwoofer

Pioneer
Shop all Pioneer
Product videos
highlight-star-icon

• 1200W Peak
• 350W RMS
• Single 4-Ohm Voice Coil
• Composite Seamless Cone
• Dual-Layer Elastic Polymer Surround
• 4-Layer Copper Voice Coil with Aluminum Former

Learn more about the tsw260s4

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

tsw261s4 thumbnail

Pioneer TS-W261S4

OUR PRICE: $55.95

View item

Loading...
40-GM10 main

Metra 40-GM10

Connect your factory antenna to a new aftermarket radio for select 1958-2023 vehicles from GMC, Chevrolet, Pontiac

45
95-2001 main

Metra 95-2001 Dash Kit

Install a new Double-DIN car stereo in select 1994-2012 vehicles from Chevrolet, GMC, Buick

13
-50.02%

$12.99

List price $25.99

99-3300 main

Metra 99-3300 Dash Kit

Install a new Single-DIN car stereo in select 1994-2004 vehicles from Chevrolet, GMC, Isuzu

6
-37.05%

$16.99

List price $26.99

99-2011 main

Metra 99-2011 Dash Kit

Install a new Single-DIN or Double-DIN car stereo in select 1990-2012 vehicles from Chevrolet, GMC, Buick

20
-37.05%

$16.99

List price $26.99

GMK421 main

American International GMK421

Single DIN or Double DIN Stereo Dash Kit for select 1992-2012 vehicles from Chevrolet, GMC, Buick

15
-66.69%

$12.99

List price $39.00

GM05B main

Scosche GM05B Wiring Harness

Install a new car stereo in select 2000-2008 vehicles from Chevrolet, Pontiac, Oldsmobile

25
-30.15%

$6.95

List price $9.95

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

MP69 main

DS18 MP69

Adapts 6x9" Speaker Space to 6.5" Speaker and 1.38" Tweeter

2

Product Highlights


• 1200W Peak
• 350W RMS
• Single 4-Ohm Voice Coil
• Composite Seamless Cone
• Dual-Layer Elastic Polymer Surround
• 4-Layer Copper Voice Coil with Aluminum Former

Description


Pioneer brand icon

Authorized dealer

IMPP Composite Seamless Cone

An extremely durable, yet lightweight cone is vital to prevent cone failure at high sound pressure levels. Pioneer’s New IMPP Composite Seamless Cones meet this need perfectly while delivering accurate yet powerful bass.

Dual-Layer Elastic Polymer Surround

Another world's first from Pioneer. Dramatically improves durability and lightness for superior response, especially for louder volume.

Large Surface Area

A speaker cone is essential for air to vibrate and carry sound to listeners’ ears. Our Champion Series subwoofer cones have 14% more surface area than conventional subwoofer cones, for louder, better bass reproduction.

Single/Dual Voice Coil Design

Pioneer offers single voice coil and dual voice coil designs. The Dual 4 ohm subwoofer has the flexibility to be wired at 2 or 8 ohms, to get the most from the amplifier. To simplify installation even further, all speaker terminals have been placed on one side of the subwoofer rather than on opposite sides.

Air Vent

The movement of air within the subwoofer is smoothly channeled for optimal ventilation to ensure a quick response and clear reproduction of bass.

General Features:

  • 10" SIngle 4-Ohm Champion Series Subwoofer
  • Power Handling:
    • Peak: 1,200 watts
    • RMS: 350 watts
  • Impedance: 4 ohm
  • Composite Seamless Cone
  • Dual-Layer Elastic Polymer Surround
  • 4-Layer Copper voice coil with aluminum former
  • Frequency response: 20-250 Hz
  • Resonance Frequency (Fs): 45 Hz
  • Top-mount depth: 5-1/2"
  • Sensitivity: 93dB
  • 1-year Sonic Electronix Warranty

Product history:

Pioneer TS-W261S4 thumbnail
(newest, current model)
Pioneer TS-W260S4 thumbnail
(previous model, replaced by Pioneer TS-W261S4)
Pioneer TS-W259S4 thumbnail
(previous model, replaced by Pioneer TS-W260S4)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Pioneer TS-W260S4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Pioneer TS-W260S4 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Pioneer TS-W260S4 Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Pioneer TS-W260S4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

44
-16.69%

$149.95

List price $180.00


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

Specifications & Details


Subwoofer Specifications
Series
Champion Series
Subwoofer Size
10"
Peak Power Handling
1200 watts
RMS Power Handling
350 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Frequency Response
20 - 250 Hz
Sensitivity
93 dB
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Injection Molded Polypropylene Composite
Woofer Surround
Elastic Polymer
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Sealed
Minimum Sealed Box Volume
0.65 cubic feet
Maximum Sealed Box Volume
1.25 cubic feet
Top-Mount Depth (Mounting Depth)
5-1/2"
Cutout Diameter
9-1/4"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
45 Hz
Equivalent Compliance (Vas)
13.2 liters
Total Speaker Q Value (Qts)
0.83
Electrical Q Value (Qes)
0.90
Electrical Resistance of Voice Coil (Re)
3.2 ohm
Mechanical Q Value (Qms)
10.98
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

TS-W260S4

Weight:

10.50lbs

Internal SKU:

tsw260s4

Internal Product ID:

63985

Product and How-to Videos


Customer Ratings & Reviews


Pioneer TS-W260S4 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
4.9
Value
4.9
Features
4.9
Design
4.9
Usability
5

Customer Reviews

Sort by:

Loading...

Shocked

WOW is all I could think after listening to it the first time. I installed it in a Fiat 500 with a sealed fiberglass box and the sound that comes from it is equal to the JL 12" sub in my other vehicle.

By David on January 11, 2014

19 found this helpful


Very Satisfied

I purchased these to replace a pair of TS-W254R's. Wish I had purchased these 264's first. They sound great and are rated for another 100watts RMS which gives me a little cushion before they cook.

By KA on March 17, 2014

17 found this helpful


Great sub for the price!

I purchased this subwoofer to replace a JL audio wx series 10. This pioneer is amazing in an enclosed box. Im using a 1600w Autotek mm amplifier at 800w rms . I broke the subwoofer in for about 2 weeks and only have the amp half way up and the spl is fantastic which I am huge on. I would definitely purchase this again. Sonic is great and i received the speaker within a week of ordering it.

By Brad on February 15, 2014

12 found this helpful


Great for everything. Loud bass if you want. Way better than a stock system.

Get it. You will not be disappointed unless you are looking for really heavy bass.

By William on July 21, 2014

11 found this helpful


Unbeliev

I own two of these subs in a ported box in my trunk and they destroy my back they're that good. For the money, you get some really good quality subs. They look, sounds, and taste good.

By Gus on February 26, 2014

10 found this helpful


Great sound for a great price

This sub packs a serious punch as a single 10" package.

By Christopher on December 5, 2014

10 found this helpful


Good Woofer

Very nice solid bass. A little too tight of a sound in a sealed enclosure of 0.75 cu feet, but can still rumble low, I'm sure it will unleash potential in a ported enclosure (which Pioneer does say is okay to do, recc. at 1.1 cubic feet). Seems to be made of mostly plastic on the entire exterior, but probably helps with the weight of it. Solid product that can kick hard and fill up my entire chevy impala.

By Rich on September 4, 2013

9 found this helpful


Well worth it!!

Replace an old Blue Thunder sub, in a sealed box. Bass is tight and very clear.

By Zeppy71 on September 21, 2013

8 found this helpful


Pioneer Sub

Great priced unit and the shipping was quick. I plan to order again from you in the future.

By Spin Factor on September 17, 2013

8 found this helpful


Wow

I bought three of these to put in my Chevy Avalanche to replace a pair of shallow MB Quart 10's I had under the back seat. Built a custom midgate replacement box sealed at 0.97 cubic feet per chamber and have them hooked up to an MB Quart 450 watt rms amp and WOW!!! These Pioneer subs are loud, low and hit hard. Way under powered by the way at around 150 watts each. I know the box is a big part of that. Can't wait to upgrade my amp to see how much better they'd sound. Definately recommend them and for all you Avalanche owners: ditch the shallow under the seat subs and get a midgate box. Pain in the butt but worth it if you like bass!

By Craig on March 3, 2013

7 found this helpful




TX10 small

Phoenix Gold TX10 10" TantrumX Series

$59.99

List price $169.99

RSdC104 small

Phoenix Gold RSdC104 (RSdC 104)

10" Dual 4 ohm RSdC (Radial SD Competition) Series Subwoofer

(2)

$99.99

List price $319.99

HAB009G small

Gear4 Angry Birds Black Fire Bomb Space Tweeters Earbuds - HAB009G

Officially Licensed Angry Birds Lightweight Inner-Ear Canal Earphones/Earbuds w/ 9mm Dynamic Drivers

$13.99

List price $24.99

K619 RED small

AKG K619RED (K 619 RED) Premium DJ-Style Headphones - Red (Open Box)

Premium DJ Headphones with In-Line Microphone (Red)

$39.23

List price $149.95

EM-JH063-CO small

House of Marley Rise Up EM-JH063-CO - Camo

Camo Rise Up Over-Ear Headphones Headset w/ Three Button iPhone/iPod/iPad Remote & Microphone Cable

$99.99

List price $149.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2002 Chevrolet Blazer

2000 Chevrolet Silverado 2500

2010 BMW 535i

2008 BMW 528xi

1989 Jeep Comanche

1993 Ford Escort

2008 Ford Expedition EL

2002 Kia Optima

2009 Ford Mustang

2005 Suzuki Reno

Vehicle
Store
Delete

2008 Harley Davidson FXSTC Softail Custom

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
