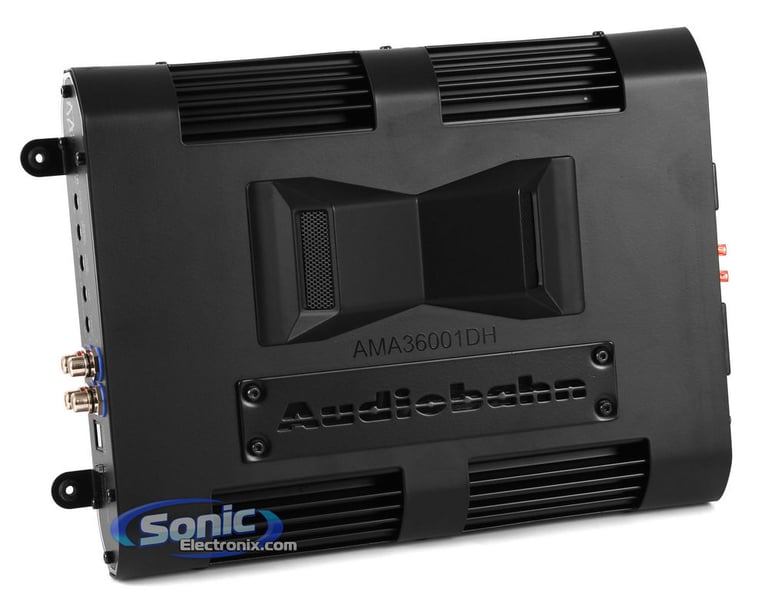

Audiobahn AMA36001DH

1800W RMS, Mono Block Class D Murdered Out Series Car Amplifier

Audiobahn
Shop all Audiobahn
Product videos
highlight-star-icon

• RMS: 600W x 1 @ 4 ohm, 1200W x 1 @ 2 ohm, 1800W x 1 @ 1 ohm
• Total RMS Power: 1800W
• 1 Pair of Preamp Outputs
• Bass Boost: 0-18 dB
• Low Pass Filter: 50-120 Hz
• Dimensions: 12-3/8"W x 8-1/2"D x 2-11/16"H

Learn more about the ama36001dh

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7
REF3032CFXAM main

Infinity Reference 3032cfx (REF3032CFXAM)

150W Peak (50W RMS) 3.5" Reference Series 2-Way Coaxial 3-ohm Car Speakers

14
-42.32%

$74.95

List price $129.95

Product Highlights


• RMS: 600W x 1 @ 4 ohm, 1200W x 1 @ 2 ohm, 1800W x 1 @ 1 ohm
• Total RMS Power: 1800W
• 1 Pair of Preamp Outputs
• Bass Boost: 0-18 dB
• Low Pass Filter: 50-120 Hz
• Dimensions: 12-3/8"W x 8-1/2"D x 2-11/16"H

Description


General Features:

  • Murdered Out Series Mono Block Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 600 watts x 1 chan.
    • 2 ohm: 1200 watts x 1 chan.
    • 1 ohm: 1800 watts x 1 chan.
  • Max power output: 3600 watts x 1 chan.
  • High Speed Switching MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +18 dB bass boost)
  • Single channel operation
  • 4-way protection circuitry (thermal, overload, speaker short protection, and DC offset)
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Input sensitivity: 200mV - 8V
  • Variable high-pass filter (50-750 Hz)
  • Variable low-pass filter (50-120 Hz)
  • Subsonic filter (20-50 Hz)
  • Phase Shift: 0-180°
  • 4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 12-3/8"W x 8-1/2"D x 2-11/16"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
