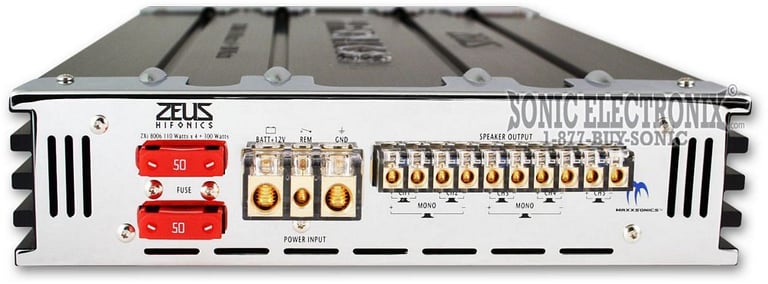

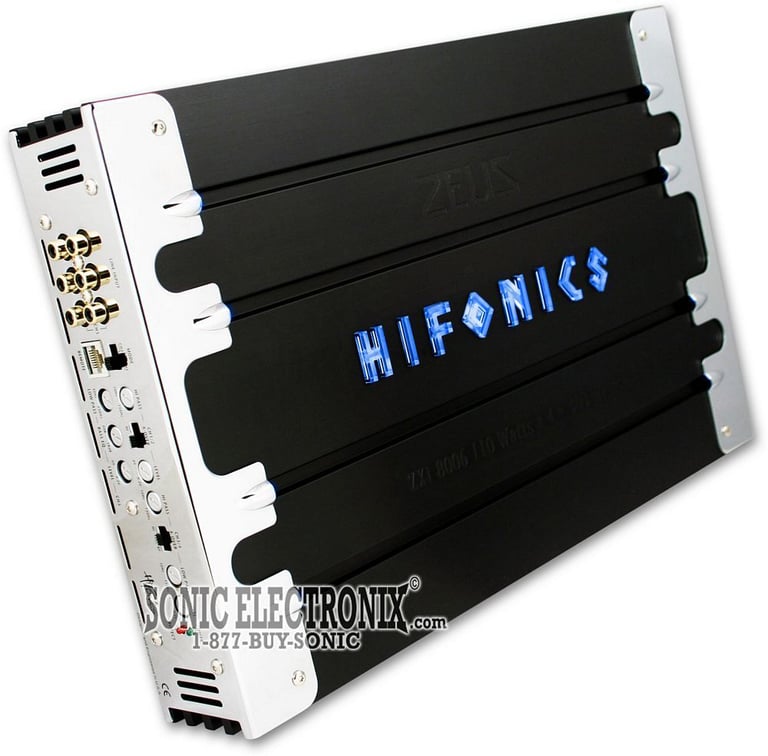

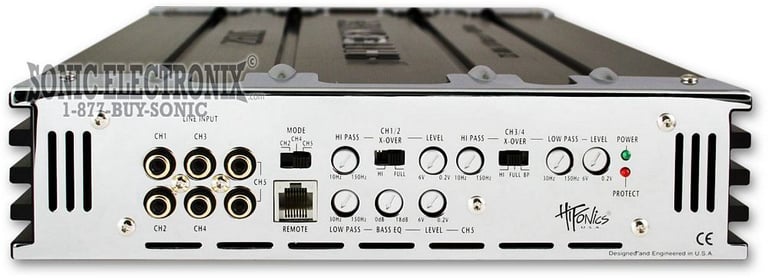

Name: Hifonics ZXi 8006 R/B
Brand: Hifonics
SKU: LS-zxi8006-RB
Price: 169.99 USD
Availability: Discontinued

by Hifonics

About
Specs & Details
Product Videos
Reviews
Add-ons
Related Searches

Product videos

Product highlights

5-channel, complete system amplifier • Hifonics New Illuminated Heat-Sink • 740 watts total RMS power • 300W RMS sub ch • 110W RMS x 4 ch @ 2 ohm

Learn more about the LS-zxi8006-RB

Product Highlights

5-channel, complete system amplifier • Hifonics New Illuminated Heat-Sink • 740 watts total RMS power • 300W RMS sub ch • 110W RMS x 4 ch @ 2 ohm

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

The Hifonics Zeus ZXi8006 3/5-channel amplifier is a 1-piece installation solution to what would otherwise be a complex, space consuming difficult car audio install. All vital features and all the amplification needed to power a high-end car audio install with four upgrade speakers and a subwoofer amp system is included in the Zeus ZXi8006 amplifier. With the ZXi 8006, you will save stress, time, money and space!

The ZXi 8006 provides up to five-channels of amplification, 4-channels producing 110W RMS @ 2-ohm of real power for Front Left and Right channels, Rear Left and Right channels, plus the 5th channel, a 300W RMS subwoofer channel for the most pure bass you have ever heard. Alternatively, the ZXi 8006 has a 2 x 220W + 200W RMS subwoofer mode (@ 4 Ohm only) perfect for trucks, pickups and two-seater sports car applications. If you want something that’s truly out of this world, but is still easy to install, try dual ZXi 8006's for a system that blasts 4 x 220W for the main four channels and dual 220W subwoofer outputs.

For those who are looking to upgrade a factory OEM "In Car Entertainment" system, the ZXi 8006 offers a theater-like experience with an add-on subwoofer system. Elevate the video magic, and discover new realism in music and video, with a road theater system centered around the ZXi 8006. With its integrated AccuCross control center, the ZXi 8006 can easily create the ultimate listening experience with clarity like you have never experienced. The AccuCross with its on-board signal processing makes it easy to dial-in exactly the sound quality and tonal balance you have always desired!

Crossover And Switching For Channels 1 & 2:
- Variable 12dB Octave Hi-Pass
- Variable 24dB Octave Low-Pass
- ±18dB Bass Boost at 45Hz
Crossover and Switching For Channels 3 & 4:
- Variable 12dB Octave Hi-Pass
- Variable 24dB Octave Low-Pass
- ±18dB Bass Boost at 45Hz
Inputs and Diagnostics:
- Variable Input Level Control
- Power and Diagnostics LEDs
- DC Short Circuit Protection
- Over-Load Protection
Connector Types:
- Unbalanced Inputs (RCA’s)
- Full-Range Line Outputs (RCA’s)
- Molded 4-Gauge Power Inputs
- Molded 10-Gauge Speaker Outputs
Crossover and Switching for Mono Amplifier:
- Variable 24dB Low-Pass
- 24dB Fixed Subsonic Filter
- 45Hz Bass EQ Bass Boost
Hifonics New Illuminated Heat-Sink
Design With Blue LED Light Pumps
Hifonics Blue Illuminated Logo
Maxxsonics Illuminated "M" End Panel Logo
Audio-Pure Ultra-Fi™ MOSFETS
Low-Distortion Class A/B Amplifier Circuitry
With High-Speed MOSFET Output Devices
Fully Adjustable Accu-Cross™ Crossovers
18dB Variable Bass Equalization
Fixed 24dB Subsonic Filter
Pulse Wave Modulated MOSFET EXVP (Exponential Vari-Power Supply)
SPC Simpatico Twin-Coil Design
HSMD Hifonics Surface Mount Design
Line Output for Amplifier Daisy Chaining
Gold Oversized 4-Gauge Power Connectors
Authorized Internet Dealer
90-Day Manufacturer's warranty
Item Condition: Factory Refurbished

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

55 watts x 4 front/rear channels + 200 watts x 1 sub channel

RMS Power @ 2 ohms

110 watts x 4 front/rear channels + 300 watts x 1 sub channel

RMS Power @ 1 ohm

Not Stable

Bridged RMS Power

220 watts x 2 front/rear channels + 300 watts x 1 sub channel @ 2 ohms

Amplifier Specifications

Amplifier Class

A/B

Number of Channels

5-Channel

Total Peak Power Output

1440 watts

Total RMS Power Output

740 watts

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

<0.05%

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)
Full (AP)

High-Pass Crossover Frequency

Ch 1&2: 50Hz - 4kHz, Ch3&4: 10Hz - 1.2kHz

Low-Pass Crossover Frequency

Ch3&4: 50Hz - 4kHz, Ch5(sub): 50Hz - 400Hz

Signal-to-Noise Ratio

95 dB

Channel Separation

70 dB

Bass Boost

0 - 18 dB

Remote bass/level controller

Optional (Accessory required and sold separately)

Fuse Rating

50A x 2

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Manufacturer
