Planet Audio PX4.1600

400W Axis Series Class AB 4-Channel Car Amplifier

Planet Audio
Shop all Planet Audio
Product videos
highlight-star-icon

• 100 x 4-Chan. @ 4 ohm
• 2-Way System Protection
• 4/3/2/1 Channel Operation
• 8 Gauge Power and Ground Inputs
• Black Anodized Heatsink

Learn more about the px41600

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
PBK-TM3-VSW10S2 main

NVX PBK-TM3-VSW10S2 - 2017-2022 Tesla Model 3 - Complete Bass Package

For select 2017-2022 Model 3 - 10" 500W RMS Complete Amplified Subwoofer Bass Package Solution

93
-40.72%

$609.99

List price $1028.96

BE-TM3-G1 main

NVX Tesla Model 3 Sub Box - BE-TM3-G1 BOOST Box

Custom Fit 500W RMS 10" Loaded BOOST Subwoofer Enclosure for 2017-Up Tesla Model 3

2
-50.27%

$279.99

List price $562.99

Limited time!
PSS-TSUB-T3A main

Alpine PSS-TSUB-T3A

500W Peak (200W RMS) Loaded Single 10" Sealed Enclosure with Monoblock Amplifier for select 2017-2025 Model 3 with Factory-Equipped Premium Audio

-25.00%

$899.95

List price $1200.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Product Highlights


• 100 x 4-Chan. @ 4 ohm
• 2-Way System Protection
• 4/3/2/1 Channel Operation
• 8 Gauge Power and Ground Inputs
• Black Anodized Heatsink

Description


Planet Audio brand icon

Authorized dealer

General Features:

  • Axis Series 4-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 100 watts x 4 chan.
  • MAX Power Rating:
    • 2 ohm: 400 watts x 4 chan.
    • Bridged, 4 ohm: 800 watts x 2 chan.
  • Max power output: 800 watts x 2 chan.
  • Pulse Width Modulated MOSFET power supply

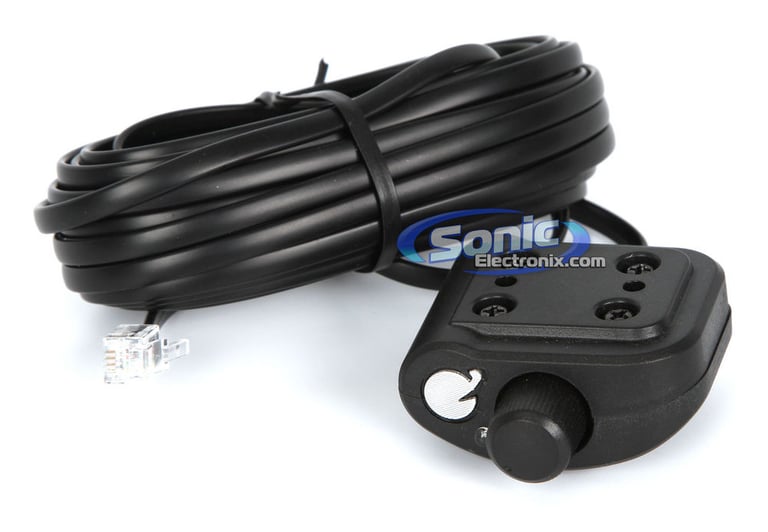

  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +18 dB bass boost)
  • Soft start turn-on
  • 4/3/2 or Mono channel operation
  • Speaker-level (high-level) inputs with signal sensing for automatic turn-on
  • Preamp RCA outputs to daisy chain multiple amps
  • 2-way protection circuitry (thermal, and speaker short protection)
  • Black anodized heat sink
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Variable high-pass filter (50-500 Hz, 12 dB/octave)
  • Variable low-pass filter (50-150 Hz, 12 dB/octave)
  • Frequency response: 10-10000 Hz
  • Damping factor: 125
  • 8 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 10-5/8"W x 13-7/8"D x 2-7/16"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Best selling similar products

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(22)

$159.99

List price $215.99

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(111)

$209.99

List price $239.99

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(44)

$304.99

List price $379.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(117)

$279.99

List price $335.99

R2-500X4 small

Rockford Fosgate Prime R2 R2-500X4

• 75 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(10)

$359.99

List price $359.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

CXA360.4 small

Kicker CXA360.4 (46CXA3604T)

• 65 watts x 4 channel @ 4 ohm
• 90 watts x 4 channel @ 2 ohm
• Bridged: 180 watts x 2 channel @ 4 ohm
• Total RMS Power: 360 watts
• Class A/B 2 ohm Stable 4-Channel Amplifier

(16)

$229.99

List price $249.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
100 watts x 4 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
1600 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.01%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 500 Hz
Low-Pass Crossover Frequency
50 - 150 Hz
Signal-to-Noise Ratio
105 dB
Channel Separation
90 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fuse Rating
30A x 2
Strappable
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

PX4.1600

Weight:

9.60lbs

Internal SKU:

px41600

Internal Product ID:

65725
