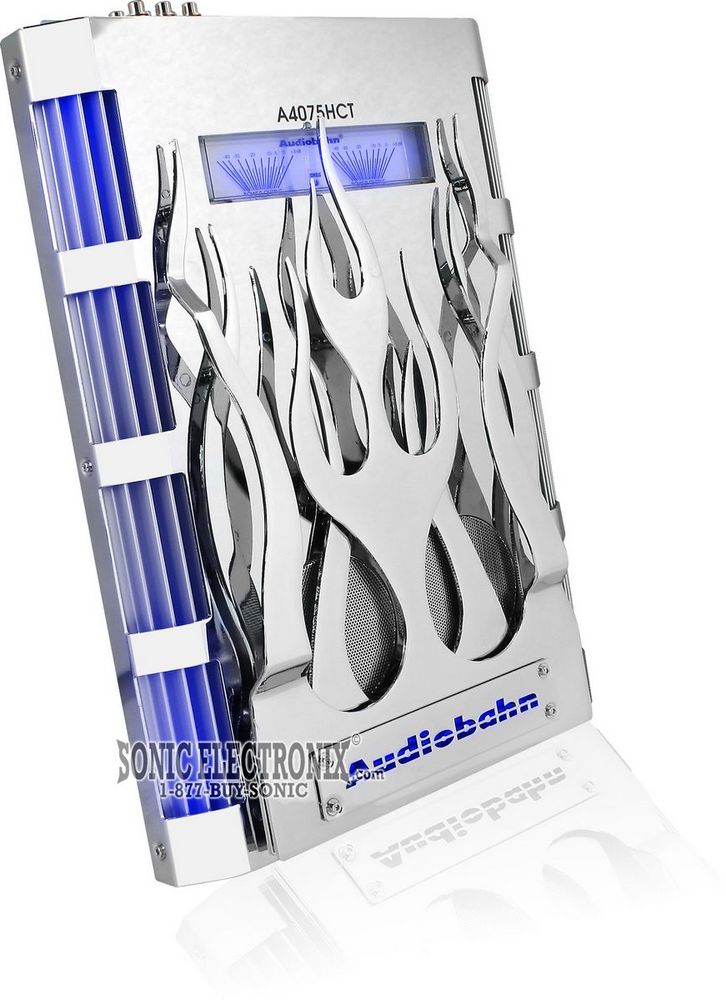

Audiobahn A4075HCT R/B

2400W Max, High Current 4-Channel Amplifier (Factory Refurbished)

Audiobahn
Shop all Audiobahn
Product videos
highlight-star-icon

2400W Max, High Current Series 4-Channel Amplifier • 1200W RMS @ 1 ohm • 600W RMS @ 2 ohm • 300W RMS @ 4 ohm • Blue Illuminated VU Meter • Beautiful Chrome Design Heatsink • S/N Ratio: 100dB • Bass Boost: 0-18dB

Learn more about the LS-a4075hct-RB

We apologize

This item has been discontinued

Product Highlights


2400W Max, High Current Series 4-Channel Amplifier • 1200W RMS @ 1 ohm • 600W RMS @ 2 ohm • 300W RMS @ 4 ohm • Blue Illuminated VU Meter • Beautiful Chrome Design Heatsink • S/N Ratio: 100dB • Bass Boost: 0-18dB

Description


Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

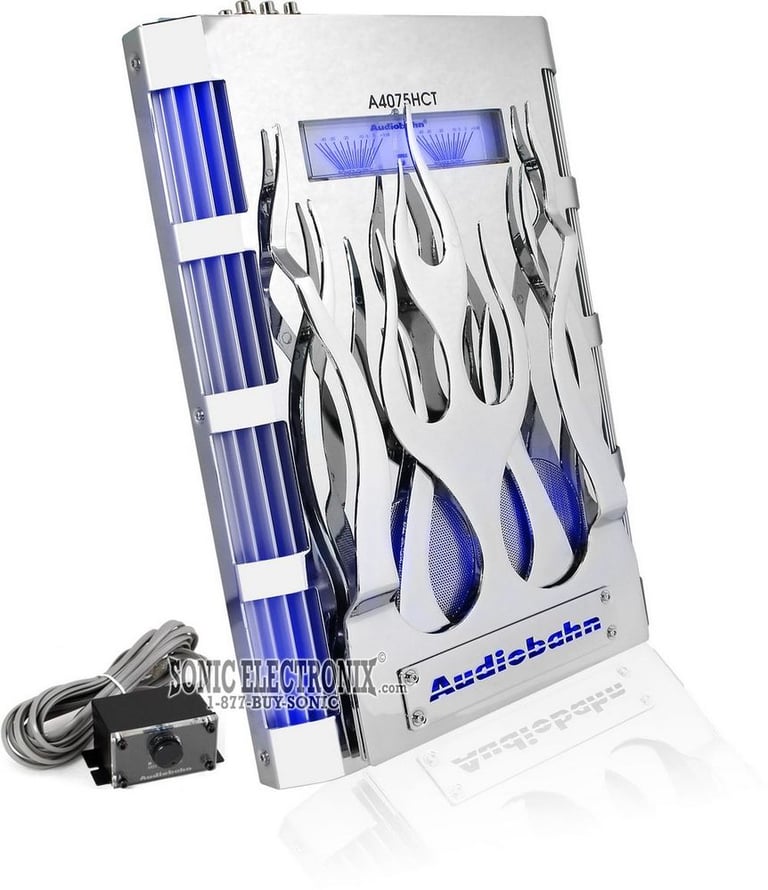

NOTE: A bass remote is pictured, but it is not included with the amplifier. It can be purchased at an additional cost of $25.00 if you purchase this amplifier.
Click here to purchase the Audiobahn ABR100T bass remote.
  • 2400W Max, High-Current 4-Channel Car Amplifier
  • RMS Power Rating:
    • 75 watts x 4 chan. @ 4 ohm
    • 150 watts x 4 chan. @ 2 ohm
    • 225 watts x 4 chan. @ 1 ohm
    • Bridged:
      • 160 watts x 2 chan. @ 4 ohm
      • 300 watts x 2 chan. @ 2 ohm
      • 600 watts x 2 chan. @ 1 ohm
  • Max Power Output: 2400 watts @ 1 ohm

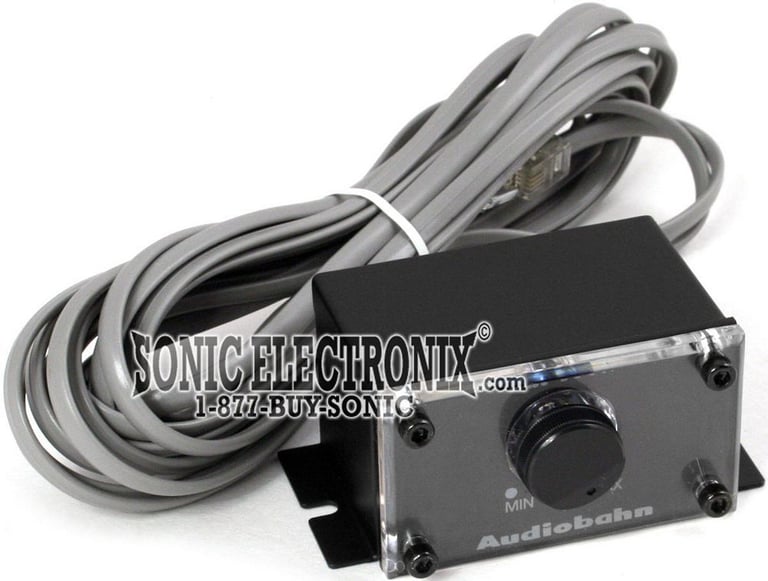

  • Optional Wired Remote Bass Level Control Available with Blue Illuminated Knobs (MODEL: ABR100T)
    • Also illuminates red to indicate when amplifier is clipping
  • High-Current, Non-Regulated Power Supply
  • Preamp Outputs
  • Cobalt Blue LED Illuminated Heat Sink Design (on/off switch for your preference)
  • Thermal Regulated, Air Induction Dual Cooling Fans
  • Double Sided PCB (Circuit Board)
  • High Gloss Chrome Plated Finish
  • Unique, Clean Chrome Fire/Flame Design
  • Blue Illuminated VU Meters Indicating Output Response

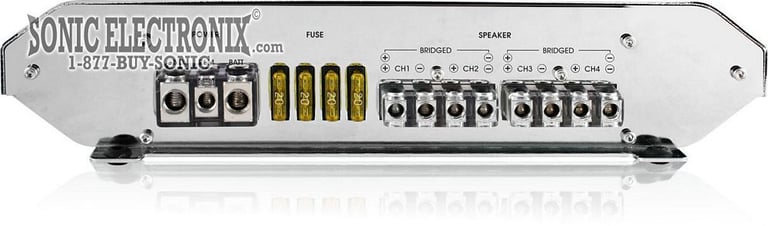

  • Clear Power and Speaker Connectors

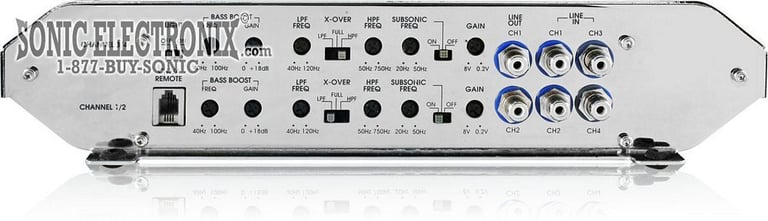

  • Variable Bass Boost: 0-18dB @ 40-100Hz
  • Variable Low-Pass Crossover: 40-120Hz
  • Variable High-Pass Crossover: 50-750Hz
  • Variable Subsonic Filter: 20-50Hz
  • Signal-to-Noise Ratio: 100dB
  • Frequency Response: 10Hz-40kHz
  • THD: 0.05%
  • Channel Separation: 50dB
  • Input Sensitivity: 200mV - 8V
  • 4-gauge power and ground leads recommended. Contact us for information regarding a discount on a select amplifier kit when purchased together.
  • Dimensions: 16-1/8" L x 11-15/16" W x 2-1/2" H
    • Note: Flames add an additional 1" to the height
  • 1-year SonicElectronix.com warranty

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
75 watts x 4 channel
RMS Power @ 2 ohms
150 watts x 4 channel
RMS Power @ 1 ohm
225 watts x 4 channel
Bridged RMS Power
600 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
2400 watts
Total RMS Power Output
1200 watts
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
1 ohm
THD at Rated RMS Power
0.05%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 750 Hz
Low-Pass Crossover Frequency
40 - 120 Hz
Subsonic Filter
20 - 50 Hz
Signal-to-Noise Ratio
100 dB
Channel Separation
50 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fuse Rating
20A x 4

Item Details


Manufacturer:

Model Number:

A4075HCT-RB

Weight:

16.00lbs

Internal SKU:

LS-a4075hct-RB

Internal Product ID:

9978
