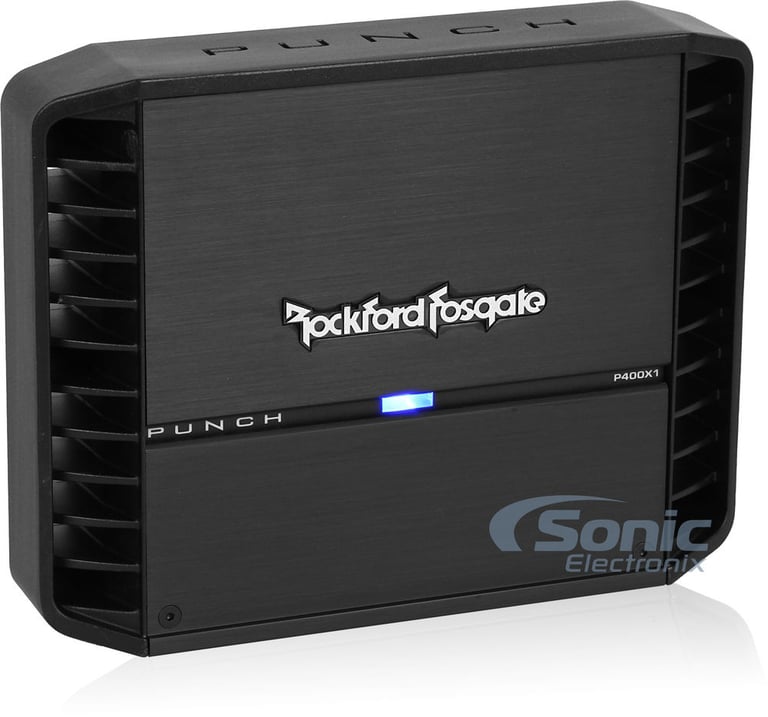

Rockford Fosgate Punch P400X1

400W RMS Punch Series Monoblock Class AB Car Power Amplifier

Product videos
highlight-star-icon

• RMS: 250W x 1 @ 4 ohm, 400W x 1 @ 2 ohm
• Total RMS Power: 400W
• CEA-2006 Compliant
• Tuned Bass EQ: 0 to +18 dB
• Cast Aluminum Heatsink with Dynamic Thermal Management

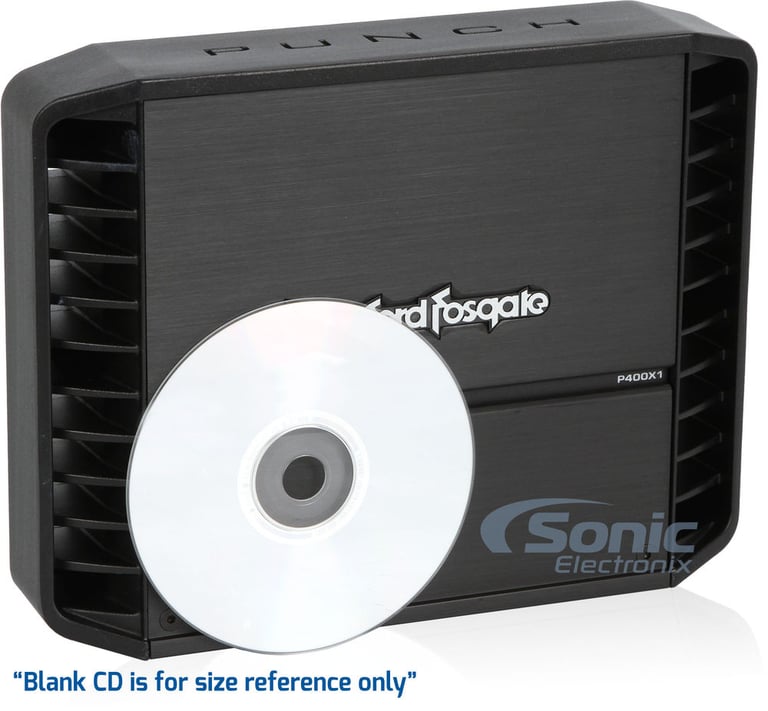

• Dimensions: 9-7/8"L x 7-3/4"W x 2-3/8"H

Learn more about the p400x1

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
82-3006 main

Metra 82-3006

6" to 6.75" Speaker Mounting Adapter for select 2003-2024 vehicles from Chevrolet, GMC, Cadillac

23
-50.01%

$16.99

List price $33.99

82-3004 main

Metra 82-3004

6x9" Speaker Mounting Adapter for select 2012-2025 vehicles from GMC, Chevrolet, Cadillac

25
-11.77%

$29.99

List price $33.99

AXABH-GM1 main

Axxess AXABH-GM1

Amplifier Bypass Harness for select 2014-2020 vehicles from Chevrolet, GMC, Buick

1
-11.77%

$29.99

List price $33.99

SH3802 main

PAC SH3802

Speaker Wiring Harness for select 2010-2021 vehicles from Chevrolet, GMC (Sold as Pair)

1
-45.88%

$12.99

List price $24.00

95-3016G main

Metra 95-3016G Dash Kit

Install a new Double-DIN car stereo in select 2012-2022 Canyon and Colorado (Black)

-52.28%

$20.99

List price $43.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

117
-37.15%

$21.99

List price $34.99

XBAF69 main

NVX XBAF69

Universal 6x9" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

48
-42.51%

$22.99

List price $39.99

R165X3 main

Rockford Fosgate Prime R165X3

180W Peak (90W RMS) 6.5" Prime Series 3 Way Coaxial 4-ohm Speakers

154
VSP65KIT2F main

NVX VSP65KIT2F

750W Peak (250W RMS) 6.5" V-Series 2 Way Component Car Speakers

11
-16.67%

$119.99

List price $143.99

DCX 87.3 main

Hertz DCX 87.3

120W Peak (60W RMS) 3.4" Dieci Series 2-Way Coaxial 4-ohm Car Speakers

4
-13.05%

$99.99

List price $115.00

Product Highlights


• RMS: 250W x 1 @ 4 ohm, 400W x 1 @ 2 ohm
• Total RMS Power: 400W
• CEA-2006 Compliant
• Tuned Bass EQ: 0 to +18 dB
• Cast Aluminum Heatsink with Dynamic Thermal Management
• Dimensions: 9-7/8"L x 7-3/4"W x 2-3/8"H

Description


Rockford Fosgate brand icon

Authorized dealer

General Features









  • Punch Series Monoblock Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 250 watts x 1 chan.
    • 2 ohm: 400 watts x 1 chan.
    • 1 ohm: ----------N/A-----------
  • CEA-2006 compliant amplifier
  • Features C.L.E.A.N. Set-up with 10-step set-up procedure
    w/ input/output clip detection and indicator LEDs
  • MOSFET power supply
  • Muted turn on
  • Cast aluminum heatsink
  • 12dB/octave Butterworth crossover

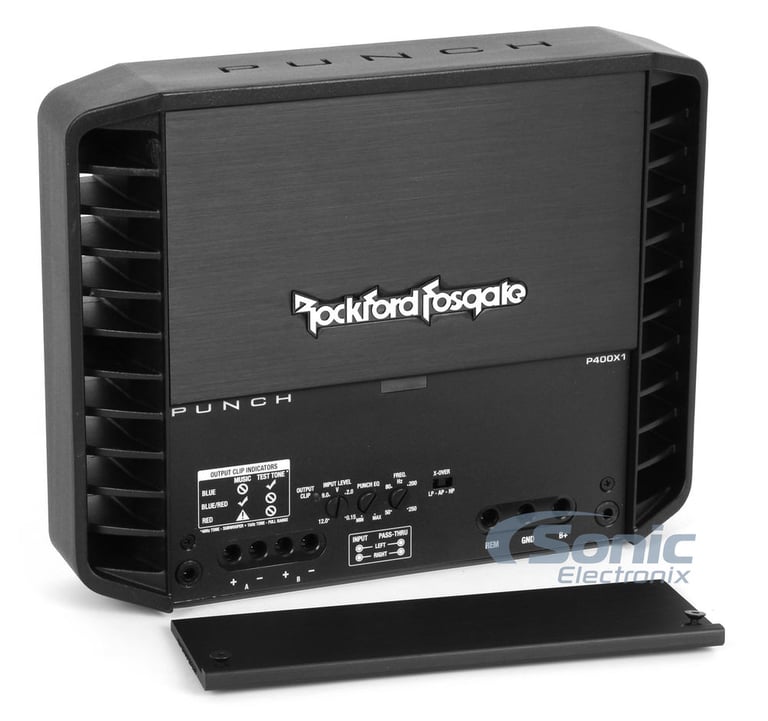

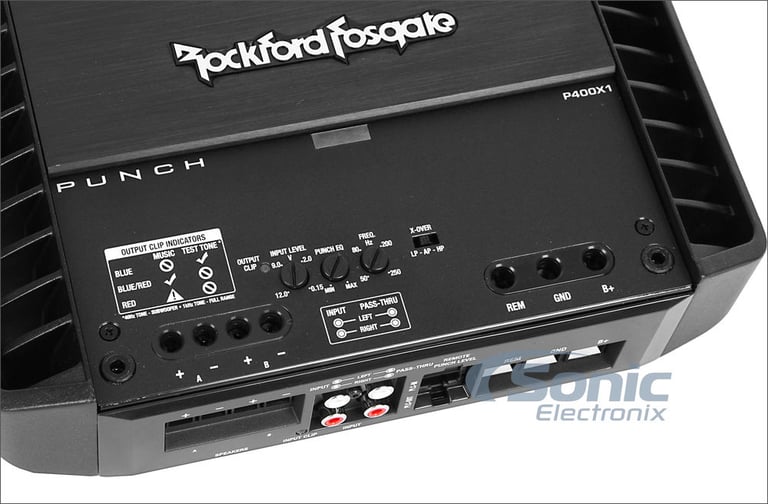

  • Stealth top mounted control panel
  • LED power, thermal, and protect indicators
  • Nickel-plated captive C-clamp terminals
  • Ultra efficient Class BD circuitry to maximize amplifier power efficiency
  • On-board differential inputs eliminates noise picked up by the signal cable
  • Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
  • High level input capable with Auto Turn-On circuit (RFIF2SW required, sold separately)
  • MESHA3 reduces MOSFET temperatures, lowers distortion, increases durability, and prolongs the output device life span
  • Built in NOMAD is a "real time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances
  • Cast aluminum convection heatsink with DTM (Dynamic Thermal Management) evenly distributes excess heat across entire amplifier heatsink to efficiently keep the amplifier temperatures low
  • DSM (Discrete Surface Mounted Components) utilize 1% tight-tolerances improving efficiency of the circuit and lowers operating temperature and potential for noise - similar to circuit boards designed by aerospace manufacturers
  • Input sensitivity: 150mV - 12V
  • On-board Punch EQ
    • Bass: 0dB to +18dB boost @ 45Hz.
    • Treble: 0dB to +12dB boost @ 12.5kHz .
    • Function depends upon LP/AP/HP switch position
  • Selectable crossover modes: LP / AP / HP
  • Variable crossover filter: 50-250Hz
  • Frequency response: 20 - 20,000Hz
  • Total Harmonic Distortion: <1.0%
  • Dimensions: 9-7/8"L x 7-3/4"W x 2-3/8"H

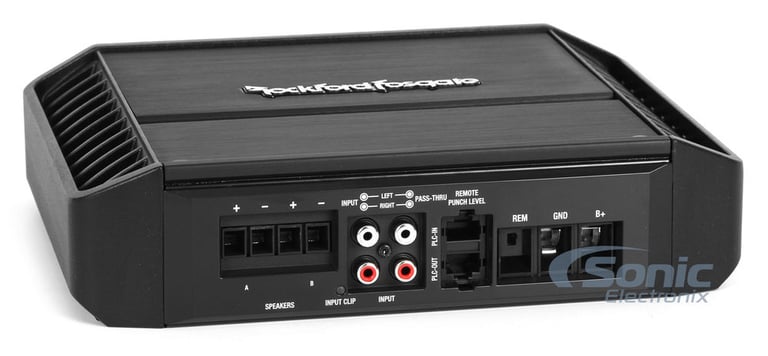

  • 8 AWG to 18 AWG speaker wire output terminals
  • 4 - 8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Product history:

Rockford Fosgate P400X1 thumbnail
(newest, current model)
Rockford Fosgate P400-1 thumbnail
(previous model, replaced by Rockford Fosgate Punch P400X1)

Loading...
SB-GM-COCREW2G/10TW3 main

JL Audio Stealthbox® SB-GM-COCREW2G/10TW3

Custom-Fit Loaded 10" Sealed Truck Enclosure with One 10TW3-D4 Subwoofer for select 2012-2022 Colorado and Canyon

$1,649.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$449.99

List price $449.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(36)

$259.99

List price $335.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(38)

$209.99

List price $227.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(25)

$429.99

List price $429.99

CXA400.1 small

Kicker CXA400.1 (46CXA4001T)

• 150 watts x 1 channel @ 4 ohm
• 300 watts x 1 channel @ 2 ohm
• 400 watts x 1 channel @ 1 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable Monoblock Amplifier

(10)

$199.99

List price $219.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
250 watts x 1 channel
RMS Power @ 2 ohms
400 watts x 1 channel
Amplifier Specifications
Series
Punch Series
Amplifier Class
A/B
Number of Channels
1 - Mono
Total RMS Power Output
400 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
<1.00%
Speaker Level Inputs
Optional (Requires Accessory Adapter)
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 250 Hz
Low-Pass Crossover Frequency
50 - 250 Hz
Signal-to-Noise Ratio
105 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fuse Rating
60A Fuse Recommended, Not Included
Strappable
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

P400X1

Weight:

8.50lbs

Internal SKU:

p400x1

Internal Product ID:

67772

Product and How-to Videos


  • 3Sixty3 Aftermarket Setup Wizard Tutorial
  • Rockford Fosgate Punch Car Amps | Powerful & Reliable Amplifiers
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews


Rockford Fosgate Punch P400X1 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
4.5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Great buy packs a punch!

I have this running at 2 ohms pushing a p2 12. It hits hard, very easy to adjust.

By Maurice on February 26, 2014

35 found this helpful


Great Product

Does everything I expected, just had installed in my car it really rocks.

By Ronald on December 11, 2014

32 found this helpful




DD-1 main

SMD DD-1 Distortion Detector/Analyzer

• Distortion Detector/Analyzer (DD1)
• Distortion Detector's Circuitry Is 100% Analog
• Distortion Detection Trigger Level > 1.0% Harmonic Distortion
• Operating Range of Input Signal is 1.2Vrms – 125Vrms. (15,000 Watts at 1 ohm) Autoranging
• Signal Present LED Trigger Voltage 750mVrms

(104)

$199.98

List price $209.98


PPS4-10 small

Rockford Fosgate Punch Pro PPS4-10 (Sold Individually)

700W Peak (350W RMS) 10" Punch Pro Series Pro Audio Speaker

(6)

$249.99

List price $249.99

HMS 12 B4-LD-W small

Hertz HMS 12 B4-LD-W

1000W Peak (500W RMS) 12" HMS Series Single 4-ohm Infinite Baffle Marine Subwoofer with LED and White Grille

$699.99

List price $860.00

No picture

Rockford Fosgate Shallow-Mount Punch P312D4S

Dual 4 ohms Stage 3 Punch 12" Shallow-Mount Subwoofer

$109.99

List price $279.99

95-3081S small

Metra 95-3081S

Single DIN or Double DIN Dash Kit for select 2008-2014 CTS (Silver)

(1)

$219.99

List price $361.99

ZXI44_2 small

DS18 ZXI-44 (2-Pairs, 4-Total)

300W Peak (100W RMS) 4" ZXI Series 2-Way 4-Ohm Coaxial Car Speakers (2-Pairs)

$161.90

List price $161.90

51CWQ152_2 small

Kicker CWQ152 (51CWQ152) - 2 Pairs

2400W Peak (1200W RMS) 15" CompQ Series Dual 2-ohm Subwoofer

(1)

$899.98

List price $959.98

70-1782 small

Metra 70-1782 Wiring Harness

Install a new car stereo in select 1985-2001 vehicles from Geo, Isuzu, Suzuki

(1)

$6.99

List price $6.99

P3D4-10 small

Rockford Fosgate Punch P3 P3D4-10

1000W Peak (500W RMS) 10" Punch Series Dual 4-ohm Car Subwoofer

(35)

$219.99

List price $239.99

No picture

Phoenix Gold Tantrum 1200.1 T1200.1

(1)

$359.99

List price $749.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2016 GMC Canyon

2007 Lexus SC430

2001 Toyota 4Runner

2009 Ford Escape

1992 Ford Escort

1983 Buick Skyhawk

2007 Lexus ES350

1997 Dodge Neon

2010 Ford Edge

2005 Lexus SC430

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
