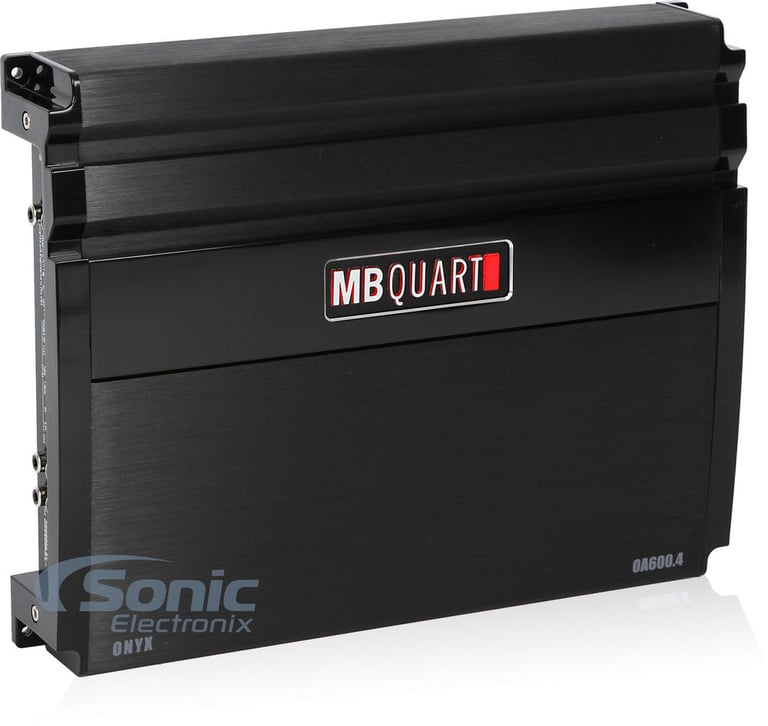

MB Quart OA600.4

600W 4-Channel Onyx Series Class SQ Full Range Bridgeable Power Amplifier

MB Quart
Shop all MB Quart
Product videos
highlight-star-icon

• 75W x 4-Chan. @ 4 ohm
• 150W x 4-Chan. @ 2 ohm
• 300W x 2 Chan. @ 4 ohm
• 3-Way System Protection
• 4/3/2/1 Channel Operation

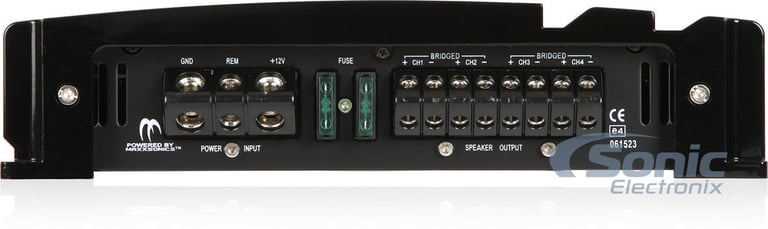

• 4 Gauge Power and Ground Inputs
• FLUID-FETS Circuit for Smooth Sound Quality

Learn more about the oa6004

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
CS46CX main

Crunch CS46CX

500W Peak (100W RMS) 4x6" CS Series 2-Way Coaxial 4-ohm Car Speakers

11
-7.70%

$23.99

List price $25.99

Product Highlights


• 75W x 4-Chan. @ 4 ohm
• 150W x 4-Chan. @ 2 ohm
• 300W x 2 Chan. @ 4 ohm
• 3-Way System Protection
• 4/3/2/1 Channel Operation
• 4 Gauge Power and Ground Inputs
• FLUID-FETS Circuit for Smooth Sound Quality

Description


MB Quart brand icon

Authorized dealer



Onyx Amplifiers

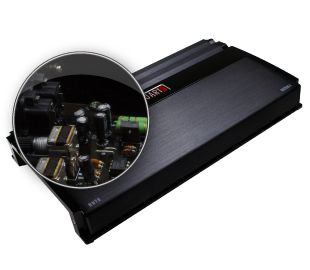

MB Quart Onyx Q-Stasis

Q-Stasis Pre-Amp Stage

MB Quart has always been an amplifier brand that's been attributed with quality audio. Onyx amplifiers, although priced for a more competitive market, still retain this quality. Onyx amps are an exceptional first step in putting together your car audio system. They're high powered amplifiers that use quality components to ensure that they sound great.

The 2013 Onyx amplifiers use a Q-Statis pre-amplifier stage. This addition is designed to keep incoming noise from source units at nearly immeasurable levels, improving sound quality. MB Quart also incorporates more new technology on the amplifiers with their new Fluid-Fets output devices. These are able to efficiently produce power and mimic the sound quality of high end home amplifiers.

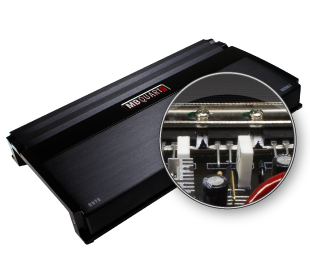

MB Quart Onyx MOSFETS

On-Board Equalization

The multi-channel amplifiers are equipped with Class SQ topology. This circuitry, when matched alongside the Q-Stasis preamp stage is capable of outperforming standard Class A/B amplifiers in sonic accuracy and clarity.

MB Quart multi-channel amplifiers are an exceptional choice when building out your next car audio system. These amps sound great, perform just as well, and even look extremely stylish. Their black finish and illuminating logo help them look awesome when running in your vehicle. Pick yours up today!



General Features:

  • Onyx Series 4-Channel Class SQ Car Amplifier
  • Max Power Rating:
    • 4 ohm: 75 watts x 4 chan.
    • 2 ohm: 150 watts x 4 chan.
    • Bridged, 4 ohm: 300 watts x 2 chan.
  • FLUID-FETS MOSFET Circuit maximizing power efficiency while improving sound quality
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +9 dB bass boost)
  • Built-in system diagnostics
  • 4/3/2/1 Channel operation

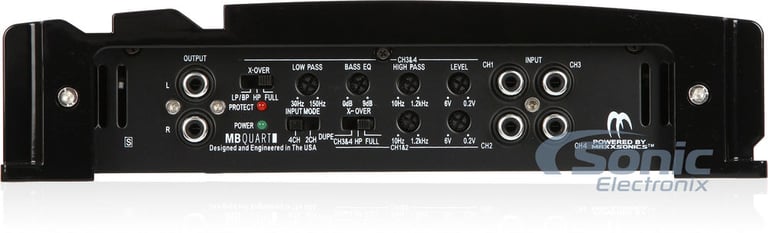

  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)

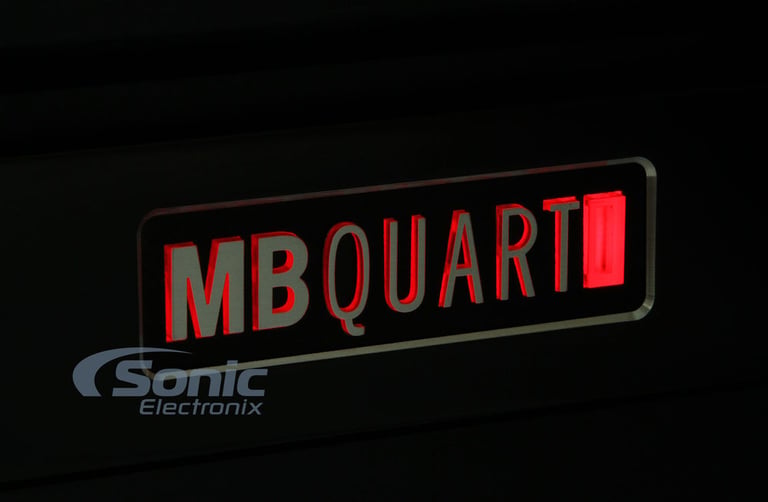

  • Heavy duty Black Onyx aluminum alloy heat-sink with illuminated MB Quart design
  • Input sensitivity:
    • Level: 200mV-6V
  • Variable high-pass filter (10-1,200 Hz 24 dB/octave)
  • Variable low-pass filter (30-150 Hz 24 dB/octave)
  • Frequency response: 10-45,000 Hz
  • 4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 9-7/16"W x 11"L x 2-1/4"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Loading...
Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

R169X2 main

Rockford Fosgate Prime R169X2

260W Peak (130W RMS) 6x9" Prime Series 2 Way Coaxial 4-ohm Speakers

49
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

SXE-1726S main

Alpine SXE-1726S

440W Peak (80W RMS) 6.5" SXE Series 2-way 4-ohm Coaxial Car Speakers

13
-21.82%

$42.99

List price $54.99

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7

Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(25)

$279.99

List price $335.99

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$304.99

List price $379.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

MDX2000.4 2 Ohm small

PRV Audio MDX2000.4 2 Ohm

• 330 watts x 4 channel @ 4 ohm
• 500 watts x 4 channel @ 2 ohm
• Bridged: 1000 watts x 2 channel @ 4 ohm
• Total RMS Power: 2000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$219.91

List price $274.89

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
75 watts x 4 channel
RMS Power @ 2 ohms
150 watts x 4 channel
Bridged RMS Power
300 watts x 2 channel
Amplifier Specifications
Series
ONYX Series
Amplifier Class
SQ
Number of Channels
4-Channel
Total Peak Power Output
600 watts
Total RMS Power Output
300 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
10 - 1200 Hz
Low-Pass Crossover Frequency
30 - 150 Hz
Bass Boost
0 - 9 dB
Remote bass/level controller
No
Fuse Rating
30A x 2
Strappable
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

OA600.4

Weight:

8.00lbs

Internal SKU:

oa6004

Internal Product ID:

67852

Product and How-to Videos


  • MB Quart Onyx Amplifiers | New for 2013 OA Series
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews


MB Quart OA600.4 thumbnail image

5 star
50%
4 star
25%
3 star
13%
2 star
0%
1 star
13%



Durability
3.7
Value
4.3
Features
3.9
Design
4.3
Usability
4.5

Customer Reviews

Sort by:

Loading...

MBQ 600

Great product for what I was trying to achieve. Used the amp in a 70 quart ice chest with (2) 6.5's and (1) 10" sub for my tournament baseball team. We rock the stands during pre-game and between innings!

By Josh on May 14, 2014

30 found this helpful


An okay amp.

I bought this amp because I was on a budget. Now, 7 months later I have already replaced it. My amp made a horrible whining noise that was really loud and I could not fix it. Since switching to a Rockford amp this has gone away. The amp seems to do a little under its rated power. Probably around 65 rms, which isn't bad. If you're really on a budget pick this up or spend like $15 and get the MB Quart amp that puts out 100 watts x 4 channels. If you can save just a little more money look for a different amp. Also, this amp gets super hot. But, it never went into protect mode.

By Drew on January 10, 2014

29 found this helpful


Good entry level 4ch amp

I have this amp in my 85 Delta 88 Royale Brougham pushing my high/mids which are a pair of Infinity Reference 3.5 in the dash and 6x9 in the rear. Good amp for the price that looks good in the trunk provided the power I wanted to my Infinity's. Have had no problems with it.

By Austin on April 22, 2014

29 found this helpful


Mb quart amp

Wow I'm surprised at the quality the mb quart amp gives. My system sounds awesome thanks y'all keep our music loud and clear!

By Mrf150 on November 14, 2013

25 found this helpful


Clean amp..

I use this with rockford speakers and they sound very clean and it normally doesn't get hot.I advice you guys to make sure you tune your system so it wont sound distorted. I was going for an alpine but for 40 dollar less I got me this Mb quart that make the system sound clean.

By Orion on October 15, 2013

25 found this helpful


Worked as expected

Good, clean sound....affordable price. Solid little amp for your door/deck speakers

By Joker on October 4, 2013

24 found this helpful


Junk

amp arrived and I hooked it up and I got sweet, beautiful sound...for about an hour. It actually sounded very good powering my Pioneer TS-D1720c comps up front and running a Pioneer TS-W260S4 sub in the rear. After playing for about an hour it went into protect mode. I thought that it may have overheated but it was not hot to the touch. I checked the voltage to the amp and that was also good at 12v with the car idling. Since then the amp turned on, would play for 5-10 min, then go into protect again.

By Rob on October 10, 2013

22 found this helpful


Good budget 4 channel

Good sq for the price. Way better than running your mids and highs off of a stereo. Not too flashy but has a nice look to it would recommend to someone looking for a good 4 channel amp but not trying to pay for $500 sound quality

By Juan on October 6, 2013

22 found this helpful




99-7396 small

Metra 99-7396 Dash Kit

Install a New L Shaped Single DIN 2" or Double DIN 4" Car Stereo in select 2019-2020 Santa Fe

$53.99

List price $97.99

BACKUPCAM-3 small

Axxess BACKUPCAM-3

Rear-View Camera Retention Harness for Select 2014-Up GM Vehicles

(3)

$9.99

List price $19.99

BC-TP699713 small

Metra BC-TP699713

6x9" Tour-Pak Lid with Speaker Adapters for select 1996-2013 vehicles from Harley Davidson

$412.99

List price $429.99

KMFC65 small

Kicker KMFC65 (46KMFC65)

390W Peak (130W RMS) 6.5" KMFC Series 2-Way Coaxial Marine Tower Speakers (Black)

$499.99

List price $549.99

MBQXRAD1_XCAMLP small

MB Quart MBQX-RAD-1 with License Plate Camera

3.5" Custom Fit Digital Media Receiver with Bluetooth and Apple Audio Playback Controls for select 2018-2024 vehicles from Can-Am + High-resolution Rearview Backup Camera

(51)

$499.98

List price $559.98

PLA785 small

Pyle PLA785 Blue Wave Series

$89.99

List price $189.99

180-DF-2A small

SSV Works DF-2A (180-DF-2A)

2 Speaker Audio Upgrade Kit for select 2016-2024 vehicles from Can-Am Includes One Bluetooth Receiver and Pair of Loaded 6.5" Front Kick Panel Speaker Pods

$789.99

List price $789.99

MAGACC0 small

NVX MAGACC0

Replacement Magnetic Ring for the NVX MagNeato

$2.99

List price $6.99

240-MAVR-PHZ4VTD small

SSV Works MAVR-PHZ4VTD

5-Speakers Upgrade Kit for 2024 Can-Am® Maverick R, Phase-4 V-Spec models: Includes four 6.5” SSV Works Speaker-Pods, two 5-channel amplifier, and a 10" SSV Works Subwoofer

$3099.99

List price $3099.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1995 Buick Century

2023 Audi S5

2003 Ford Focus

2018 Jeep Compass

2000 GMC Yukon

2016 Ford Explorer

2010 Dodge Nitro

2002 BMW 325Ci

2019 Buick Encore

2018 Ram 1500

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
