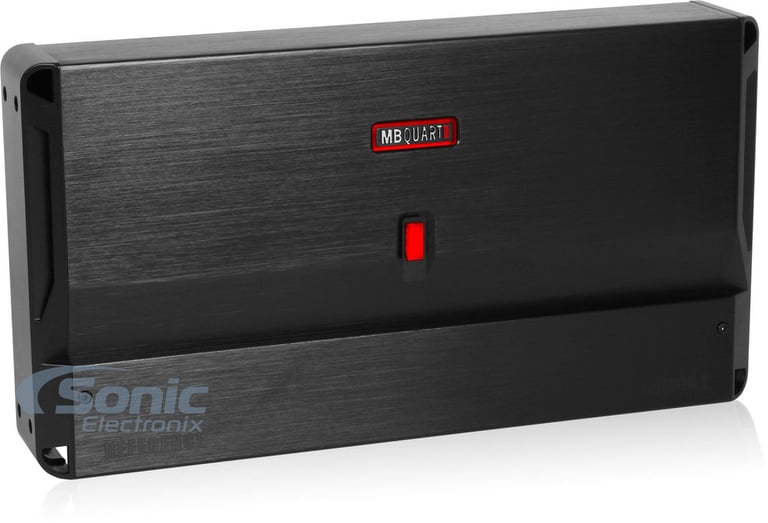

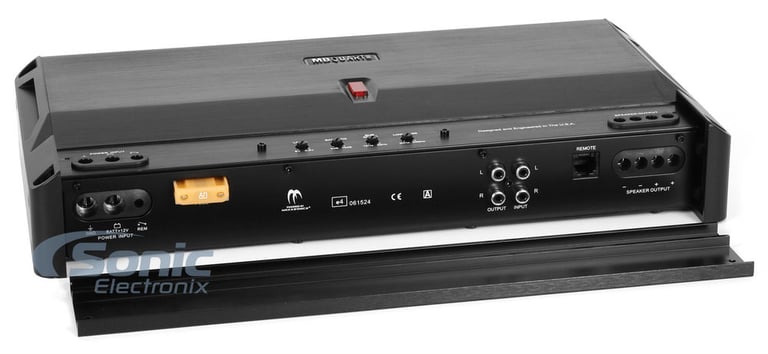

MB Quart RA1000.1

1000W Class D 1-Channel Monoblock Reference Series Amplifier

MB Quart
Shop all MB Quart
Product videos
highlight-star-icon

• Peak: 475W x 1 @ 4 ohm, 750W x 1 @ 2 ohm, 1000W x 1 @ 1 ohm
• Total Peak Power: 1000W
• Built-In System Diagnostics
• Variable Bass EQ: 0 to +10 dB at 45 Hz
• Class D Circuitry
• Dimensions: 8-5/16"W x 15-1/2"D x 2-3/8"H

Learn more about the ra10001

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
XED650C main

Cerwin-Vega XED650C

600W Peak (70W RMS) 6.5" XED Series 2-Way 4-ohm Component Speaker System

28
-16.67%

$64.99

List price $77.99

S2-S65 main

Alpine S2-S65

480W Peak (160W RMS) 6.5" S-Series Hi-Res 2-Way Coaxial 4-ohm Car Speakers

5
-16.69%

$149.95

List price $180.00

XED525C main

Cerwin-Vega XED525C

500W Peak (60W RMS) 5.25” XED Series 2-Way 4-ohm Component Speaker System

8
-16.67%

$59.99

List price $71.99

Product Highlights


• Peak: 475W x 1 @ 4 ohm, 750W x 1 @ 2 ohm, 1000W x 1 @ 1 ohm
• Total Peak Power: 1000W
• Built-In System Diagnostics
• Variable Bass EQ: 0 to +10 dB at 45 Hz
• Class D Circuitry
• Dimensions: 8-5/16"W x 15-1/2"D x 2-3/8"H

Description


MB Quart brand icon

Authorized dealer

General Features:

  • Reference Series 1-Channel Monoblock Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 475 watts x 1 chan.
    • 2 ohm: 750 watts x 1 chan.
    • 1 ohm: 1000 watts x 1 chan.
  • FLUID-FETS MOSFET Circuit maximizing power efficiency while improving sound quality
  • 1 Ohm stable
  • LED power (green) and protect (red) indicators
  • Variable BassEQ Boost (0 to +10 dB bass boost fixed at 45 Hz)
  • Built-in system diagnostics
  • Mono channel operation

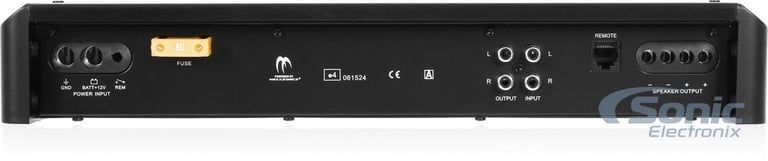

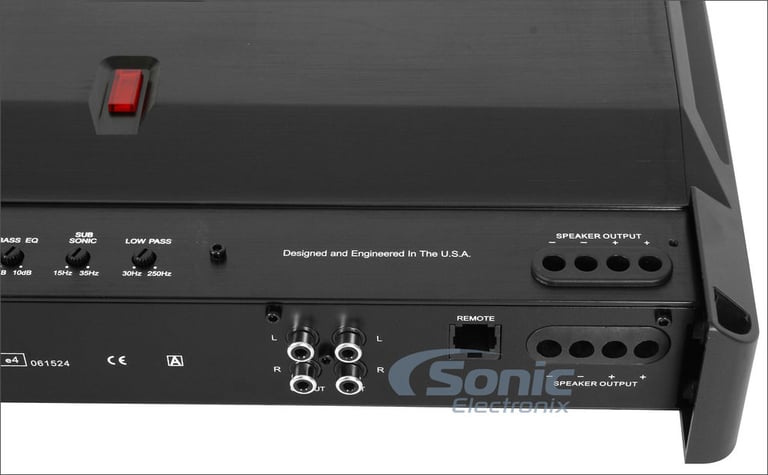

  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty Black Onyx aluminum alloy heat-sink with illuminated MB Quart design

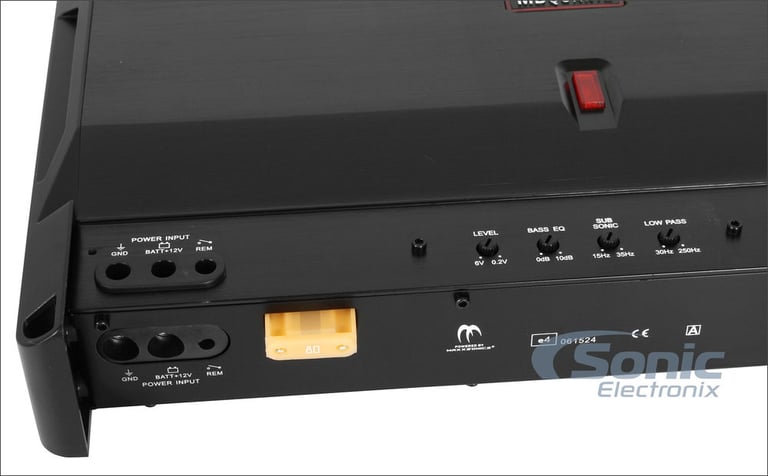

  • Input sensitivity:
    • Level: 200mV-6V
  • Variable high-pass filter (10-1,200) Hz
  • Variable low-pass filter (30-150 Hz)
  • Frequency response: 15-250 Hz
  • 1/0 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 8-5/16"W x 15-1/2"D x 2-3/8"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$449.99

List price $449.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(36)

$259.99

List price $335.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(38)

$209.99

List price $227.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(25)

$429.99

List price $429.99

CXA400.1 small

Kicker CXA400.1 (46CXA4001T)

• 150 watts x 1 channel @ 4 ohm
• 300 watts x 1 channel @ 2 ohm
• 400 watts x 1 channel @ 1 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable Monoblock Amplifier

(10)

$199.99

List price $219.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
475 watts x 1 channel
RMS Power @ 2 ohms
750 watts x 1 channel
RMS Power @ 1 ohm
1000 watts x 1 channel
Amplifier Specifications
Series
Reference Series
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
1000 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
0.10%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass Crossover Frequency
30 - 250 Hz
Subsonic Filter
15 - 35 Hz
Signal-to-Noise Ratio
95 dB
Bass Boost
0 - 12 dB

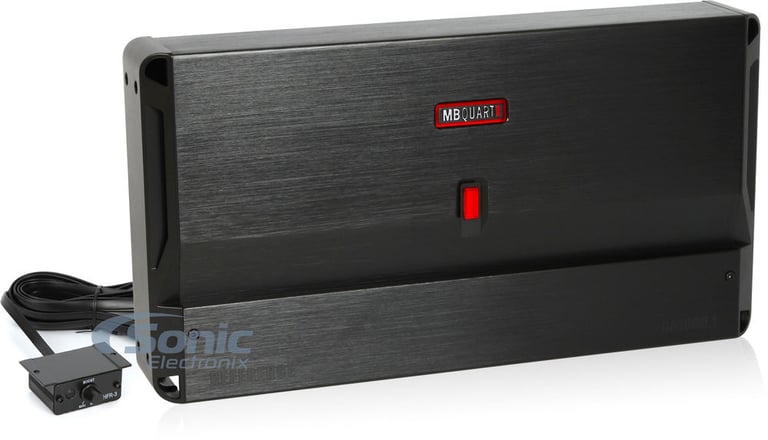

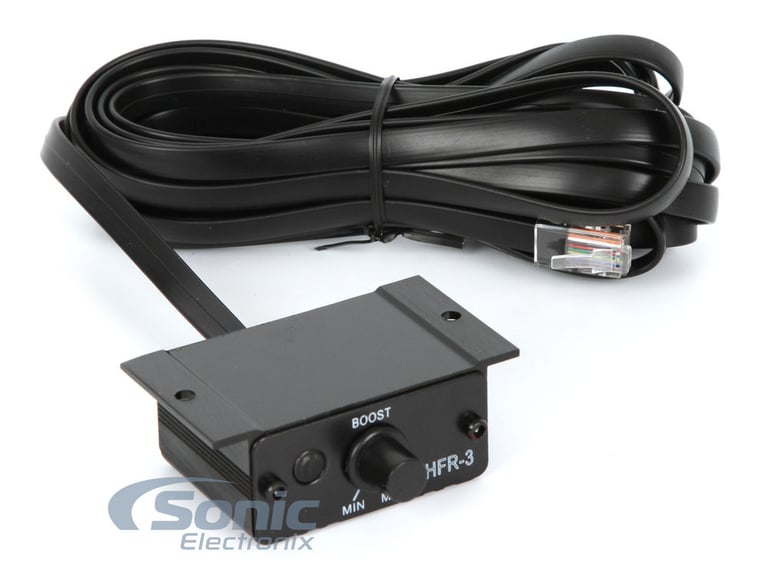

Remote bass/level controller
Yes
Fuse Rating
80A x 1
Strappable
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

RA1000.1

Weight:

10.00lbs

Internal SKU:

ra10001

Internal Product ID:

67866

Product and How-to Videos


Customer Ratings & Reviews


MB Quart RA1000.1 thumbnail image

5 star
67%
4 star
33%
3 star
0%
2 star
0%
1 star
0%



Durability
4.5
Value
4.7
Features
4
Design
4.9
Usability
4.7

Customer Reviews

Sort by:

Loading...

mr. love music.

MB.QUARTS AMPS AND SPEAKER ARE SOUND QUALITY BASED THE POWER IS SMOOTH AN STRONG .THEY LOOK GREAT GOOD PRICE

By REDDOG on October 7, 2013

17 found this helpful


Excellent

I love this amp i've run MB quarts for years quality

By Mr sound on October 7, 2013

14 found this helpful


Great amp

The mb quart 1000.1 amp I got is absolutely awesome. One of the best amps I've ever owned and I highly recommend it.

By Alex on March 11, 2015

14 found this helpful


Great quality!

I have one hooked up to my RE Audio SXXv2-12D2 and it makes my whole car shake!! Reall great product and great brand too. I've had it for about a month and I do check to see if it gets hot cause the sub is at 1100 rms and the amp is at 1000w and it does a great job handling it's power it never gets hot so I highly recommend this product!!!

By Jerry on April 17, 2015

9 found this helpful


Awesome amp.

Great value, clean look on install and power to boot. Very satisfied.

By Joshua on March 22, 2015

10 found this helpful


Great amp for the price

Great strong amp. Very affordable aswell. Driving three boss 12s.

By charlie on June 28, 2015

8 found this helpful


Good for the price

This amp is good for what you pay. Does rated power, looks very clean. I haven't had any performance issues yet, completely satisfied.

There is, however, one big issue. two of the four screw holes for mounting (the 2 in the rear) have no barrier protection from the inside of the amp. So if you drop a screw while trying to mount it, you need to remove the entire side panel and VOID WARRANTY. Based on this alone, i would not suggest this product - buy something else without a major flaw. Not sure what mb quart was thinking, but having a huge opening from the outside of the amp to the actual board is a terrible design. I've never had an issue like this with any other product.

By Glen on March 27, 2015

7 found this helpful


Good Amp, especially for the price. Can't shake a stick at that.

I just installed this amp on a RE Audio SEX10V2-D4 in a ~1cu/ft box tuned to 35hz. I'm unsure how much power this is putting out. I wish I could test but somebody stole my multimeter with clamps to measure amps. Although, it definitely is moving my 10 good and the sound is very clean. I am impressed with how good this amp sounds for such a wonderful price. As long as I don't have any over heating issues in the future, I will definitely buy one of their larger amps in the future for my next install.

I'm going to say 5 for durability RIGHT now. Only because it would be unfair to rate it other wise and turn people away with a poor over all rating. If something changes, I will add another review.

I'm going to leave features at a 3. There isn't a Q setting,a low or high voltage selection for input, and the manual doesn't list voltage output to voltage input settings. So there isn't a definitive number to read for the off the multimeter when setting gain. They give you a clock orientation in reference to voltage input not associated with ohmage

By Greg on August 4, 2015 Checkmark Icon Verified purchase

8 found this helpful


By arthur on October 28, 2024 Checkmark Icon Verified purchase




8500CI-LASER-SHIFTER small

Escort 8500ci Laser Shifter Pack

Add-on Laser Shifting System for 8500CI and 8500CI-Plus Radar Detector

$199.95

List price $249.95

KVT-717DVD small

Kenwood KVT-717DVD

In-Dash DVD Multimedia System with 7" LCD Screen

(2)

$839.99

List price $1299.99

1500XXK small

ARC Audio 1500V1 XXK

Updated Version V1 of 1500-XXK -- 1000 watts, Class A/B Monoblock Subwoofer Amplifier

$499.99

List price $799.99

XM-GTR2022 small

Sony Xplod XM-GTR2022

1200W Max, 2-Channel GTR Series Amplifier

(5)

$149.99

List price $199.99

HDJ-500-V small

Pioneer HDJ-500 - Violet

Over-Ear Professional DJ Headphones with Swiveling Ear Cup (Violet/Purple)

$62.99

List price $109.99

RS-340-EDP+ small

Excalibur RS-340-EDP+

Deluxe Keyless Entry & Remote Start System w/ Extended Range

$59.99

List price $199.99

CV502-4CH-002 small

SVAT Electronics CV502-4CH-002

Smart Phone Compatible H.264 DVR Security System

(2)

$349.99

List price $674.99

MM3020.1D small

Autotek MM3020.1D (MM30201D)

3000W Max Mean Machine Series 1 ohm Stable Monoblock Class-D Amplifier w/ Bass Knob Included

(3)

$120.99

List price $209.99

C3 501_2-V 12 small

1000W Massive Audio + Crossfire Complete Bass Package

2 Massive Audio V 12 12" V Series Subs + Crossfire C3 501 Monoblock Amplifier + Amp Kit + Enclosure

(35)

$223.34

List price $639.83

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2010 Scion xD

1985 Ford Bronco

2018 MINI Cooper

1984 Mercury Capri

1994 Dodge B150

Vehicle
Store
Delete

2002 Harley Davidson FXSTD Softail Deuce

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
