MB Quart RA640.4

640W 4-Channel Reference Series Class SQ Bridgeable Power Amplifier (RA6404)

MB Quart
Shop all MB Quart
Product videos
highlight-star-icon

• 80W x 4-Chan. @ 4 ohm
• 160W x 4-Chan. @ 2 ohm
• 320W x 2 Chan. @ 4 ohm
• 3-Way System Protection
• 4/3/2/1 Channel Operation
• 4 Gauge Power and Ground Inputs
• FLUID-FETS Circuit for Smooth Sound Quality

Learn more about the ra6404

We apologize

This item has been discontinued


Loading...
SAC656 main

Scosche SAC656

Add 5-1/4" or 6-1/2" Speakers to Factory 7" Mounting Locations

50
-6.69%

$13.95

List price $14.95

SAT-01 main

PAC SAT-01 Antenna Adapter

Connect your factory SiriusXM antenna to a new aftermarket radio for select 2004-2024 vehicles from Ford, Audi, GMC

1
-44.86%

$15.99

List price $29.00

72-6515 main

Metra 72-6515

Install New Speakers in select 1999-2024 vehicles from Dodge, Jeep, Chrysler

11
-10.01%

$8.99

List price $9.99

SOOCR-26 main

CRUX SOOCR-26 Wiring Interface

Install a New Car Stereo and Retain Factory Features in select 2004-2018 vehicles from Dodge, Jeep, Chrysler

12
-35.71%

$75.60

List price $117.60

CDK652 main

American International CDK652

Double DIN Stereo Dash Kit for select 2011-2013 Grand Cherokee and Durango

2
-73.56%

$8.99

List price $34.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

AVH-2550NEX main

Pioneer AVH-2550NEX

6.8" Double DIN Touchscreen DVD Receiver with Bluetooth, Apple CarPlay, and Android Auto (SiriusXM Ready)

-13.33%

$650.00

List price $750.00

PRO-X6.4BMPK main

DS18 PRO-X6.4BMPK

1000W Peak (500W RMS) 6.5” PRO-X Series 4-ohm Pro Audio Component Speakers Set

4
P132 main

Rockford Fosgate Punch P1 P132

80W Peak (40W RMS) 3.5” Punch Series 2 Way Coaxial 4-ohm Speakers

43

Product Highlights


• 80W x 4-Chan. @ 4 ohm
• 160W x 4-Chan. @ 2 ohm
• 320W x 2 Chan. @ 4 ohm
• 3-Way System Protection
• 4/3/2/1 Channel Operation
• 4 Gauge Power and Ground Inputs
• FLUID-FETS Circuit for Smooth Sound Quality

Description


MB Quart brand icon

Authorized dealer

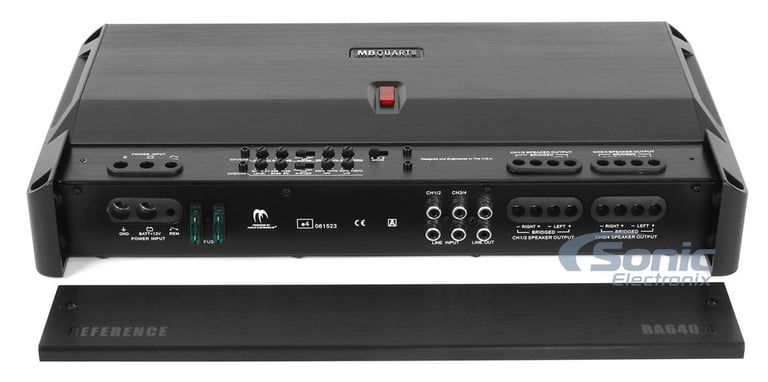

General Features:

  • Reference Series 4-Channel Class SQ Car Amplifier
  • Max Power Rating:
    • 4 ohm: 80 watts x 4 chan.
    • 2 ohm: 160 watts x 4 chan.
    • Bridged, 4 ohm: 320 watts x 2 chan.
  • FLUID-FETS MOSFET Circuit maximizing power efficiency while improving sound quality
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +12 dB bass boost)

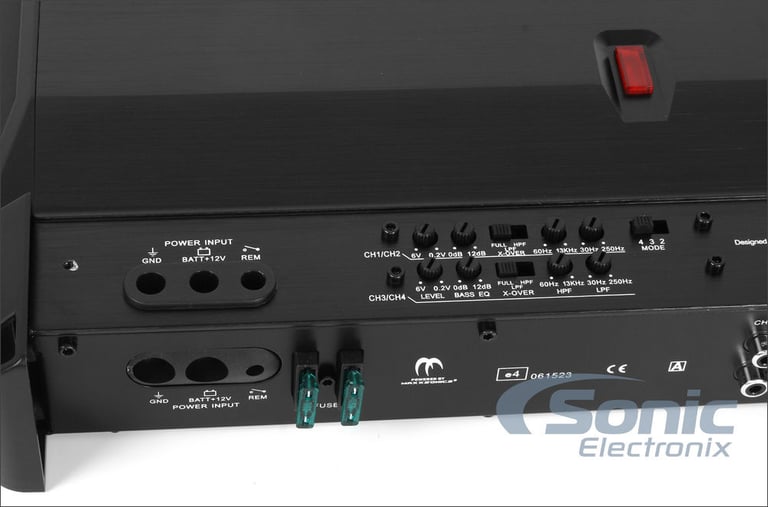

  • Built-in system diagnostics and top-mounted controls

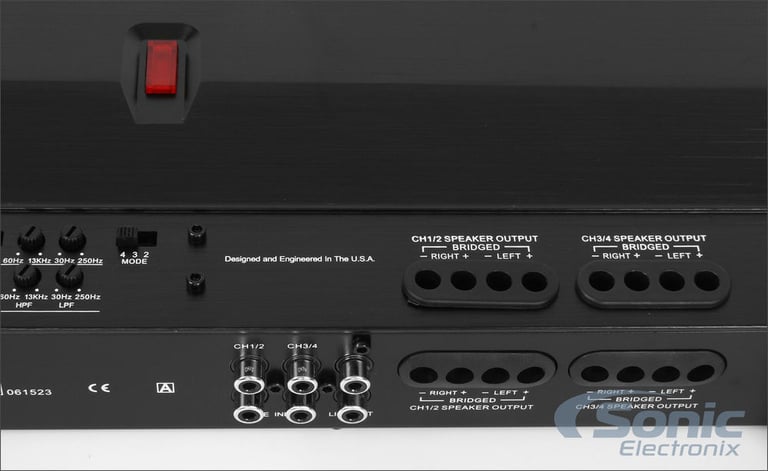

  • 4/3/2/1 Channel operation

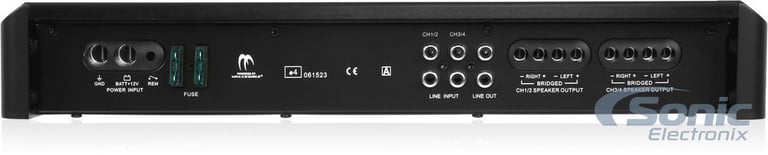

  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)

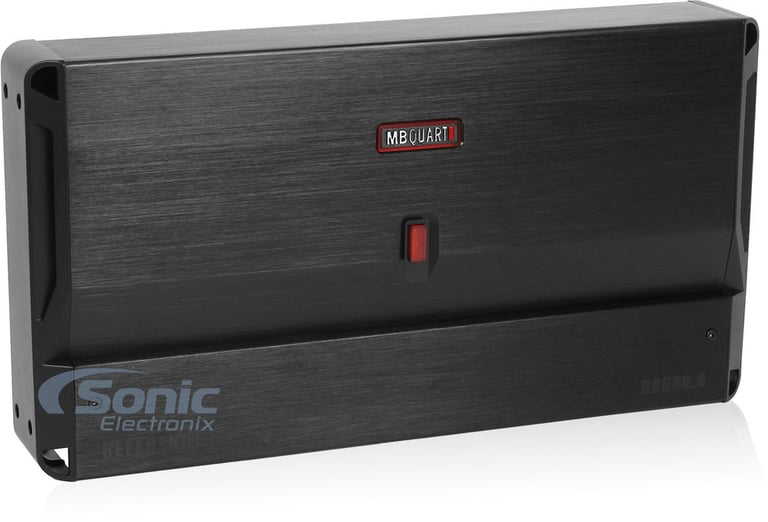

  • Black reference aluminum alloy heat-sink with illuminated MB Quart design
  • Input sensitivity:
    • Level: 200mV-6V
  • Variable high-pass filter (60-13,000 Hz)
  • Variable low-pass filter (30-250 Hz)
  • Frequency response: 30-45,000 Hz
  • 4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 8-1/4"W x 15-1/2"D x 2-3/8"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Loading...
82-6901,DB6502 main

Polk Audio DB6502 DB+ 6.5" 600 Watt Car Speakers with Free 6" x 9" Adapters

600W Peak (200W RMS) 6.5" DB+ Series 2-way Component Speakers with 6" x 9" Speaker Adapters

47
-9.29%

$211.34

List price $232.98

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
80 watts x 4 channel
RMS Power @ 2 ohms
160 watts x 4 channel
Bridged RMS Power
320 watts x 2 channel
Amplifier Specifications
Series
Reference Series
Amplifier Class
SQ
Number of Channels
4-Channel
Total RMS Power Output
640 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.05%
Speaker Level Inputs
No
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
60 - 13000 Hz
Low-Pass Crossover Frequency
30 - 250 Hz
Signal-to-Noise Ratio
92 dB
Channel Separation
80 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
No
Fuse Rating
30A x 3
Strappable
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

RA640.4

Weight:

9.00lbs

Internal SKU:

ra6404

Internal Product ID:

67883

Product and How-to Videos


Customer Ratings & Reviews


MB Quart RA640.4 thumbnail image

5 star
73%
4 star
18%
3 star
0%
2 star
9%
1 star
0%



Durability
4.4
Value
4.8
Features
4.5
Design
4.5
Usability
4.8

Customer Reviews

Sort by:

Loading...

Excellent sound Quality

If anyone have a question of how good is MbQuart RA640.4, I can honestly say It's excellent. I had JL 300/4 original and JBL Px300.4 and all I can say is, it sound if not the same, better than the JL. It kills the JBL. I replace the JL with JBL because it died after 8 year and I could tell the the sound quality went down, then I replaced the JBL Px300.4 one week ago with Mb Quarts RA640.4 and WAW incredible sound difference, it also took away some engine noise that I was getting with the Jbl. To be totally honest WAW, WAW, WAW and it does not get hot. " I have it under my car seat pushing 4 JL C-5s and could not be happier. I don't write reviews but this was an excemption. I was researching for over a month and I could not get a stright answer, so I hope this can help someone.

By Vic on February 7, 2014

23 found this helpful


A real amp

This is the best buy I've ever had from sonic I'm telling you when I have a hertz energy setup in my car and this amp isn't even turned up a quarter of the way man this amp has some serious power and sound's clean to the bone and looks so nice.

By Lc on October 12, 2013

19 found this helpful


Music to my ears!

Ordered amp, and it arrived two days later, installed that evening after I removed the Alpine MRP-F300 that was running my mids and highs, dont get me wrong, the Alpine was a great amp, just not strong enough for me. Got the MB up and running and WOW is all i can say,the clarity, the subtle details in the music, the warmth, and the power, this amp is rated 80W x 4 and I'm sure it's underrated, very clean and quite, midbass,midrange and highs soar with this amp, very very happy with purchase

By Havolia on May 16, 2013

19 found this helpful


Not what I expected from a "SQ" amp

I had this amp installed for a couple of weeks powering two sets of MB Quart QSD213's (the last handmade in Germany components sets from MB). I expected the reference amps to be in the same class as the prior equipment before Maxxsonics bought the MB Quart name. I was not impressed. From the plastic mounts and end caps to the cover that was drilled incorrectly, this amp felt as cheap as it is made. Clean power was not an option with this amp. Crossovers were still letting the low end through even after setting it higher than I usually would on other amps. I had Sonic cross-ship me a JBL 4 channel and the sound quality is in a different league than the RA640.4. I thought maybe my components were starting to show the wear and tear of 7 years of playing, but it was just a poorly designed amp that was the issue.

By Aaron on December 16, 2013

16 found this helpful


info

great amp for the price. has the power to drive your speakers to loud levels with decent clarity. if you are on a budget this amp works. crossover setup doesn't work like regular crossovers so look into that to see if it will work for you

By Jonathan on December 11, 2014

16 found this helpful


Good Deal: Loud with Good Sound Quality

I have had my RA640.4 powering a set of polk component speakers and infinity 6x9's for about a month now. All the speakers ask for about 90wrms at 2 ohms, each, and this amp does the job. In fact, it does the job better than my old infinity 4 channel amp (I think it was the 360.4) which is significantly pricier than this amp. Although I would say that this amp does not push 640 wrms, but hey, it is a little more powerful than the infinity and sounds just as good. Overall I would recommend this amp for anyone looking for a budget bang-for-your-buck amplifier.

By Dan on December 4, 2014

16 found this helpful


best amp for the price

It will be hard for one to find an amp that is as powerful as this one and as cheap. The best part is you are getting a quality amp. Everyone who knows me, knows that I buy what I want. If the amp i want is very expensive, ill wait and get it when i can. i wont settle for something else. So after doing my research and being content with buying a product that is cheap (which was a first for me in car audio) i am very pleased. For the money, you aren't taking a risk.

By Kyle on September 18, 2013

15 found this helpful


Great amp

Have this wired to push my mids/highs. Plenty of power and looks great next to my 1000w MB amp.

By Joshua on March 22, 2015

12 found this helpful


Clarity, Power, Value. Concert in a Car...

Installed the MB Quart RA640.4 with 0 AWG and a 1.2F Cap and I am impressed!
I installed the amp in a '76 Ventura with 6x9" (Eclipse) in the rear deck and 6.5" (Alpine) in the kick panels.
The subtle parts of music don't get lost as the music becomes complex.
A friend asked if I had a subwoofer, because of the clarity and extension of the bass.
Thinking of buying another for my Silverado.
Great Amp for the $$$.

By Bill_ventura on August 26, 2013

14 found this helpful


Great sounding amp

I'm running this amp pushing two sets of mb quarts 5 1/4 in a boat. It sounds great and gets loud, really loud

By Ryan on September 17, 2013

13 found this helpful




99-8231 small

Metra 99-8231 Dash Kit

Install a new Single-DIN or Double-DIN car stereo in select 2002-2006 Camry (Matte Black)

(7)

$19.99

List price $37.99

DDX514 small

Kenwood DDX514 (DDX-514)

Double DIN 6.1" TFT-LCD Monitor with DVD, CD, MP3, USB Multimedia Player

(10)

$399.99

List price $749.99

No picture

MTX X3-17-CORE

Amplifier Mounting Plate and Harness Kit for 2017-up Can-Am Maverick X3 Vehicles

$249.95

List price $279.95

XI226 small

Stinger XI226

6 ft. X2 Series 2-Channel RCA Interconnect Cable

$59.00

List price $69.00

PLM402 small

Pyle PLM402 Millennia Series

$139.99

List price $314.99

XI2420 small

Stinger XI2420

20 ft X2 Series 4-Channel RCA Interconnect Cable

$189.00

List price $239.00

KDC-X493 small

Kenwood eXcelon KDC-X493

In-Dash CD/MP3/WMA/iPod Car Receiver with Front Panel USB and Aux Inputs and Remote

(14)

$149.99

List price $189.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2014 BMW X3

2012 Dodge Durango

2001 Toyota Corolla

2019 MINI Cooper

2011 Ford Explorer

2016 Audi A6 Quattro

2002 Saab 9-3

2017 Kia Niro

2014 Nissan Versa

2011 Subaru Forester

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
