Hifonics Zeus ZRX1200.1D

1200W Max Zeus Series 1-Ohm Stable Class D Monoblock Amplifier

Hifonics
Shop all Hifonics
Product videos
highlight-star-icon

• Peak: 400W x 1 @ 4 ohm, 600W x 1 @ 2 ohm, 1200W x 1 @ 1 ohm
• Total Peak Power: 1200W
• Class D Circuitry
• Variable Bass Boost: 0 to +10 dB at 45 Hz
• Wired Bass Remote Included
• Dimensions: 12"L x 10"W x 2-7/16"H

Learn more about the zrx12001d

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

zrx12161d thumbnail

Hifonics Zeus ZRX1216.1D

OUR PRICE: $119.99

View item

Loading...
70-1771 main

Metra 70-1771

Install a New Car Stereo in select 1998-2011 vehicles from Ford, Mazda, Mercury

51
72-5600 main

Metra 72-5600

Install New Speakers in select 1993-2017 vehicles from Ford, Mazda, Mercury

107
-33.36%

$9.99

List price $14.99

95-5026 main

Metra 95-5026 Dash Kit

Install a new Double-DIN car stereo in select 2002-2006 vehicles from Ford, Lincoln, Mercury (Black)

18
-41.68%

$13.99

List price $23.99

FD1428B main

Scosche FD1428B / FD1428 Dash Kit

Install a new Double-DIN car stereo in select 2001-2006 vehicles from Ford, Lincoln, Mercury (Black)

39
-9.51%

$11.99

List price $13.25

70-5701 main

Metra 70-5701 Wiring Harness

Install a new car stereo and retain factory amplifier in select 1998-2003 Mountaineer and Explorer

9
-10.26%

$34.99

List price $38.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

SA68 main

Scosche SA68

Add 5-1/4" or 6-1/2" Speakers to Factory 6" x 8" Mounting Locations for select 1950-2025 vehicles from Ford, Mercury, Mazda

39
-46.70%

$7.99

List price $14.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

P1683 main

Rockford Fosgate Punch P1 P1683

260W Peak (130W RMS) 6x8" Punch Series 3 Way Coaxial 4-ohm Speakers

85

Product Highlights


• Peak: 400W x 1 @ 4 ohm, 600W x 1 @ 2 ohm, 1200W x 1 @ 1 ohm
• Total Peak Power: 1200W
• Class D Circuitry
• Variable Bass Boost: 0 to +10 dB at 45 Hz
• Wired Bass Remote Included
• Dimensions: 12"L x 10"W x 2-7/16"H

Description


Hifonics brand icon

Authorized dealer



General Features:

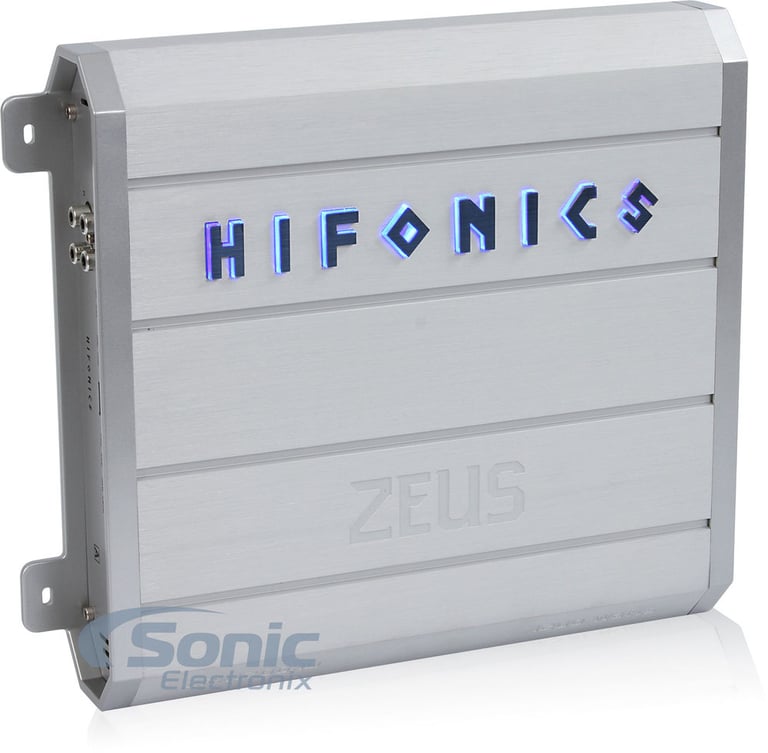

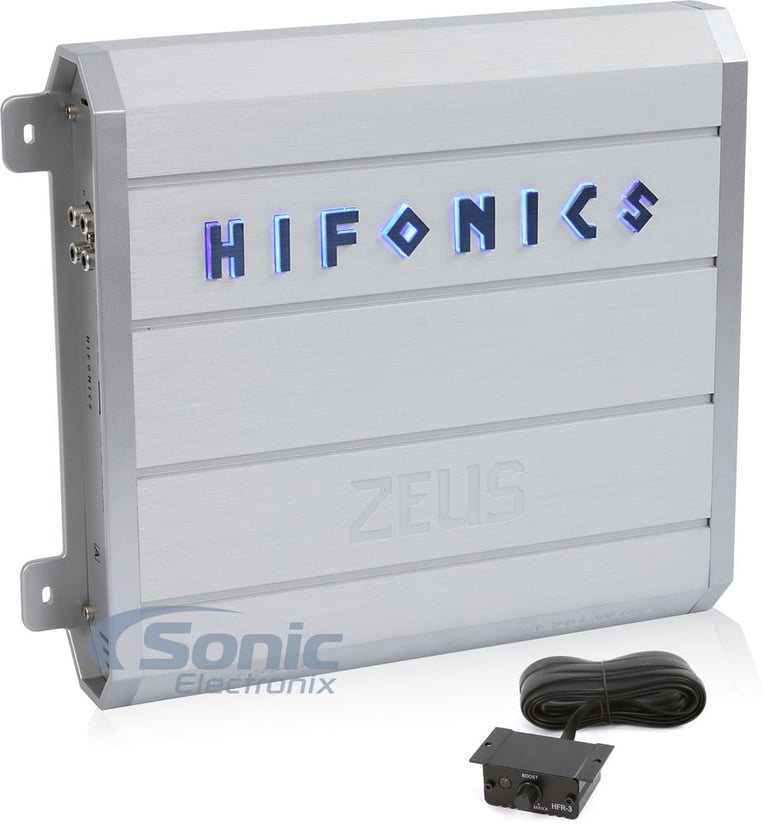

  • Zeus Series Single Channel Monoblock Class D Car Amplifier
  • Max Power Rating:
    • 4 ohm: 400 watts x 1 chan.
    • 2 ohm: 600 watts x 1 chan.
    • 1 ohm: 1200 watts x 1 chan.
  • Max power output: 1200 watts
  • Simpatico coil design (SPC) Ultra-Fi Pulse Width Modulated MOSFET power supply
  • LED power (blue) and protect (red) indicators

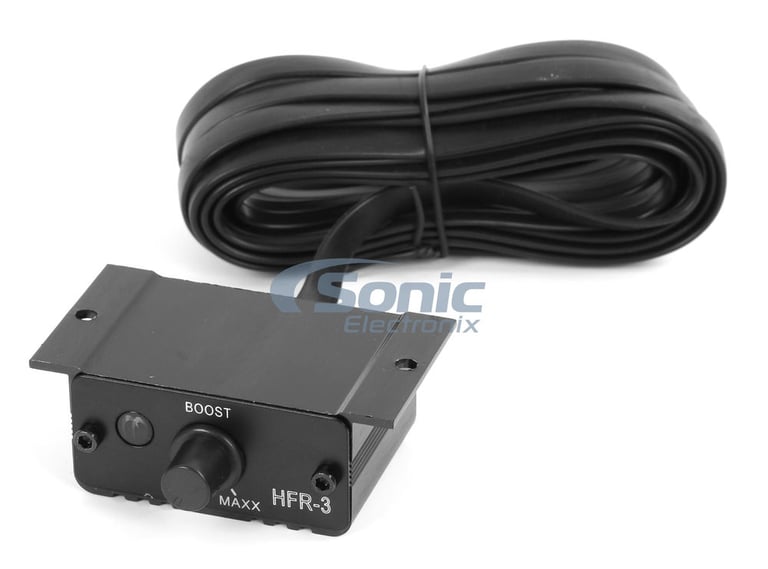

  • Wired HFR-3 remote bass level control included
  • Blue illuminated Hifonics badge
  • Soft start sound function
  • Mono channel operation

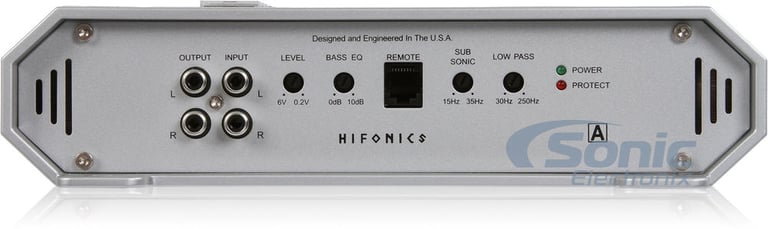

  • Preamp RCA outputs to daisy chain multiple amps
  • 4-Way System Protection circuitry (thermal, overload, DC, and speaker short protection)

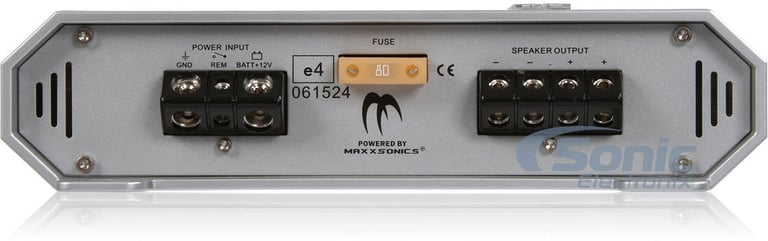

  • Dual 12 gauge speaker terminals simplify hookup
  • Heavy duty aluminum alloy vented heatsink for maximum heat dissipation
  • Silver nickle-plated RCA level inputs
  • Silver nickle-plated screw terminals
  • Input sensitivity: 200mV - 6V
  • Frequency Response: 15 - 250 Hz
  • Total Harmonic Distortion (THD): 0.10%
  • Signal to Noise Ration: >95 dB
  • Damping factor: >200
  • Variable low-pass filter: 30 - 250 Hz
  • Subsonic filter: 15 - 35 Hz
  • Variable Bass Boost: 0 to +10 dB bass boost at 45 Hz
  • Fuse Rating: 80 A x 1
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 12"L x 10"W x 2-7/16"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Product history:

Hifonics ZRX1216.1D thumbnail
(newest, current model)
Hifonics ZRX1200.1D thumbnail
(previous model, replaced by Hifonics Zeus ZRX1216.1D)

Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(22)

$429.99

List price $429.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(37)

$209.99

List price $227.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$399.99

List price $449.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
200 watts x 1 channel
RMS Power @ 2 ohms
300 watts x 1 channel
RMS Power @ 1 ohm
600 watts x 1 channel
Power Specifications - Subwoofer Channel
Peak Power @ 4 ohm
400 watts x 1 channel
Peak Power @ 2 ohms
600 watts x 1 channel
Peak Power @ 1 ohm
1200 watts x 1 channel
Amplifier Specifications
Series
Zeus Series
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
1200 watts
Total RMS Power Output
600 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
0.10%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
30 - 250 Hz
Subsonic Filter
15 - 35 Hz
Signal-to-Noise Ratio
>95 dB
Bass Boost
0 - 10 dB
Remote bass/level controller
Yes
Fuse Rating
80A x 1
Strappable
No
Sonic Certified Amplifier
Not Tested
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

ZRX1200.1D

Weight:

11.65lbs

Internal SKU:

zrx12001d

Internal Product ID:

67917

Product and How-to Videos


  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews


Hifonics Zeus ZRX1200.1D thumbnail image

5 star
80%
4 star
8%
3 star
3%
2 star
5%
1 star
5%



Durability
4.4
Value
4.6
Features
4.6
Design
4.7
Usability
4.7

Customer Reviews

Sort by:

Loading...

works great

light amp small compact amp very powerful tho ...
works great no hick ups hooked it up to a single 12 fosgate p3 it KNOCKS easy to install and use recommend definitely for the price and power it pushes out ... make sure you know about your ohms tho this amp is not 8 ohm stable at 1200 watts it is at 2 ohms i believe hope this helps anyone.

By omar on February 13, 2014

36 found this helpful


Hifonics ZRX1200.1D

I ordered this amp, fast shipping. I hooked it up to 2 Hifonics BRZ15D4 @ 1 ohm. About a day later the amp blow out. I don't know why, everything is hooked up fine ground is solid, and no this is not my first install. I have always liked Hifonics but i dont know what happen to this one. The amp itself looks clean. Maybe i just got a blank.

By jay on December 3, 2013

33 found this helpful


Good amp

For the average person: This amp is great. It hits hard enough for beginners.
For bass heads- Pass. Its not hard enough. Although, i haven't tried to bridge it yet.
Pro: its cheap. Con: it cuts out after a while of use. You have to turn the stereo off to get it to cut back on again.

By MackSkeet on August 23, 2014

33 found this helpful


Works Great!

This amp for the price is a Steel! It's even got the Blue LED lights in HIFONICS logo to make it even cooler, the crossover works well and overall the power rating is true 1200RMS watts

By Jacob on May 30, 2014

32 found this helpful


great product

This is a very effective cheap amp works exactly how I need it to powering my rockfordfosgste p2d4 12 wired to 2 ohms great and fit my 2 gauge wire fairly well

By Shedrick on July 16, 2014

31 found this helpful


Real good amp!

This little amp has some serious power had it hooked up too 2 hfx 12's in a sealed box and they hit real good!

By Uriel on April 9, 2014

30 found this helpful


hifonics 1200.1D

this amp is well built for what it does. I didn't clamp this amp but im more then sure it does what it says.
the fact this is most bang for the dollar as well is nice. not 2 cheap but not 2 over price were your killing the bank on it. if your looking for a great bang to this amp I would order this right up. you give it the right power and it will do its job right. make sure to have more then stock battery and alt when using this amp need at the most 100 ah battery worth to play with this at a good rate if your alt is stock. then you will see the power it will push out :). take into thought anything more then 500 rms you will need to place an extra battery to help out any ways so get a agm gel of some sort of deep cell to play with what you want. over all this is a great amp to buy. thanks sonic electronix for selling this at an affordable cost.

By bass head on September 12, 2014

29 found this helpful


Love It!!!

This is CEA-Compliant first off here's the link

http://blog.sonicelectronix.com/news-on-the-car-audio-industry/hifonics-brutus-and-zeus-amplifiers-are-now-cea-2006-compliant/

have it running at 2ohms and wow it runs so cool and it makes my Hifonics BRZ15D4 Sub it Very hard. Great product!!

By Joey on April 12, 2014

29 found this helpful


Hifonics amp

This amp is awesome my girl loves it her speakers hit hard an it never shut off.

By Dandre on July 9, 2014

28 found this helpful


Top of the line

Best for the buck.I highly recommend these brand Products.

By Stoney Coleone on October 30, 2014

27 found this helpful




KDC-MP442U small

Kenwood KDC-MP442U

In-Dash CD/MP3/WMA Car Receiver with Remote and Front Panel USB and Aux Inputs

(5)

$139.99

List price $189.99

DEH-P670MP small

Pioneer Premier DEH-P670MP

(5)

$179.99

List price $299.99

AVIC-X920BT small

Pioneer AVIC-X920BT

6.1" In-Dash Double DIN Touchscreen with CD/DVD/MP3 Receiver, Built-in Navigation, Bluetooth and SD/USB Inputs

(27)

$649.99

List price $1099.99

AVA-1204 small

Boss AVA-1204 7-Band Equalizer

7-Band Preamp Graphic Equalizer with LED Power Meter

(11)

$24.99

List price $49.99

DEH-P460MP small

Pioneer Premier DEH-P460MP

$159.99

List price $219.99

KTC-HR100TR small

Kenwood KTC-HR100TR

HD Radio Tuner

$142.99

List price $399.99

DEH-6300UB small

Pioneer DEH-6300UB

Car Stereo CD/MP3 Receiver with Aux In and USB/iPod and USB/iPod Direct Control

(27)

$129.99

List price $179.99

BBSTEREO2 small

VIBE Audio Black Box Stereo 2 (BBSTEREO2) R/B

700W Max, Class AB 2-Channel Black Box Series Car Amplifier with Piano Black Finish

$69.95

List price $249.00

KTS-MP400MR small

Kenwood KTS-MP400MR

Advanced Marine AM/FM CD, MP3, WMA Receiver

(2)

$119.99

List price $299.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2002 Ford Explorer

1993 GMC C3500

1986 Toyota Camry

2017 Ford Edge

2011 Audi A4 Quattro

2012 Ram 2500

1979 Toyota Cressida

2014 Lexus IS250

2005 Ford Freestyle

2005 Audi A4

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
