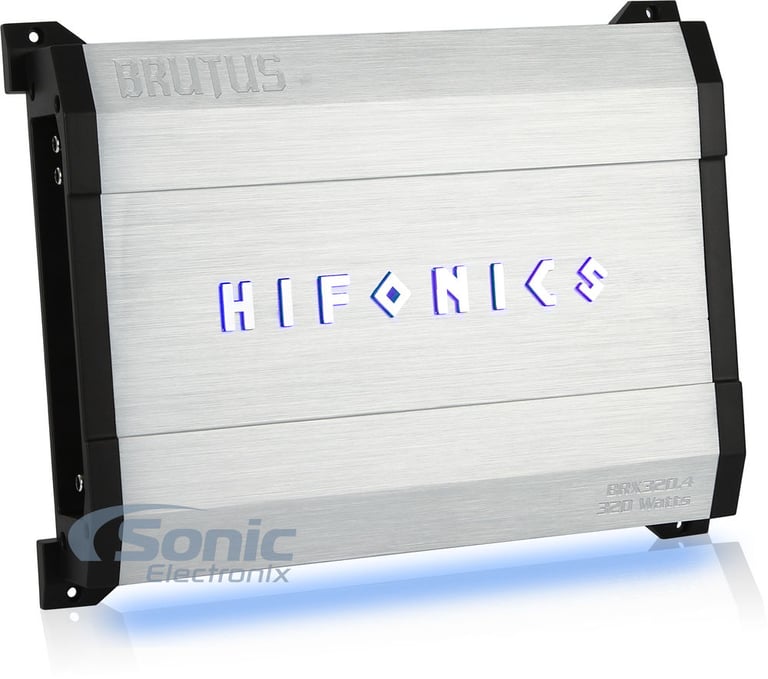

Hifonics BRX320.4

320W 4-Channel Brutus Series Class AB Bridgeable Power Amplifier

Hifonics
Shop all Hifonics
Product videos
highlight-star-icon

• 40W x 4-Chan. @ 4 ohm
• 80W x 4-Chan. @ 2 ohm
• 160W x 2 Chan. @ 4 ohm
• 3-Way System Protection
• 4/3/2/1 Channel Operation
• 8 Gauge Power and Ground Inputs
• Ultra-Fi MOSFETS Circuit for Smooth Sound Quality

Learn more about the brx3204

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

CVP65 main

Cerwin-Vega CVP65 (Sold Individually)

300W Peak (150W RMS) 6.5" CVPRO Series Pro Full Range 4-ohm Speaker

2
-16.67%

$44.99

List price $53.99

Product Highlights


• 40W x 4-Chan. @ 4 ohm
• 80W x 4-Chan. @ 2 ohm
• 160W x 2 Chan. @ 4 ohm
• 3-Way System Protection
• 4/3/2/1 Channel Operation
• 8 Gauge Power and Ground Inputs
• Ultra-Fi MOSFETS Circuit for Smooth Sound Quality

Description


Hifonics brand icon

Authorized dealer

Brutus BRX Amps: Brutal to Competition

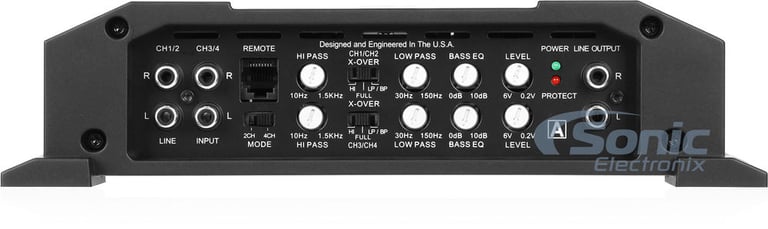

Hifonics Brutus Crossovers

Accu-Cross Crossovers for Sound Shaping

The Gods have struck again from Mt. Olympus. The famous Brutus amplifier has gone through a redesign and now features a new look along with amazing sound. The design for the new Brutus BRX amplifiers has a blue illuminated underglow that gives the amplifier a floating appearance when properly mounted.

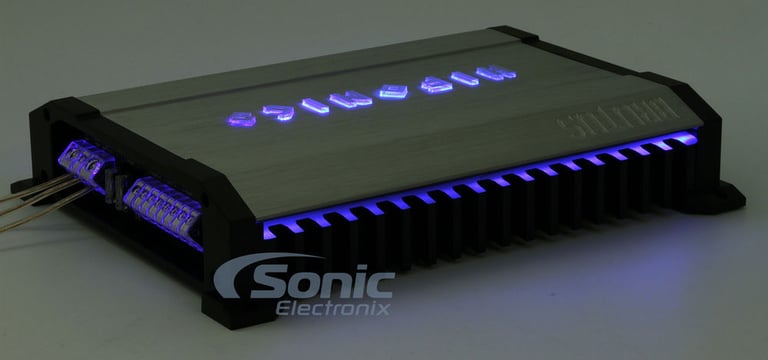

The molded and angled illuminated terminals add to the stylish design and also provide stress-free installation access. Accu-Cross crossovers allow for adjustments and sound shaping. The Ultra-Fi MOSFET power supplies ensure the amplifier can maximize its sound capabilities. The new Brutus BRX amplifiers take it to the next level, and are certainly a brutal amplifier.

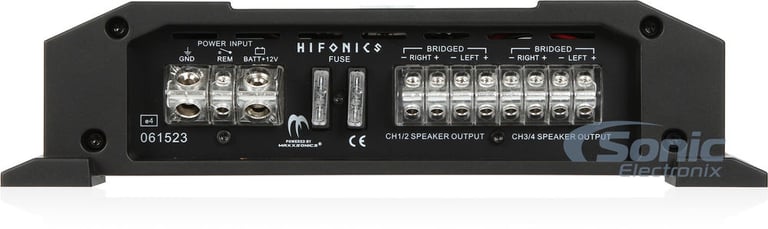

Hifonics Brutus Terminals

Molded and Angled Illuminated Terminals

The full-range multi-channel Brutus BRX amplifiers all feature Super A/B Class technology. This complex circuitry was initially developed purely for the flagship Mt. Olympus amplifiers – however this superior technology was passed on to the Brutus line as well. This efficient circuitry allows for maximum sound quality while also ensuring maximum efficiency.

Initially Brutus amplifiers were only monoblock amplifiers by Hifonics, however for 2013 they deicded this amplifier series was too good to pass up, and added two-channel and four-channel alternatives to their purely subwoofer filled lineup. These new stylish multi-channel amplifiers were welcomed with open arms by the car audio industry, and have performed extremely well on the market since being released.


General Features:

  • Brutus Series 4-Channel Super AB Class Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 40 watts x 4 chan.
    • 2 ohm: 80 watts x 4 chan.
    • Bridged, 4 ohm: 160 watts x 2 chan.
  • Ultra-Fi MOSFETS Circuit maximizing power efficiency while improving sound quality
  • Wired remote bass level control available and sold separately (Hifonics HFR3)
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +10 dB bass boost)
  • Built-in system diagnostics
  • 4/3/2/1 Channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)

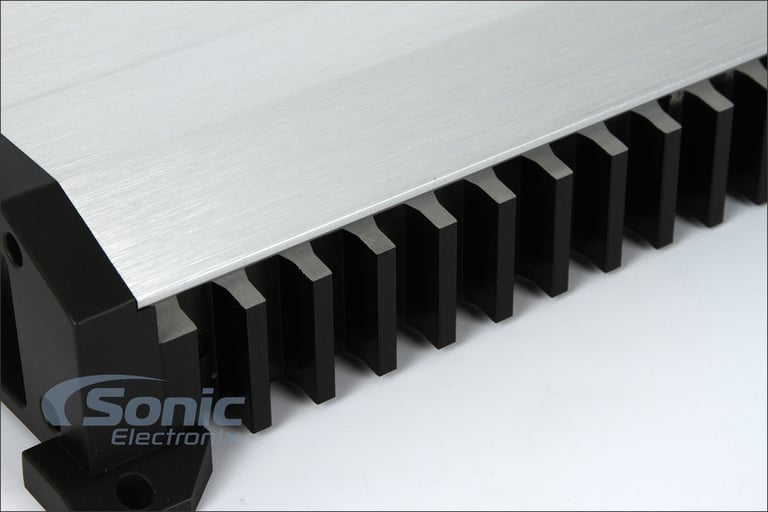

  • Heavy duty aluminum alloy heat-sink with illuminated Hifonics logo

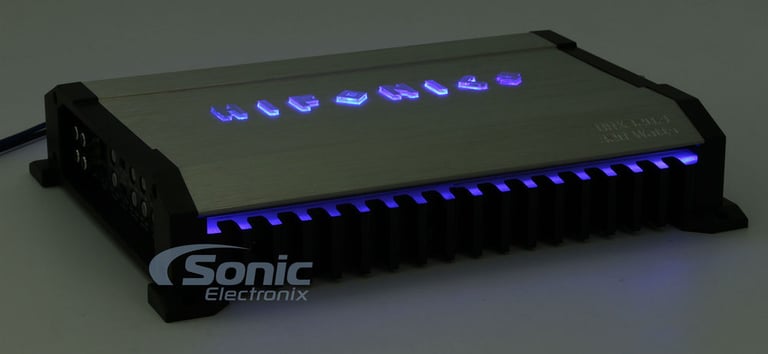

  • Lighted connectors and blue wash of light from the underside of the heatsink
  • Input sensitivity:
    • Level: 200mV-6V
  • Variable high-pass filter (10-1,500 Hz)
  • Variable low-pass filter (30-150 Hz)
  • Frequency response: 10-45,000 Hz
  • 8 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • CEA-2006 compliant amplifier
  • Dimensions: 13-3/16"L x 10-5/16"W x 2-1/2"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

CVP8 main

Cerwin-Vega CVP8 (Sold Individually)

350W Peak (170W RMS) 8" CVPRO Series Pro Full Range 4-ohm Speaker

-16.67%

$49.99

List price $59.99


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

DS 1200X4 small

Taramps DS 1200X4

• 192 watts x 4 channel @ 4 ohm
• 300 watts x 4 channel @ 2 ohm
• Bridged: 600 watts x 2 channel @ 4 ohm
• Total RMS Power: 1200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(5)

$219.99

List price $258.00

R2-500X4 small

Rockford Fosgate Prime R2 R2-500X4

• 75 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(10)

$359.99

List price $359.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
40 watts x 4 channel
RMS Power @ 2 ohms
80 watts x 4 channel
Bridged RMS Power
160 watts x 2 channel
Amplifier Specifications
Series
Brutus Series
Amplifier Class
A/B
Number of Channels
4-Channel
Total RMS Power Output
320 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
10 - 15000 Hz
Low-Pass Crossover Frequency
30 - 250 Hz
Signal-to-Noise Ratio
90 dB
Channel Separation
80 dB
Bass Boost
0 - 10 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fuse Rating
25A x 2
Strappable
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

BRX320.4

Weight:

9.00lbs

Internal SKU:

brx3204

Internal Product ID:

67929
