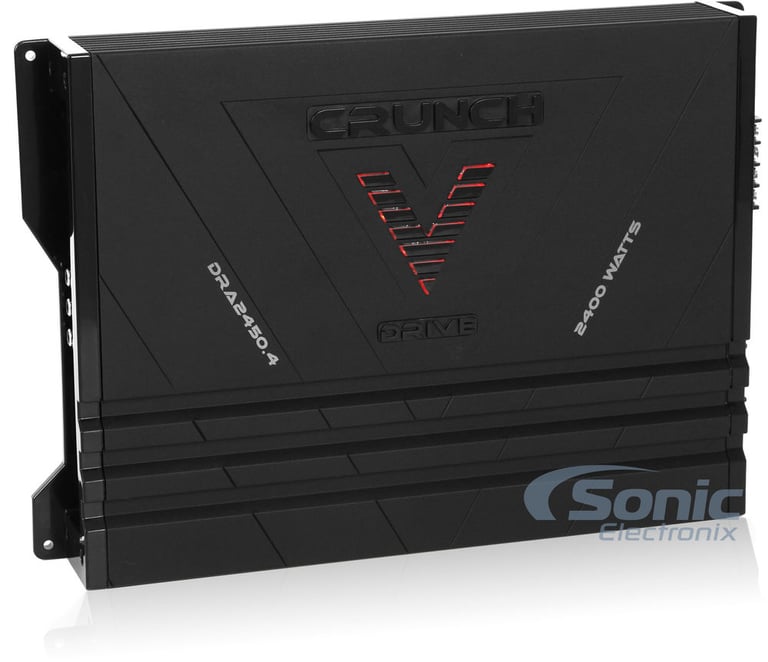

Crunch DRA2450.4

2400W V-Drive Series 4-Channel Class AB Car Amplifier

Crunch
Shop all Crunch
Product videos
highlight-star-icon

• 2400 Watts Max
• 600 Watts x 4-Chan. @ 2 Ohm
• 3-Way System Protection
• Selectable Highpass/Lowpass Filters

Learn more about the dra24504

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

PRO-X694BM main

DS18 PRO-X694BM (Sold individually)

400W Peak (200W RMS) 6x9” PRO-X Series 4-ohm Midrange Bullet Loudspeaker

2
FRING69 main

NVX FRING69

Universal 6x9" Self-Adhesive Foam Speaker Baffle Ring Kit (Pack of 2)

13
-20.01%

$15.99

List price $19.99

Kicker KSC69 (51KSC6904)

600W Peak (300W RMS) 6x9" KS Series 2 Way Coaxial 4-ohm Shallow Mount Speakers

-11.11%

$159.99

List price $179.99

Product Highlights


• 2400 Watts Max
• 600 Watts x 4-Chan. @ 2 Ohm
• 3-Way System Protection
• Selectable Highpass/Lowpass Filters

Description


Crunch brand icon

Authorized dealer

  • V-Drive Series 4-Channel Class A/B Car Amplifier
  • Max Power Rating:
    • 4 ohm: 300 watts x 4 chan.
    • 2 ohm: 600 watts x 4 chan.
    • Bridged, 4 ohm: 1200 watts x 2 chan.
  • SPEED-FETS, High Speed Pulse Width Modulated MOSFET power supply
  • V-Drive 3P Power supply with Twin-Coil Isolation Design (TCID) power supplies for maximum efficiency in converting 12volt power into huge watts through the amplifiers
  • Exponential variable-power supply (EXVP) for efficient DC to AC conversion
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +12 dB bass boost at 45 Hz)
  • Soft Start Turn-on
  • 4/3/2/1 channel operation
  • Illuminated badge and heatsink
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-Way System Protection circuitry (DC, thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • Silver-plated RCA level inputs
  • Input sensitivity:
    • Level: 200mV-6V
  • Variable high-pass filter (60-12,000 Hz)
  • Variable low-pass filter (30-250 Hz, 24 dB/octave)
  • Damping factor: >180
  • Frequency response: 10-45,000 Hz
  • Dimensions: 13-3/4"L x 9-1/2"W x 2-1/8"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
2400 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.05%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
60 - 1200 Hz
Low-Pass Crossover Frequency
30 - 250 Hz
Signal-to-Noise Ratio
90 dB
Channel Separation
80 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
No
Fuse Rating
40A x 2
Strappable
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

DRA2450.4

Weight:

8.20lbs

Internal SKU:

dra24504

Internal Product ID:

67959

Product and How-to Videos


  • Crunch V-Drive Ground Pounder Car Amplifier | Maxxsonics @ CES 2013
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews


Crunch DRA2450.4 thumbnail image

5 star
80%
4 star
20%
3 star
0%
2 star
0%
1 star
0%



Durability
4.4
Value
4.8
Features
4.8
Design
4.8
Usability
4.8

Customer Reviews

Sort by:

Loading...

Great Value

Great amp. very strong and clear, it's worth every penny.

By THILL on September 18, 2013

16 found this helpful


product review

I purchased this product about your bro I'm running off for pioneers pretty loud speakers for that but the amp is not enough power for them I'm running the Pioneer pros and one of terminals burn just cause it was not enough power but overall its a good looking up a file and perform very well recommended for anybody to buy

By Carlos on January 11, 2014

16 found this helpful


Clean, Clear, Loud and Proud

I bought this amp to replace a soundstorm EV1600.4 and the difference is phenomenal! I have clear, clean, powerful sound. I haven't blown any fuses but my eardrums may not be so lucky! Honestly I have never rated anything 5 stars in every category, but this amp deserves all 5's. Maybe not the greatest and yes you can find better, but for the price to performance ratio this is a winner.

By Fahn2k on September 9, 2013

14 found this helpful


CRUNCH AMP 2450

yes I would recommend this product. Pros easy to hook up and use.So far so good,speakers sound great.
Cons gets a hot should have a fan built inside.I have installed in my truck under the back sit.If installed in a trunk I would recommend a fan installed with it.That is why I gave 3 stars for durability.

By BONES on June 15, 2015

8 found this helpful


great price

This is one of the best amps I recommend it to anyone.

By prelude express on May 30, 2015

6 found this helpful
