Name: Crunch DRA3250.1D (Factory Refurbished)
Brand: Crunch
SKU: LS-dra32501d-RB
Price: 119.99 USD
Availability: Discontinued

by Crunch

About
Specs & Details
Product Videos
Reviews
Add-ons
Related Searches

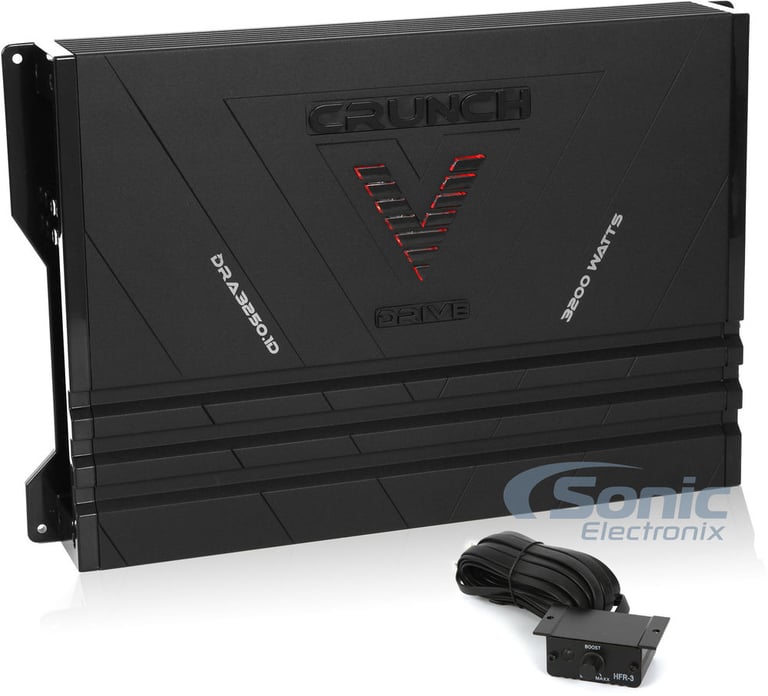

Crunch DRA3250.1D (Factory Refurbished) Image 1 — Crunch DRA3250.1D (Factory Refurbished)

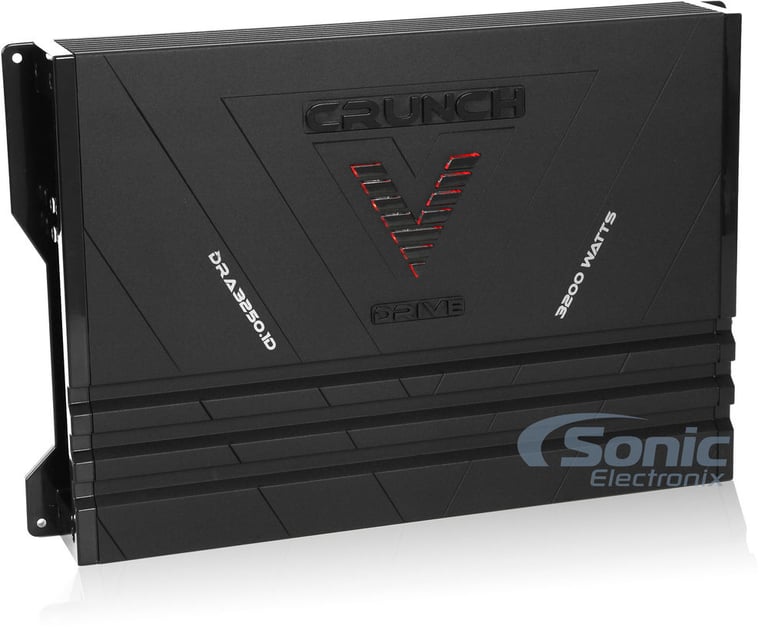

Crunch DRA3250.1D (Factory Refurbished) Image 2 — Crunch DRA3250.1D (Factory Refurbished)

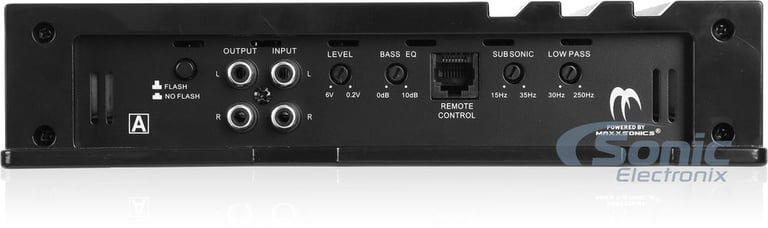

Crunch DRA3250.1D (Factory Refurbished) Image 3 — Crunch DRA3250.1D (Factory Refurbished)

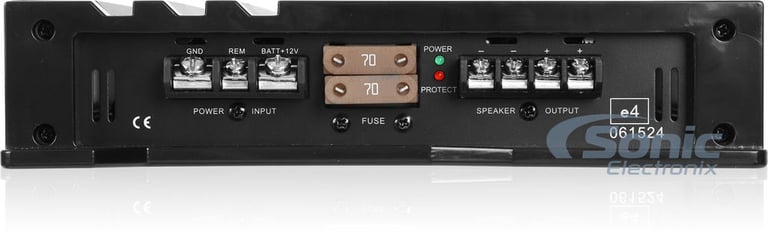

Crunch DRA3250.1D (Factory Refurbished) Image 4 — Crunch DRA3250.1D (Factory Refurbished)

Crunch DRA3250.1D (Factory Refurbished) Image 5 — Crunch DRA3250.1D (Factory Refurbished)

Crunch DRA3250.1D (Factory Refurbished) Image 6 — Crunch DRA3250.1D (Factory Refurbished)

Crunch DRA3250.1D (Factory Refurbished)-video

Product videos

Product highlights

• Peak: 800W x 1 @ 4 ohm, 1600W x 1 @ 2 ohm, 3200W x 1 @ 1 ohm
• Total Peak Power: 3200W
• Class D Circuitry
• Bass Boost: 0-10 dB
• Wired Bass Remote Included
• Dimensions: 14-9/16"L x 9-1/2"W x 2-1/8"H

Learn more about the LS-dra32501d-RB

Product Highlights

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

V-Drive Series Single Channel Monoblock Class D Car Amplifier
Product is Factory Refurbished
Max Power Rating:
- 4 ohm: 800 watts x 1 chan.
- 2 ohm: 1600 watts x 1 chan.
- 1 ohm: 3200 watts x 1 chan.

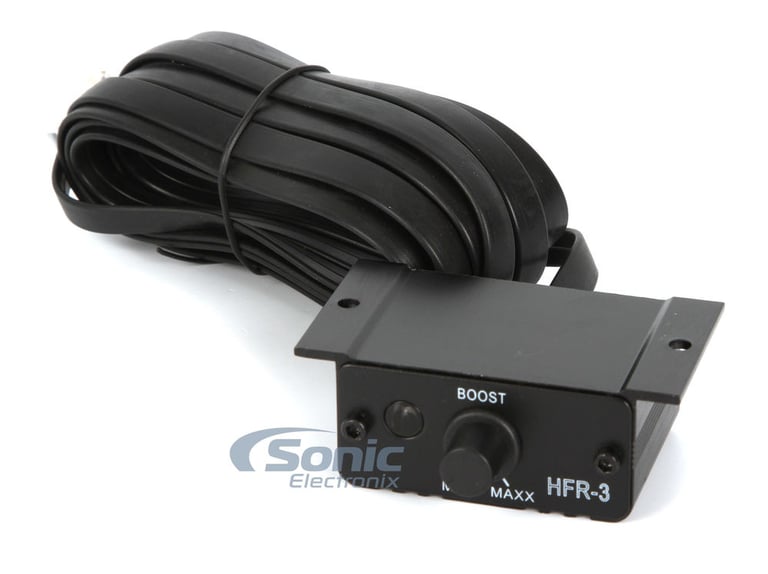

Wired bass level remote included
SPEED-FETS, High Speed Pulse Width Modulated MOSFET power supply
V-Drive 3P Power supply with Twin-Coil Isolation Design (TCID) power supplies for maximum efficiency in converting 12volt power into huge watts through the amplifiers
Exponential variable-power supply (EXVP) for efficient DC to AC conversion
LED power (green) and protect (red) indicators
Variable Bass Boost (0 to +10 dB bass boost at 45 Hz)
Soft Start Turn-on
1 channel operation
Illuminated badge and heatsink
Preamp RCA outputs to daisy chain multiple amps
3-Way System Protection circuitry (DC, thermal, overload, and speaker short protection)
Heavy duty aluminum alloy heatsink for extreme heat dissipation
Silver-plated RCA level inputs
Silver-plated screw terminals
Input sensitivity:
- Level: 200mV-6V
Variable low-pass filter (30-250 Hz, 24 dB/octave)
Variable subsonic filter (15-30 Hz)
Damping factor: >200
Frequency response: 15-250 Hz
Dimensions: 14-9/16"L x 9-1/2"W x 2-1/8"H
4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
Authorized Internet Dealer
90-Day Manufacturer's warranty

Specifications & Details

Amplifier Specifications

Amplifier Class

Number of Channels

1 - Mono

Total Peak Power Output

3200 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

1 ohm

Minimum Impedance Bridged

Not Bridgeable

THD at Rated RMS Power

0.10%

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)

Low-Pass Crossover Frequency

30 - 250 Hz

Subsonic Filter

15 - 30 Hz

Signal-to-Noise Ratio

95 dB

Bass Boost

0 - 10 dB

Remote bass/level controller

Yes

Fuse Rating

70A x 2

Strappable

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Manufacturer
