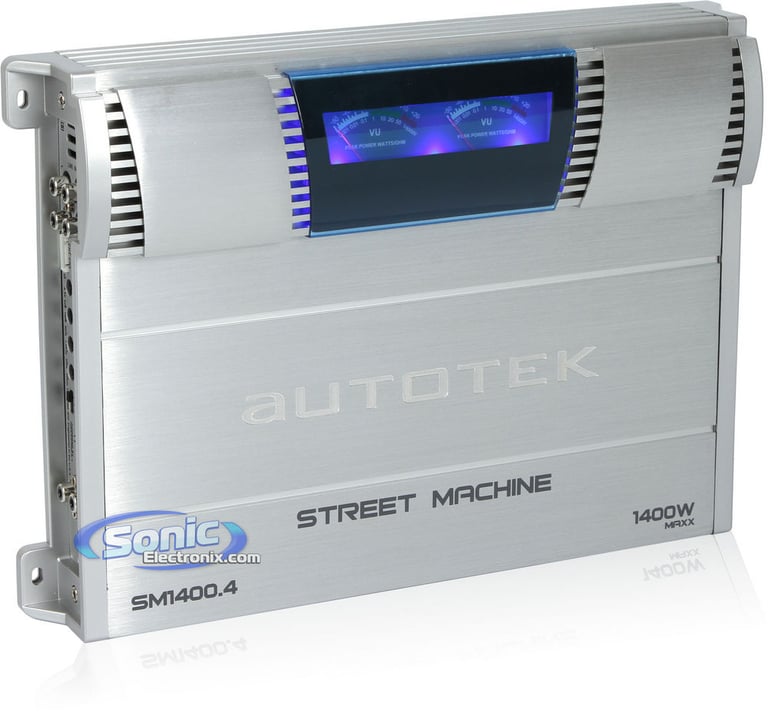

Autotek Street Machine SM1400.4

1400W 4-Channel Street Machine Series Class AB Car Amplifier (SM14004)

Autotek
Shop all Autotek
Product videos
highlight-star-icon

• 125W x 4-Chan. @ 4 ohm
• 250W x 4-Chan. @ 2 ohm
• 500W x 2 Chan. @ 4 ohm
• 3-Way System Protection
• 4/3/2 Channel Operation
• 4 Gauge Power and Ground Inputs
• Illuminated VU Meter for Retro Design

Learn more about the sm14004

We apologize

This item has been discontinued


Loading...
72-8104 main

Metra 72-8104

Install New Speakers in select 1990-2024 vehicles from Toyota, Subaru, Mitsubishi

87
-20.01%

$11.99

List price $14.99

70-1761 main

Metra 70-1761 Wiring Harness

Install a new car stereo in select 1984-2022 vehicles from Toyota, Subaru, Scion

97
-14.31%

$5.99

List price $6.99

82-8146 main

Metra 82-8146

6x9" Speaker Bracket for select 2002-2024 vehicles from Toyota, Subaru, Lexus

31
-46.07%

$19.95

List price $36.99

40-LX11 main

Metra 40-LX11

Connect your factory antenna to a new aftermarket radio for select 2006-2025 vehicles from Toyota, Subaru, Lexus

35
-16.68%

$14.99

List price $17.99

SASCN656 main

Scosche SASCN656

select 2004-2016 vehicles from Scion, Nissan Speaker Adapter

1
-13.38%

$12.95

List price $14.95

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Product Highlights


• 125W x 4-Chan. @ 4 ohm
• 250W x 4-Chan. @ 2 ohm
• 500W x 2 Chan. @ 4 ohm
• 3-Way System Protection
• 4/3/2 Channel Operation
• 4 Gauge Power and Ground Inputs
• Illuminated VU Meter for Retro Design

Description


Autotek brand icon

Authorized dealer

General Features:

  • Street Machine Series 4-Channel Monoblock Class AB Car Amplifier
  • Max Power Rating:
    • 4 ohm: 125 watts x 4 chan.
    • 2 ohm: 250 watts x 4 chan.
    • Bridged, 4 ohm: 500 watts x 2 chan.
  • Pulse Width Modulated MOSFET power supply
  • Brushed aluminum design

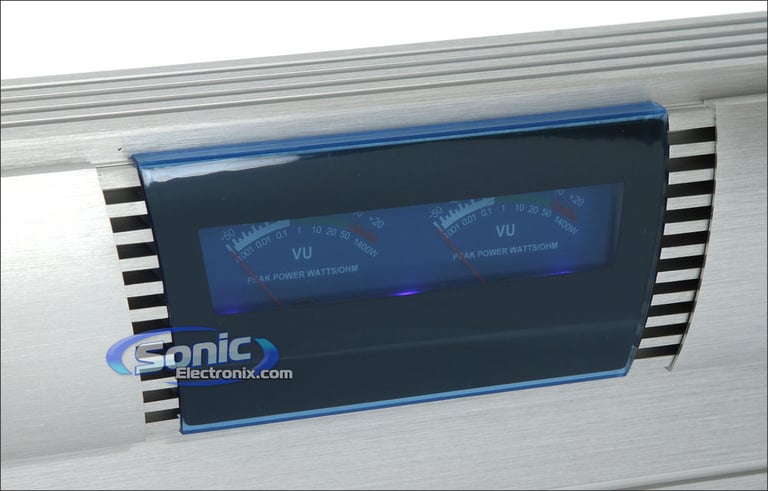

  • Illuminated power VU meter for stylish retro look
  • Molded and angled terminals for rugged and user friendly installation
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +12 dB bass boost at 50 Hz)
  • Soft start turn-on
  • 4/3/2/1 channel operation
  • Speaker-level (high-level) inputs with signal sensing for automatic turn-on
  • Preamp RCA outputs to daisy chain multiple amps
  • 4-way protection circuitry (thermal, overload, and speaker short protection, DC)
  • Heavy duty aluminum alloy heat-sink
  • Input sensitivity:
    • Level: 200mV-5V
  • Variable high-pass filter (60-12,000 Hz)
  • Variable low-pass filter (30-250 Hz)
  • Damping factor: >180
  • Frequency response: 30-45,000 Hz
  • 8 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 9-3/8"W x 11"D x 2-1/2"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
