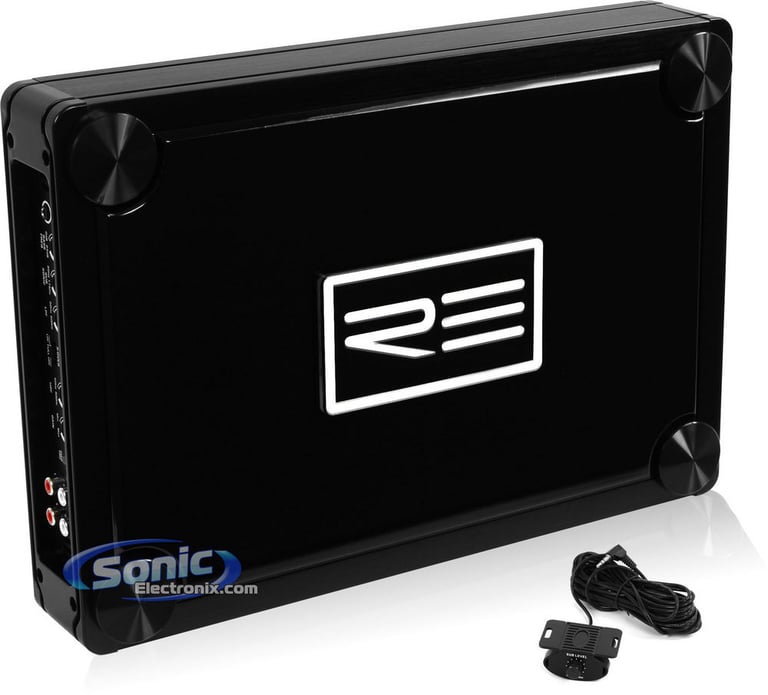

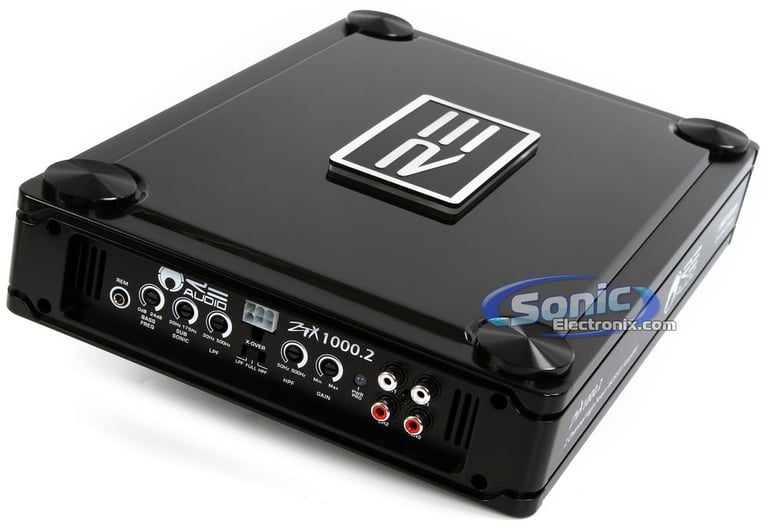

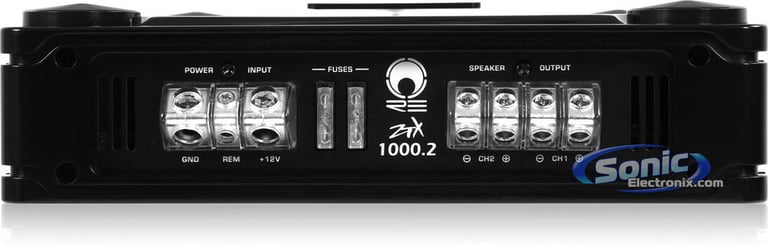

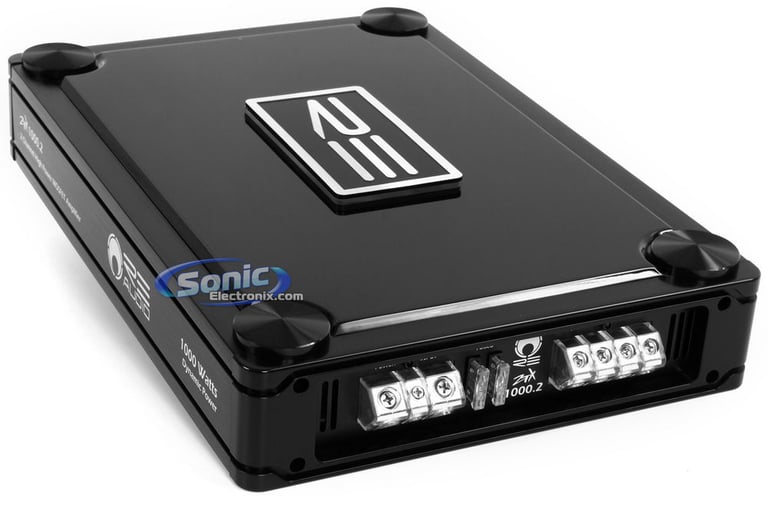

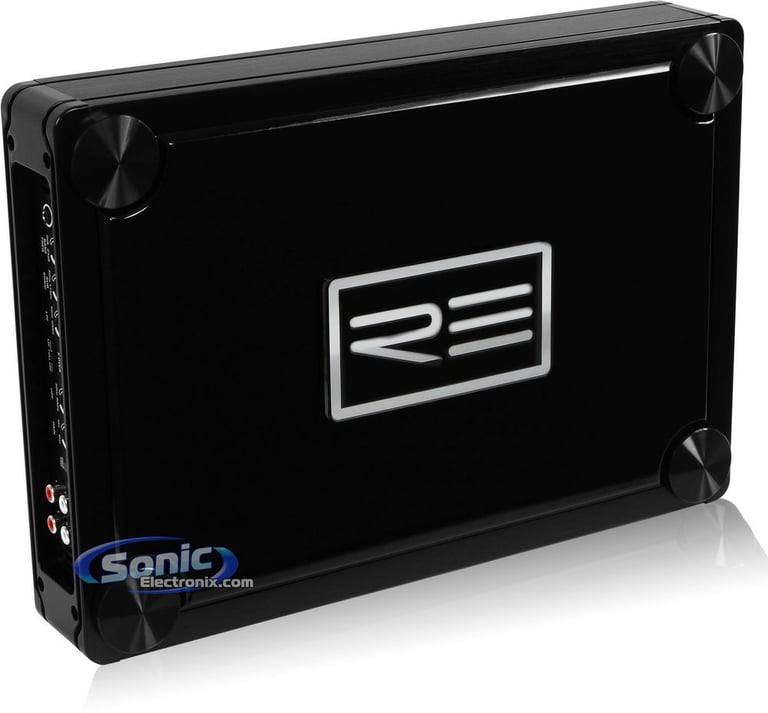

RE Audio ZTX-1000.2

310W RMS 2-Channel Class AB ZTX Series Car Amplifier

RE Audio
Shop all RE Audio
Product videos
highlight-star-icon

• ZTX Series 2-Channel Class AB Amplifier
• 120W x 2 Chan. @ 4 ohm
• 180W x 2 Chan. @ 2 ohm
• 310W x 1 Chan. @ 4 ohm
• 3-Way System Protection
• 2/1 Channel Operation
• 4 Gauge Power and Ground Inputs
• Variable Bass Boost 0-24 dB

Learn more about the ztx10002

We apologize

This item has been discontinued


Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

Product Highlights


• ZTX Series 2-Channel Class AB Amplifier
• 120W x 2 Chan. @ 4 ohm
• 180W x 2 Chan. @ 2 ohm
• 310W x 1 Chan. @ 4 ohm
• 3-Way System Protection
• 2/1 Channel Operation
• 4 Gauge Power and Ground Inputs
• Variable Bass Boost 0-24 dB

Description


RE Audio brand icon

Authorized dealer

General Features:

  • ZTX Series 2-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 120 watts x 2 chan.
    • 2 ohm: 180 watts x 2 chan.
    • Bridged, 4 ohm: 310 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +24 dB bass boost at 45 Hz)
  • Soft start turn-on
  • 2 or Mono channel operation

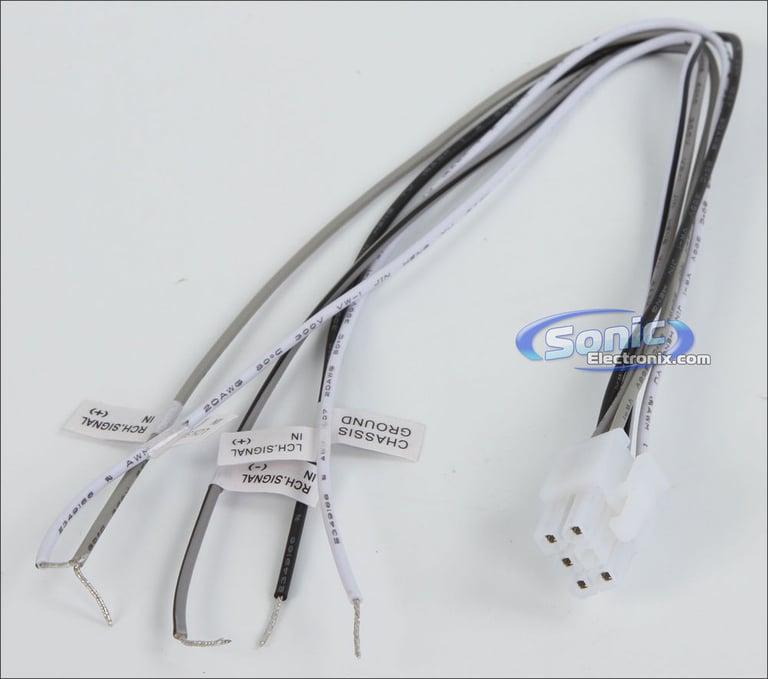

  • Speaker-level (high-level) inputs with signal sensing for automatic turn-on
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink
  • Input sensitivity:
    • Level: 125mV-5V
  • Variable high-pass filter (50-500 Hz, 12 dB/octave)
  • Variable low-pass filter (30-500 Hz, 24 dB/octave)
  • Variable subsonic filter (30-175 Hz, 24 dB/octave)
  • 8 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 9-1/2"W x 13-11/16"L x 2-7/16"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
120 watts x 2 channel
RMS Power @ 2 ohms
180 watts x 2 channel
Bridged RMS Power
310 watts x 1 channel
Amplifier Specifications
Series
ZTX Series
Amplifier Class
A/B
Number of Channels
2-Channel
Total Peak Power Output
1000 watts
Total RMS Power Output
310 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.02%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
30 - 500 Hz
Low-Pass Crossover Frequency
30 - 500 Hz
Subsonic Filter
30 - 175 Hz
Signal-to-Noise Ratio
90 dB
Channel Separation
90 dB
Bass Boost
0 - 24 dB
Remote bass/level controller
No
Fuse Rating
25A x 2
Strappable
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

ZTX-1000.2

Weight:

7.50lbs

Internal SKU:

ztx10002

Internal Product ID:

68117

Product and How-to Videos


  • RE Audio New Product Line Overview | CES 2015
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews


RE Audio ZTX-1000.2 thumbnail image

5 star
0%
4 star
0%
3 star
0%
2 star
100%
1 star
0%



Durability
3
Value
4
Features
3
Design
4
Usability
1

Customer Reviews

Sort by:

Loading...

NOT Happy

I guess there is a reason its discontinued. Im not happy with it. I can not get it balanced. Not happy so much i went back to my 15 year old amp.

By steve on November 16, 2013
