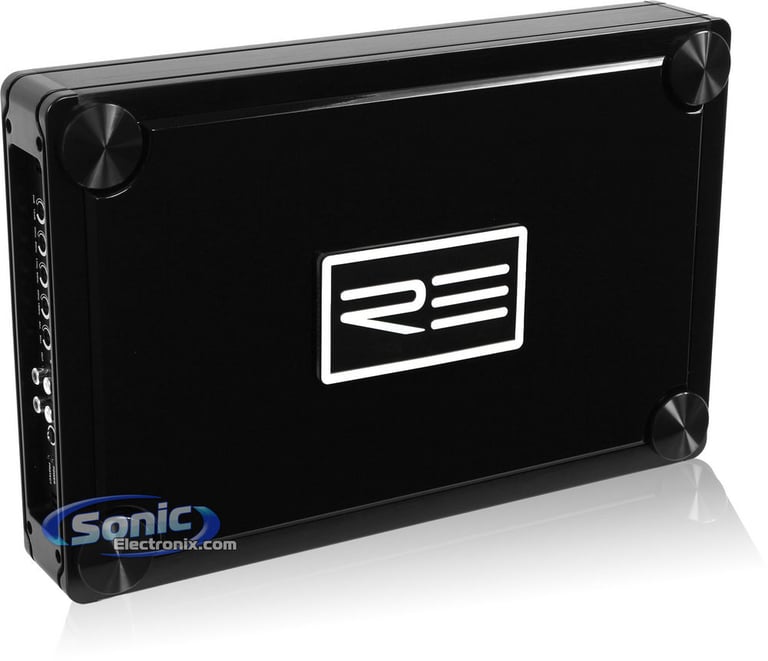

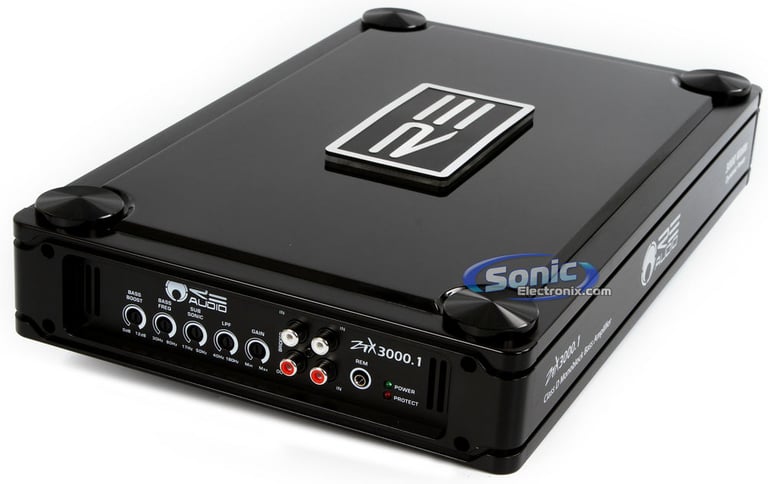

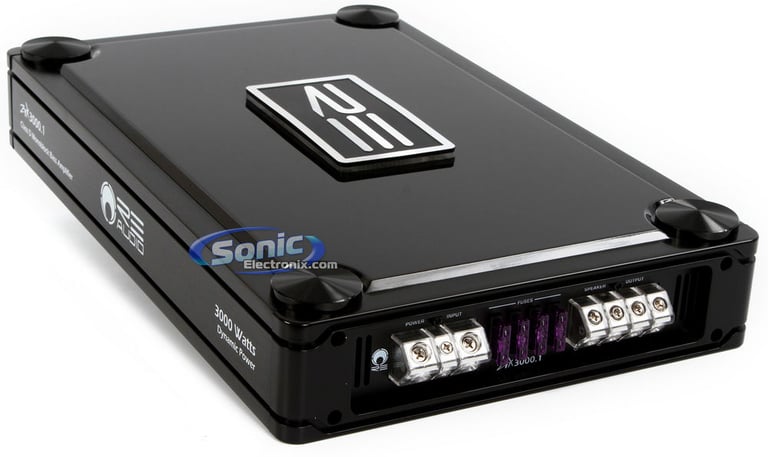

RE Audio ZTX-3000.1

1400W RMS Monoblock Class D ZTX Series Car Amplifier

RE Audio
Shop all RE Audio
Product videos
highlight-star-icon

• ZTX Series Monoblock Class D Amplifier
• 600W x 1 Chan. @ 4 ohm • 1000W x 1 Chan. @ 2 ohm • 1400W x 1 Chan. @ 1 ohm
• 3-Way System Protection
• 1 Channel Operation
• 1/0 Gauge Power and Ground Inputs
• Variable Bass Boost 0-12 dB

Learn more about the ztx30001

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-5600 main

Metra 72-5600

Install New Speakers in select 1993-2017 vehicles from Ford, Mazda, Mercury

109
-33.36%

$9.99

List price $14.99

40-VW10 main

Metra 40-VW10 Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 1973-2025 vehicles from Audi, Mercedes-Benz, Volkswagen

22
-33.36%

$7.99

List price $11.99

40-VW53 main

Metra 40-VW53 Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 1973-2025 vehicles from Audi, Mercedes-Benz, Volkswagen

3
-27.79%

$12.99

List price $17.99

70-1770 main

Metra 70-1770 Wiring Harness

Install a new car stereo in select 1986-2004 vehicles from Ford, Mercury, Mazda

22
-14.31%

$5.99

List price $6.99

95-5806 main

Metra 95-5806 Dash Kit

Install a new Double-DIN car stereo in select 1999-2004 Focus and Cougar

13
-11.54%

$22.99

List price $25.99

99-5806 main

Metra 99-5806 Dash Kit

Install a new Single-DIN car stereo in select 1999-2004 Focus and Cougar

3
-10.00%

$26.99

List price $29.99

FMK566 main

American International FMK566

Double DIN Stereo Dash Kit for select 1999-2004 vehicles from Ford, Mercury

-70.87%

$6.99

List price $24.00

SA68 main

Scosche SA68

Add 5-1/4" or 6-1/2" Speakers to Factory 6" x 8" Mounting Locations for select 1950-2025 vehicles from Ford, Mercury, Mazda

39
-46.70%

$7.99

List price $14.99

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28

Product Highlights


• ZTX Series Monoblock Class D Amplifier
• 600W x 1 Chan. @ 4 ohm • 1000W x 1 Chan. @ 2 ohm • 1400W x 1 Chan. @ 1 ohm
• 3-Way System Protection
• 1 Channel Operation
• 1/0 Gauge Power and Ground Inputs
• Variable Bass Boost 0-12 dB

Description


RE Audio brand icon

Authorized dealer


Beyond the Limit – Again!

That’s where RE Audio has taken their new ZTX v2 amplifier line. They didn’t just pick up where the XTX series left off – The USAmps/RE Audio Engineering Team did so by coming up with a radical new cosmetic design incorporating a wooden top plate with a piano “Black Lacquer” finish and a “Back-lit” RE logo badge. And the rest – The sound and power classes that match perfectly with all their speaker systems and subwoofers.

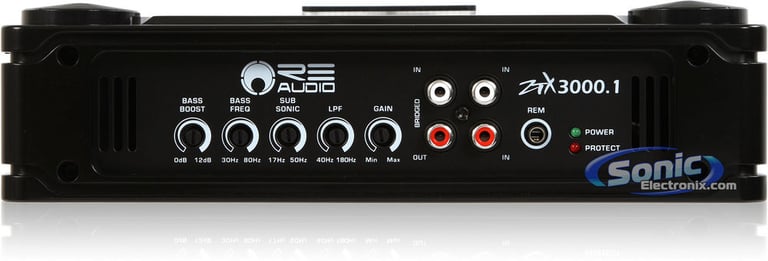

RE Audio ZTX-3000.1 (ZTX3000.1)


General Features:

  • ZTX Series Monoblock Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 600 watts x 1 chan.
    • 2 ohm: 1000 watts x 1 chan.
    • 1 ohm: 1400 watts x 1 chan.
  • Max power output: 3000 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +12 dB bass boost at 45 Hz)

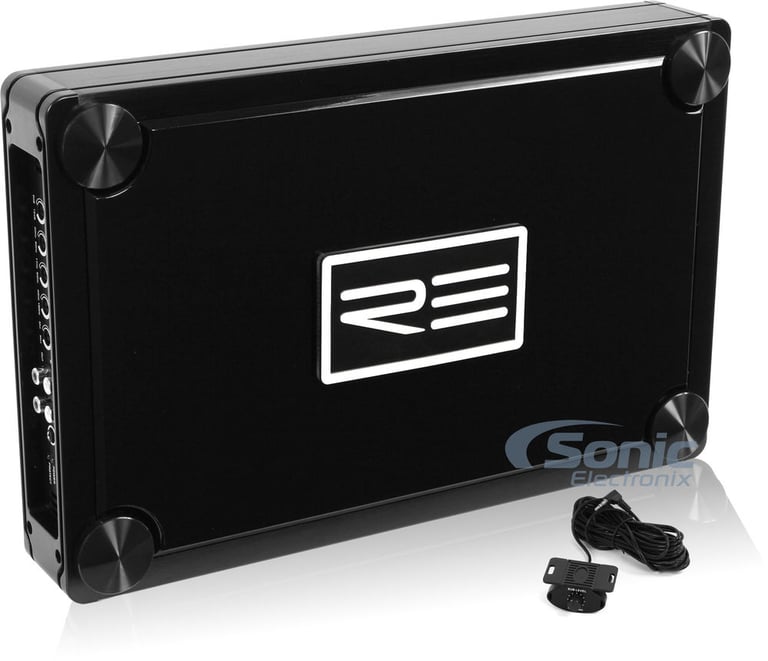

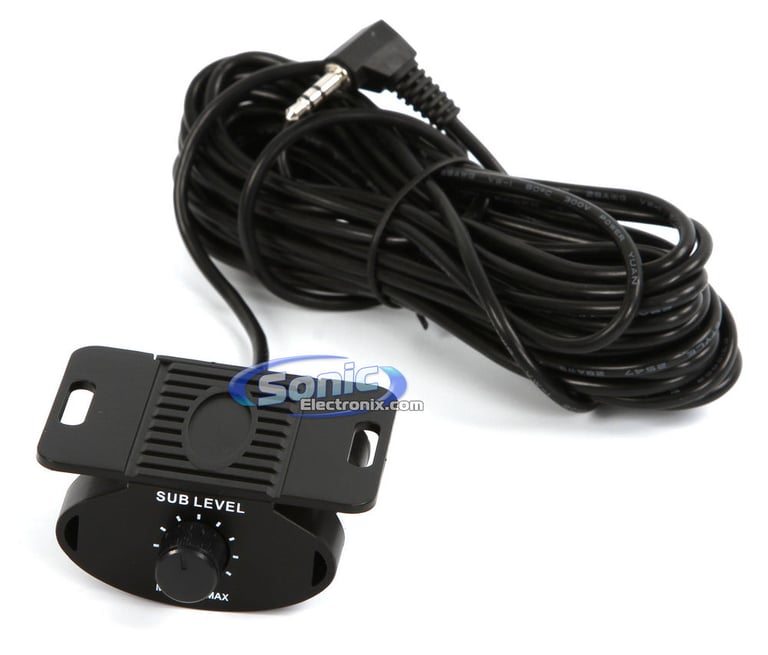

  • Wired remote control bass knob included
  • Soft start turn-on
  • Mono channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heat-sink
  • Input sensitivity:
    • Level: 100mV-6V
  • Variable low-pass filter (40-180 Hz, 24 dB/octave)
  • Variable subsonic filter (17-50 Hz, 24 dB/octave)

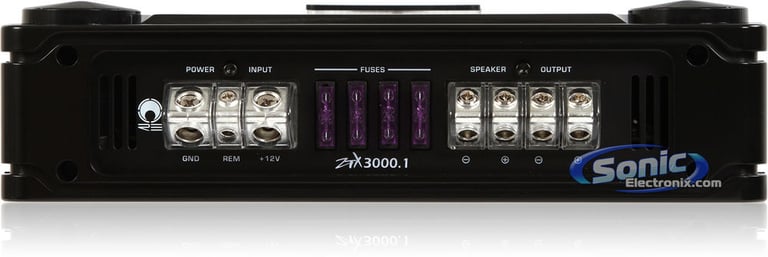

  • 1/0 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 9-1/2"W x 14-3/4"L x 2-7/16"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$449.99

List price $449.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(36)

$259.99

List price $335.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(38)

$209.99

List price $227.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(25)

$429.99

List price $429.99

CXA400.1 small

Kicker CXA400.1 (46CXA4001T)

• 150 watts x 1 channel @ 4 ohm
• 300 watts x 1 channel @ 2 ohm
• 400 watts x 1 channel @ 1 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable Monoblock Amplifier

(10)

$199.99

List price $219.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
600 watts x 1 channel
RMS Power @ 2 ohms
1000 watts x 1 channel
RMS Power @ 1 ohm
1400 watts x 1 channel
Amplifier Specifications
Series
ZTX Series
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
3000 watts
Total RMS Power Output
1400 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
0.05%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
40 - 180 Hz
Subsonic Filter
17 - 50 Hz
Signal-to-Noise Ratio
90 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Fuse Rating
35A x 4
Strappable
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

ZTX-3000.1

Weight:

9.00lbs

Internal SKU:

ztx30001

Internal Product ID:

68118

Product and How-to Videos


  • RE Audio New Product Line Overview | CES 2015
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews


RE Audio ZTX-3000.1 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
4.8
Value
5
Features
4.8
Design
5
Usability
4.5

Customer Reviews

Sort by:

Loading...

Great sound! Great quality! Great purchase!

I have two Kenwood Kfc-w3013ps 12" subs in a custom ported box i built, and this amp pushes them wonderfully! I have them wired to 2 ohms and my voltage stays pretty steady. I also however have a 4.5F Cap wired in, but I'm not completely sure if it works properly (my capacitor every so often says the voltage going through it is high and it also beeps in particular patterns. The build on the Amp is great! The amp looks so nice and sleek and has an LED glow beneath the logo. The LEDs are bright enough but they wont brighten up your whole car at night, and they aren't distracting. Before i made my decision to buy this product, i was also considering a Brutus amp from Hifonics with equal wattage values. It was a close tie, but i preferred this amp, because of the name and build quality. I am very happy with this buy and certainly recommend the ZTX-3000.1.

By RedTheBassHead on December 16, 2014

26 found this helpful


powerful/quality amplifier

This amplifier puts more then its rated rms power on 14.4v, I have it powering my re sex-15 down to 1 ohm, thinking of buying another one.
I love this amp definitely getting another amp from this series to power my mids and highs

By Ace on December 30, 2014

25 found this helpful


Best Value Hands Down

For the $ this amp can't be beat. I'm running it at 2 ohms, it pushes my Alpine Type X to the limit. My trunk build is simple with 1 10'' sub, 1 1k watt amp, 1 line driver, custom enclosure, with one goal.... 140+ db, on TL. I'm almost there, high 30's now. If you don't want to upgrade your electrical or unload your wallet, go with this amp, it's stable to 1 ohm, it's cousin amp was dyno tested and put out more than rated. Keep in mind it is not CEA compliant but that does NOT mean it doesn't put out rated, just means CEA hasn't gotten around to giving RE the CEA compliant label YET. Get this amp, you won't be disappointed.

By Loud Camry on November 20, 2014

26 found this helpful


great amplifier

i've got this amp pushing 2 15" Skar VVXv2's @ 1 ohm and it does that flawlessly. definetly does rated and doesnt strain an stock electrical system as well... ive got 1/0 ran from front to back and 1/0 ground.. both power and grounds have 1/0 to 4 gauge adapters that fit into the 45'd molded terminals .... you wont fit 1/0 or even most 4 gauge so i suggest adatpers.... overall great amp great power

By parker on January 25, 2015

24 found this helpful




AC2000-20 small

Carwires AC2000-20

2-Channel Twisted-Pair Car Audio Cable (20 ft)

$15.99

List price $24.99

MPC-P4001R-20 small

Monster Cable MPC P400 1R-20

20 ft. of 1/0 Gauge RED Monster 400 PowerFlex+ Power & Ground Cable

(1)

$98.00

List price $149.99

MPC-P300-8S-5 small

Monster Cable MPC P300 8S-5

5 Ft of 8 Gauge Monster 300 PowerFlex Power & Ground Cable

(1)

$10.00

List price $14.99

TD1000.1D small

MTX TD1000.1D

1000W RMS Monoblock TD Series Class D Car Amplifier

(5)

$169.95

List price $449.95

LP-750.1D small

SKAR Audio LP-750.1D

750W RMS LP Series Class D Monoblock Single Channel Car Amplifier

(1)

$234.99

List price $349.99

KX1-4000D small

Kole Audio KX1-4000D

4000W Max, KX Series Class D Monoblock Amplifier

(3)

$249.99

List price $449.99

AVN6620 small

Eclipse AVN6620 / AVN62D

Double DIN 7" TFT-LCD Touchscreen DVD/CD/MP3 Receiver with GPS Navigation System (AVN-6620)

$549.99

List price $1599.99

MPC-P200-8R-25 small

Monster Cable MPC P200 8R-25

25 ft of Monster 200 Series 8 Gauge Red Power Cable

(3)

$20.99

List price $29.99

APMI-1500 small

Audiopipe APMI-1500

1500W APMI Mini Series Class D Monoblock Subwoofer Amplifier

(7)

$148.99

List price $249.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2002 Ford Focus

2018 MINI Cooper

2018 Ford Flex

2002 Hyundai Sonata

2007 Lexus ES350

2012 Suzuki Equator

2008 Audi A3

1979 MG Midget

2004 Audi A4 Quattro

2006 BMW 650i

Vehicle
Store
Delete

2002 Harley Davidson FXSTD Softail Deuce

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
